Why do the SPL front endlinks use Chromoly misalignment studs instead of a standard ball stud?

Standard ball studs have a limited articulation range, typically 15 to 20 degrees. When aftermarket sway bars use different adjustment holes that move the sway bar connection point relative to the factory angle, a standard stud can bind or operate near its articulation limit, which reduces the sway bar's effectiveness and puts stress on the endlink joint. The heat-treated Chromoly High Misalignment Studs on the SPL FE E9M provide 65 degrees of articulation, which prevents binding across all adjustment hole positions on any aftermarket sway bar, preserving full lateral load transfer without compromise.

Why does endlink length adjustment matter if the car is running stock ride height?

Even at stock ride height, springs settle over time and corner weighting creates slight differences in suspension height between left and right. If both endlinks are the same fixed length, this height difference introduces preload into the sway bar; the bar is being twisted slightly even in a straight line, which changes the effective roll stiffness and can create an asymmetric handling response. Adjustable endlinks allow the length on each side to be set independently so the sway bar sits at zero preload regardless of the suspension height at each corner.

Do I need to measure anything before ordering if I have aftermarket coilovers?

Yes, and this is important. Many aftermarket coilover manufacturers move the upper shock mount from the OEM position, which changes the distance between the sway bar and the shock mount. The SPL FE E9M covers an OEM mounting position range of 12.9 to 14.4 inches. If the measurement on your car falls outside that range, this part will not reach and a custom length will be needed. Measure the distance between the sway bar and shock mount, and if it does not fall between 12.9 and 14.4 inches, contact us before ordering with your specific measurement.

Are the SPL FE E9M endlinks suitable for street driving, or are they track-only?

These endlinks are explicitly designed for both street and race applications. The PTFE-lined FK bearings and Chromoly misalignment studs are built for high-load performance use, but SPL Parts does not classify them as race-only. For street use they offer the same benefit as on track; elimination of rubber deflection, precise length setting, and full articulation without binding.

What is included in the SPL FE E9M pair?

Each pair includes the left and right adjustable front sway bar endlinks, each consisting of the black anodized 6061-T6 aluminum turnbuckle, PTFE-lined FK 1/2-inch bearing at the shock mount, heat-treated Chromoly High Misalignment Stud at the sway bar connection, and left and right hand threaded rod ends for length adjustment. Sold as a pair at $223.99. Part number: SPL FE E9M.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

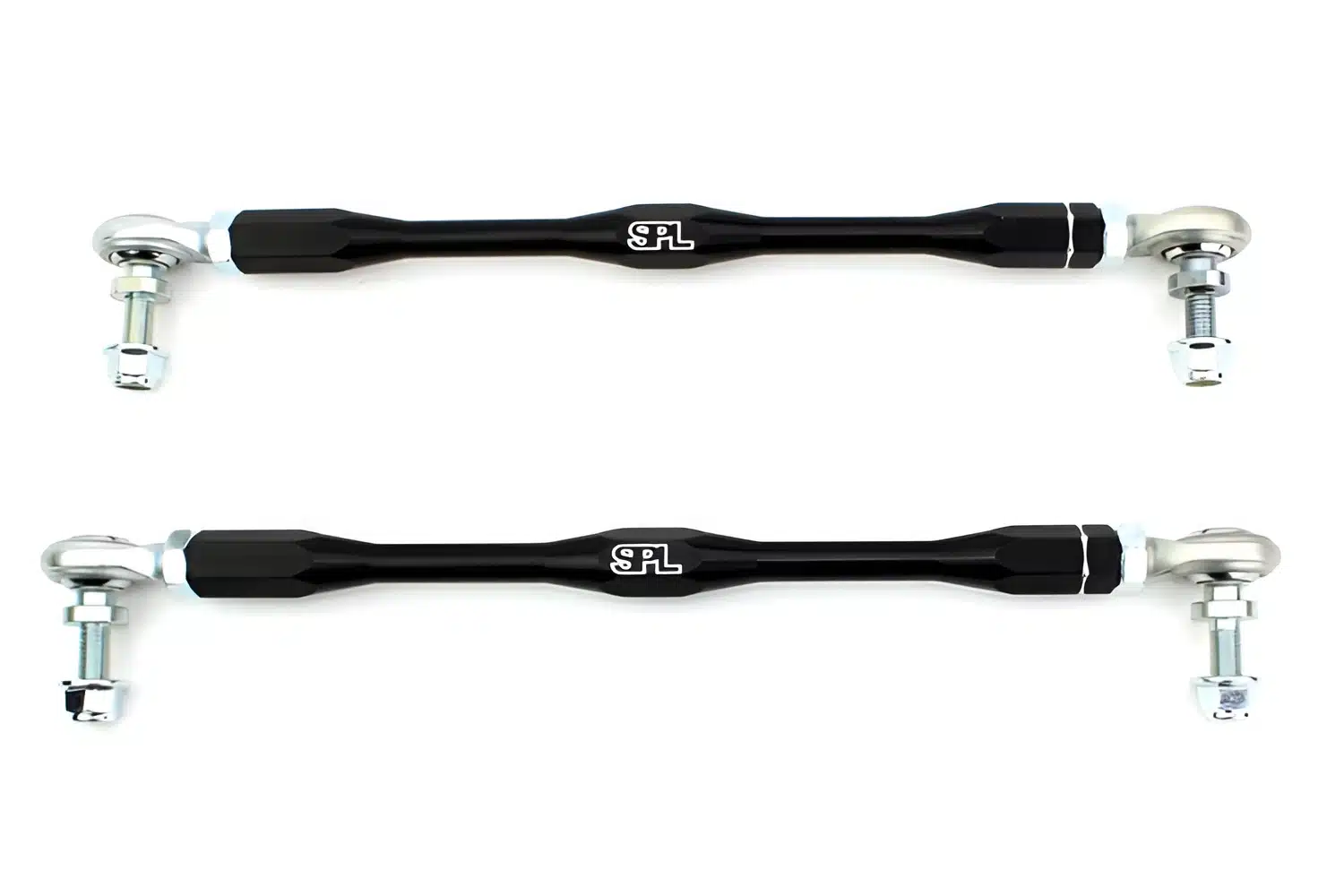

SPL Parts Adjustable Front Sway Bar Endlinks for E8x / E9x G2x, G8x BMW 1M / 2, 3 and 4 Series / M2 / M3 / M4

Running a stiffer aftermarket front sway bar without upgrading the endlinks is one of the more common ways to leave performance gains on the floor. The factory endlinks use rubber bushings that deflect under load, which partially absorbs the lateral stiffness the upgraded bar was supposed to deliver. On top of that, the factory design offers no length adjustment; which matters as soon as ride height changes, spring settling, or corner weighting creates even slight height differences side to side. Preload in the sway bar from unequal endlink length changes how the bar behaves and creates asymmetric handling responses that can be difficult to isolate without the right tools. The SPL Parts FE E9M adjustable front sway bar endlinks address both problems. Each endlink uses a massive PTFE-lined FK 1/2-inch bearing at the shock mount connection, delivering the highest load capacity available in this application and eliminating the deflection that rubber introduces. At the sway bar end, heat-treated Chromoly High Misalignment Studs provide 65 degrees of articulation capability; far more than a standard stud; preventing the endlink from binding when paired with aftermarket sway bars that have multiple adjustment holes at different positions relative to the factory mounting angle. The black anodized 6061-T6 aluminum turnbuckle body works with left and right hand threaded rod ends so length can be set precisely and independently on each side, with no tools required to make incremental adjustments at the track.

Features

PTFE-lined FK 1/2-inch bearings at the shock mount connection; highest load capacity available for this application; eliminates rubber deflection under sway bar load
Heat-treated Chromoly High Misalignment Studs at the sway bar connection; 65° articulation prevents binding when used with aftermarket sway bars across multiple adjustment hole positions
Black anodized 6061-T6 aluminum turnbuckle body with left and right hand threaded rod ends; simple, precise, tool-free length adjustment at the track
Adjustable length eliminates preload caused by uneven spring settling, ride height variation, or corner weighting; both sides can be set independently
Suitable for street and race applications; FK bearing construction handles sustained load without degradation
OEM mounting position length range: 12.9 to 14.4 inches; measurement confirmation required for aftermarket coilover applications
Made in the USA

Specifications

Body Material: 6061-T6 black anodized aluminum turnbuckle
Heim Joint: 1/2″ Teflon-lined FK USA spherical bearings
Studs: Heat-treated chromoly, 65° high misalignment
Adjustment: Length adjustable for preload elimination
Origin: Made in the USA

Applications

BMW 330i: G20 | 2019-present
BMW 340i: G20 | 2022-present
BMW 430i: G22 | 2020-present
BMW 440i: G22 | 2020-present
BMW 1M Coupé: E82 | 2011-2012
BMW M340i: G20 | 2019-present
BMW M440i: G22 | 2020-present
BMW M2: G87 | 2023-present
BMW M3: E90, E92, E93, G80, G81 | 2007-2013, 2021-present
BMW M4: G82, G83 | 2021-present

Complete the Kit

Adjustable Rear Sway Bar Endlinks for E8X BMW 1 Series and E9X 3 Series
Adjustable Rear Sway Bar Endlinks for F8X / G8X BMW M2 / M3 / M4

Notes

SPL components are made-to-order in the USA; build time will be confirmed at the time of order
If aftermarket shocks are installed, please contact us with your measurements to confirm fitment of endlinks

Frequently Asked Questions

Why do the SPL front endlinks use Chromoly misalignment studs instead of a standard ball stud? Standard ball studs have a limited articulation range, typically 15 to 20 degrees. When aftermarket sway bars use different adjustment holes that move the sway bar connection point relative to the factory angle, a standard stud can bind or operate near its articulation limit, which reduces the sway bar’s effectiveness and puts stress on the endlink joint. The heat-treated Chromoly High Misalignment Studs on the SPL FE E9M provide 65 degrees of articulation, which prevents binding across all adjustment hole positions on any aftermarket sway bar, preserving full lateral load transfer without compromise.
Why does endlink length adjustment matter if the car is running stock ride height? Even at stock ride height, springs settle over time and corner weighting creates slight differences in suspension height between left and right. If both endlinks are the same fixed length, this height difference introduces preload into the sway bar; the bar is being twisted slightly even in a straight line, which changes the effective roll stiffness and can create an asymmetric handling response. Adjustable endlinks allow the length on each side to be set independently so the sway bar sits at zero preload regardless of the suspension height at each corner.
Do I need to measure anything before ordering if I have aftermarket coilovers? Yes, and this is important. Many aftermarket coilover manufacturers move the upper shock mount from the OEM position, which changes the distance between the sway bar and the shock mount. The SPL FE E9M covers an OEM mounting position range of 12.9 to 14.4 inches. If the measurement on your car falls outside that range, this part will not reach and a custom length will be needed. Measure the distance between the sway bar and shock mount, and if it does not fall between 12.9 and 14.4 inches, contact us before ordering with your specific measurement.
Are the SPL FE E9M endlinks suitable for street driving, or are they track-only? These endlinks are explicitly designed for both street and race applications. The PTFE-lined FK bearings and Chromoly misalignment studs are built for high-load performance use, but SPL Parts does not classify them as race-only. For street use they offer the same benefit as on track; elimination of rubber deflection, precise length setting, and full articulation without binding.
What is included in the SPL FE E9M pair? Each pair includes the left and right adjustable front sway bar endlinks, each consisting of the black anodized 6061-T6 aluminum turnbuckle, PTFE-lined FK 1/2-inch bearing at the shock mount, heat-treated Chromoly High Misalignment Stud at the sway bar connection, and left and right hand threaded rod ends for length adjustment.

About SPL Parts

SPL Parts is a USA-based manufacturer of high-performance suspension components engineered for both professional racing and demanding street applications. Built on the core principles of strength, lightweight construction, low friction, and precision, SPL Parts products deliver the adjustability and alignment performance required by top race teams and discerning enthusiasts alike. Every component is produced using USA-sourced, certified materials and machined by experienced local shops to exacting tolerances. Professional TIG welders ensure maximum weld integrity, while each part is hand-fitted and treated with anti-seize and 3M internal panel coating for lasting protection. SPL Parts conducts all research and development in-house, allowing the team to leverage firsthand product knowledge and deliver unmatched customer support. Their suspension components feature innovative adjuster designs for quicker, more precise alignments, and utilize spherical bearings with Teflon liners that are self-cleaning, self-lubricating, and built for long service life. From concept to assembly, SPL Parts is made with pride in the USA by skilled machinists and welders who are committed to quality, innovation, and performance.
