Does the SPL FLCA F3X fit xDrive F2X and F3X models?

No. This listing is for RWD F2X and F3X models only. SPL Parts produces a separate FLCA specifically for xDrive AWD F2X and F3X models; the two arms are not interchangeable due to differences in the knuckle and subframe geometry between RWD and xDrive variants. Confirm your drivetrain before ordering.

What is the Double Adjuster, and why does it matter compared to jam nut-style adjustable arms?

The SPL Double Adjuster is machined from 4130 Chromoly, gun-drilled to reduce weight, then electroless nickel-plated for corrosion resistance. It uses SPL's 360-degree rotating clamp to lock down camber and track width settings in one step, without jam nuts. On a conventional adjustable arm, setting alignment requires holding the bearing in the correct orientation while tightening jam nuts simultaneously; a two-person job that is difficult to do precisely. The rotating clamp locks in a single action, making in-field adjustments faster and more repeatable.

Will installing the FLCAs affect BMW chassis electronics like DSC or iDrive?

No, because these arms include a ride height sensor bracket that maintains the factory sensor location regardless of arm length. Without this bracket, adjusting arm length would shift the sensor position and cause the vehicle's ride height reference to read incorrectly, which can trigger errors or alter the behavior of DSC and adaptive suspension systems. The included bracket prevents that entirely.

What is the NVH impact of these control arms on a daily-driven F3X?

The FLCAs are rated by SPL as a moderate NVH contributor. On smooth roads there is no significant change. On rough roads, road noise and harshness transmitted through the front suspension increases measurably because the large OEM rubber bushing is replaced by a spherical bearing. If spherical caster rod bushings or a spherical tension rod are already installed, all compliant front bushings are eliminated and NVH increases more substantially; as a pronounced noise and felt harshness on impacts rather than a jarring force. Running a high-quality shock absorber and slightly more compliant tire pressure reduces the effect.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

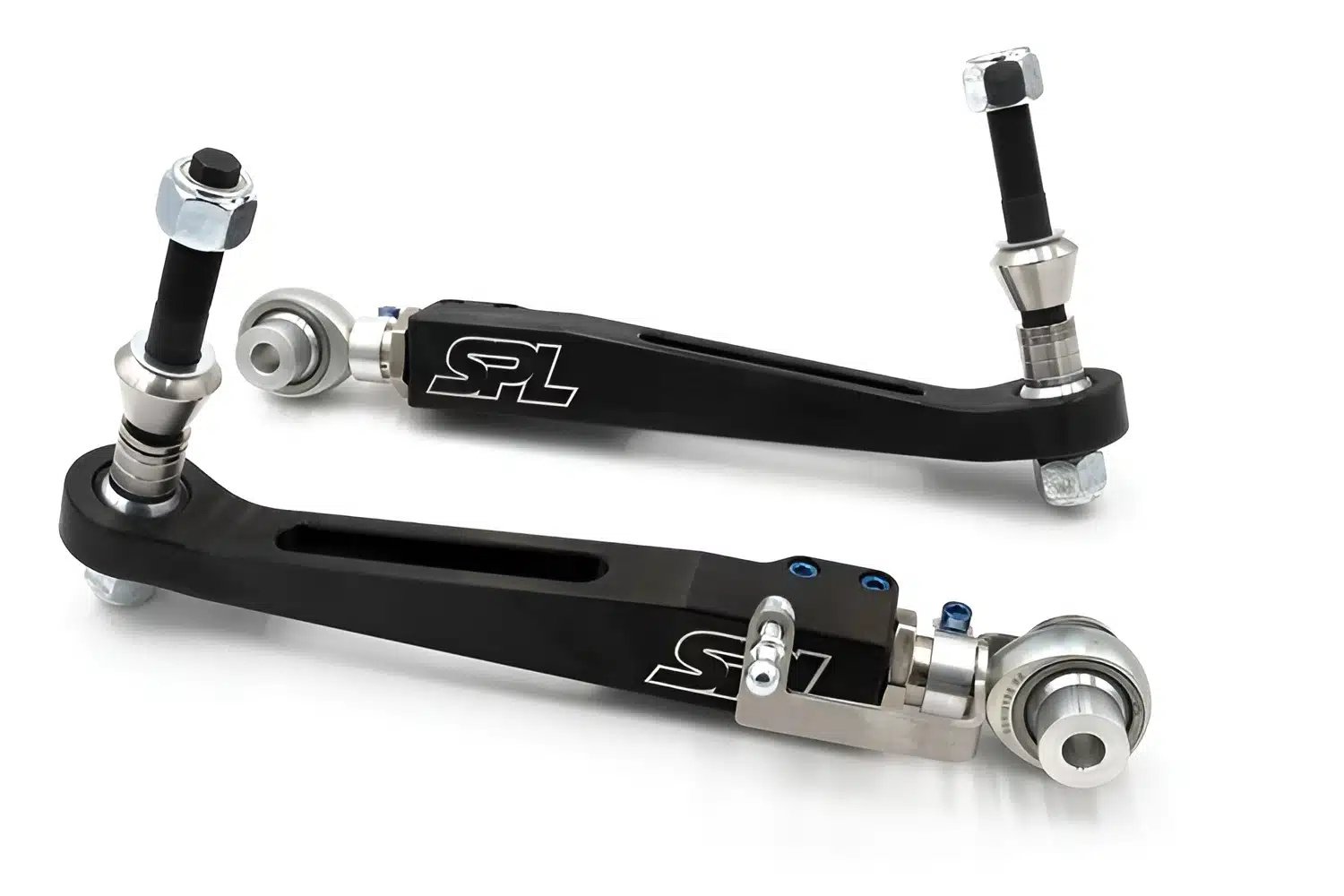

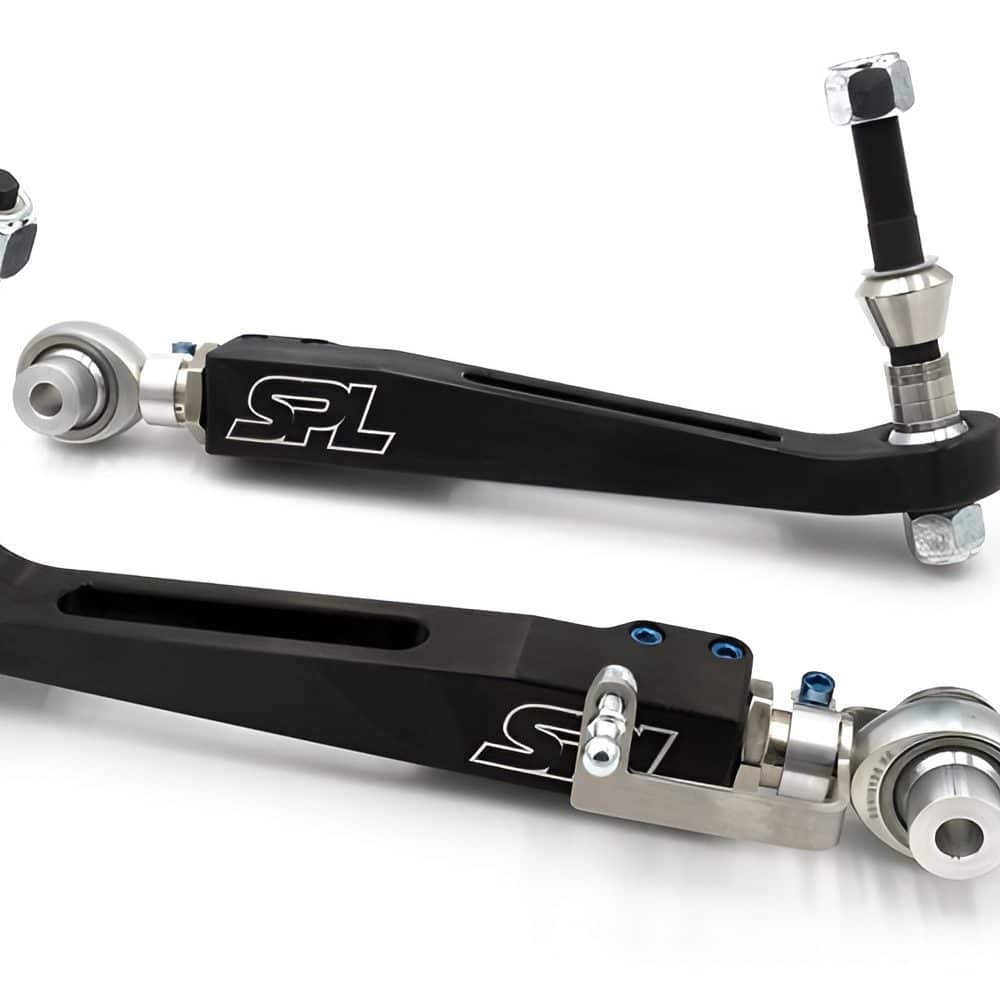

SPL Parts Adjustable Front Lower Control Arms for F2x / F3x BMW 2, 3, and 4 Series

The factory front lower control arm on the BMW F2x and F3x does three things in a fixed position: it sets the front roll center, it determines the camber range available, and it establishes the front track width. When the car is at ride height with stock geometry, that fixed position is adequate. As soon as the car is lowered, the roll center drops further below the center of gravity, increasing body roll and bump steer. The camber range becomes insufficient for any build running performance tires. And the track width; 60.5 inches on the F3x, 59.9 inches on the F2x; stays significantly narrower than the M3’s 62.2 inches, a geometry disadvantage that translates directly into outer front tire loading and grip potential. The SPL Parts FLCA F3X addresses all three problems with a single arm. Camber adjustment, roll center correction via included 304 stainless steel stackable spacers in 1/8 and 1/4-inch increments, and track width adjustment are all built into one piece. The geometry changes that previously required separate aftermarket components or were simply unavailable on the non-M platforms are now accessible in one adjustment. SPL quantifies the track width benefit directly: matching the M3’s 62.2-inch front width on an M340i reduces outer front tire loading by approximately 20lbs and redistributes it to the inner tire, yielding roughly 0.04G of additional peak grip and a measurable lap time improvement.

Features

Three adjustments in one arm: front camber, roll center, and front track width
F1-spec, self-cleaning PTFE-lined FK spherical rod ends eliminate OEM rubber bushing deflection; sharpened steering response and precision
SPL exclusive Double Adjuster machined from 4130 Chromoly, gun-drilled for weight reduction, electroless nickel-plated for corrosion resistance
360-degree rotating clamp with blue anodized titanium socket head cap screws; locks settings without jam nuts in a single step
Stackable 304 stainless steel roll center spacers in 1/8 and 1/4-inch increments for precise roll center correction across a wide range of ride heights
Includes ride height sensor bracket to maintain factory sensor location regardless of arm length; BMW chassis electronics remain fully functional
6061-T6 black anodized aluminum arm, clamps, and spacers
Ti6Al4V titanium socket head cap screws; 4130 CrMo electroless nickel-plated double adjuster; 5/8-inch 4140 CrMo stud
Suitable for daily driver through race car applications
Slotted arm body with pinch bolt clamping
Made in the USA

Specifications

Body Material: 2024-T351 aluminum (gun-drilled, black anodized)
Bushings: PTFE-lined F1-fit FK USA spherical bearings
Adjustment: Camber, caster, track width
Hardware: Heat-treated chromoly with high-misalignment studs
Origin: Made in the USA

Applications

BMW 228i: F22, F23 | 2014-2016
BMW 230i: F22, F23 | 2017-2020
BMW 328d: F30, F31 | 2014-2018
BMW 330e: F30, F31 | 2016-2018
BMW 318i: F30, F31 | 2018-2018
BMW 320i: F30, F31 | 2012-2020
BMW 328i: F30, F31 | 2012-2016
BMW 330i: F30, F31 | 2017-2019
BMW 335i: F30, F31 | 2012-2015
BMW 340i: F30, F31 | 2016-2018
BMW 428i: F32, F33, F36 | 2014-2016
BMW 430i: F32, F33, F36 | 2017-2020
BMW 435i: F32, F33, F36 | 2014-2016
BMW 440i: F32, F33, F36 | 2017-2020
BMW M235i: F22, F23 | 2014-2016
BMW M240i: F22, F23 | 2017-2020

Notes

Not compatible with xDrive/AWD
SPL components are made-to-order in the USA; build time will be confirmed at the time of order

Frequently Asked Questions

Does the SPL FLCA F3X fit xDrive F2x and F3x models? No. This listing is for RWD F2x and F3x models only. SPL Parts produces a separate FLCA specifically for xDrive AWD F2x and F3x models; the two arms are not interchangeable due to differences in the knuckle and subframe geometry between RWD and xDrive variants. Confirm your drivetrain before ordering.
What is the Double Adjuster, and why does it matter compared to jam nut-style adjustable arms? The SPL Double Adjuster is machined from 4130 Chromoly, gun-drilled to reduce weight, then electroless nickel-plated for corrosion resistance. It uses SPL’s 360-degree rotating clamp to lock down camber and track width settings in one step, without jam nuts. On a conventional adjustable arm, setting alignment requires holding the bearing in the correct orientation while tightening jam nuts simultaneously; a two-person job that is difficult to do precisely in a garage or between track sessions. The rotating clamp locks in a single action, making in-field adjustments faster and more repeatable.
What does increasing front track width actually do for handling on the F2x and F3x? The F3X’s factory front track width of 60.5 inches and the F2x’s 59.9 inches are significantly narrower than the BMW M3’s 62.2 inches. SPL’s own analysis shows that matching M3 track width on an M340i reduces outer front tire loading by approximately 20lbs and redistributes it to the inner front tire, resulting in roughly 0.04G of additional peak front grip and a measurable improvement in lap times. The wider track reduces the lateral load transfer per unit of cornering force, allowing more of the available tire grip to be used rather than lost to load sensitivity.
Will installing the FLCAs affect BMW chassis electronics like DSC or iDrive? No, because these arms include a ride height sensor bracket that maintains the factory sensor location regardless of arm length. Without this bracket, adjusting arm length would shift the sensor position and cause the vehicle’s ride height reference to read incorrectly, which can trigger errors or alter the behavior of DSC and adaptive suspension systems. The included bracket prevents that entirely.
What is the NVH impact of these control arms on a daily-driven F3X? The FLCAs are rated by SPL as a moderate NVH contributor. On smooth roads there is no significant change. On rough roads, road noise and harshness transmitted through the front suspension increases measurably because the large OEM rubber bushing, which absorbs road vibration, is replaced by a spherical bearing. If spherical caster rod bushings or a spherical tension rod are already installed, all compliant front bushings are eliminated and NVH increases more substantially; as a pronounced noise and felt harshness on impacts rather than a jarring force. Running a high-quality shock absorber and slightly more compliant tire pressure reduces the effect. For a build that is primarily street-driven on rough roads, this is the most important tradeoff to evaluate before purchasing.

About SPL Parts

SPL Parts is a USA-based manufacturer of high-performance suspension components engineered for both professional racing and demanding street applications. Built on the core principles of strength, lightweight construction, low friction, and precision, SPL Parts products deliver the adjustability and alignment performance required by top race teams and discerning enthusiasts alike. Every component is produced using USA-sourced, certified materials and machined by experienced local shops to exacting tolerances. Professional TIG welders ensure maximum weld integrity, while each part is hand-fitted and treated with anti-seize and 3M internal panel coating for lasting protection. SPL Parts conducts all research and development in-house, allowing the team to leverage firsthand product knowledge and deliver unmatched customer support. Their suspension components feature innovative adjuster designs for quicker, more precise alignments, and utilize spherical bearings with Teflon liners that are self-cleaning, self-lubricating, and built for long service life. From concept to assembly, SPL Parts is made with pride in the USA by skilled machinists and welders who are committed to quality, innovation, and performance.
