Why do firmer springs help a lowered S3 Elise on track?

Running lower cuts weight transfer, but softer springs at a low ride height can let the S3 Elise hit its bump stops under heavy braking and through compressions, which kills grip. The Nitron Elise NTR-R1 ClubSport uses firmer spring rates than the FastRoad kit, so the car can sit at a track-focused height and still stay off its stops.

Which S3 Elise models does the Nitron S3 Elise NTR-R1 ClubSport fit?

The Nitron S3 Elise NTR-R1 ClubSport fits the S3 Lotus Elise, Elise Sport and Elise Sprint with the 1.6-liter engine. Each kit is sprung and valved to order, so the setup can be matched to the car’s tires and how hard it’s driven. S3 Elise models with other engines use different Nitron kits.

Who should choose the Nitron Elise NTR-R1 ClubSport over the FastRoad?

The Nitron Elise NTR-R1 ClubSport suits 1.6-liter S3 Elise owners who track their car regularly or run sticky tires but still drive it on the road. It uses the same NTR-R1 damper as the FastRoad with slightly stiffer springs. Owners building a full race car may be better served by the Nitron RacePro 3.

Are mounting brackets included with the Nitron S3 Elise NTR-R1 ClubSport?

Yes. Mounting brackets come with every Nitron S3 Elise NTR-R1 ClubSport kit. The coilovers fit the factory double wishbone suspension without sourcing extra hardware, and everything needed for the install arrives together, which keeps the job straightforward.

Can the Nitron Elise NTR-R1 ClubSport be serviced and revalved?

Yes. Every Nitron Elise NTR-R1 ClubSport damper is fully serviceable, so it can be rebuilt after a season of track days, revalved or fitted with different springs. If your S3 Elise moves toward competition or back toward road use, the setup can be updated to match.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

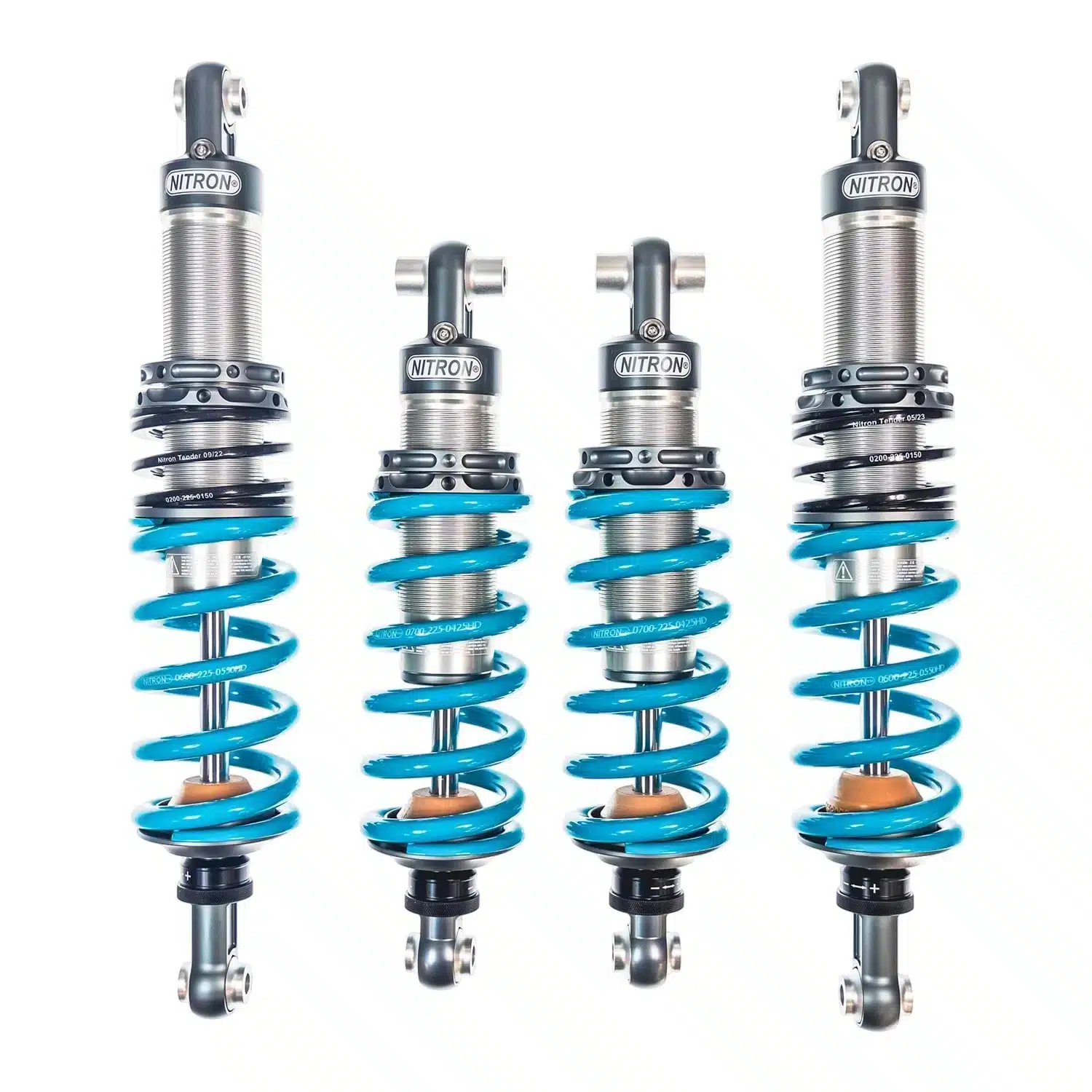

Nitron NTR-R1 ClubSport Coilover Kit for S3 Lotus Elise / Elise Sport / Elise Sprint

On track, a 1.6-liter S3 Elise rewards running low. A lower center of gravity means less weight transfer and more grip through the corners. The catch is that softer springs leave the car short of travel at a lower ride height. Heavy braking and compressions push it onto its bump stops, and the moment it lands on them, grip disappears. The Nitron Elise NTR-R1 ClubSport coilover kit handles that problem with spring rates a step firmer than the FastRoad kit’s. The stiffer springs hold the car off its stops at a track-focused ride height, so you get the benefit of sitting low without the sudden loss of grip that comes from bottoming out. Body movement is tighter through braking and the corner too, which suits sticky tires and a driving style built around carrying speed. It still works on the road, but the ClubSport is aimed at Elise, Elise Sport and Elise Sprint owners who spend regular days on track. One adjuster per corner sets bump and rebound together, so you can soften it for the drive in and firm it up in the paddock. Mounting brackets are included, and the Nitron S3 Elise NTR-R1 ClubSport bolts straight into the factory double wishbone suspension.

Unique Technology

The Nitron NTR-R1 uses hardware from Nitron’s race program, much of it shared with the NTR-R3 that competes in international motorsport. There’s no remote canister, so each damper stays compact and installs without hoses. Firmer springs put more load through the dampers, and the low-friction internals of the Nitron NTR-R1 respond quickly to it. The tires stay planted over curbs and rough braking zones instead of skipping. On a car set up low, that quick control keeps the chassis off its stops when the track throws a big compression at it. The Nitron Elise NTR-R1 ClubSport also resists fade, so its damping holds from the first lap of a session to the last.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Each Nitron Elise NTR-R1 ClubSport kit is assembled by hand to order, with springs and valving matched to the 1.6-liter S3 Elise and a track-leaning brief. That suits owners who drive to the circuit on track tires, run a full day and drive home, as well as Elise Sprints and other S3s that have become dedicated track-day cars. Hard-anodized and titanium-finish components keep weight down on a car where every kilogram counts, and they resist corrosion through wet track days and winter storage. The dampers are made to be maintained rather than replaced. Each Nitron NTR-R1 unit can be fully serviced and revalved, and the springs can be changed, so the setup can follow the car toward competition or back toward the road.

Features

Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilover assemblies and mounting brackets
Hand made to order

Specifications

Coilover Type: NTR-R1 ClubSport
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Mounting Brackets: Included
Recommended Spring Rates:
- Front: 450lbs/inch (79N/mm)
- Rear: 600lbs/inch (105N/mm)

Applications

Lotus Elise: S3 | 2011-2018
Lotus Elise Sport: S3 | 2011-2018
Lotus Elise Sprint: S3 | 2011-2018

Other Suspension Kits for S3 Lotus Elise / Elise Sport / Elise Sprint

Notes

This kit is intended for models equipped with the 1ZR-FAE 1.6L I4
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

Why do firmer springs help a lowered S3 Elise on track? Running lower cuts weight transfer, but softer springs at a low ride height can let the S3 Elise hit its bump stops under heavy braking and through compressions, which kills grip. The Nitron Elise NTR-R1 ClubSport uses firmer spring rates than the FastRoad kit, so the car can sit at a track-focused height and still stay off its stops.
Which S3 Elise models does the Nitron S3 Elise NTR-R1 ClubSport fit? The Nitron S3 Elise NTR-R1 ClubSport fits the S3 Lotus Elise, Elise Sport and Elise Sprint with the 1.6-liter engine. Each kit is sprung and valved to order, so the setup can be matched to the car’s tires and how hard it’s driven. S3 Elise models with other engines use different Nitron kits.
Who should choose the Nitron Elise NTR-R1 ClubSport over the FastRoad? The Nitron Elise NTR-R1 ClubSport suits 1.6-liter S3 Elise owners who track their car regularly or run sticky tires but still drive it on the road. It uses the same NTR-R1 damper as the FastRoad with slightly stiffer springs. Owners building a full race car may be better served by the Nitron RacePro 3.
Are mounting brackets included with the Nitron S3 Elise NTR-R1 ClubSport? Yes. Mounting brackets come with every Nitron S3 Elise NTR-R1 ClubSport kit. The coilovers fit the factory double wishbone suspension without sourcing extra hardware, and everything needed for the install arrives together, which keeps the job straightforward.
Can the Nitron Elise NTR-R1 ClubSport be serviced and revalved? Yes. Every Nitron Elise NTR-R1 ClubSport damper is fully serviceable, so it can be rebuilt after a season of track days, revalved or fitted with different springs. If your S3 Elise moves toward competition or back toward road use, the setup can be updated to match.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
