What is the difference between the NTR-R1 and the NTR-R3?

The NTR-R1 uses combined 2-way adjustment with 24 clicks controlling both compression and rebound through a single circuit. The NTR-R3 separates those functions entirely, with 16 clicks of high speed compression, 26 clicks of low speed compression, and 24 clicks of rebound adjusted independently. The R3 gives drivers and engineers significantly more range to work with when dialing the car in across different circuits and conditions.

Does the Nitron NTR-R3 require the Electronic Damping Delete Kit on a PASM-equipped 987 Boxster or Cayman?

Yes. Fitting a passive coilover kit to a PASM-equipped 987 without addressing the factory electronic damping system can trigger fault codes and warning lights. The Nitron Electronic Damping Delete Kit prevents those faults cleanly and is required alongside the NTR-R3 on any PASM-equipped car.

Can the Nitron NTR-R3 be revalved or adjusted after purchase, and are custom spring rates available?

Yes on both. Every Nitron NTR-R3 kit is fully serviceable and can be revalved or rebuilt by Nitron. Custom spring rates are available at the time of order; contact us directly before ordering if your intended use or setup calls for something outside the standard specification.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

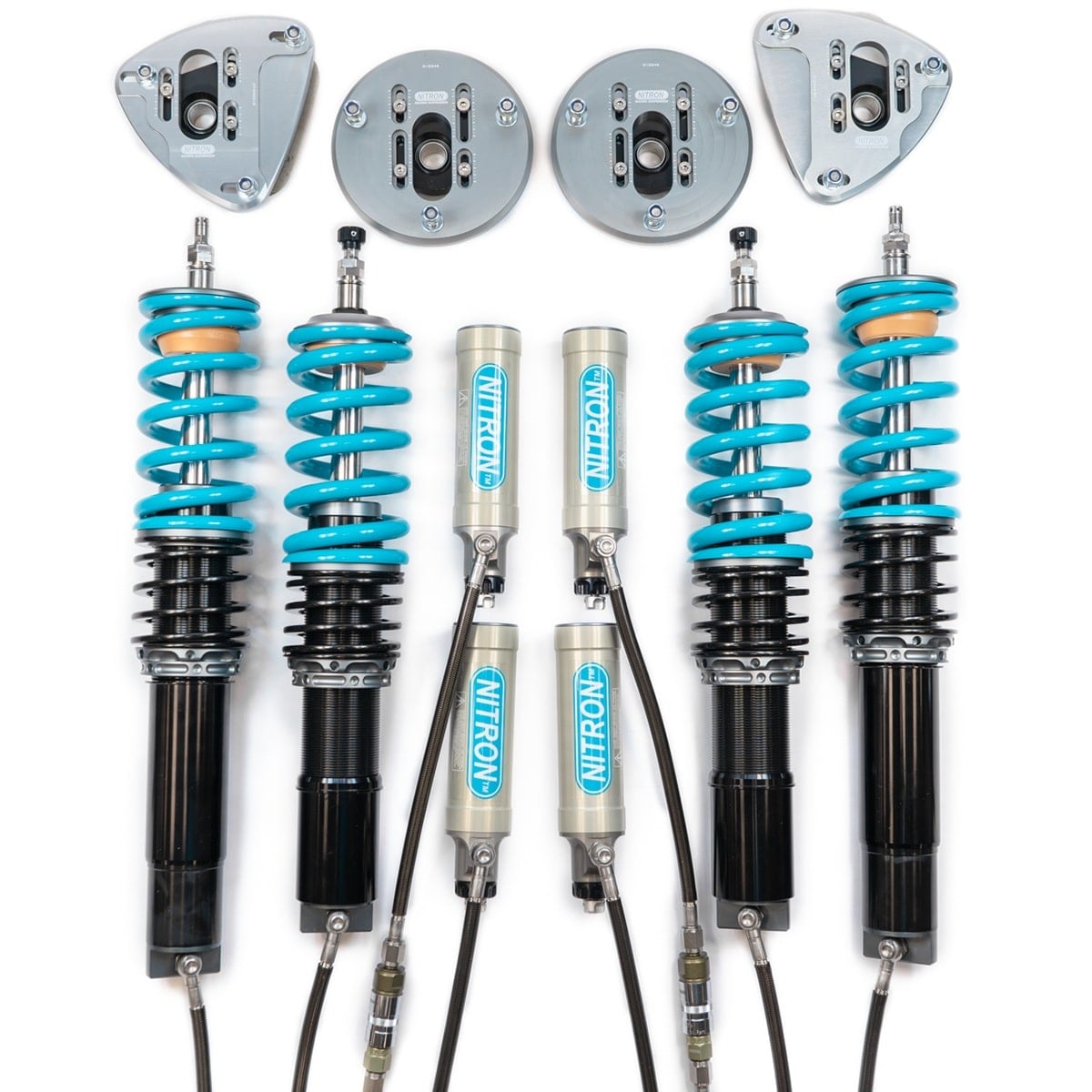

Nitron NTR-R3 Coilover Kit for 987 Porsche Boxster and Boxster S / Cayman, Cayman R, and Cayman S

The 987 Porsche Boxster, Boxster S, Cayman, Cayman R, and Cayman S share a mid-engine layout that rewards a properly sorted suspension, and the factory dampers leave real capability on the table once the driving gets serious. The Nitron NTR-R3 coilover kit is built for that level of development work; independent 3-way damping adjustment with separate high and low speed compression control gives drivers and engineers the range needed to properly dial the car in across different circuits and conditions. A large diameter piston and ultra-strong piston rod sit at the core of the design, providing the damping control and feedback that serious setups depend on. Both front and rear units use hose mounted reservoirs with quick-release dry-breaks fitted as standard at both ends, keeping high and low speed compression adjustment accessible across the car without adding complexity to the installation. The R3 is a proven race winner with lap records across a wide range of international motorsport formulas, and every kit is custom built, custom sprung, and fully serviceable.

Specialized Bi-Axis Hose Fittings

Nitron R3 hose shocks use Nitron’s own 720-degree Bi-Axis fittings exclusively; a proprietary design that makes for clean, precise installation without the compromises that come with conventional end fittings.

Unique Technology

Nitron builds every shock from precision components that go through a thorough design and development process long before final assembly. The modular construction gives engineers the flexibility to approach each application on its own terms without cutting corners on part quality or how components perform together under load. Everything is machined to tight tolerances and inspected individually by trained technicians; that quality control runs through every stage of production rather than being concentrated at the end. New materials, finishes, and processes are validated extensively before adoption, with proprietary Nitron technologies integrated throughout to produce shocks that consistently hold up against the competition on road and track. That engineering standard is what the brand has been built on since 1998.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t adapt a generic damper to fit the 987 Porsche Boxster, Boxster S, Cayman, Cayman R, and Cayman S; they engineer one around each platform. Every application goes through a dedicated development process where components, spring rates, and damping characteristics are determined by the specific variant, not borrowed from something close enough. The geometry, weight distribution, and suspension travel of each model are part of the design from the beginning, not corrections introduced later. That’s the difference between suspension that works with a car and suspension that was developed for it.

Features

Hose reservoir type
Dry-breaks for front and rear reservoirs
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body
Consists of 4 coilovers, reservoirs, hoses, and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R3
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
Reservoir Type: Hose
Rear Suspension Type: OEM
Droplinks Included: No

Applications

Porsche Boxster: 987.1, 987.2 | 2005-2012
Porsche Boxster S: 987.1, 987.2 | 2005-2012
Porsche Cayman: 987.1, 987.2 | 2006-2012
Porsche Cayman R: 987.2 | 2011-2012
Porsche Cayman S: 987.1, 987.2 | 2006-2012

Other Suspension Kits for 987 Boxster, Boxster S, Cayman, Cayman R, and Cayman S

Notes

If your Boxster / Cayman was optioned with Porsche PASM the Nitron Electronic Damping Delete Kit can prevent error codes and/or warning lights associated with converting to a non-electronic suspension system
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

What is the difference between the NTR-R1 and the NTR-R3? The NTR-R1 uses combined 2-way adjustment with 24 clicks controlling both compression and rebound through a single circuit. The NTR-R3 separates those functions entirely, with 16 clicks of high speed compression, 26 clicks of low speed compression, and 24 clicks of rebound adjusted independently. The R3 gives drivers and engineers significantly more range to work with when dialing the car in across different circuits and conditions.
Does the Nitron NTR-R3 require the Electronic Damping Delete Kit on a PASM-equipped 987 Boxster or Cayman? Yes. Fitting a passive coilover kit to a PASM-equipped 987 without addressing the factory electronic damping system can trigger fault codes and warning lights. The Nitron Electronic Damping Delete Kit prevents those faults cleanly and is required alongside the NTR-R3 on any PASM-equipped car.
Can the Nitron NTR-R3 be revalved or adjusted after purchase, and are custom spring rates available? Yes on both. Every Nitron NTR-R3 kit is fully serviceable and can be revalved or rebuilt by Nitron. Custom spring rates are available at the time of order; contact us directly before ordering if your intended use or setup calls for something outside the standard specification.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
