What is the difference between the NTR-R1 and the NTR-R3?

The NTR-R1 uses combined 2-way adjustment with 24 clicks controlling both compression and rebound through a single circuit. The NTR-R3 separates those functions entirely, with independent high speed compression, low speed compression, and rebound adjustment. The R3 gives drivers and engineers significantly more range to work with when dialing the car in across different circuits and conditions.

Can the Nitron NTR-R1 be revalved or adjusted after purchase, and are custom spring rates available?

Yes on both. Every Nitron NTR-R1 kit is fully serviceable and can be revalved or rebuilt by Nitron. Custom spring rates are available at the time of order; contact us directly before ordering if your intended use or setup calls for something outside the standard Fast Road Spec.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

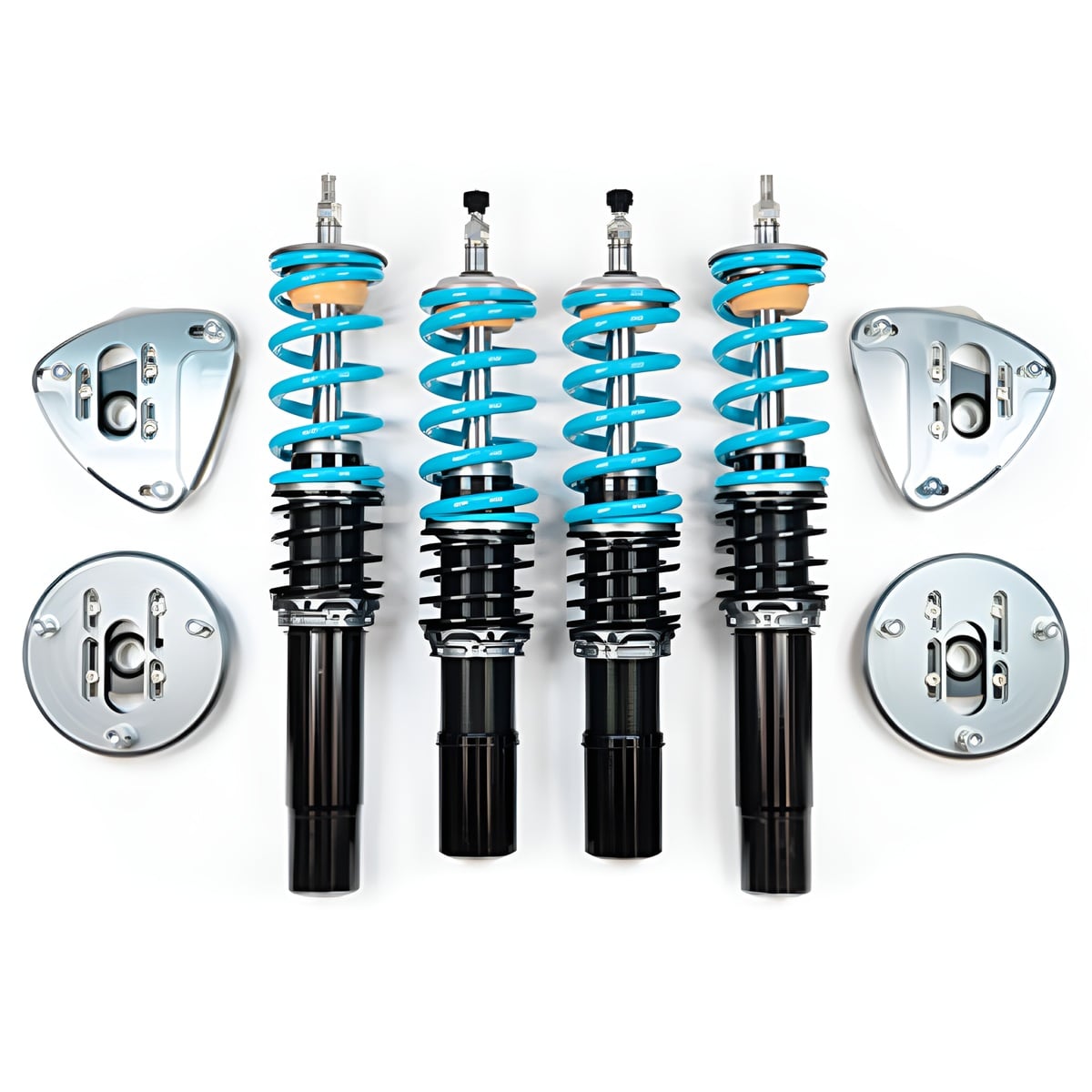

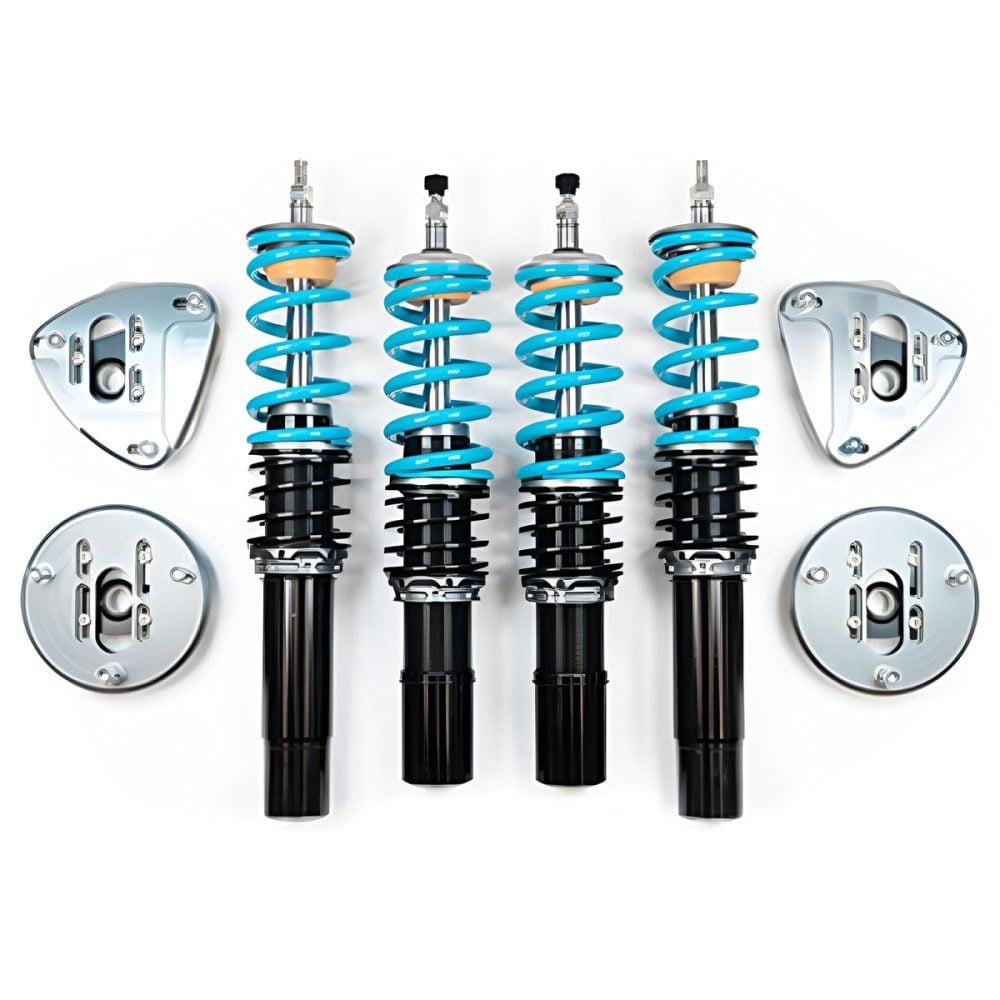

Nitron NTR-R1 Coilover Kit for 987 Porsche Boxster and Boxster S / Cayman, Cayman R, and Cayman S

The 987 Porsche Boxster, Boxster S, Cayman, Cayman R, and Cayman S share a mid-engine layout that rewards a properly sorted suspension, and the factory dampers leave performance on the table once the driving gets serious. The Nitron NTR-R1 coilover kit closes that gap with precision-engineered combined 2-way damping adjustment drawn directly from the R3 race platform, sharing core components with a kit built for professional competition. Every unit is individually hand-built with ultra-low friction components that deliver consistent, fade-resistant damping from the street to the circuit. Hard-anodized titanium finish parts and high-grade materials keep corrosion out and weight in check, and with each kit custom built, custom sprung, and fully serviceable, it’s an investment that holds up well beyond a single season.

Unique Technology

Every Nitron shock starts with precision components that have been through a thorough design and development process before they reach final assembly. The modular construction gives engineers the flexibility to tailor each application properly, without compromising how individual parts are made or how they perform together. Components are machined to tight tolerances and inspected one by one by trained technicians as part of a strict quality control process. New materials, finishes, and processes go through extensive validation before adoption, with Nitron-specific technologies integrated to produce shocks that genuinely outlast and outperform competing options on the road and track. That standard of engineering is what Nitron’s reputation is built on.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t pull a generic damper off a shelf and adjust the valving to fit the 987 Porsche Boxster, Boxster S, Cayman, Cayman R, and Cayman S. Every application goes through a dedicated development process, with components, spring rates, and damping characteristics engineered specifically for the platform in question. The geometry, weight distribution, and suspension travel of each variant are factored into the design from the start, not compensated for after the fact. It’s the difference between a kit built for these cars and a kit built for a category of cars they happen to fall into.

Features

Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilovers and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Type: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 343lbs/inch (60N/mm)
  - Rear: 514lbs/inch (90N/mm)

Applications

Porsche Boxster: 987.1, 987.2 | 2005-2012
Porsche Boxster S: 987.1, 987.2 | 2005-2012
Porsche Cayman: 987.1, 987.2 | 2006-2012
Porsche Cayman R: 987.2 | 2011-2012
Porsche Cayman S: 987.1, 987.2 | 2006-2012

Other Suspension Kits for 987 Boxster, Boxster S, Cayman, Cayman R, and Cayman S

Notes

If your Boxster / Cayman was optioned with Porsche PASM the Nitron Electronic Damping Delete Kit can prevent error codes and/or warning lights associated with converting to a non-electronic suspension system
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

What is the difference between the NTR-R1 and the NTR-R3? The NTR-R1 uses combined 2-way adjustment with 24 clicks controlling both compression and rebound through a single circuit. The NTR-R3 separates those functions entirely, with independent high speed compression, low speed compression, and rebound adjustment. The R3 gives drivers and engineers significantly more range to work with when dialing the car in across different circuits and conditions.
Can the Nitron NTR-R1 be revalved or adjusted after purchase, and are custom spring rates available? Yes on both. Every Nitron NTR-R1 kit is fully serviceable and can be revalved or rebuilt by Nitron. Custom spring rates are available at the time of order; contact us directly before ordering if your intended use or setup calls for something outside the standard Fast Road Spec.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
