The GT350 and GT500 already have serious suspension from the factory; what does the NTR-R1 actually change?

Both cars arrive with performance-oriented suspension, but the factory setup is still calibrated to cover a broad range of drivers and conditions rather than the specific demands of someone pushing the car seriously on track. The NTR-R1 replaces that with hardware drawn directly from the R3 race platform, giving the chassis a damping setup that's matched to how it actually performs under load rather than approximating it.

What is the difference between the coilover and divorced rear suspension configurations?

The coilover configuration combines the spring and damper into a single unit, keeping things compact and workable for road and general track use. The divorced configuration separates the two, allowing independent positioning and tuning; the preferred route for dedicated race builds where geometry optimization and setup flexibility take priority over installation simplicity.

Is the NTR-R1 the right choice for track use, or should I be looking at the NTR-R3?

The NTR-R1 covers serious track use without compromise; it shares core components with a kit built for professional competition and the hardware behind the combined adjustment is the same quality as the R3. The difference is interface, not capability. If you need fully independent high and low speed compression control to dial in setup across different circuits, the R3 is the step up.

Can I run custom spring rates?

Yes. Recommended rates are available for both Fast Road Spec and Track Day Spec configurations, but custom spring rates are available on request.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

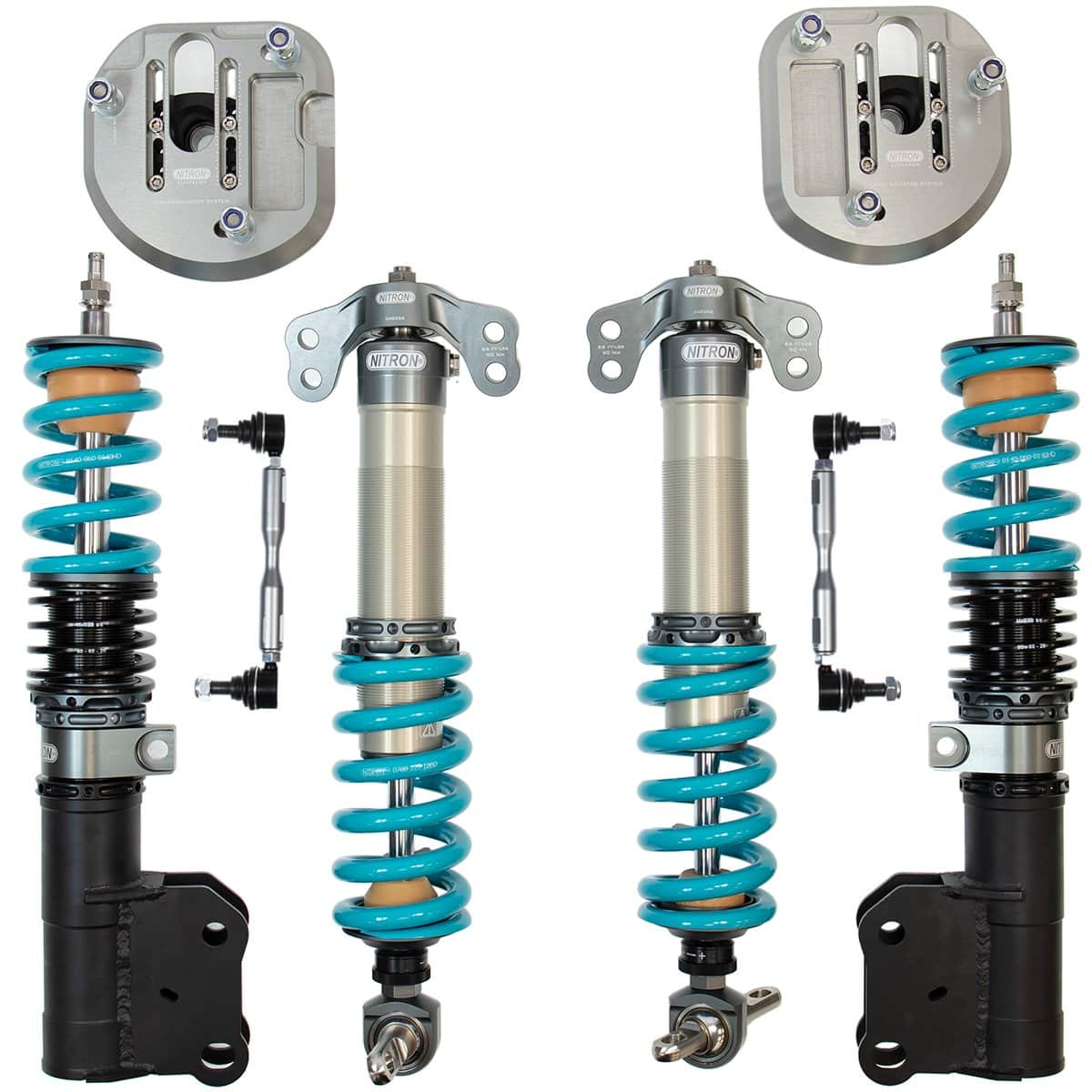

Nitron NTR-R1 Coilover Kit for S550 Ford Mustang Shelby GT350 / GT500

The S550 Mustang Shelby GT350 and GT500 arrive with genuine performance credentials and suspension tuned well beyond the standard Mustang, but there’s still room on the table when the road tightens up or a track day pushes the car harder than the factory setup was calibrated for. The Nitron NTR-R1 addresses that directly with precision-engineered combined 2-way damping adjustment drawn from the R3 race platform, sharing core components with a kit developed for professional competition. Coilover and divorced rear suspension configurations are both available to suit different build requirements, and droplinks are included so the installation is complete without sourcing additional hardware. Every unit is individually hand-built with ultra-low friction components that hold damping consistent and fade-resistant whether the car is on the street or deep into a circuit session, and with each kit custom built, custom sprung, and fully serviceable, it’s an investment that holds up well beyond a single season.

Unique Technology

Nitron builds every shock around precision components that go through a thorough design and development process long before final assembly. The modular construction gives engineers the room to develop each application properly on its own terms, without cutting corners on part quality or how components work together under load. Everything is machined to tight tolerances and inspected individually by trained technicians; quality control isn’t a final step here, it runs through the entire process. New materials, finishes, and processes are validated extensively before they’re brought into production, with proprietary Nitron technologies woven throughout to produce shocks that hold up against the competition on both road and track. That level of engineering discipline is what the brand has been built on.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t start with a generic damper and work backward from there. Every application is developed from the ground up, with components, spring rates, and damping characteristics determined by the specific platform rather than borrowed from something adjacent. The geometry, weight distribution, and suspension travel of the Shelby GT350 and GT500 shape the design from the start, not as corrections added later. That’s what separates a kit engineered for these cars from one that was simply made to fit them.

Features

Coilover and divorced rear suspension types
Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Uses foot bracket for 11-inch wheel sizes
Precision bearing spacers supplied as required
Consists of 4 coilovers, top mounts, and droplinks
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Type:
- Coilover
- Divorced
Droplinks Included: Yes
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 628lbs/inch (110N/mm)
  - Rear:
    - Coilover: Data not available
    - Divorced: 900lbs/inch (158N/mm)
- TDS – Track Day Spec:
  - Front: 799lbs/inch (140N/mm)
  - Rear:
    - Coilover: Data not available
    - Divorced: 1000lbs/inch (175N/mm)

Applications

Ford Mustang Shelby GT350: S550 | 2015-2020
Ford Mustang Shelby GT500: S550 | 2020-2022

Other Suspension Kits for S550 Shelby GT350 / GT500

Notes

Fitment not confirmed on GT350R models
Uses foot bracket for 11-inch wheel sizes
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

The GT350 and GT500 already have serious suspension from the factory; what does the NTR-R1 actually change? Both cars arrive with performance-oriented suspension, but the factory setup is still calibrated to cover a broad range of drivers and conditions rather than the specific demands of someone pushing the car seriously on track. The NTR-R1 replaces that with hardware drawn directly from the R3 race platform, giving the chassis a damping setup that’s matched to how it actually performs under load rather than approximating it.
What is the difference between the coilover and divorced rear suspension configurations? The coilover configuration combines the spring and damper into a single unit, keeping things compact and workable for road and general track use. The divorced configuration separates the two, allowing independent positioning and tuning; the preferred route for dedicated race builds where geometry optimization and setup flexibility take priority over installation simplicity.
Is the NTR-R1 the right choice for track use, or should I be looking at the NTR-R3? The NTR-R1 covers serious track use without compromise; it shares core components with a kit built for professional competition and the hardware behind the combined adjustment is the same quality as the R3. The difference is interface, not capability. If you need fully independent high and low speed compression control to dial in setup across different circuits, the R3 is the step up.
Can I run custom spring rates? Yes. Recommended rates are available for both Fast Road Spec and Track Day Spec configurations, but custom spring rates are available on request.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
