Does the FAL affect the suspension setup or driving experience?

No. The FAL raises the front axle for obstacle clearance and then returns the car to its normal ride height without requiring any changes to the suspension setup. Spring rates, damping settings, and geometry remain exactly as configured; the FAL is entirely independent of the coilover adjustment.

What spring rate options are available for this kit?

Two specs are recommended by Nitron and offered as standard. The Fast Road Spec runs 550lbs/inch (96N/mm) front and 750lbs/inch (131N/mm) rear. The Track Day Spec steps up to 700lbs/inch (123N/mm) front and 900lbs/inch (158N/mm) rear. Custom spring rates are also available; contact us directly for a consultation.

How does this kit differ from the standard NTR-R1 kit for the R8?

The coilover hardware is identical. The difference is the inclusion of the Standalone Front Axle Lift system, which adds practical street usability to a lowered performance setup. If you're running the R8 regularly on the road and the front clearance is a concern, this kit addresses that without requiring a separate purchase.

Are droplinks included with the kit?

No, droplinks are not included. The kit consists of four coilovers and adjustable top mounts covering front and rear, with precision bearing spacers supplied as required.

Is the Nitron NTR-R1 serviceable after purchase?

Yes. Every NTR-R1 kit is fully serviceable. Nitron hand-builds each unit to order, and the design supports long-term maintenance rather than requiring full replacement when performance eventually needs refreshing.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

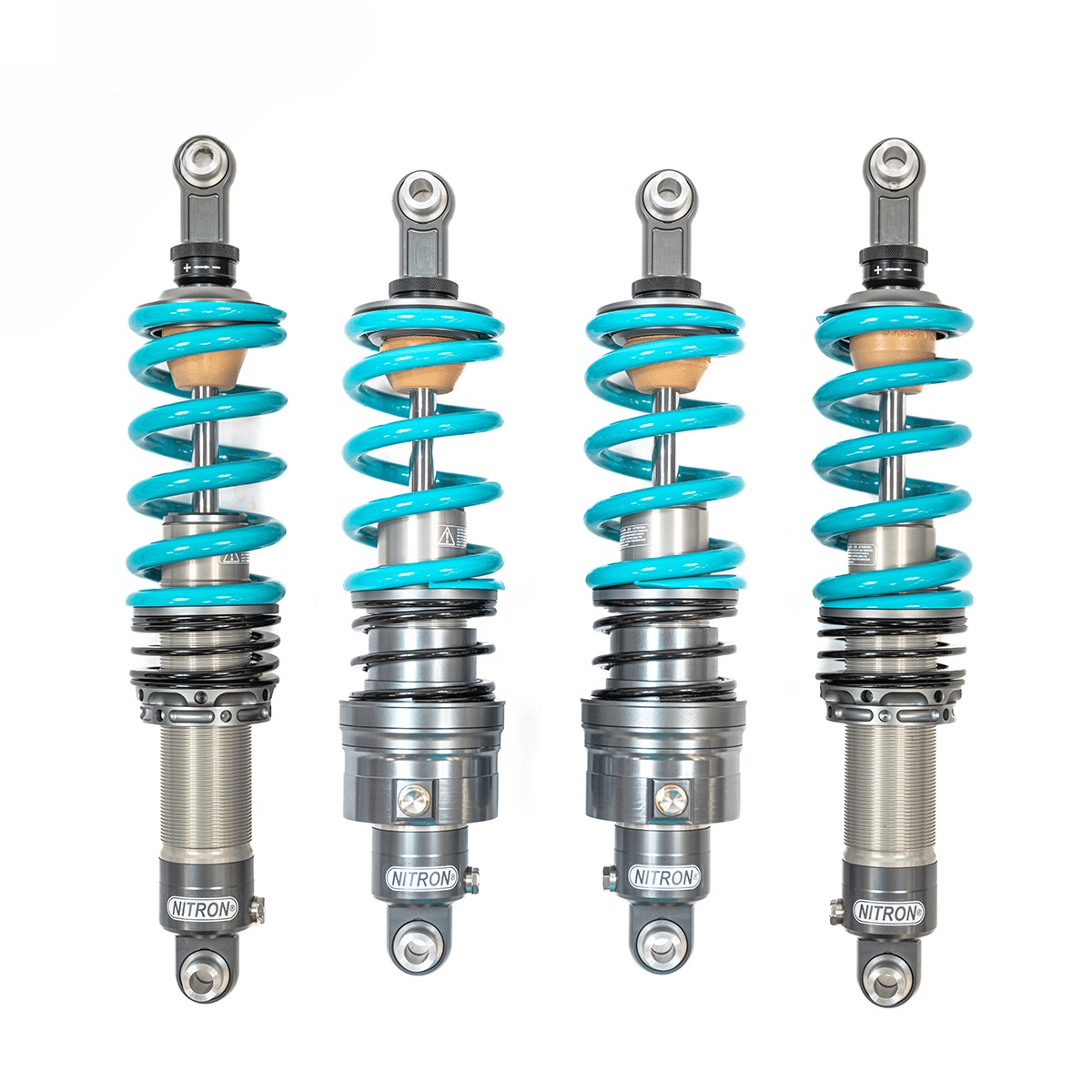

Nitron NTR-R1 Coilover Kit w/ Standalone FAL for 42 Audi R8

The Audi R8 is a mid-engine sports car with the platform to be genuinely fast in the right hands, but the factory suspension is calibrated for a broad range of drivers and conditions rather than for extracting the most from the chassis. The Nitron NTR-R1 coilover kit for the 42 R8, supplied here with Nitron’s Standalone Front Axle Lift system, closes that gap with precision-engineered, combined 2-way damping adjustment drawn directly from the R3 race platform, sharing core components with a kit built for professional competition. There’s no remote canister to package around, and every unit is individually hand-built with ultra-low friction components that deliver consistent, fade-resistant damping from the street to the circuit. The included FAL addresses one of the more practical challenges of running a lowered R8 on the road, raising the front axle enough to clear driveways, speed bumps, and parking obstacles without affecting the suspension setup or the driving experience once conditions return to normal. Hard-anodized titanium finish parts and high-grade materials keep corrosion out and weight in check, and with each kit custom built, custom sprung, and fully serviceable, it’s an investment that holds up well beyond a single season.

The Nitron Front Axle Lift (FAL)

Running a lowered performance car on the road comes with a familiar set of frustrations; steep driveways, speed bumps, and parking lot ramps that sit just low enough to make every approach a calculation. The Nitron Front Axle Lift system is built around that specific problem. With 25mm of lift available at the front axle, it clears the obstacles that lowered ride heights make problematic without requiring any changes to the suspension setup and without affecting how the car performs once you’re back on the road or circuit. It’s a practical addition to a performance suspension package, not a compromise of one.
- 250W pump
- 25mm lift height
- Typical lift time under 3-seconds
- Audible in-cabin warning system
- Switch with built-in warning light
- Auto off function
- Protects your car from damage caused by steep driveways and speed bumps
- Compatible with a wide range of suspension setups

Unique Technology

Every Nitron shock starts with precision components that have been through a thorough design and development process before they reach final assembly. The modular construction gives engineers the flexibility to tailor each application properly, without compromising how individual parts are made or how they perform together. Components are machined to tight tolerances and inspected one by one by trained technicians as part of a strict quality control process. New materials, finishes, and processes go through extensive validation before adoption, with Nitron-specific technologies integrated to produce shocks that genuinely outlast and outperform competing options on the road and track. That standard of engineering is what Nitron’s reputation is built on.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t pull a generic damper off a shelf and adjust the valving to fit. Every application goes through a dedicated development process, with components, spring rates, and damping characteristics engineered specifically for the platform in question. That means the geometry, weight distribution, and suspension travel of a given car are factored into the design from the start, not compensated for after the fact. It’s the difference between a kit built for your car and a kit built for a category of cars your vehicle happens to fall into.

Features

Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Nitron FAL raises 25mm at the shock
FAL kit contains all components (cylinders, hydraulic lines, pump, wiring loom and controller)
Precision bearing spacers supplied as required
Consists of 4 coilovers and adjustable top mounts
Hand made to order

Specifications

Coilover Type: NTR-R1 with standalone FAL (front axle lift)
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Type: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 550lbs/inch (96N/mm)
  - Rear: 750lbs/inch (131N/mm)
- TDS – Track Day Spec:
  - Front: 700lbs/inch (123N/mm)
  - Rear: 900lbs/inch (158N/mm)

Applications

Audi R8 4.2 V8 quattro: 42 | 2007-2015
Audi R8 5.2 V10 quattro: 42 | 2009-2015

Other Suspension Kits for the Audi R8 (42)

Notes

Compatible on Coupe and Spyder models
If your R8 is equipped with Audi Magnetic Ride you will need the Nitron Electronic Damping Delete Kit to avoid fault codes and/or disfunction
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

Does the FAL affect the suspension setup or driving experience? No. The FAL raises the front axle for obstacle clearance and then returns the car to its normal ride height without requiring any changes to the suspension setup. Spring rates, damping settings, and geometry remain exactly as configured; the FAL is entirely independent of the coilover adjustment.
What spring rate options are available for this kit? Two specs are recommended by Nitron and offered as standard. The Fast Road Spec runs 550lbs/inch (96N/mm) front and 750lbs/inch (131N/mm) rear. The Track Day Spec steps up to 700lbs/inch (123N/mm) front and 900lbs/inch (158N/mm) rear. Custom spring rates are also available; contact us directly for a consultation.
How does this kit differ from the standard NTR-R1 kit for the R8? The coilover hardware is identical. The difference is the inclusion of the Standalone Front Axle Lift system, which adds practical street usability to a lowered performance setup. If you’re running the R8 regularly on the road and the front clearance is a concern, this kit addresses that without requiring a separate purchase.
Are droplinks included with the kit? No, droplinks are not included. The kit consists of four coilovers and adjustable top mounts covering front and rear, with precision bearing spacers supplied as required.
Is the Nitron NTR-R1 serviceable after purchase? Yes. Every NTR-R1 kit is fully serviceable. Nitron hand-builds each unit to order, and the design supports long-term maintenance rather than requiring full replacement when performance eventually needs refreshing.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
