Why are the divorced rear spring rates so much stiffer than the coilover rates on the G29 Z4?

The divorced configuration runs a significantly stiffer rear spring because the spring and damper are no longer working as a combined unit. With each component positioned independently, the spring rate needs to be higher to achieve the same wheel rate and chassis response. The G29's rear spring rates in divorced form are considerably stiffer than the coilover rates, which reflects the leverage ratio and geometry of the Z4's rear suspension when the components are separated.

At what point does the divorced rear configuration make more sense than the coilover setup on the Z4?

When the build is moving toward dedicated circuit use and geometry optimization becomes a priority over installation simplicity. The divorced setup allows the spring and damper to be positioned and adjusted independently, which opens up setup options that a coilover configuration physically can't offer. For road use or occasional track days, the coilover setup covers everything needed without the added complexity.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

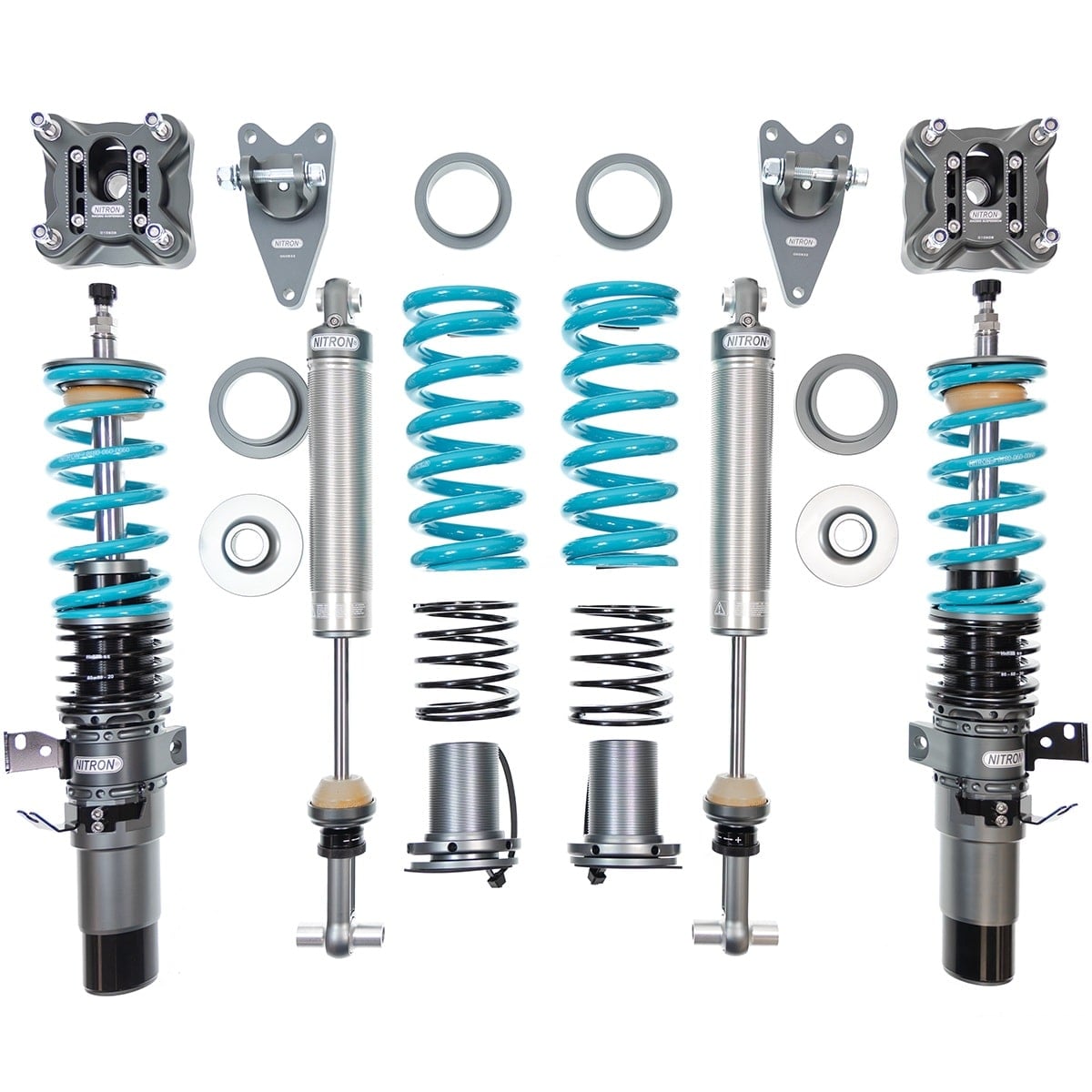

Nitron NTR-R1 Coilover Kit for G29 BMW Z4

The G29 BMW Z4 Roadster sits on a platform with genuine performance potential, but the factory suspension was developed around a wide range of drivers and conditions rather than the precision a serious build requires. The Nitron NTR-R1 coilover kit for the G29 Z4 closes that gap with precision-engineered, combined 2-way damping adjustment drawn directly from the R3 race platform, sharing core components with a kit built for professional competition. Coilover and divorced rear suspension configurations are both available to suit different build requirements. There’s no remote canister to package around, and every unit is individually hand-built with ultra-low friction components that deliver consistent, fade-resistant damping from the street to the circuit. Hard-anodized titanium finish parts and high-grade materials keep corrosion out and weight in check, and with each kit custom built, custom sprung, and fully serviceable, it’s an investment that holds up well beyond a single season.

Coilover vs Divorced Rear Suspension

The G29 Z4 NTR-R1 is available with two rear suspension configurations depending on how the car is being built. The coilover setup combines the spring and damper into a single unit, keeping things compact and straightforward for road and general track use. The divorced configuration separates the spring and damper, allowing each to be positioned and tuned independently; this is the preferred approach for dedicated race builds where maximizing suspension geometry and setup flexibility matters more than packaging simplicity. Nitron offers both to make sure the R1 works with the build rather than against it.

Unique Technology

Every Nitron shock is built from precision components that go through a thorough design and development process before reaching final assembly. The modular construction gives engineers the flexibility to approach each application properly, without compromising on how individual parts are made or how they perform together under load. Components are machined to tight tolerances and inspected one by one by trained technicians throughout production, not just at the end. New materials, finishes, and processes are validated extensively before adoption, with proprietary Nitron technologies integrated throughout to produce shocks that consistently hold up against the competition on road and track. That engineering standard is what the brand has been built on since 1998.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t adapt a generic damper to fit the G29 Z4. Every application goes through a dedicated development process, with components, spring rates, and damping characteristics engineered around the specific platform rather than the category it belongs to. Geometry, weight distribution, and suspension travel are factored into the design from the start, not compensated for after the fact. The result is a kit built for the G29 Z4 specifically, not one that was built broadly and happens to fit.

Features

Coilover or divorced rear suspension types
Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilover assemblies, and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Types:
- Coilover
- Divorced
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 343lbs/inch (60N/mm)
  - Rear:
    - Coilover: 300lbs/inch (53N/mm)
    - Divorced: 799lbs/inch (140N/mm)

Applications

BMW Z4 M40i: G29 | 2019-2026
BMW Z4 sDrive20i: G29 | 2019-2026
BMW Z4 sDrive30i: G29 | 2019-2026

Other Suspension Kits for G29 Z4

Notes

Some G29 Z4 models came with Adaptive M Suspension as standard and some didn’t; if your Z4 is equipped with it, the Nitron Electronic Damping Delete Kit is required when fitting a non-electronic coilover kit to prevent fault codes and warning lights
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

Why are the divorced rear spring rates so much stiffer than the coilover rates on the G29 Z4? The divorced configuration runs a significantly stiffer rear spring because the spring and damper are no longer working as a combined unit. With each component positioned independently, the spring rate needs to be higher to achieve the same wheel rate and chassis response. The G29’s rear spring rates in divorced form are considerably stiffer than the coilover rates, which reflects the leverage ratio and geometry of the Z4’s rear suspension when the components are separated.
At what point does the divorced rear configuration make more sense than the coilover setup on the Z4? When the build is moving toward dedicated circuit use and geometry optimization becomes a priority over installation simplicity. The divorced setup allows the spring and damper to be positioned and adjusted independently, which opens up setup options that a coilover configuration physically can’t offer. For road use or occasional track days, the coilover setup covers everything needed without the added complexity.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
