What is the difference between the NTR-R1 with FAL Cylinders and the NTR-R1 with Standalone FAL?

Both retain front axle lift functionality, but they approach it differently. The FAL Cylinders variant supplies new cylinders that integrate directly with the factory hydraulic lift system; the OEM pump, wiring loom, and controller all stay in place. The Standalone FAL replaces the factory system entirely with Nitron's own setup. If your Gallardo has the factory lift and you want to retain it, the FAL Cylinders variant is the correct route.

Is the NTR-R1 the right choice for track use, or should I be looking at the NTR-R3?

The NTR-R1 covers serious track use without compromise; it shares core components with a kit built for professional competition and the hardware behind the combined adjustment is the same quality as the R3. The difference is interface, not capability. If you need fully independent high and low speed compression control to dial in setup across different circuits, the R3 is the step up. If combined adjustment suits your approach, the R1 is the correct kit.

Is this kit fully serviceable long term?

Yes. Every NTR-R1 is hand-built to order and fully serviceable, so replacement parts and rebuild services are available through Nitron's service network well beyond the initial purchase.

Can I run custom spring rates?

Yes. Recommended rates are available for both Fast Road Spec and Track Day Spec configurations, but custom spring rates are available on request.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

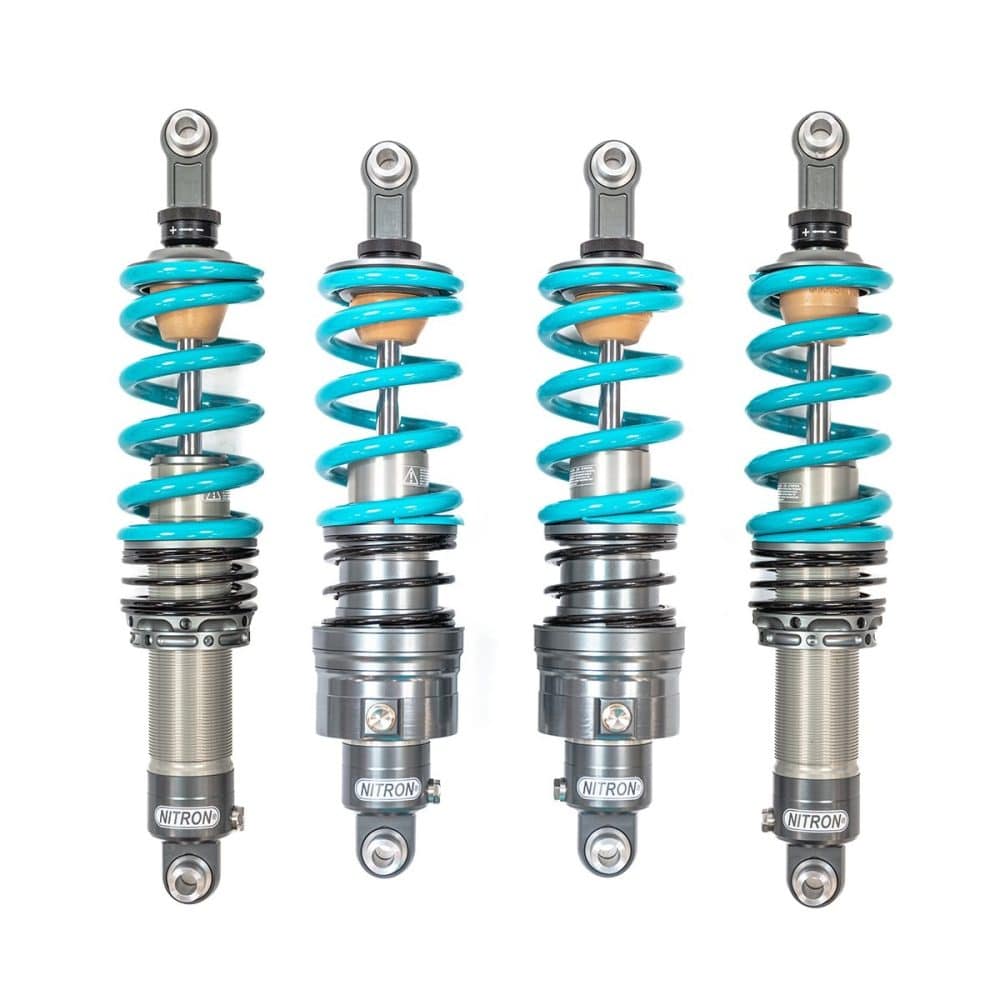

Nitron NTR-R1 Coilover Kit w/ FAL Cylinders for Lamborghini Gallardo

The Lamborghini Gallardo arrives with a performance pedigree that rewards serious development work, but the factory suspension still leaves room on the table when the driving gets serious. The Nitron NTR-R1 Coilover Kit with FAL Cylinders closes that gap with precision-engineered combined 2-way damping adjustment drawn directly from the R3 race platform, sharing core components with a kit built for professional competition. For Gallardo owners who need to retain the factory front axle lift system, the included FAL Cylinders are compatible with the car’s existing hydraulic setup, providing 25mm of lift at the shock while keeping the OEM pump, wiring loom, and controller in place. There’s no remote canister to package around, and every unit is individually hand-built with ultra-low friction components that deliver consistent, fade-resistant damping from the street to the circuit. Hard-anodized titanium finish parts and high-grade materials keep corrosion out and weight in check, and with each kit custom built, custom sprung, and fully serviceable, it’s an investment that holds up well beyond a single season.

Front Axle Lift Cylinders

The Nitron FAL Cylinders are compatible with the Gallardo’s existing hydraulic front axle lift system, providing 25mm of lift at the shock. The kit supplies the FAL Cylinders only; the OEM pump, wiring loom, and controller remain in place, so front axle lift functionality is retained without any additional hardware required from Nitron.

Unique Technology

Every Nitron shock is built from precision components that go through a thorough design and development process before reaching final assembly. The modular construction gives engineers the flexibility to approach each application properly, without compromising on how individual parts are made or how they perform together under load. Components are machined to tight tolerances and inspected one by one by trained technicians throughout production, not just at the end. New materials, finishes, and processes are validated extensively before adoption, with proprietary Nitron technologies integrated throughout to produce shocks that consistently hold up against the competition on road and track. That engineering standard is what the brand has been built on since 1998.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t adapt a generic damper to fit the Lamborghini Gallardo. Every application goes through a dedicated development process, with components, spring rates, and damping characteristics engineered around the specific platform rather than the category it belongs to. Geometry, weight distribution, and suspension travel are factored into the design from the start, not compensated for after the fact. The result is a kit built for the Gallardo specifically, not one that was built broadly and happens to fit.

Features

Includes Front Axle Lift (FAL) cylinders
Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilover assemblies, top mounts, and FAL cylinders
Hand made to order

Specifications

Coilover Type: NTR-R1 with FAL cylinders
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Types: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 550lbs/inch (96N/mm)
  - Rear: 508lbs/inch (89N/mm)
- TDS – Track Day Spec:
  - Front: 750lbs/inch (131N/mm)
  - Rear: 508lbs/inch (89N/mm)

Applications

Lamborghini Gallardo: LP560-4 | 2003-2013

Other Suspension Kits for Lamborghini Gallardo

Notes

Does not include FAL pump, wiring loom, or controller
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

What is the difference between the NTR-R1 with FAL Cylinders and the NTR-R1 with Standalone FAL? Both retain front axle lift functionality, but they approach it differently. The FAL Cylinders variant supplies new cylinders that integrate directly with the factory hydraulic lift system; the OEM pump, wiring loom, and controller all stay in place. The Standalone FAL replaces the factory system entirely with Nitron’s own setup. If your Gallardo has the factory lift and you want to retain it, the FAL Cylinders variant is the correct route.
Is the NTR-R1 the right choice for track use, or should I be looking at the NTR-R3? The NTR-R1 covers serious track use without compromise; it shares core components with a kit built for professional competition and the hardware behind the combined adjustment is the same quality as the R3. The difference is interface, not capability. If you need fully independent high and low speed compression control to dial in setup across different circuits, the R3 is the step up. If combined adjustment suits your approach, the R1 is the correct kit.
Is this kit fully serviceable long term? Yes. Every NTR-R1 is hand-built to order and fully serviceable, so replacement parts and rebuild services are available through Nitron’s service network well beyond the initial purchase.
Can I run custom spring rates? Yes. Recommended rates are available for both Fast Road Spec and Track Day Spec configurations, but custom spring rates are available on request.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
