Why do the spring rates differ between the Carrera, GT2, and GT3?

Each variant has different weight distribution, suspension geometry, and intended use. The GT2 and GT3 were developed with more aggressive chassis tuning from the factory, and Nitron's spring rate recommendations reflect those differences. The GT2 runs a softer front rate than the Carrera to account for its additional front weight from the turbo hardware, while the rear rates across all three variants are aligned around the 996's rear-engine weight bias.

How does the combined adjustment work on the R1?

A single knob controls compression and rebound simultaneously across 24 clicks. Turn it toward firm for track use and back it off for the road. There is no need to manage two separate dials, which keeps setup accessible without sacrificing the ability to meaningfully change how the car behaves.

How does the NTR-R1 differ from the NTR-R3 on the 996?

The R1 uses a single combined adjuster for compression and rebound across 24 clicks. The R3 separates high speed compression, low speed compression, and rebound into three independent circuits, giving drivers and engineers the range to address specific handling characteristics without affecting everything else at once. The R1 suits drivers who want meaningful improvement without complexity; the R3 suits those who want to properly develop a setup across different circuits and conditions.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

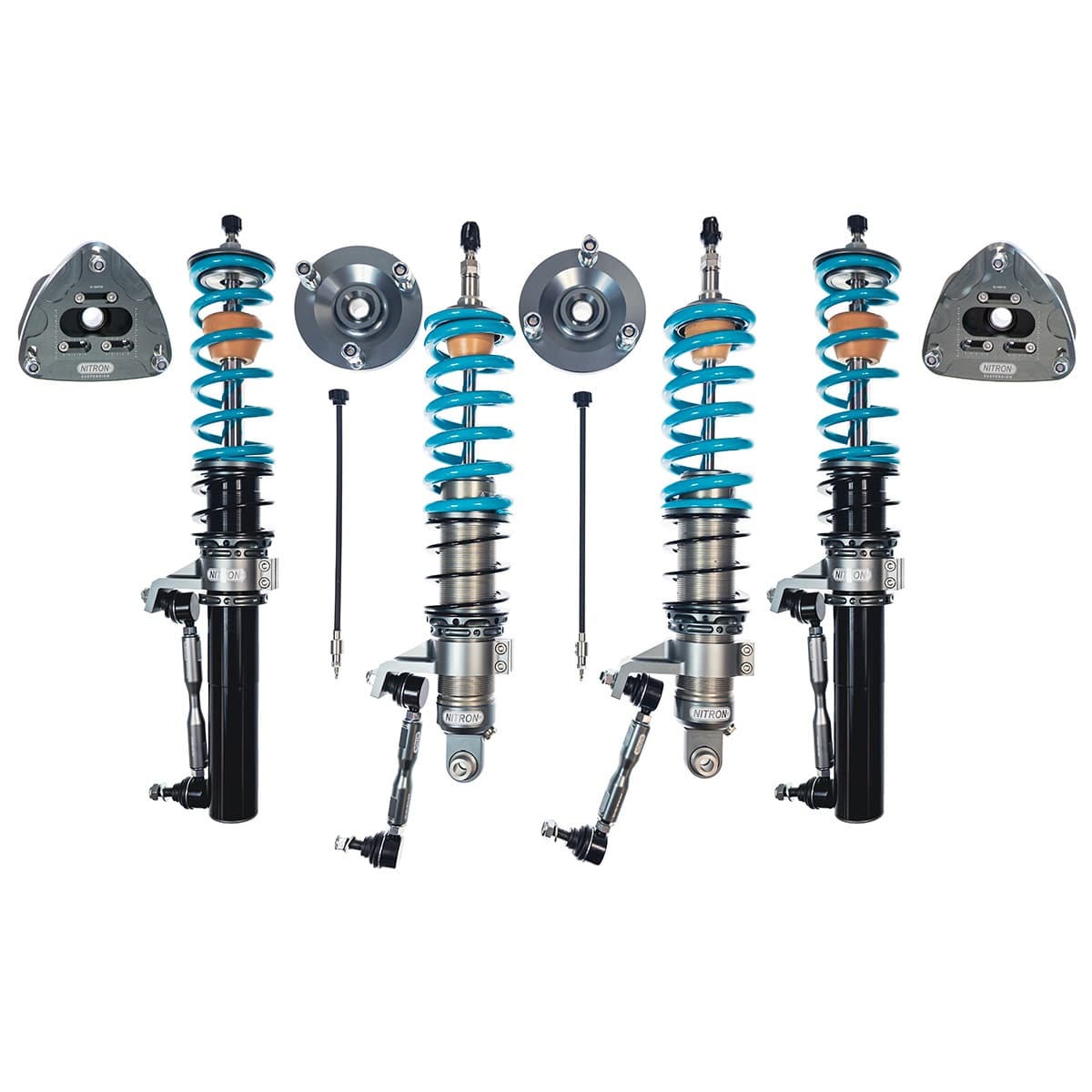

Nitron NTR-R1 Coilover Kit for 996 Porsche 911 Carrera / GT2 / GT3

The 996 Porsche 911 Carrera, GT2, and GT3 share a platform with genuine motorsport capability, but the factory suspension leaves performance on the table when the driving gets serious. The Nitron NTR-R1 coilover kit closes that gap with precision-engineered combined 2-way damping adjustment drawn directly from the R3 race platform, sharing core components with a kit built for professional competition. There’s no remote canister to package around, and every unit is individually hand-built with ultra-low friction components that deliver consistent, fade-resistant damping from the street to the circuit. Hard-anodized titanium finish parts and high-grade materials keep corrosion out and weight in check, and with each kit custom built, custom sprung, and fully serviceable, it’s an investment that holds up well beyond a single season.

Unique Technology

Every Nitron shock starts with precision components that have been through a thorough design and development process before they reach final assembly. The modular construction gives engineers the flexibility to tailor each application properly, without compromising how individual parts are made or how they perform together. Components are machined to tight tolerances and inspected one by one by trained technicians as part of a strict quality control process. New materials, finishes, and processes go through extensive validation before adoption, with Nitron-specific technologies integrated to produce shocks that genuinely outlast and outperform competing options on the road and track. That standard of engineering is what Nitron’s reputation is built on.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t pull a generic damper off a shelf and adjust the valving to fit the 996 Porsche 911. Every application goes through a dedicated development process, with components, spring rates, and damping characteristics engineered specifically for the platform in question. The geometry, weight distribution, and suspension travel of the 996 are factored into the design from the start, not compensated for after the fact. It’s the difference between a kit built for this car and a kit built for a category of cars it happens to fall into.

Features

Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilovers and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Type: OEM
Droplinks Included: No
Recommended Spring Rates:
- 996 Carrera:
  - FRS – Fast Road Spec:
    - Front: 457lbs/inch (80N/mm)
    - Rear: 799lbs/inch (140N/mm)
- 996 GT2:
  - FRS – Fast Road Spec:
    - Front: 400lbs/inch (70N/mm)
    - Rear: 799lbs/inch (140N/mm)
  - TDS – Track Day Spec:
    - Front: 571lbs/inch (100N/mm)
    - Rear: 913lbs/inch (160N/mm)
- 996 GT3:
  - FRS – Fast Road Spec:
    - Front: 457lbs/inch (80N/mm)
    - Rear: 799lbs/inch (140N/mm)

Applications

Porsche 911 Carrera: 996 | 1997-2005
Porsche 911 GT2: 996 | 2001-2005
Porsche 911 GT3: 996 | 1999-2005

Other Suspension Kits for 996 Carrera / GT2 / GT3

RoadSport Coilover Kit (996 Carrera only)
NTR-R1 Coilover Kit w/ Standalone FAL
NTR-R3 Coilover Kit
NTR-R3 Coilover Kit w/ Standalone FAL
elec-TRON RoadSport Coilover Kit (996 Carrera only)
elec-TRON R1 Coilover Kit
elec-TRON R1 Coilover Kit w/ Standalone FAL
elec-TRON R3 Coilover Kit
elec-TRON R3 Coilover Kit w/ Standalone FAL

Notes

Fits base 996 Carrera 2 models only
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

Why do the spring rates differ between the Carrera, GT2, and GT3? Each variant has different weight distribution, suspension geometry, and intended use. The GT2 and GT3 were developed with more aggressive chassis tuning from the factory, and Nitron’s spring rate recommendations reflect those differences. The GT2 runs a softer front rate than the Carrera to account for its additional front weight from the turbo hardware, while the rear rates across all three variants are aligned around the 996’s rear-engine weight bias.
How does the combined adjustment work on the R1? A single knob controls compression and rebound simultaneously across 24 clicks. Turn it toward firm for track use and back it off for the road. There is no need to manage two separate dials, which keeps setup accessible without sacrificing the ability to meaningfully change how the car behaves.
How does the NTR-R1 differ from the NTR-R3 on the 996? The R1 uses a single combined adjuster for compression and rebound across 24 clicks. The R3 separates high speed compression, low speed compression, and rebound into three independent circuits, giving drivers and engineers the range to address specific handling characteristics without affecting everything else at once. The R1 suits drivers who want meaningful improvement without complexity; the R3 suits those who want to properly develop a setup across different circuits and conditions.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
