What does the Ferrari Dino 246 NTR-R1 kit change over the original dampers?

Fifty years of use leaves most original dampers worn out, which gives you float, sloppy turn-in and a body that keeps moving after bumps. The passive Nitron NTR-R1 replaces them with monotube nitrogen-pressurized dampers and race springs that control the body properly again.

How many damping adjusters does the Nitron NTR-R1 have?

There is one adjuster per corner. It changes compression and rebound together, so setup stays simple.

Does the Ferrari Dino 246 NTR-R1 kit use remote hoses or reservoirs?

No. The reservoir is internal to each damper, so there are no remote hoses to route and nothing separate to mount.

Can the ride height be adjusted?

Yes. Adjustable spring perches let you set the ride height to suit your wheels, tires and how the car is used.

Can I get different spring rates?

Yes. Custom spring rates are available by contacting us directly, and we can help choose a rate for road or track use.

Is an alignment needed after installing the kit?

Yes. A professional alignment is required after installation.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

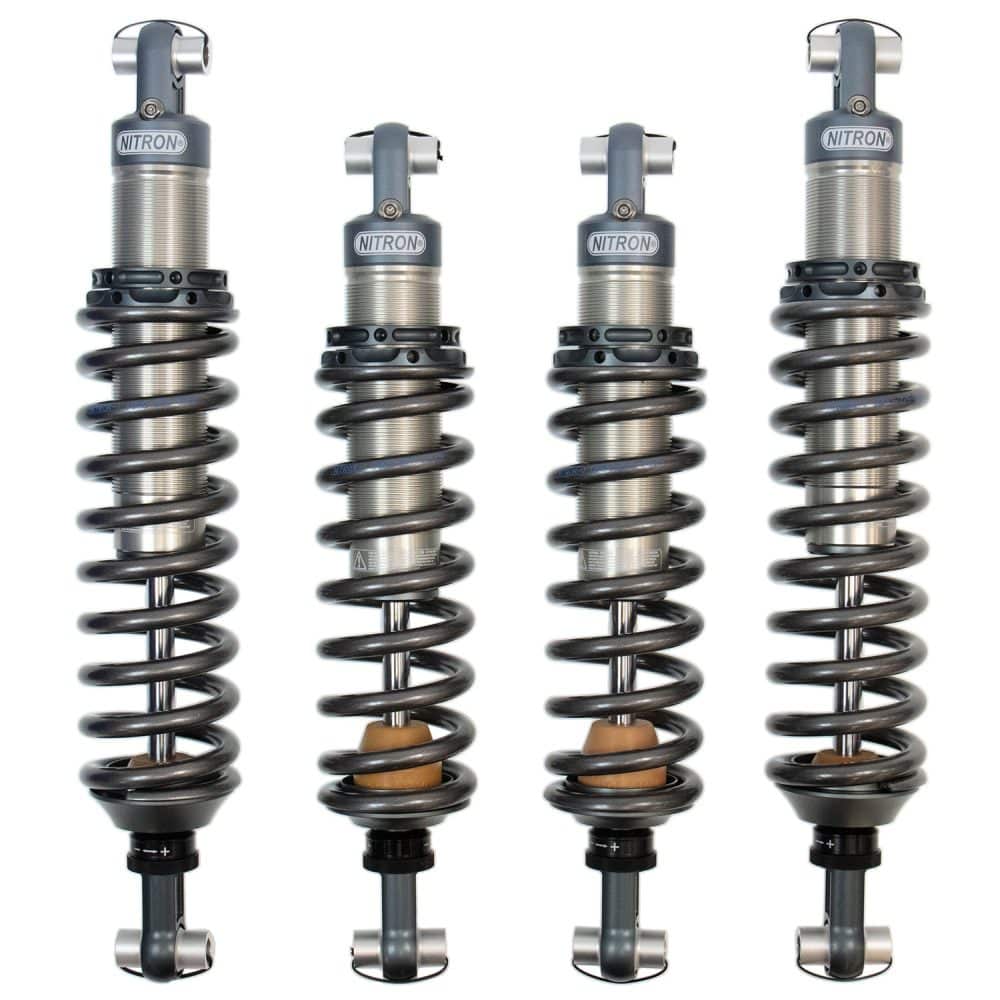

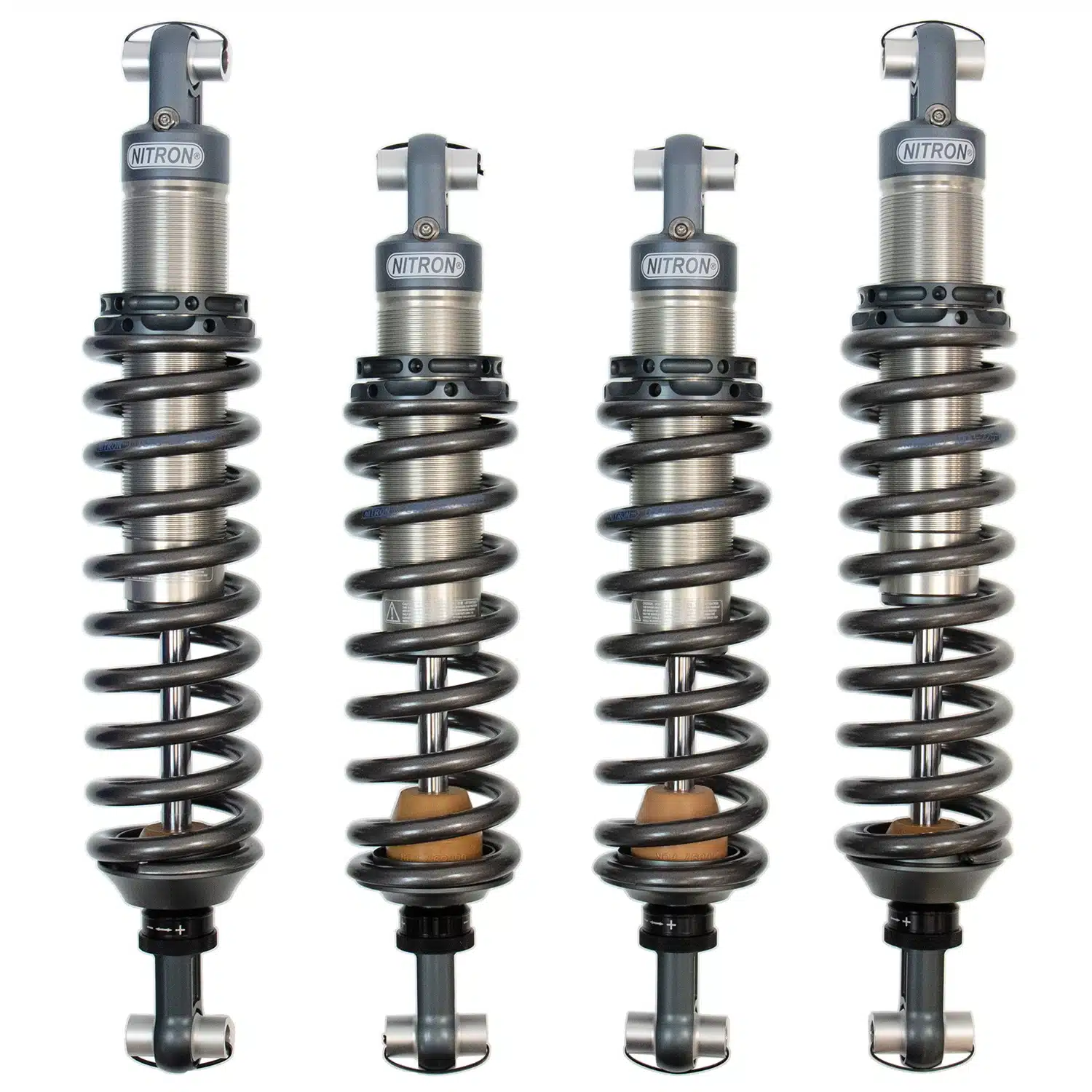

Nitron NTR-R1 Coilover Kit for Ferrari Dino 246 GT / GTS

The Ferrari Dino 246 NTR-R1 Coilover Kit from Nitron is aimed at a problem almost every 246 has by now, which is a set of dampers that gave up decades ago. The GT and GTS weigh around 1,100 kg and put a transverse 2.4 liter V6 just behind your shoulders, so the chassis tells you everything, including when the damping is gone. Worn dampers show up as float over crests, a nose that wanders on turn-in, and a body that keeps moving after the bump has passed. This passive coilover kit replaces the spring and damper at each corner with a monotube nitrogen-pressurized damper and a race spring, so the car settles quickly and stays predictable on fast back roads or at a track day.

Unique Technology

Each Nitron NTR-R1 damper is a monotube unit charged with nitrogen, and the reservoir is built into the body. There are no remote hoses to route around a mid-engine car, and nothing extra to mount. One adjuster at each corner changes compression and rebound together, so you can go firmer for circuit work or back off for a rough road without working through a long list of settings. Adjustable spring perches set the ride height, so the stance can be matched to your wheels and tires.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Every kit is hand assembled to order in the UK. The Nitron NTR-R1 dampers are built for the car they are going on, instead of being a generic unit made to fit. The Dino is light, and some owners want a firmer setup for track use while others want a softer one for a road car. That is why spring rates can be changed from the standard offering. If you want something different, contact us directly and we will sort out the right rate for how the car is used.

Features

OEM rear suspension type
Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilovers
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Types: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 275lbs/inch (48N/mm)
  - Rear: 250lbs/inch (44N/mm)

Applications

Ferrari Dino 246 GT: 1969-1974
Ferrari Dino 246 GTS: 1969-1974

Other Suspension Kits for Ferrari Dino 246

NTR-R3 Coilover Kit

Notes

Custom spring rates also available
Please feel free to contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

What does the Ferrari Dino 246 NTR-R1 kit change over the original dampers? Fifty years of use leaves most original dampers worn out, which gives you float, sloppy turn-in and a body that keeps moving after bumps. The passive Nitron NTR-R1 replaces them with monotube nitrogen-pressurized dampers and race springs that control the body properly again.
How many damping adjusters does the Nitron NTR-R1 have? There is one adjuster per corner. It changes compression and rebound together, so setup stays simple.
Does the Ferrari Dino 246 NTR-R1 kit use remote hoses or reservoirs? No. The reservoir is internal to each damper, so there are no remote hoses to route and nothing separate to mount.
Can the ride height be adjusted? Yes. Adjustable spring perches let you set the ride height to suit your wheels, tires and how the car is used.
Can I get different spring rates? Yes. Custom spring rates are available by contacting us directly, and we can help choose a rate for road or track use.
Is an alignment needed after installing the kit? Yes. A professional alignment is required after installation.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
