How do firmer springs help the Elise 111R in fast corners?

At high corner speeds on sticky tires, road-biased springs let the Elise 111R lean further and move around over crests and bumps. The Nitron 111R NTR-R1 ClubSport uses firmer spring rates than the FastRoad kit, so the body holds a steadier attitude and ride height through fast sweepers. The car stays composed when stability matters most.

Who should choose the Nitron Elise 111R NTR-R1 ClubSport?

The Nitron Elise 111R NTR-R1 ClubSport suits 111R and Elise R owners who track their car regularly or run sticky tires but still drive it on the road. It uses the same NTR-R1 damper as the FastRoad with slightly stiffer springs. Owners building a full race car may be better served by the Nitron RacePro 3.

Are mounting brackets included with the Nitron 111R NTR-R1 ClubSport?

Yes. Mounting brackets are included with every Nitron 111R NTR-R1 ClubSport kit and are supplied to suit your car’s drive side. Select LHD or RHD when ordering, and the kit arrives with the correct brackets to fit the factory double wishbone suspension without sourcing extra hardware.

Can the Nitron NTR-R1 ClubSport be softened for the road?

Yes. Each Nitron NTR-R1 damper has a single adjuster that sets bump and rebound together, so a few clicks per corner take the edge off for the drive to the circuit. You can firm the Elise 111R back up in the paddock without balancing separate damping circuits, then soften it again for the trip home.

Can the Nitron Elise 111R NTR-R1 ClubSport be serviced and revalved?

Yes. Every Nitron Elise 111R NTR-R1 ClubSport damper is fully serviceable, so it can be rebuilt after a season of track days, revalved or fitted with different springs. If your 111R moves toward competition or back toward the road, the setup can be updated to match.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

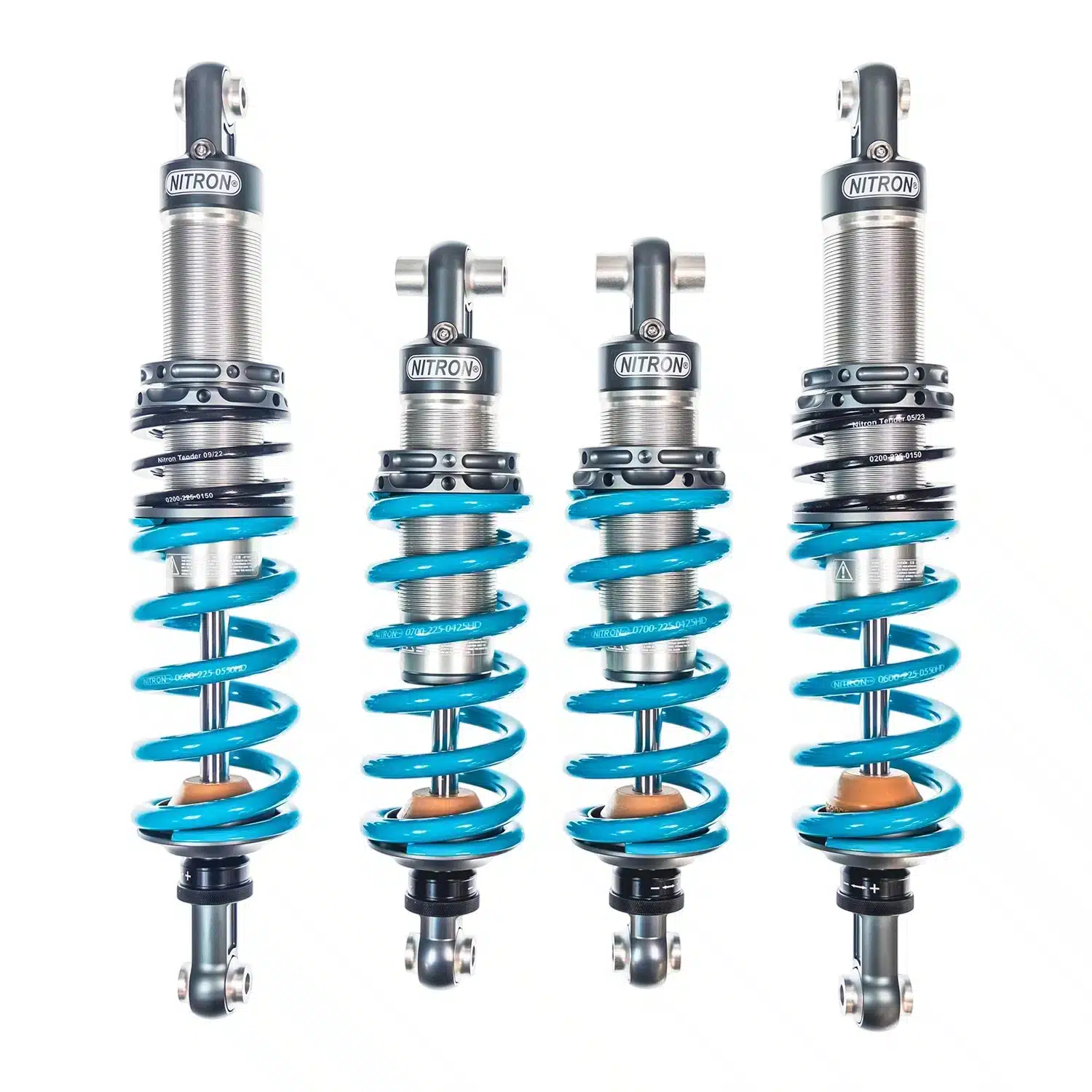

Nitron NTR-R1 ClubSport Coilover Kit for S2 Lotus Elise 111R / R

The Toyota-powered Elise 111R carries more speed into a corner than most S2s, and you notice that most in fast, loaded sweepers. On road-biased springs, the body leans further, the car takes longer to settle, and a crest or bump mid-corner can leave it moving around just as you need it steady. The Nitron 111R NTR-R1 ClubSport coilover kit firms things up for that kind of driving. Its spring rates are a step stiffer than the FastRoad kit’s, so the Elise holds a steadier ride height and body attitude through high-speed corners and stays composed over crests at track pace. It’s still usable on the road, but the ClubSport is aimed at owners whose 111R sees regular circuit days on sticky tires. One adjuster per corner sets bump and rebound together, so you can soften it for the drive to the track and firm it up in the paddock. The kit fits both the Elise 111R and the later Elise R. Mounting brackets for your car’s drive side are included, so the Nitron Elise 111R NTR-R1 ClubSport bolts straight into the factory double wishbone suspension.

Unique Technology

Nitron’s NTR-R1 uses hardware developed in its race program, much of it shared with the NTR-R3 that competes in international motorsport. There’s no remote canister, so each damper stays compact and installs without any hoses to route. Firmer springs put more load through the dampers, especially at high speed. The low-friction internals of the Nitron NTR-R1 respond quickly to those loads, so the tires stay planted over curbs and fast, bumpy corners instead of skating across the surface. Fade resistance matters too, since a quick 111R on sticky tires can lap hard for a long time. The Nitron 111R NTR-R1 ClubSport holds its damping from the first lap of a session to the last.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Every Nitron 111R NTR-R1 ClubSport kit is assembled by hand to order, with springs and valving matched to the Elise 111R and a track-leaning brief. That suits owners who drive to the circuit on track tires, run a full day of sessions and drive home, as well as cars that have become dedicated track-day machines with brake and cooling upgrades. Hard-anodized and titanium-finish components keep weight down on a car built around low mass, and they resist corrosion through wet track days and winter storage. These dampers are built to be maintained, not replaced. Each Nitron NTR-R1 unit can be fully serviced and revalved, and the springs can be changed, so the setup can follow the car toward competition or back toward the road.

Features

Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilover assemblies and mounting brackets (LHD or RHD)
Hand made to order

Specifications

Coilover Type: NTR-R1 ClubSport
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Mounting Brackets: Included (LHD or RHD)
Recommended Spring Rates:
- Front: 450lbs/inch (79N/mm)
- Rear: 600lbs/inch (105N/mm)

Applications

Lotus Elise 111R: S2 | 2005-2006
Lotus Elise R: S2 | 2007-2011

Other Suspension Kits for S2 Lotus Elise 111R / R

Notes

Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

How do firmer springs help the Elise 111R in fast corners? At high corner speeds on sticky tires, road-biased springs let the Elise 111R lean further and move around over crests and bumps. The Nitron 111R NTR-R1 ClubSport uses firmer spring rates than the FastRoad kit, so the body holds a steadier attitude and ride height through fast sweepers. The car stays composed when stability matters most.
Who should choose the Nitron Elise 111R NTR-R1 ClubSport? The Nitron Elise 111R NTR-R1 ClubSport suits 111R and Elise R owners who track their car regularly or run sticky tires but still drive it on the road. It uses the same NTR-R1 damper as the FastRoad with slightly stiffer springs. Owners building a full race car may be better served by the Nitron RacePro 3.
Are mounting brackets included with the Nitron 111R NTR-R1 ClubSport? Yes. Mounting brackets are included with every Nitron 111R NTR-R1 ClubSport kit and are supplied to suit your car’s drive side. Select LHD or RHD when ordering, and the kit arrives with the correct brackets to fit the factory double wishbone suspension without sourcing extra hardware.
Can the Nitron NTR-R1 ClubSport be softened for the road? Yes. Each Nitron NTR-R1 damper has a single adjuster that sets bump and rebound together, so a few clicks per corner take the edge off for the drive to the circuit. You can firm the Elise 111R back up in the paddock without balancing separate damping circuits, then soften it again for the trip home.
Can the Nitron Elise 111R NTR-R1 ClubSport be serviced and revalved? Yes. Every Nitron Elise 111R NTR-R1 ClubSport damper is fully serviceable, so it can be rebuilt after a season of track days, revalved or fitted with different springs. If your 111R moves toward competition or back toward the road, the setup can be updated to match.
