Which Nissan models does Nitron's 300ZX NTR-R3 Coilover Kit fit?

This Nitron 300ZX NTR-R3 fits the Z32 Nissan 300ZX.

What does the Nitron NTR-R3 replace on the Z32 300ZX?

It replaces the factory springs and dampers at all four corners with Nitron NTR-R3 coilover units, adding adjustable ride height and firmer race springs. The rear keeps the OEM suspension type.

How is the Nitron NTR-R3 adjusted?

Each damper has independent high speed and low speed compression adjustment and independent high speed and low speed rebound adjustment, which gives four separate adjustments at every corner.

What kind of reservoirs does the Nitron NTR-R3 use?

The kit uses piggyback reservoirs at the front and rear. They mount directly on the dampers, so there are no hoses to route.

Are top plates included with the Nitron NTR-R3 kit?

Yes. The kit includes adjustable top plates for both the front and rear.

Can I get custom spring rates for my setup?

Yes. Every kit is hand assembled to order, and custom spring rates outside the standard range are available by contacting us directly.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

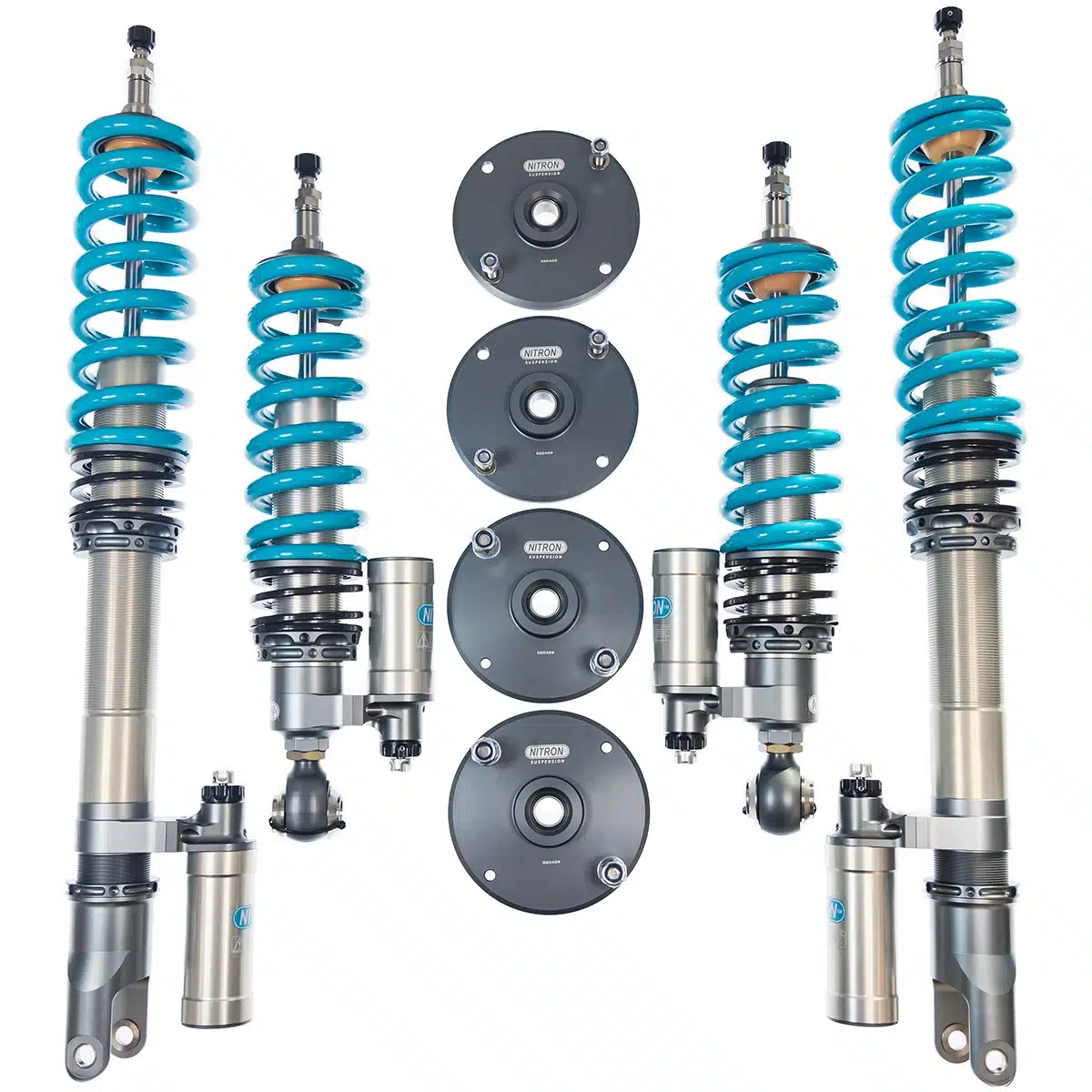

Nitron NTR-R3 Coilover Kit for Z32 Nissan 300ZX

The Nitron 300ZX NTR-R3 Coilover Kit is for the Z32 owner who has outgrown a single damping adjustment. A 300ZX is a heavy grand tourer, and once it starts seeing hard driving, the way it handles a fast direction change and the way it handles a slow roll into a corner stop being the same problem. Nitron’s passive NTR-R3 replaces the spring and damper at each corner with a coilover and gives you independent high and low speed adjustment for both compression and rebound, so those two situations can be tuned separately. Piggyback reservoirs sit on the dampers at the front and rear with no hoses to route, and the rear keeps the OEM suspension type. Adjustable spring perches set the ride height, firmer race springs back up the damper, and adjustable top plates are included front and rear so the alignment can be set properly once the ride height changes. The result is a Z32 that turns in with more precision, stays flatter through a corner, and settles after a bump, which suits track days, autocross, and a road car driven properly.

Unique Technology

Each Nitron NTR-R3 damper is a monotube design pressurized with nitrogen gas, which keeps the oil from aerating and holds damping consistent as the dampers heat up over a long session. The valving comes from motorsport work and is tuned to the weight and spring rates of a Z32 300ZX instead of being adapted from a generic curve. Where the NTR-R1 combines compression and rebound into a single adjustment, the NTR-R3 separates high speed and low speed circuits for each, which gives four independent adjustments at every corner.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Every Nitron 300ZX NTR-R3 Coilover Kit is hand assembled to order in the UK. Spring rates and valving are matched to how the car will really be used, whether that’s a quick road car or a dedicated track build, and custom spring rates are available for owners who want to shift the balance of the car one way or the other.

Features

Piggyback reservoir type
OEM rear suspension type
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body
Consists of 4 coilovers, reservoirs, hoses, and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R3
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
Reservoir Type: Piggyback
Rear Suspension Type: OEM
Droplinks Included: No

Applications

Nissan 300ZX: Z32 | 1990-1996

Other Suspension Kits for Z32 Nissan 300ZX

NTR-R1 Coilover Kit

Notes

Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only; specific details, finishes and end fittings may differ from that shown

Frequently Asked Questions

Which Nissan models does Nitron’s 300ZX NTR-R3 Coilover Kit fit? This Nitron 300ZX NTR-R3 fits the Z32 Nissan 300ZX.
What does the Nitron NTR-R3 replace on the Z32 300ZX? It replaces the factory springs and dampers at all four corners with Nitron NTR-R3 coilover units, adding adjustable ride height and firmer race springs. The rear keeps the OEM suspension type.
How is the Nitron NTR-R3 adjusted? Each damper has independent high speed and low speed compression adjustment and independent high speed and low speed rebound adjustment, which gives four separate adjustments at every corner.
What kind of reservoirs does the Nitron NTR-R3 use? The kit uses piggyback reservoirs at the front and rear. They mount directly on the dampers, so there are no hoses to route.
Are top plates included with the Nitron NTR-R3 kit? Yes. The kit includes adjustable top plates for both the front and rear.
Can I get custom spring rates for my setup? Yes. Every kit is hand assembled to order, and custom spring rates outside the standard range are available by contacting us directly.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
