Which Subaru BRZ and Toyota 86 models do the Moton 3-Way Motorsport Coilovers for Subaru BRZ fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for Subaru BRZ for the Subaru BRZ (ZC6 / ZD8, 2012 onward), Toyota GT86 / 86 (ZN6, 2012 to 2021) and Toyota GR86 (ZN8, 2021 onward). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the BRZ or 86?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the BRZ or 86. The 2-Way Clubsport keeps compression as one adjuster, and the 1-Way adjusts rebound alone. On the BRZ or 86 it is the kit for racing and data-led setup work.

Is the 3-way kit suited to a spec-class BRZ or 86?

It depends on the rules. Many one-make and spec classes restrict damper type or adjustability, so check the regulations before ordering. In open time attack and club racing, separate low-speed and high-speed compression let the BRZ or 86 be tuned closely for a circuit and tire.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M12 threads, built to order for the BRZ or 86. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the BRZ or 86 dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a BRZ or 86 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 3-Way Motorsport Coilovers for Subaru BRZ and Toyota GT86 / GR86

Moton’s 3-Way Motorsport Coilovers for Subaru BRZ and Toyota GT86 / GR86 are the most adjustable damper MOTON builds for the BRZ and 86, with rebound plus separate low-speed and high-speed compression. The BRZ and 86 are widely raced in club series and time attack, and this 3-way set is MOTON’s race specification for them. Splitting compression into two circuits lets body control on the BRZ or 86 be firmed without making the car skip across ripples and kerbs.

Design and Performance

Two compression circuits let body control on the BRZ or 86 be firmed up without making the car skip over bumps. It is overkill on a road car; the Moton 1-Way Coilovers suit that use, and the Moton 2-Way Clubsport Coilovers sit between the two.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Adjustable aluminum front droplinks, DLA-12-200-240, M12, 200 mm to 240 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable front droplinks (x2)

Applications

Subaru BRZ: ZC6 / ZD8 | 2012-present
Toyota GT86 / 86: ZN6 | 2012-2021
Toyota GR86: ZN8 | 2021-present

Notes

The Moton 3-Way Motorsport Coilovers for Subaru BRZ fit both generations of the BRZ and the Toyota GT86 and GR86
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order

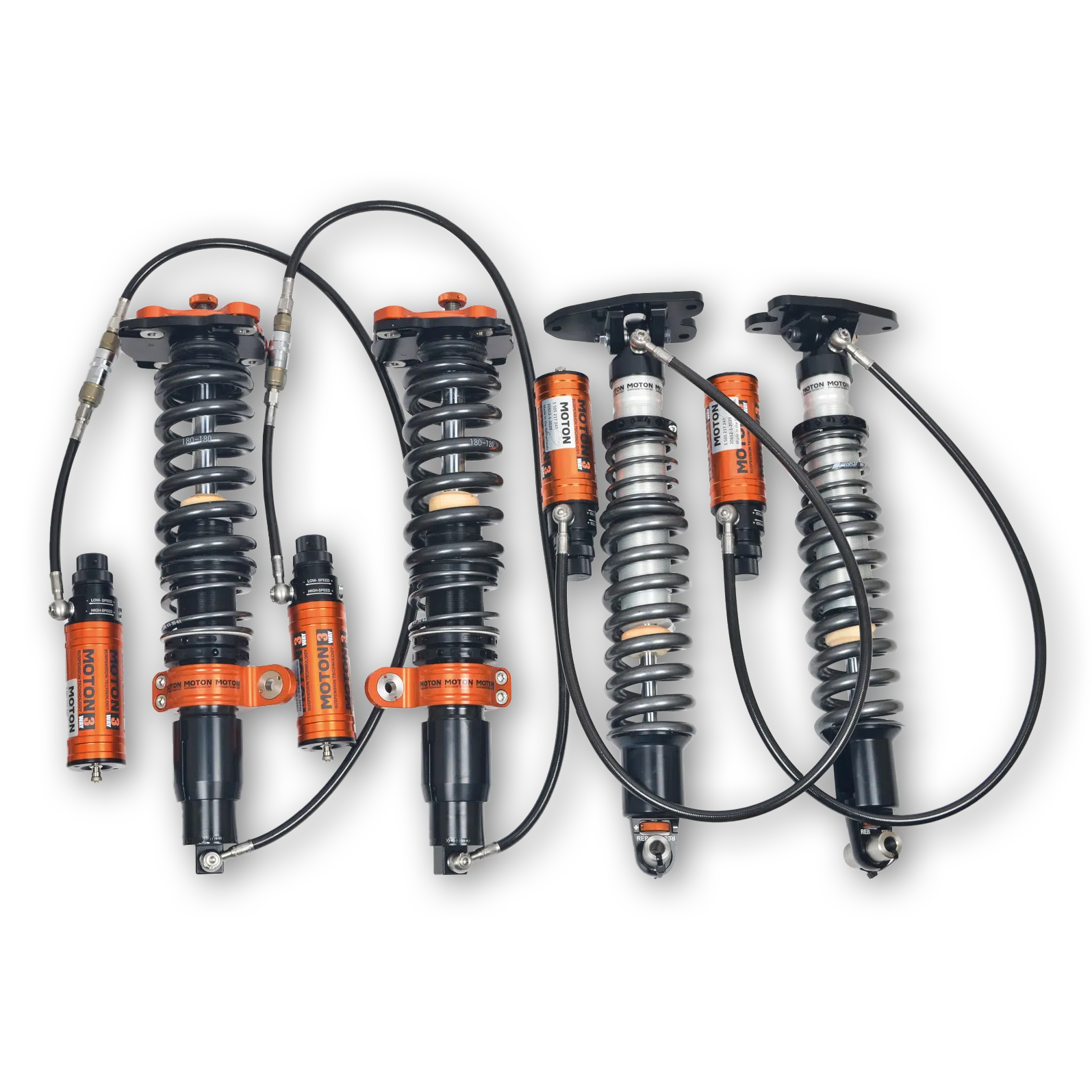

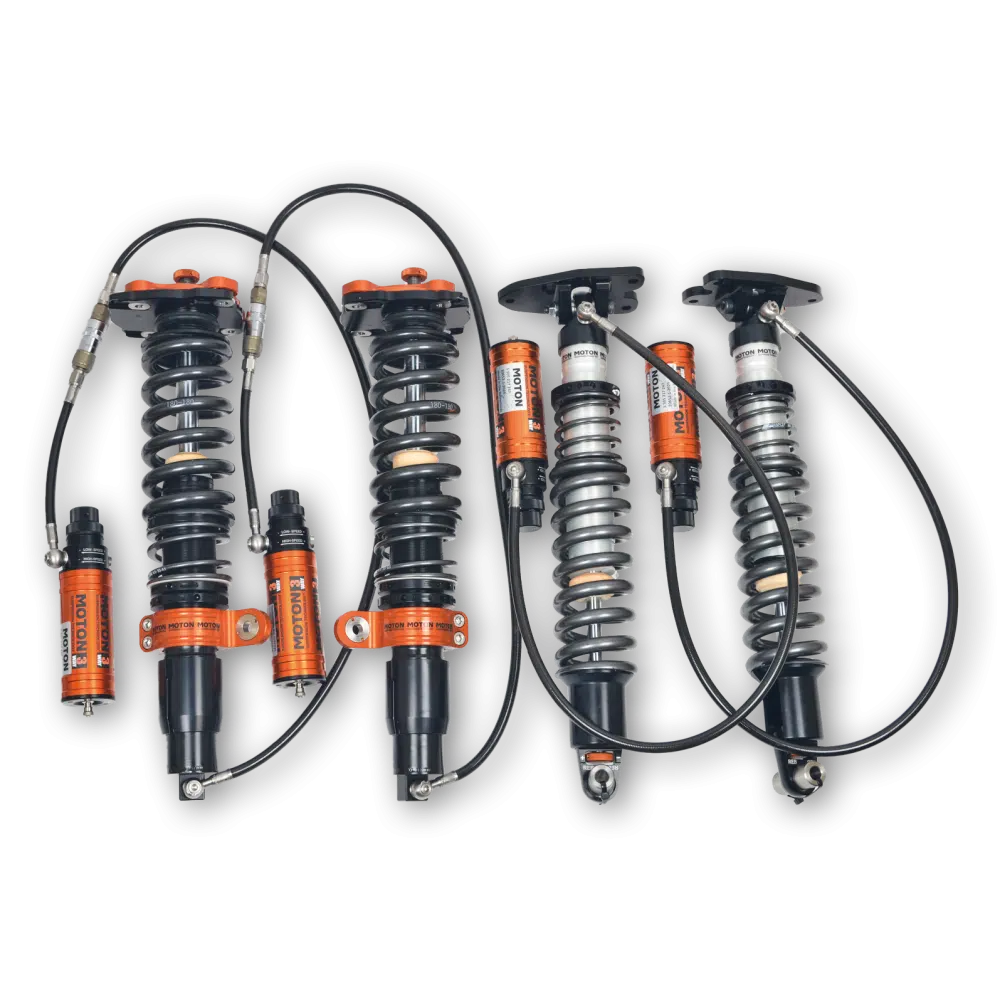

Images show representative MOTON kits

Frequently Asked Questions

Which Subaru BRZ and Toyota 86 models do the Moton 3-Way Motorsport Coilovers for Subaru BRZ fit? MOTON lists the Moton 3-Way Motorsport Coilovers for Subaru BRZ for the Subaru BRZ (ZC6 / ZD8, 2012 onward), Toyota GT86 / 86 (ZN6, 2012 to 2021) and Toyota GR86 (ZN8, 2021 onward). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the BRZ or 86? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the BRZ or 86. The 2-Way Clubsport keeps compression as one adjuster, and the 1-Way adjusts rebound alone. On the BRZ or 86 it is the kit for racing and data-led setup work.
Is the 3-way kit suited to a spec-class BRZ or 86? It depends on the rules. Many one-make and spec classes restrict damper type or adjustability, so check the regulations before ordering. In open time attack and club racing, separate low-speed and high-speed compression let the BRZ or 86 be tuned closely for a circuit and tire.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M12 threads, built to order for the BRZ or 86. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the BRZ or 86 dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a BRZ or 86 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
