Which Subaru BRZ and Toyota 86 models do the Moton 2-Way Clubsport Coilovers for Subaru BRZ fit?

MOTON lists the Moton 2-Way Clubsport Coilovers for Subaru BRZ for the Subaru BRZ (ZC6 / ZD8, 2012 onward), Toyota GT86 / 86 (ZN6, 2012 to 2021) and Toyota GR86 (ZN8, 2021 onward). Confirm the exact model and year with us before ordering.

How does the 2-Way Clubsport kit compare with the other MOTON kits for the BRZ or 86?

The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the BRZ or 86. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for a BRZ or 86 that tracks regularly.

Which droplinks come with the BRZ and 86 kit?

The kit includes a pair of adjustable aluminum front droplinks, MOTON part DLA-12-200-240, with M12 threads and a length range of 200 mm to 240 mm. They let the anti-roll bar be set back to neutral once the BRZ or 86 is lowered, which keeps the balance of the car predictable.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M12 threads, built to order for the BRZ or 86. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

What do the remote reservoirs do on the BRZ or 86 kit?

Each damper in the BRZ or 86 kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 2-Way Clubsport Coilovers for Subaru BRZ and Toyota GT86 / GR86

Moton’s 2-Way Clubsport Coilovers for Subaru BRZ and Toyota GT86 / GR86 are the Clubsport damper MOTON builds for the BRZ and 86, adjustable for rebound and for compression on a remote reservoir, with springs supplied. MOTON covers both generations of the BRZ and the Toyota 86 with this 2-way set, the 2.0-litre FA20 cars and the 2.4-litre FA24 cars alike, with adjustable droplinks in the box.

Design and Performance

Separating compression from rebound changes how the BRZ or 86 takes a kerb without changing how it recovers. A road car with two track days a year will not use it, and the Moton 1-Way Coilovers cover that brief for less; separate high-speed and low-speed compression is the job of the Moton 3-Way Motorsport Coilovers.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Adjustable aluminum front droplinks, DLA-12-200-240, M12, 200 mm to 240 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable front droplinks (x2)

Applications

Subaru BRZ: ZC6 / ZD8 | 2012-present
Toyota GT86 / 86: ZN6 | 2012-2021
Toyota GR86: ZN8 | 2021-present

Notes

The Moton 2-Way Clubsport Coilovers for Subaru BRZ fit both generations of the BRZ and the Toyota GT86 and GR86
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order

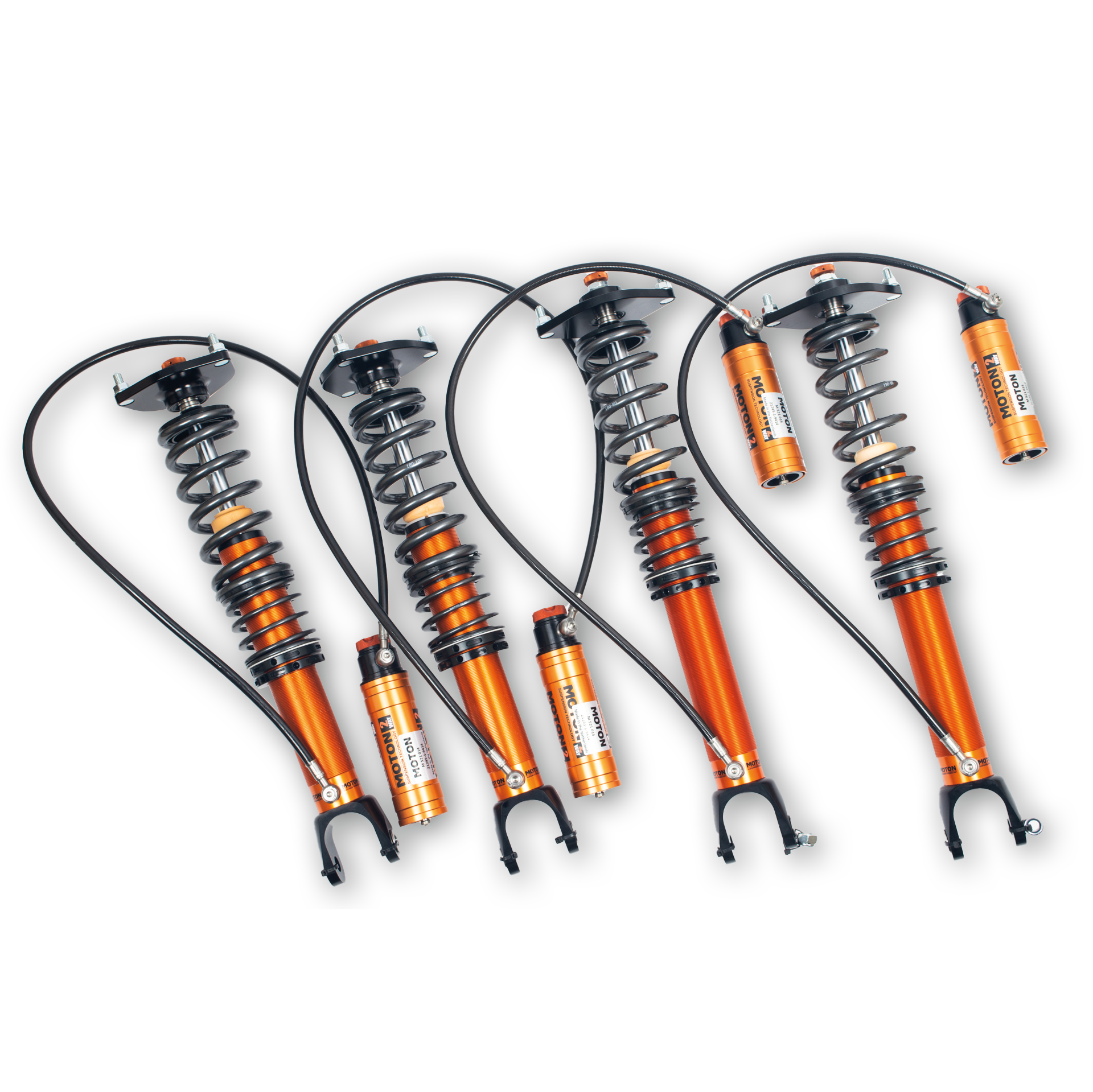

Images show representative MOTON kits

Frequently Asked Questions

Which Subaru BRZ and Toyota 86 models do the Moton 2-Way Clubsport Coilovers for Subaru BRZ fit? MOTON lists the Moton 2-Way Clubsport Coilovers for Subaru BRZ for the Subaru BRZ (ZC6 / ZD8, 2012 onward), Toyota GT86 / 86 (ZN6, 2012 to 2021) and Toyota GR86 (ZN8, 2021 onward). Confirm the exact model and year with us before ordering.
How does the 2-Way Clubsport kit compare with the other MOTON kits for the BRZ or 86? The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the BRZ or 86. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for a BRZ or 86 that tracks regularly.
Which droplinks come with the BRZ and 86 kit? The kit includes a pair of adjustable aluminum front droplinks, MOTON part DLA-12-200-240, with M12 threads and a length range of 200 mm to 240 mm. They let the anti-roll bar be set back to neutral once the BRZ or 86 is lowered, which keeps the balance of the car predictable.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M12 threads, built to order for the BRZ or 86. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
What do the remote reservoirs do on the BRZ or 86 kit? Each damper in the BRZ or 86 kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
