Which Ferrari F430 models do the Moton 3-Way Motorsport Coilovers for Ferrari F430 fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for Ferrari F430 for the Ferrari F430 / F430 Spider / 430 Scuderia (F430, 2004 to 2009). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the F430?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the F430. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the F430 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.

Is the 3-way kit suited to an F430 track car?

Yes. Separate low-speed and high-speed compression let an F430 be tuned for body control under braking without losing compliance over kerbs, which suits a car that runs a serious track program. For road driving with occasional track days, the 2-Way Clubsport F430 set is easier to live with.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the F430. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the F430 dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an F430 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

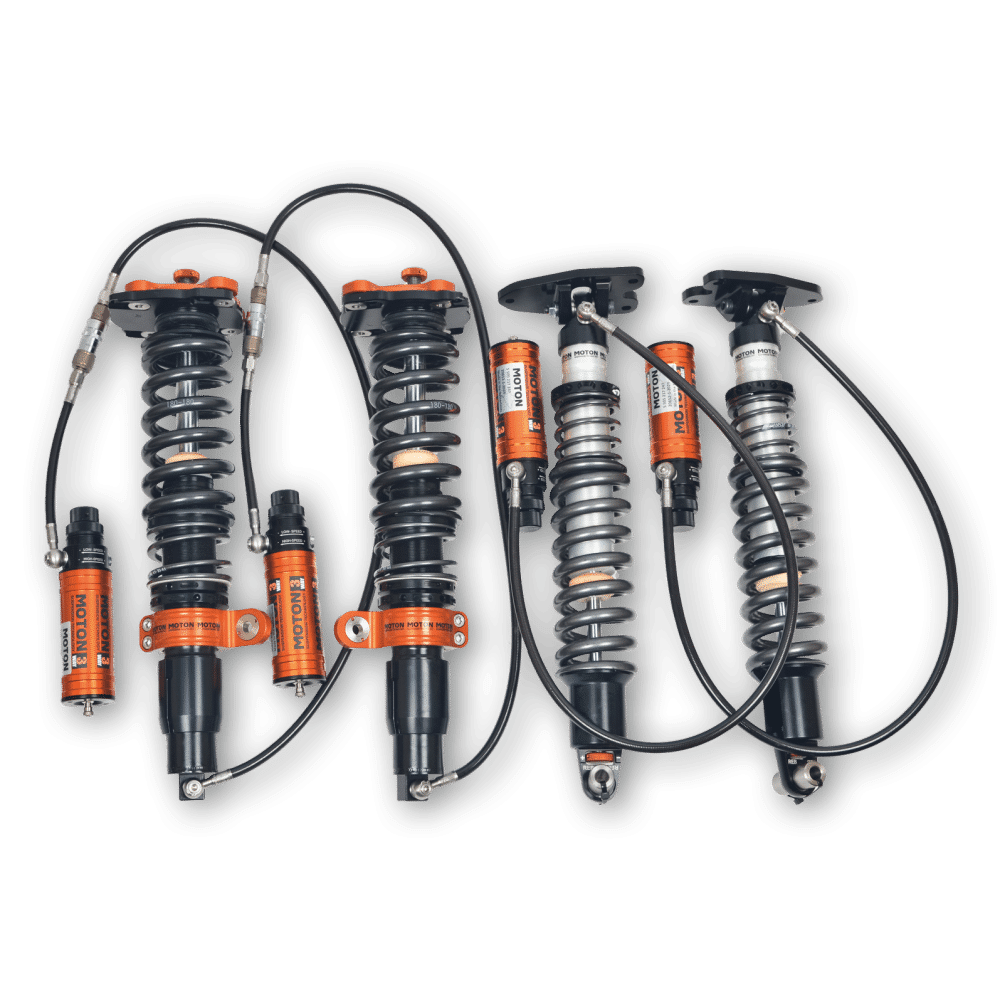

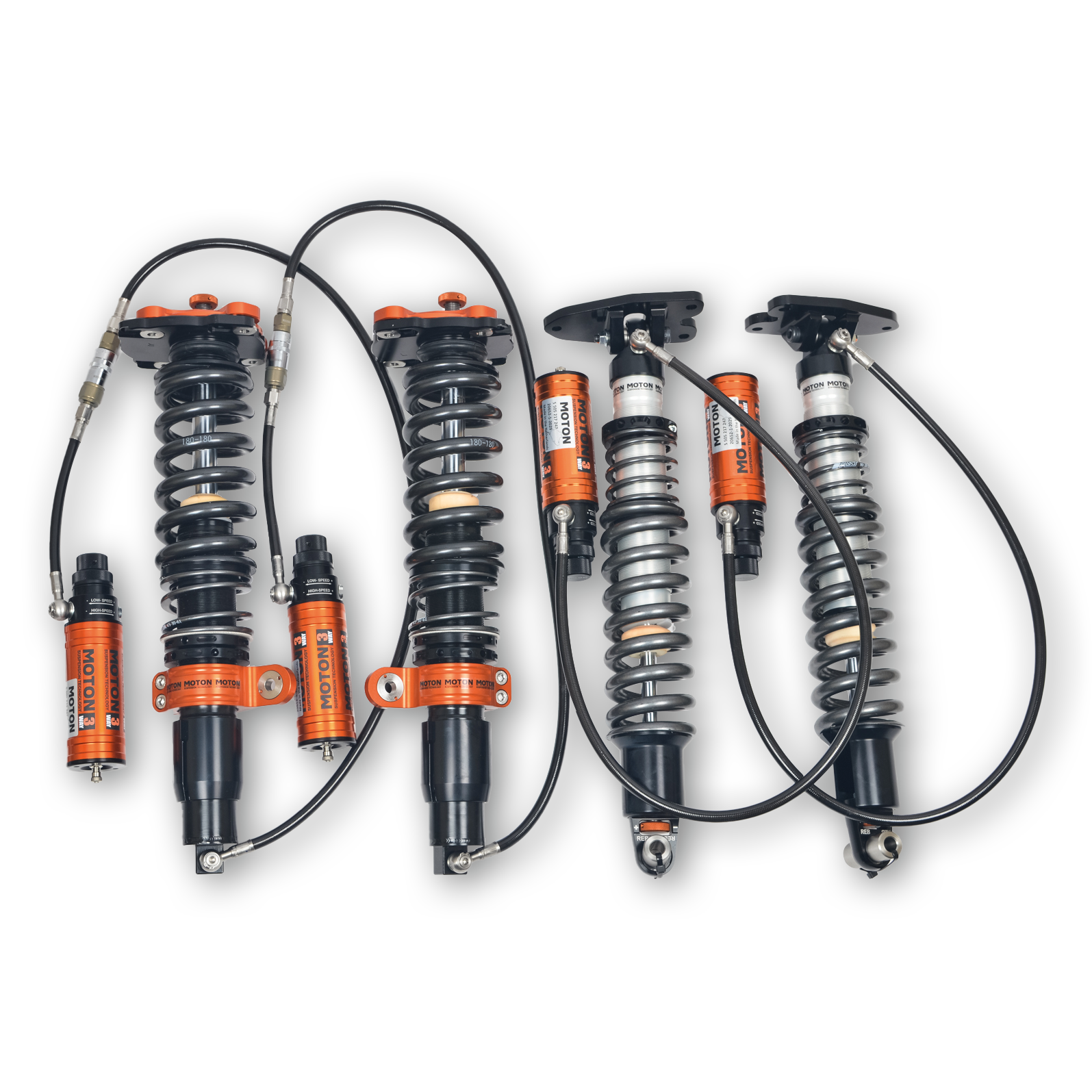

Moton 3-Way Motorsport Coilovers for Ferrari F430

Moton’s 3-Way Motorsport Coilovers for Ferrari F430 are the most adjustable damper MOTON builds for the F430, with rebound plus separate low-speed and high-speed compression. MOTON lists this 3-way set for the F430 coupe and Spider as well as the lighter 430 Scuderia, with quick-disconnect couplings at the front. Splitting compression into two circuits lets body control on the F430 be firmed without making the car skip across ripples and kerbs. It suits an F430 prepared for racing, where the extra adjusters earn their place.

Design and Performance

Two compression circuits separate the response to slow inputs, such as roll and pitch under braking, from fast ones such as kerbs and ripples. On the F430, body control can be firmed up without making the car skip over bumps. It is overkill on a road car, and the Moton 2-Way Clubsport Coilovers suit regular track days with less to set up.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Elevated top guide with helper piston
Quick-disconnect couplings at the front
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs

Applications

Ferrari F430 / F430 Spider / 430 Scuderia: F430 | 2004-2009

Notes

The Moton 3-Way Motorsport Coilovers for Ferrari F430 fit the F430 coupe, F430 Spider and 430 Scuderia
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Ferrari F430 models do the Moton 3-Way Motorsport Coilovers for Ferrari F430 fit? MOTON lists the Moton 3-Way Motorsport Coilovers for Ferrari F430 for the Ferrari F430 / F430 Spider / 430 Scuderia (F430, 2004 to 2009). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the F430? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the F430. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the F430 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.
Is the 3-way kit suited to an F430 track car? Yes. Separate low-speed and high-speed compression let an F430 be tuned for body control under braking without losing compliance over kerbs, which suits a car that runs a serious track program. For road driving with occasional track days, the 2-Way Clubsport F430 set is easier to live with.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the F430. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the F430 dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an F430 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
