Which Ferrari F430 models do the Moton 2-Way Clubsport Coilovers for Ferrari F430 fit?

MOTON lists the Moton 2-Way Clubsport Coilovers for Ferrari F430 for the Ferrari F430 / F430 Spider / 430 Scuderia (F430, 2004 to 2009). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 2-Way Clubsport kit compare with the other MOTON kits for the F430?

The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the F430. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for an F430 that tracks regularly.

Does the kit fit the 430 Scuderia?

MOTON lists the F430 on this part number, and the application data for the set includes the 430 Scuderia and the F430 Spider. Because the Scuderia has its own factory suspension tune, send us the chassis number before ordering and we will confirm the fitment.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, built to order for the F430. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

What do the remote reservoirs do on the F430 kit?

Each damper in the F430 kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

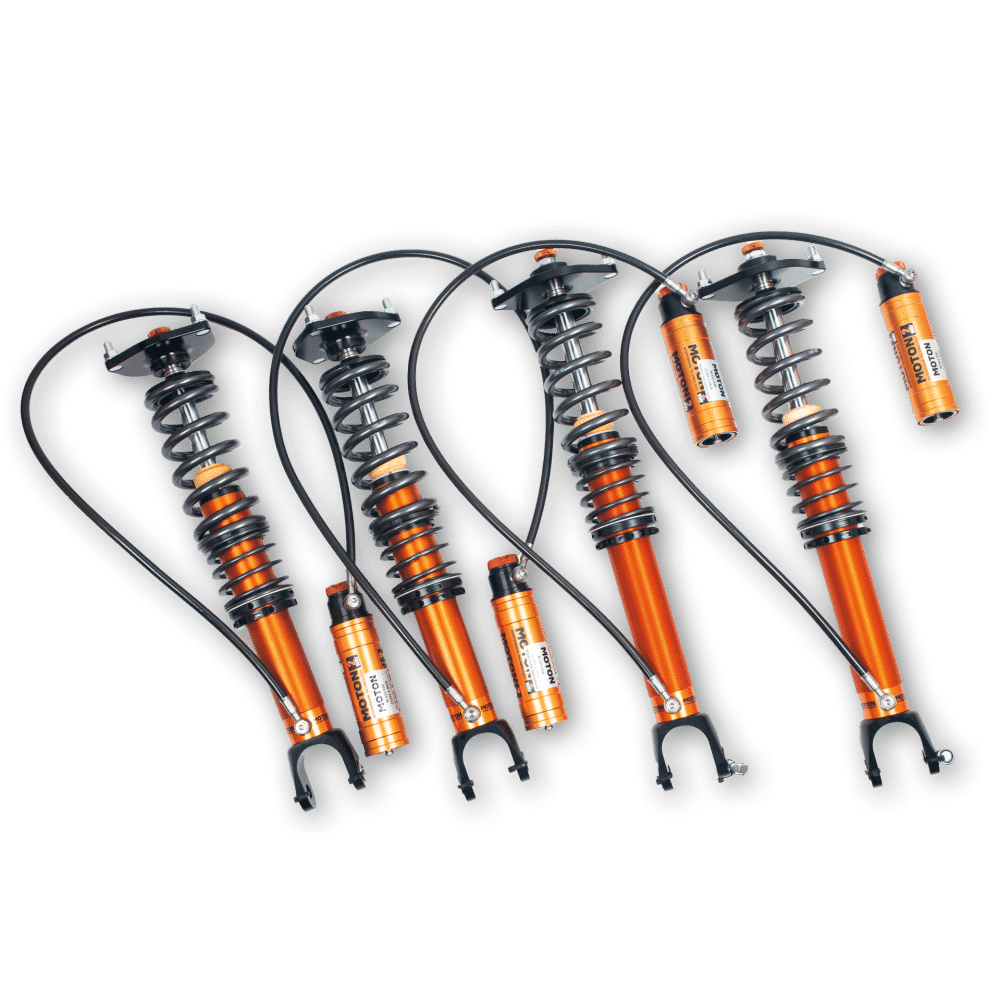

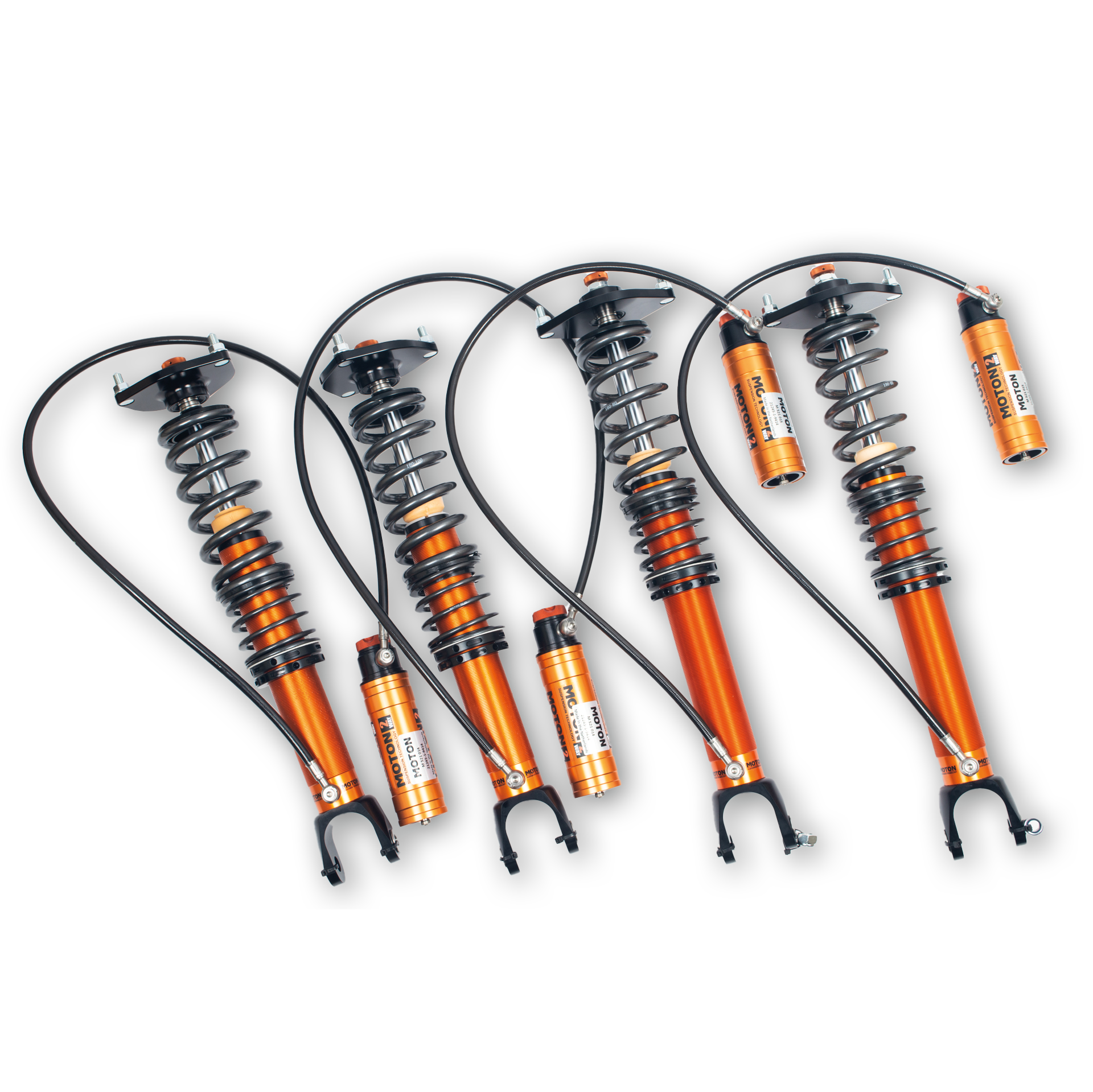

Moton 2-Way Clubsport Coilovers for Ferrari F430

Moton’s 2-Way Clubsport Coilovers for Ferrari F430 are the Clubsport damper MOTON builds for the F430, adjustable for rebound and for compression on a remote reservoir, with springs supplied. The F430 brought the E-Diff electronic differential to Ferrari’s V8 road cars, and MOTON lists this 2-way set with quick-disconnect couplings at the front. Because compression and rebound are separate, the F430 can be softened over kerbs or firmed for fast corners without changing how it settles. It is aimed at an F430 that goes on track regularly and is tuned circuit by circuit.

Design and Performance

Separating compression from rebound lets a driver change how the F430 takes a kerb or loads its outside tire without changing how it recovers. Separate high-speed and low-speed compression is the job of the Moton 3-Way Motorsport Coilovers, the race kit for the F430.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Elevated top guide with helper piston
Quick-disconnect couplings at the front
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs

Applications

Ferrari F430 / F430 Spider / 430 Scuderia: F430 | 2004-2009

Notes

The Moton 2-Way Clubsport Coilovers for Ferrari F430 fit the F430 coupe, F430 Spider and 430 Scuderia
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Ferrari F430 models do the Moton 2-Way Clubsport Coilovers for Ferrari F430 fit? MOTON lists the Moton 2-Way Clubsport Coilovers for Ferrari F430 for the Ferrari F430 / F430 Spider / 430 Scuderia (F430, 2004 to 2009). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 2-Way Clubsport kit compare with the other MOTON kits for the F430? The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the F430. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for an F430 that tracks regularly.
Does the kit fit the 430 Scuderia? MOTON lists the F430 on this part number, and the application data for the set includes the 430 Scuderia and the F430 Spider. Because the Scuderia has its own factory suspension tune, send us the chassis number before ordering and we will confirm the fitment.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, built to order for the F430. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
What do the remote reservoirs do on the F430 kit? Each damper in the F430 kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
