Which Ferrari 599 models do the Moton 3-Way Motorsport Coilovers for Ferrari 599 fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for Ferrari 599 for the Ferrari 599 GTB Fiorano (599, 2006 to 2012) and Ferrari 599 GTO (599, 2010 to 2012). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the 599?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the 599. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the 599 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.

Does the kit fit the 599 GTO?

Yes. MOTON lists the 599 GTB Fiorano and 599 GTO on this part number. The GTO is lighter and has its own factory suspension tune, so tell us which car the set is for when ordering. A 3-way set suits a GTO that runs a serious track program.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the 599. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the 599 dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a 599 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 3-Way Motorsport Coilovers for Ferrari 599 GTB / GTO

Moton’s 3-Way Motorsport Coilovers for Ferrari 599 GTB / GTO are the most adjustable damper MOTON builds for the 599 GTB Fiorano and GTO, with rebound plus separate low-speed and high-speed compression. Ferrari fitted the 599 with magnetorheological SCM dampers, and this MOTON 3-way set replaces them with hand-adjusted units for the GTB Fiorano and GTO. Splitting compression into two circuits lets body control on the 599 be firmed without making the car skip across ripples and kerbs. It suits a 599 prepared for racing, where the extra adjusters earn their place.

Design and Performance

Two compression circuits separate the response to slow inputs, such as roll and pitch under braking, from fast ones such as kerbs and ripples. On the 599, body control can be firmed up without making the car skip over bumps. It is overkill on a road car, and the Moton 2-Way Clubsport Coilovers suit regular track days with less to set up.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs

Applications

Ferrari 599 GTB Fiorano: 599 | 2006-2012
Ferrari 599 GTO: 599 | 2010-2012

Notes

The Moton 3-Way Motorsport Coilovers for Ferrari 599 fit the 599 GTB Fiorano and 599 GTO
The 599 has SCM magnetorheological dampers from the factory; ask us how the factory damper control is handled before ordering
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order

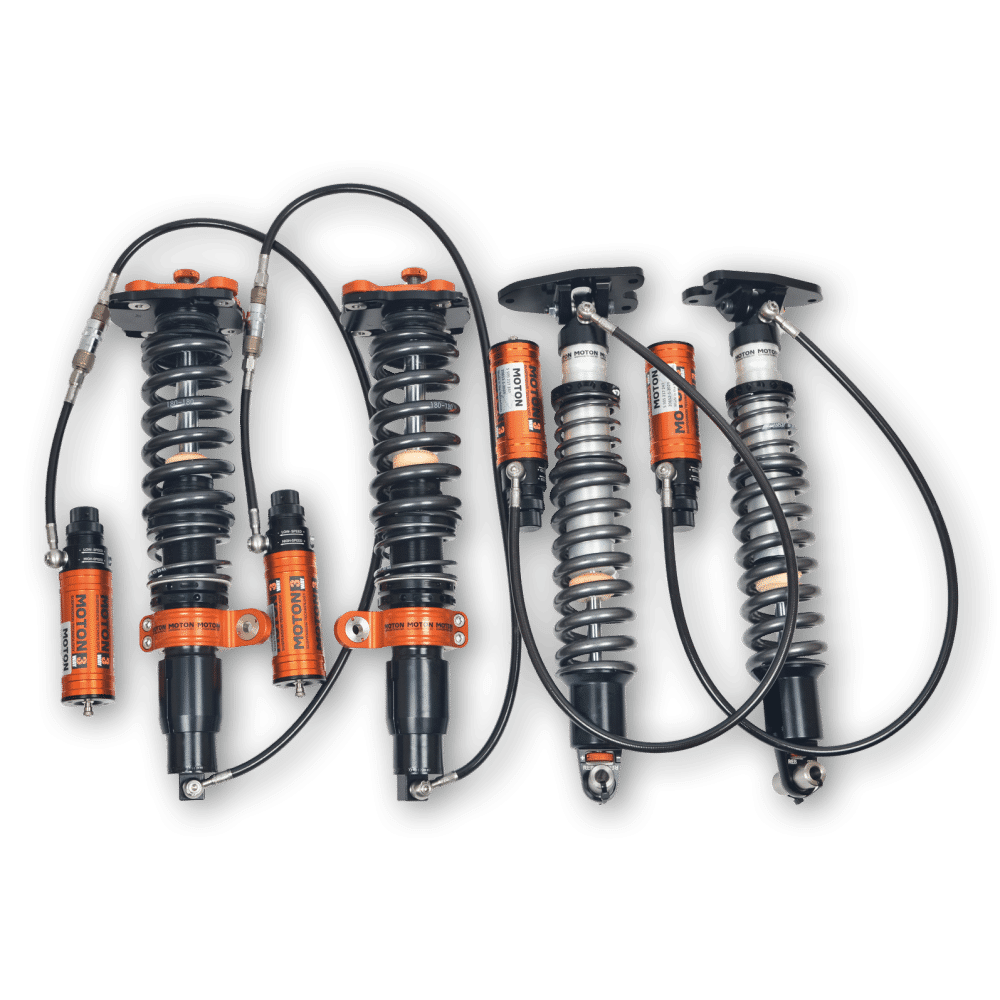

Images show representative MOTON kits

Frequently Asked Questions

Which Ferrari 599 models do the Moton 3-Way Motorsport Coilovers for Ferrari 599 fit? MOTON lists the Moton 3-Way Motorsport Coilovers for Ferrari 599 for the Ferrari 599 GTB Fiorano (599, 2006 to 2012) and Ferrari 599 GTO (599, 2010 to 2012). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the 599? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the 599. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the 599 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.
Does the kit fit the 599 GTO? Yes. MOTON lists the 599 GTB Fiorano and 599 GTO on this part number. The GTO is lighter and has its own factory suspension tune, so tell us which car the set is for when ordering. A 3-way set suits a GTO that runs a serious track program.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the 599. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the 599 dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a 599 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
