Which BMW M3 and M4 models do the Moton 3-Way Motorsport Coilovers for F8X fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for F8X for the BMW M3 (pre-LCI, 3-bolt top mount; F80, 2015 to 2017) and BMW M4 (pre-LCI, 3-bolt top mount; F82, 2015 to 2017). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the pre-LCI M3 or M4?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the pre-LCI M3 or M4. The 2-Way Clubsport keeps compression as one adjuster, and the 1-Way adjusts rebound alone. On the pre-LCI M3 or M4 it is the kit for racing and data-led setup work.

Which droplinks come with the pre-LCI kit?

The kit includes a pair of adjustable aluminum front droplinks, MOTON part DLA-10-233-251, with M10 threads and a length range of 233 mm to 251 mm. They let the front anti-roll bar be set back to neutral once the pre-LCI M3 or M4 is lowered.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the pre-LCI M3 or M4. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the pre-LCI M3 or M4 dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a pre-LCI M3 or M4 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 3-Way Motorsport Coilovers for F8X BMW M3 / M4 Pre-LCI, 3-Bolt Top Mount

Moton’s 3-Way Motorsport Coilovers for F8X BMW M3 / M4 Pre-LCI, 3-Bolt Top Mount bring the full MOTON race specification to the pre-LCI F80 M3 and F82 M4: rebound, low-speed compression and high-speed compression each on its own adjuster. Pre-LCI F80 M3 and F82 M4 cars are identified by a 3-bolt front top mount, and that, rather than the model year, decides which MOTON set fits.

Design and Performance

Two compression circuits let body control on the pre-LCI M3 or M4 be firmed up without making the car skip over bumps. It is overkill on a road car; the Moton 1-Way Coilovers suit that use, and the Moton 2-Way Clubsport Coilovers sit between the two.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Adjustable aluminum front droplinks, DLA-10-233-251, M10, 233 mm to 251 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable front droplinks (x2)

Applications

BMW M3 (pre-LCI, 3-bolt top mount): F80 | 2015-2017
BMW M4 (pre-LCI, 3-bolt top mount): F82 | 2015-2017

Notes

The Moton 3-Way Motorsport Coilovers for F8X fit pre-LCI cars with the 3-bolt front top mount; LCI cars take the Moton 3-Way Motorsport Coilovers for F8X BMW M3 / M4 LCI, 5-Bolt Top Mount
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order

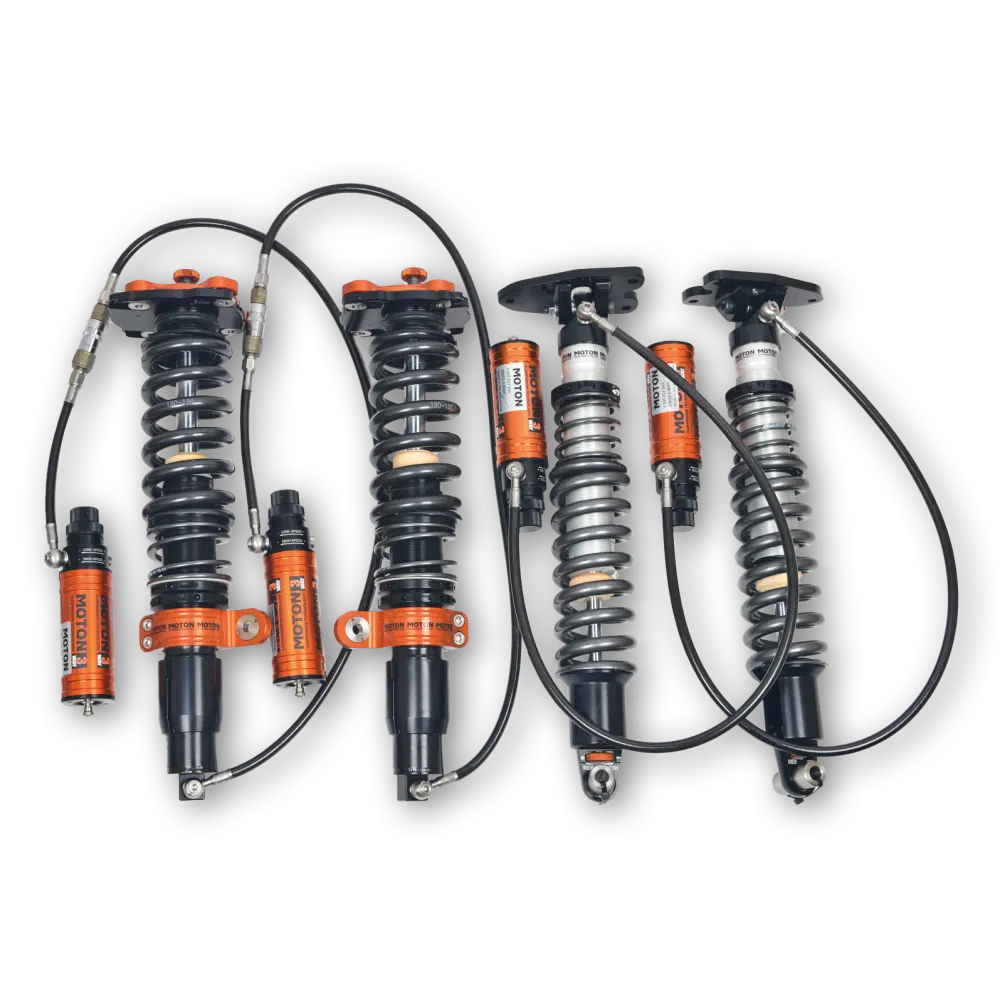

Images show representative MOTON kits

Frequently Asked Questions

Which BMW M3 and M4 models do the Moton 3-Way Motorsport Coilovers for F8X fit? MOTON lists the Moton 3-Way Motorsport Coilovers for F8X for the BMW M3 (pre-LCI, 3-bolt top mount; F80, 2015 to 2017) and BMW M4 (pre-LCI, 3-bolt top mount; F82, 2015 to 2017). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the pre-LCI M3 or M4? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the pre-LCI M3 or M4. The 2-Way Clubsport keeps compression as one adjuster, and the 1-Way adjusts rebound alone. On the pre-LCI M3 or M4 it is the kit for racing and data-led setup work.
Which droplinks come with the pre-LCI kit? The kit includes a pair of adjustable aluminum front droplinks, MOTON part DLA-10-233-251, with M10 threads and a length range of 233 mm to 251 mm. They let the front anti-roll bar be set back to neutral once the pre-LCI M3 or M4 is lowered.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the pre-LCI M3 or M4. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the pre-LCI M3 or M4 dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a pre-LCI M3 or M4 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
