Which Porsche 911 models do the Moton 3-Way Motorsport Coilovers for Early 911 fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for Early 911 for the Porsche 911 (early models; 911, 1963 to 1989) and Porsche 911 Turbo (930, 1976 to 1989). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the early 911?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the early 911. The 2-Way Clubsport keeps compression as one adjuster, and the 1-Way adjusts rebound alone. On the early 911 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.

Should an early 911 be corner weighted after fitting?

Yes. Threaded ride height lets each corner be set independently, so the early 911 should be corner weighted with driver ballast in place once the springs have settled. On a car this light and rear-biased, small changes in corner weight show up clearly in how it turns in and puts power down.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the early 911. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the early 911 dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an early 911 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

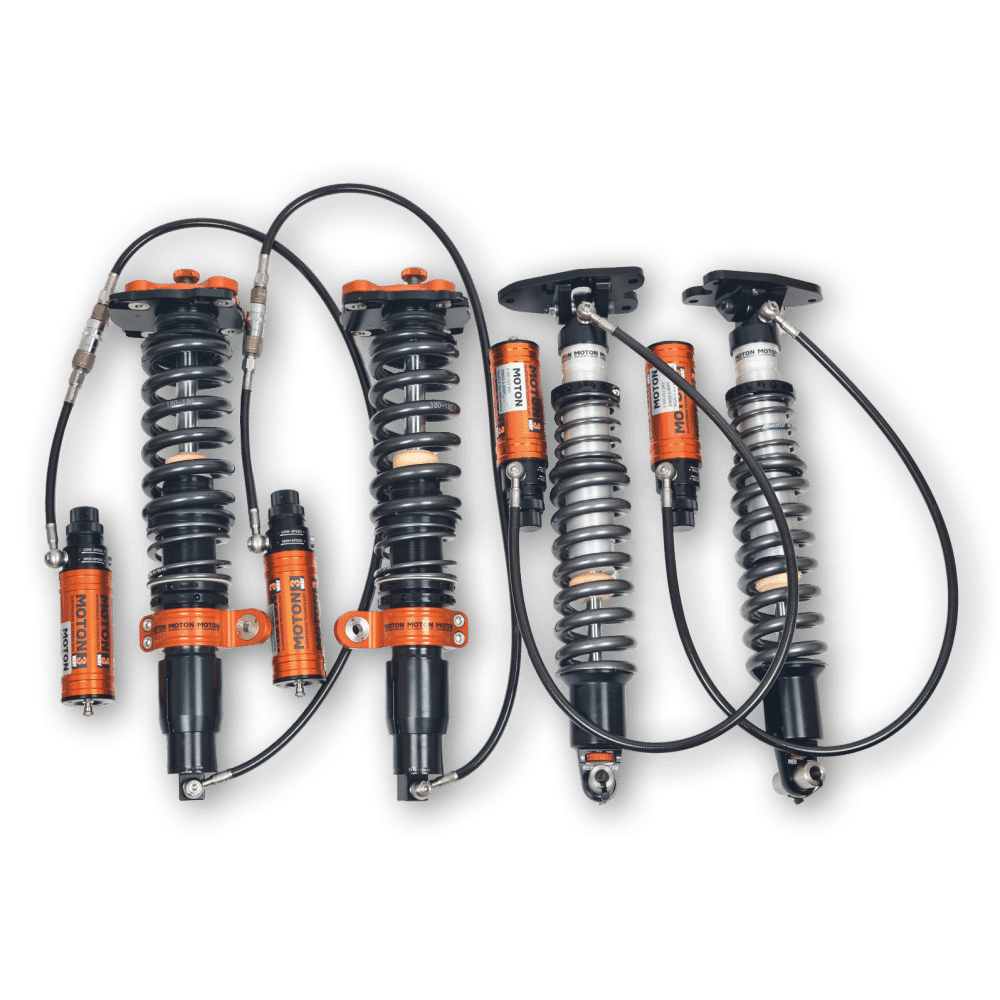

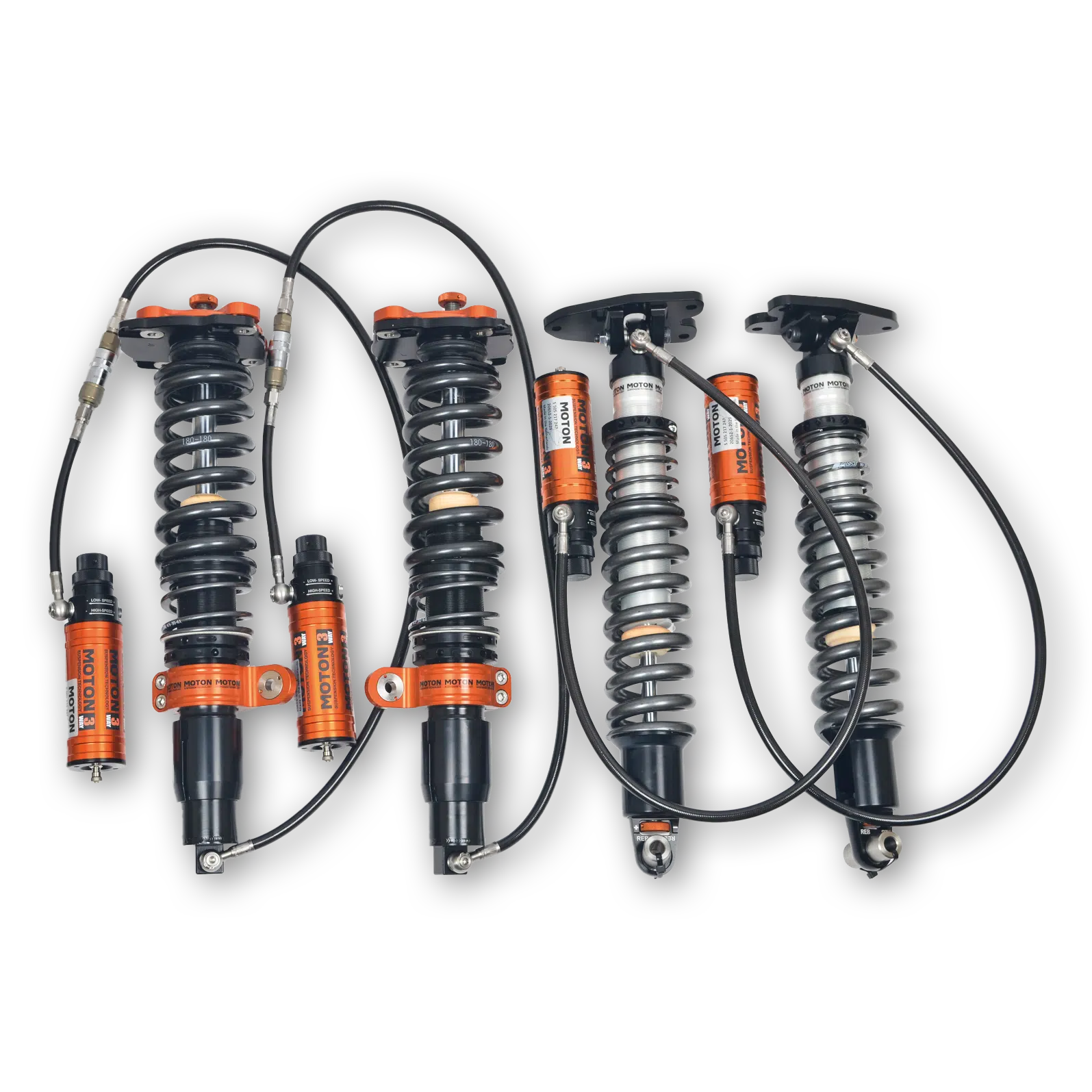

Moton 3-Way Motorsport Coilovers for Early 911 Porsche and 930 Turbo

Moton’s 3-Way Motorsport Coilovers for Early 911 Porsche and 930 Turbo are the most adjustable damper MOTON builds for the early 911 and 930 Turbo, with rebound plus separate low-speed and high-speed compression. The set covers 911s built between 1963 and 1989 and the 930 Turbo from 1976, which takes in the long-hood cars, the impact-bumper G-models and the Carrera 3.2. Splitting compression into two circuits lets body control on the early 911 be firmed without making the car skip across ripples and kerbs.

Design and Performance

Two compression circuits separate the response to slow inputs, such as roll and pitch under braking, from fast ones such as kerbs and ripples. On the early 911, body control can be firmed up without making the car skip over bumps. It is overkill on a road car; the Moton 1-Way Coilovers suit that use, and the Moton 2-Way Clubsport Coilovers sit between the two.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Elevated top guide with helper piston
Quick-disconnect couplings, front and rear
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs

Applications

Porsche 911 (early models): 911 | 1963-1989
Porsche 911 Turbo: 930 | 1976-1989

Notes

The Moton 3-Way Motorsport Coilovers for Early 911 are a coilover conversion; for a damper that keeps the factory torsion bars, see the Moton 1-Way Dampers for Early 911 Porsche, Torsion Bar OEM Replacement
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Porsche 911 models do the Moton 3-Way Motorsport Coilovers for Early 911 fit? MOTON lists the Moton 3-Way Motorsport Coilovers for Early 911 for the Porsche 911 (early models; 911, 1963 to 1989) and Porsche 911 Turbo (930, 1976 to 1989). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the early 911? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the early 911. The 2-Way Clubsport keeps compression as one adjuster, and the 1-Way adjusts rebound alone. On the early 911 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.
Should an early 911 be corner weighted after fitting? Yes. Threaded ride height lets each corner be set independently, so the early 911 should be corner weighted with driver ballast in place once the springs have settled. On a car this light and rear-biased, small changes in corner weight show up clearly in how it turns in and puts power down.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the early 911. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the early 911 dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an early 911 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
