Which Toyota GR Supra models do the Moton 3-Way Motorsport Coilovers for A90 fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for A90 for the Toyota GR Supra (A90, 2019 onward). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

What does the 3-Way Motorsport kit adjust on the A90 Supra?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the A90 Supra. It suits a car prepared for racing rather than one driven mostly on the road. On the A90 Supra it is the kit for racing and data-led setup work.

Does the kit fit an A90 with adaptive dampers?

MOTON lists this set for A90 Supras with and without the adaptive variable suspension. The MOTON dampers have no electronic valves, so on an adaptive car the factory damper control has to be dealt with to avoid warnings. Ask us before ordering how that is handled on the car.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the A90 Supra. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the A90 Supra dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an A90 Supra that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 3-Way Motorsport Coilovers for A90 Toyota Supra

Moton’s 3-Way Motorsport Coilovers for A90 Toyota Supra bring the full MOTON race specification to the A90 Supra: rebound, low-speed compression and high-speed compression each on its own adjuster. The A90 GR Supra shares its platform with the G29 BMW Z4, and MOTON lists this 3-way set for cars with and without adaptive dampers, adjustable droplinks included. Low-speed compression governs roll and pitch on the A90 Supra, while high-speed compression governs kerbs and sharp bumps, and each can be set without disturbing the other. On an A90 Supra that competes, it gives a setup engineer every adjustment MOTON offers.

Design and Performance

Two compression circuits separate the response to slow inputs, such as roll and pitch under braking, from fast ones such as kerbs and ripples. On the A90 Supra, body control can be firmed up without making the car skip over bumps. It is overkill on a road car, and MOTON builds it for racing and data-led setup work.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Adjustable aluminum front droplinks, DLA-10-258-276, M10, 258 mm to 276 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable front droplinks (x2)

Applications

Toyota GR Supra: A90 | 2019-present

Notes

The Moton 3-Way Motorsport Coilovers for A90 fit the A90 GR Supra, with or without adaptive dampers
On A90s with adaptive dampers, ask us how the factory damper control is handled before ordering
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order

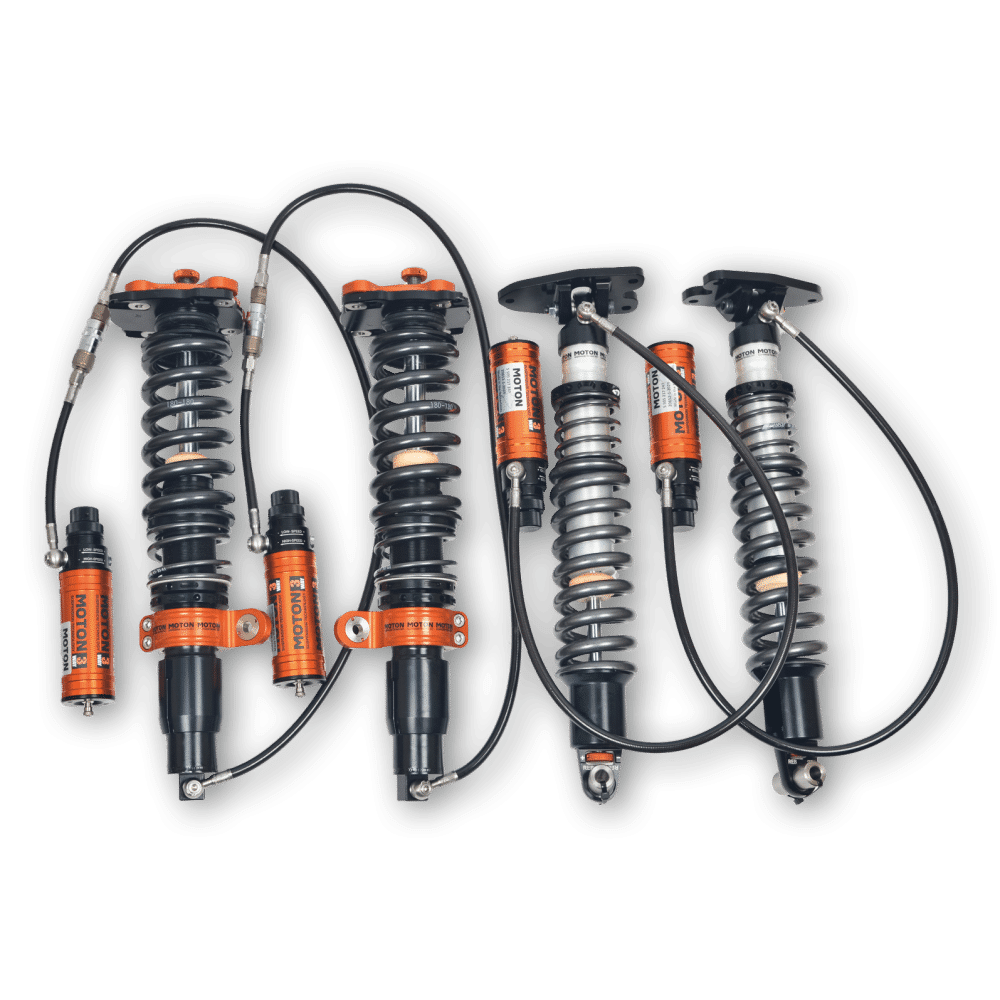

Images show representative MOTON kits

Frequently Asked Questions

Which Toyota GR Supra models do the Moton 3-Way Motorsport Coilovers for A90 fit? MOTON lists the Moton 3-Way Motorsport Coilovers for A90 for the Toyota GR Supra (A90, 2019 onward). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
What does the 3-Way Motorsport kit adjust on the A90 Supra? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the A90 Supra. It suits a car prepared for racing rather than one driven mostly on the road. On the A90 Supra it is the kit for racing and data-led setup work.
Does the kit fit an A90 with adaptive dampers? MOTON lists this set for A90 Supras with and without the adaptive variable suspension. The MOTON dampers have no electronic valves, so on an adaptive car the factory damper control has to be dealt with to avoid warnings. Ask us before ordering how that is handled on the car.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the A90 Supra. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the A90 Supra dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an A90 Supra that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
