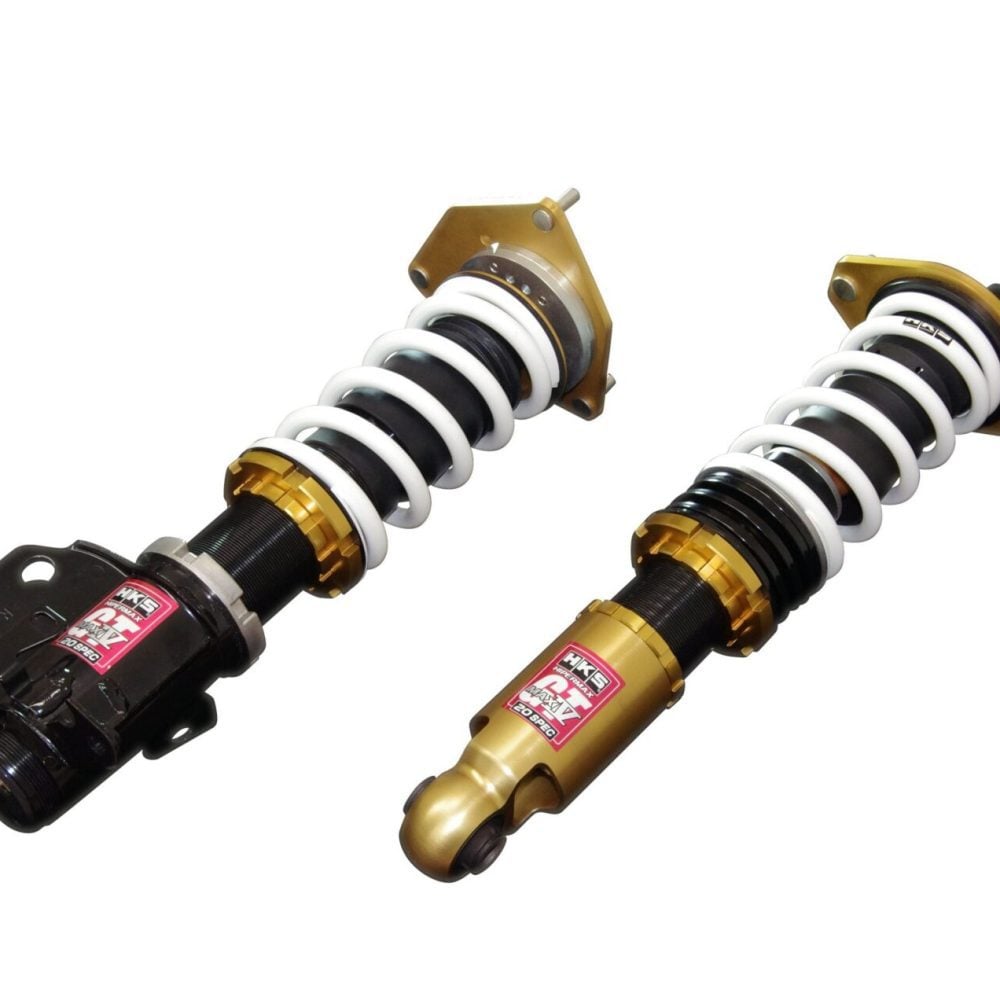

HKS Max IV GT 20 Spec Coilovers for 2012-20 Toyota GT86/FR-S/Subaru BRZ [ZN6/ZC6] 80230-AT001A
2012-16 Scion FR-S [ZN6]
2012-20 Toyota 86/GT86 [ZN6]
2012-20 Subaru BRZ [ZC6]
HKS PN# 80230-AT001A
Please note that this brand offers a wide variety of parts, some of which are kept in stock. However, not all products from this brand are kept in regular inventory. As a result, lead times can vary (from 1 day to weeks or months). Following your order, a representative will contact you to explain the order process, and provide an estimated timeframe for delivery. . Following the discussion, should you choose to continue with the order there will be no further option for cancellation (if there are any concerns regarding lead time, please advise us immediately during the initial follow-up). Please order with confidence, as at the time of the initial contact and after being informed of the estimated lead time, should you choose to cancel, you may do so within 1 business day. You are encouraged to read and understand the full terms and conditions of the sale here.
- Preload Valve System
Multiple valve shims of differing size and thickness are stacked around the piston which generates a resistance which becomes dampening force. PVS applies a preload to the valve shims allowing more accurate control of dampening especially at slower piston speeds As used in MAX 4 series, M4P is able to balance dampening force generation at low piston speeds whilst maintain control at high speed.
- Inverted Single Tube
Inverted single tube with large diameter and high rigidity is used for the front side which supports its own weight and receives high load at acceleration and turning. Many years of improvements bring durability and enjoy the direct steer feeling as a sports car.
- Spring Insulator
Rubber seat on the top and bottom of the spring, helps to improve spring movement while preventing sound and reducing friction during spring expansion. A suspension was revised for easier height and preload adjustment.
