Which Porsche 911 models do the Moton 3-Way Motorsport Coilovers for 996 GT3 fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for 996 GT3 for the Porsche 911 GT3 / GT2 (race use; 996, 1997 to 2005). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the 996 GT3 or GT2?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the 996 GT3 or GT2. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the 996 GT3 or GT2 it is the kit for racing and data-led setup work.

What modification does the 996 GT2 need?

MOTON states that the strut towers on a 996 GT2 must be modified to gain the extra camber adjustment this set is built around. The work is a body modification and should be done by a race preparation shop before the kit is installed. The 996 GT3 does not carry that note in the MOTON list.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, built to order for the 996 GT3 or GT2. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the 996 GT3 or GT2 dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a 996 GT3 or GT2 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 3-Way Motorsport Coilovers for 996 GT3 and GT2 Porsche 911, Race Use

Moton’s 3-Way Motorsport Coilovers for 996 GT3 and GT2 Porsche 911, Race Use are the most adjustable damper MOTON builds for the 996 GT3 and GT2, with rebound plus separate low-speed and high-speed compression. The 996 GT3 R and RSR were the customer racing versions of the car, and this 3-way set is the one MOTON names for them, with quick-disconnect couplings front and rear. Splitting compression into two circuits lets body control on the 996 GT3 or GT2 be firmed without making the car skip across ripples and kerbs.

Design and Performance

Two compression circuits let body control on the 996 GT3 or GT2 be firmed up without making the car skip over bumps. It is overkill on a road car, and the Moton 2-Way Clubsport Coilovers suit regular track days with less to set up.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Quick-disconnect couplings, front and rear
Fully rebuildable, 24-month AST x MOTON warranty

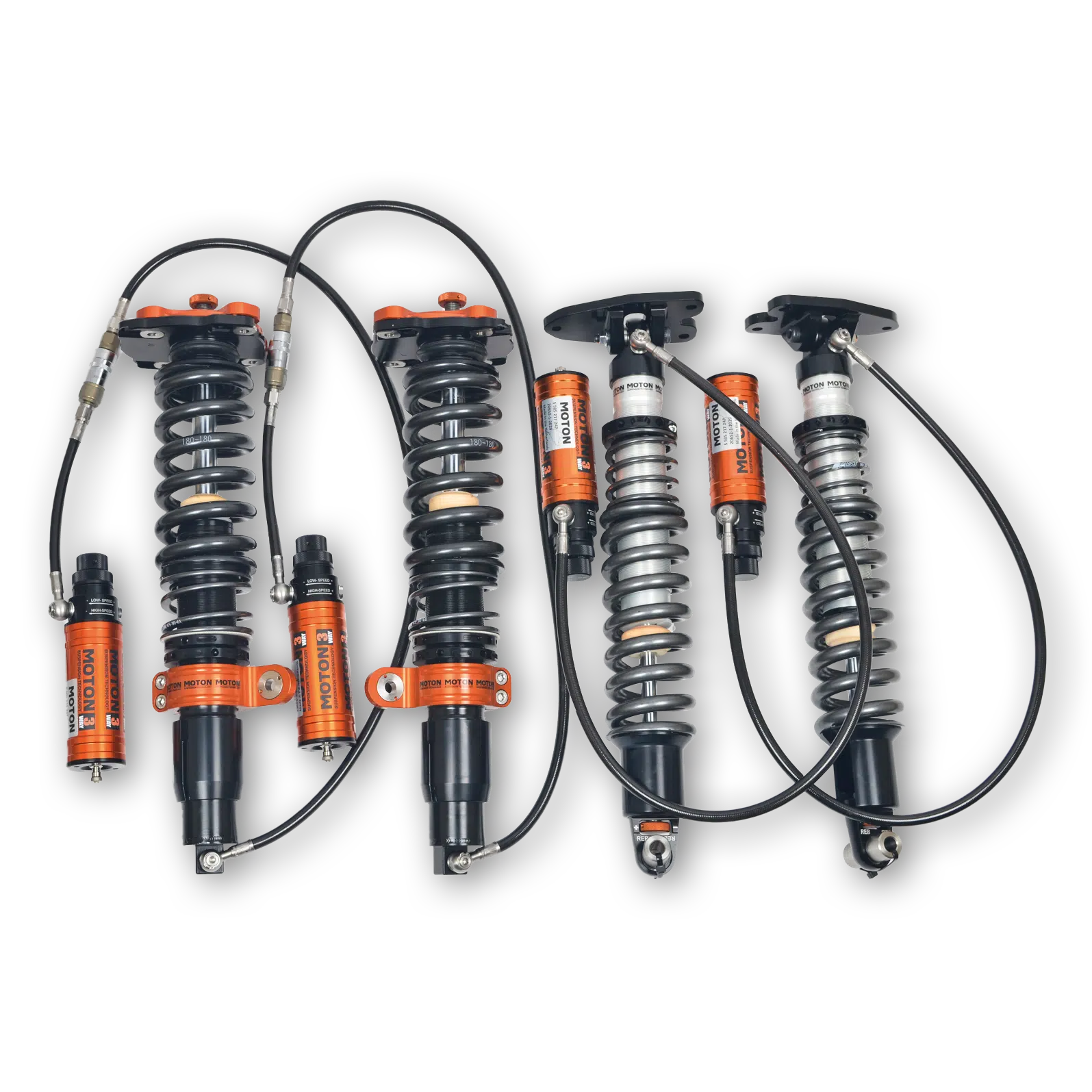

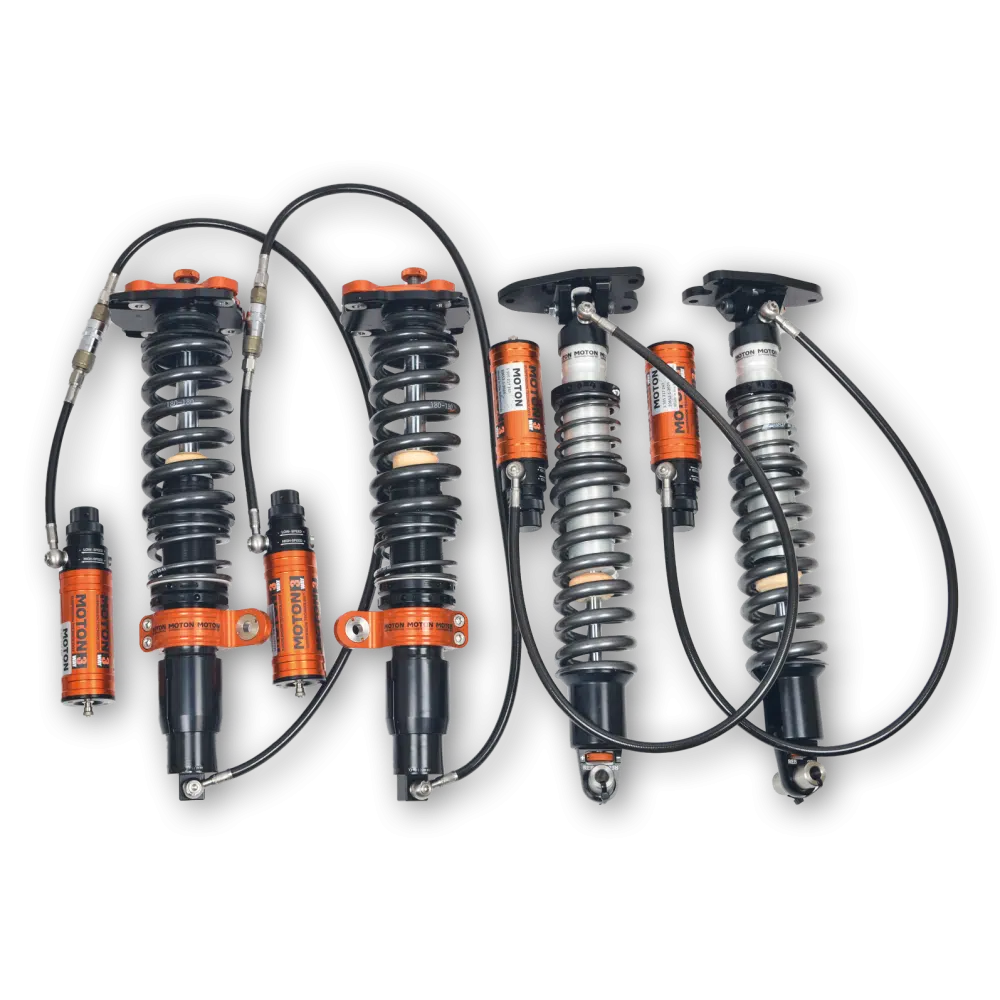

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)

Applications

Porsche 911 GT3 / GT2 (race use): 996 | 1997-2005

Notes

The Moton 3-Way Motorsport Coilovers for 996 GT3 are for race use only, per MOTON
On the 996 GT2, MOTON requires the strut towers to be modified for the extra camber adjustment
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Porsche 911 models do the Moton 3-Way Motorsport Coilovers for 996 GT3 fit? MOTON lists the Moton 3-Way Motorsport Coilovers for 996 GT3 for the Porsche 911 GT3 / GT2 (race use; 996, 1997 to 2005). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the 996 GT3 or GT2? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the 996 GT3 or GT2. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the 996 GT3 or GT2 it is the kit for racing and data-led setup work.
What modification does the 996 GT2 need? MOTON states that the strut towers on a 996 GT2 must be modified to gain the extra camber adjustment this set is built around. The work is a body modification and should be done by a race preparation shop before the kit is installed. The 996 GT3 does not carry that note in the MOTON list.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, built to order for the 996 GT3 or GT2. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the 996 GT3 or GT2 dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a 996 GT3 or GT2 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
