Which Porsche 911 models do the Moton 3-Way Motorsport Coilovers for 996 AWD fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for 996 AWD for the Porsche 911 Carrera 4 / Carrera 4S / Turbo (996, 1997 to 2005). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the 996 Turbo or Carrera 4?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the 996 Turbo or Carrera 4. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the 996 Turbo or Carrera 4 it is the kit for racing and data-led setup work.

Does the kit fit the 996 Carrera 2?

No. This set is listed for the all-wheel-drive Carrera 4, Carrera 4S and Turbo. The rear-drive Carrera 2 takes a separate MOTON kit, and the GT3 and GT2 take a race-only set. Confirm the model from the VIN or the option sticker if the car has been modified.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum droplinks with M10 threads, built to order for the 996 Turbo or Carrera 4. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the 996 Turbo or Carrera 4 dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a 996 Turbo or Carrera 4 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 3-Way Motorsport Coilovers for 996 AWD Porsche 911 Turbo, Carrera 4 and 4S

Moton’s 3-Way Motorsport Coilovers for 996 AWD Porsche 911 Turbo, Carrera 4 and 4S bring the full MOTON race specification to the 996 Turbo, Carrera 4 and 4S: rebound, low-speed compression and high-speed compression each on its own adjuster. MOTON fits this set with quick-disconnect couplings front and rear and includes a pair of adjustable droplinks, so it arrives ready for the all-wheel-drive 996.

Design and Performance

Two compression circuits let body control on the 996 Turbo or Carrera 4 be firmed up without making the car skip over bumps. It is overkill on a road car, and the Moton 2-Way Clubsport Coilovers suit regular track days with less to set up.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Quick-disconnect couplings, front and rear
Adjustable aluminum droplinks, DLA-10-188-206, M10, 188 mm to 206 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable droplinks (x2)

Applications

Porsche 911 Carrera 4 / Carrera 4S / Turbo: 996 | 1997-2005

Notes

The Moton 3-Way Motorsport Coilovers for 996 AWD fit the all-wheel-drive Carrera 4, 4S and Turbo; the rear-drive Carrera 2 takes the Moton 3-Way Motorsport Coilovers for 996 C2 Porsche 911 Carrera
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order

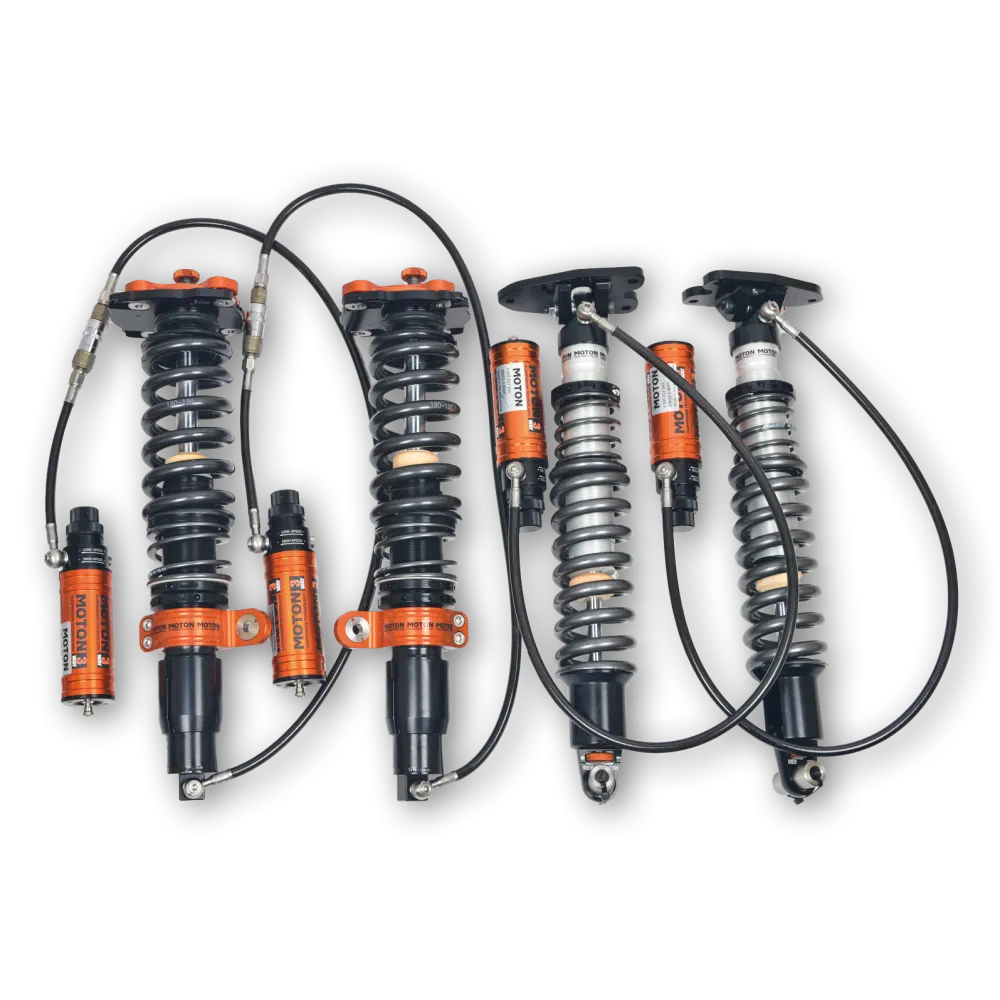

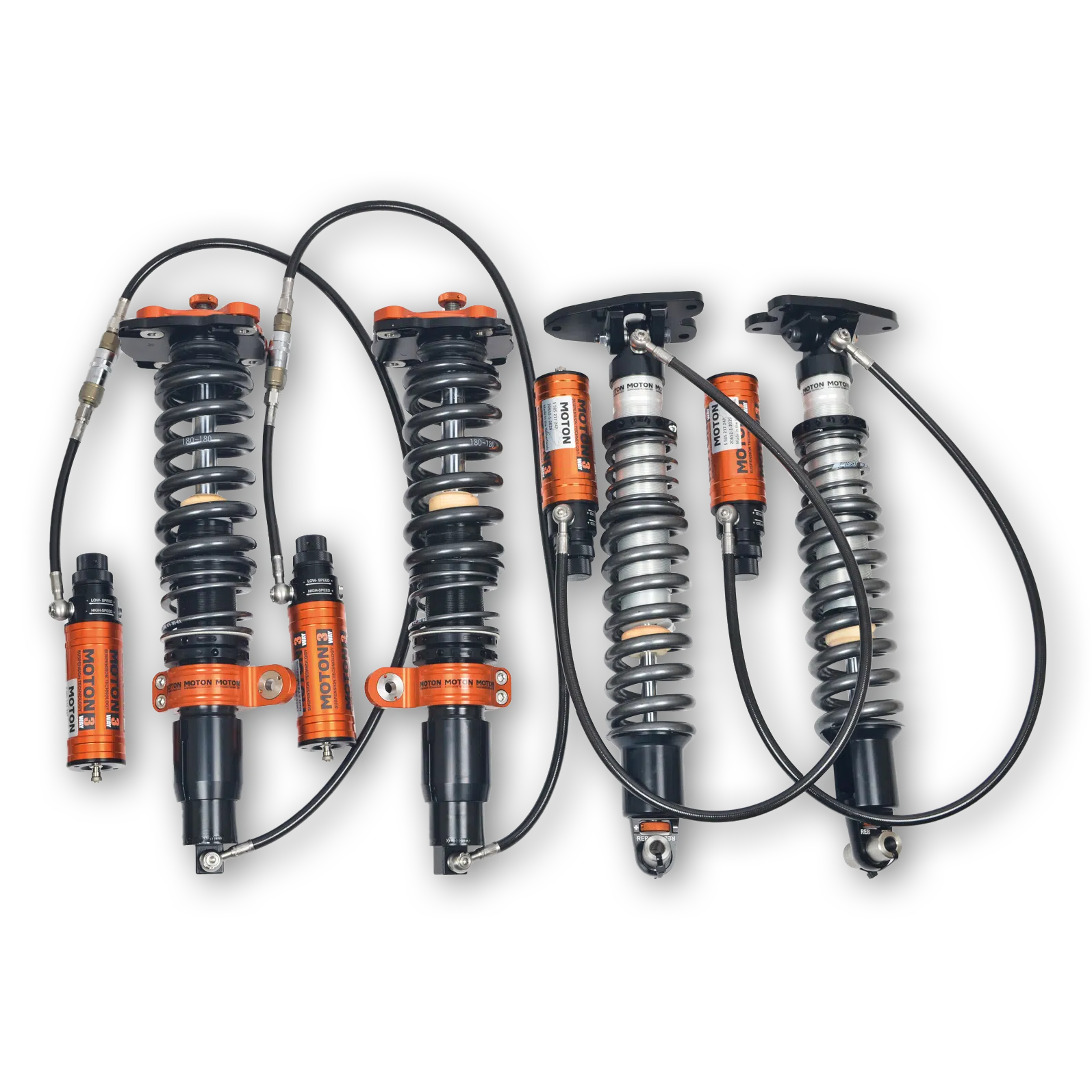

Images show representative MOTON kits

Frequently Asked Questions

Which Porsche 911 models do the Moton 3-Way Motorsport Coilovers for 996 AWD fit? MOTON lists the Moton 3-Way Motorsport Coilovers for 996 AWD for the Porsche 911 Carrera 4 / Carrera 4S / Turbo (996, 1997 to 2005). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the 996 Turbo or Carrera 4? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the 996 Turbo or Carrera 4. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the 996 Turbo or Carrera 4 it is the kit for racing and data-led setup work.
Does the kit fit the 996 Carrera 2? No. This set is listed for the all-wheel-drive Carrera 4, Carrera 4S and Turbo. The rear-drive Carrera 2 takes a separate MOTON kit, and the GT3 and GT2 take a race-only set. Confirm the model from the VIN or the option sticker if the car has been modified.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum droplinks with M10 threads, built to order for the 996 Turbo or Carrera 4. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the 996 Turbo or Carrera 4 dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a 996 Turbo or Carrera 4 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
