Which Porsche 911 models do the Moton 3-Way Motorsport Coilovers for 993 fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for 993 for the Porsche 911 Carrera 2 / Carrera 4 (993, 1993 to 1997) and Porsche 911 Turbo (993, 1993 to 1997). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the 993?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the 993. The 2-Way Clubsport keeps compression as one adjuster, and the 1-Way adjusts rebound alone. On the 993 it is the kit for racing and data-led setup work.

Should the front droplinks be upgraded on a lowered 993?

On a car that runs much lower than standard it is worth considering. Lowering changes the angle of the factory front droplinks, and an adjustable pair lets the anti-roll bar be set back to neutral at the new ride height. MOTON offers DLA-10-233-251 for the Carrera 2 and Carrera 4; the Turbo keeps its factory front links.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum rear droplinks with M10 threads, built to order for the 993. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the 993 dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a 993 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

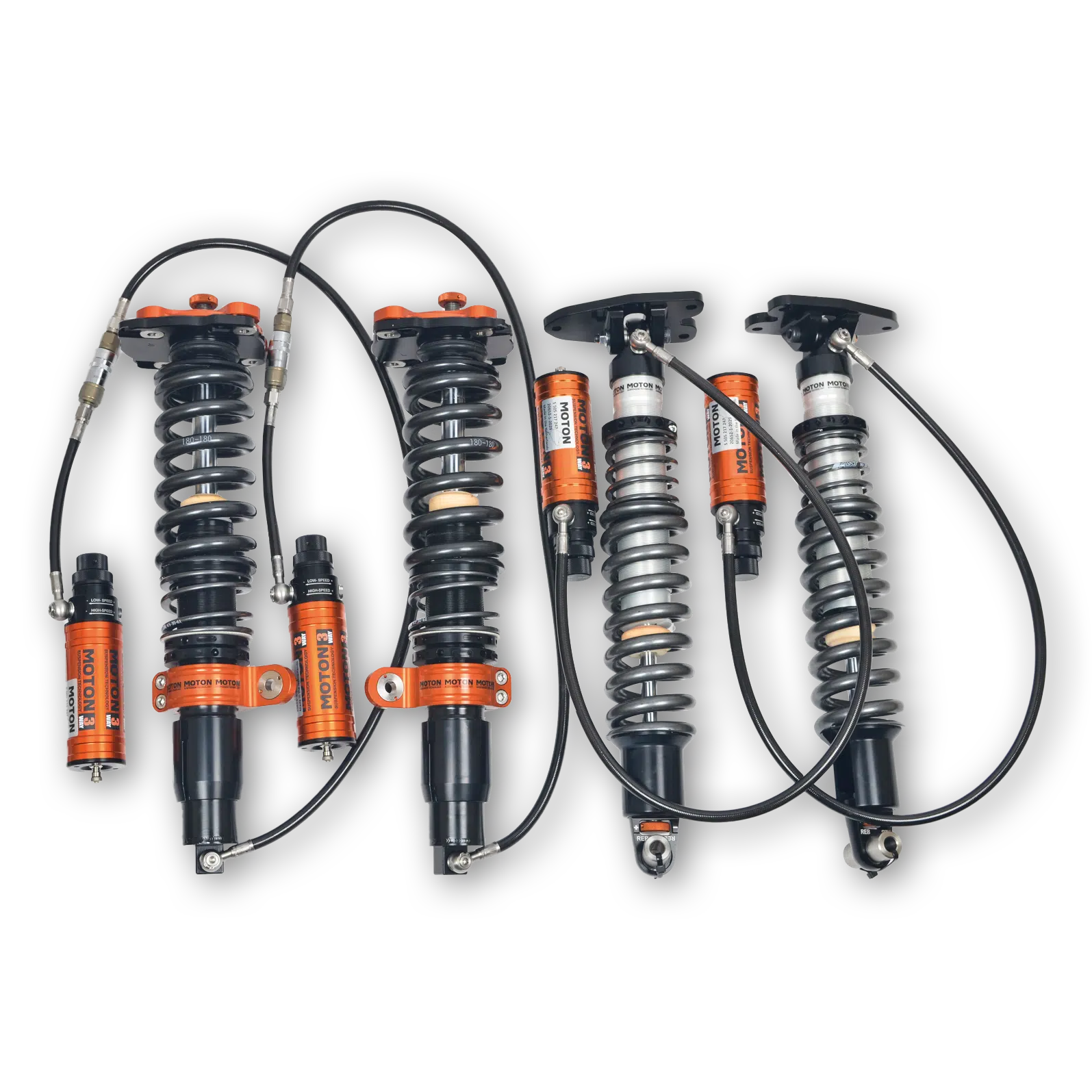

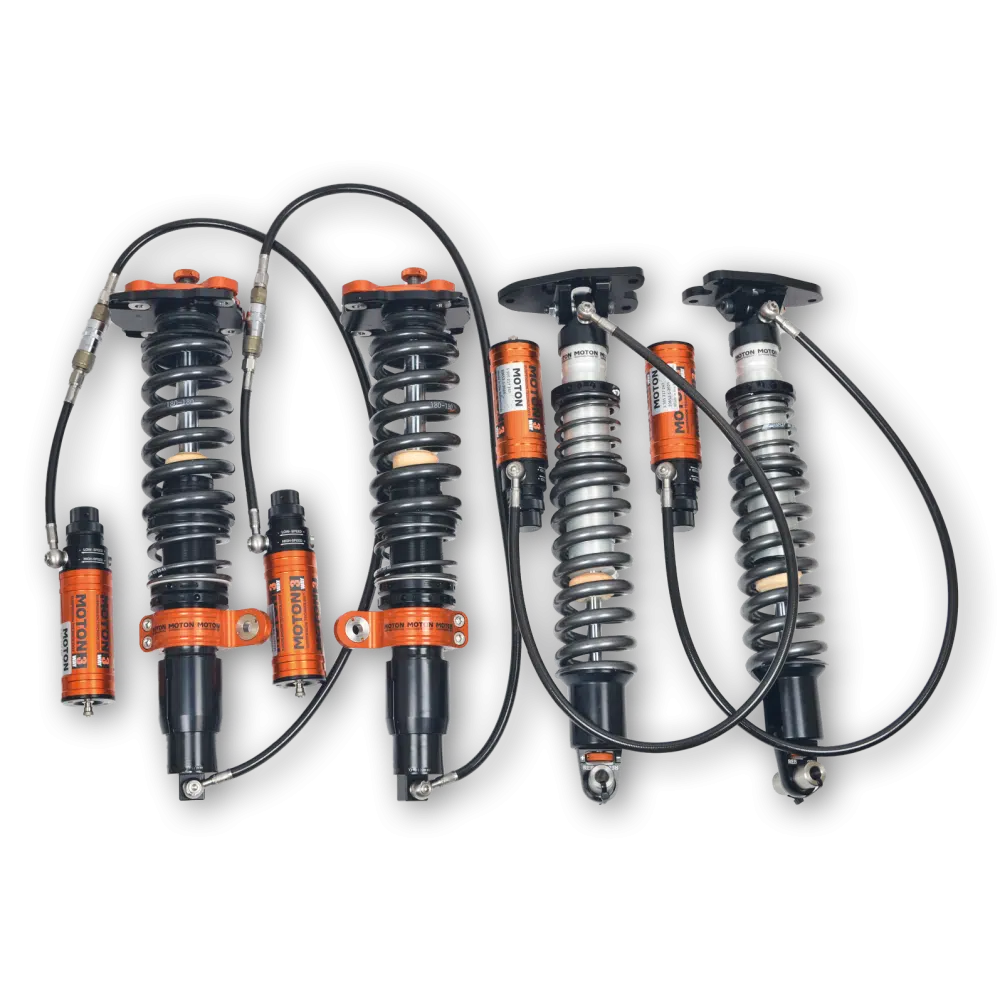

Moton 3-Way Motorsport Coilovers for 993 Porsche 911 Carrera 2 / 4 and Turbo

Moton’s 3-Way Motorsport Coilovers for 993 Porsche 911 Carrera 2 / 4 and Turbo bring the full MOTON race specification to the 993 911: rebound, low-speed compression and high-speed compression each on its own adjuster. Porsche built the 993 in narrow-body and wide-body forms, and this MOTON set covers the Carrera 2, Carrera 4 and Turbo across the run.

Design and Performance

Two compression circuits let body control on the 993 be firmed up without making the car skip over bumps. It is overkill on a road car; the Moton 1-Way Coilovers suit that use, and the Moton 2-Way Clubsport Coilovers sit between the two.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Adjustable aluminum rear droplinks, DLA-10-133-151, M10, 133 mm to 151 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable rear droplinks (x2)

Applications

Porsche 911 Carrera 2 / Carrera 4: 993 | 1993-1997
Porsche 911 Turbo: 993 | 1993-1997

Notes

The Moton 3-Way Motorsport Coilovers for 993 include adjustable rear droplinks; the 993 Turbo keeps its factory front droplinks
An adjustable front droplink pair, MOTON DLA-10-233-251, is available separately for the Carrera 2 and Carrera 4; ask us
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Porsche 911 models do the Moton 3-Way Motorsport Coilovers for 993 fit? MOTON lists the Moton 3-Way Motorsport Coilovers for 993 for the Porsche 911 Carrera 2 / Carrera 4 (993, 1993 to 1997) and Porsche 911 Turbo (993, 1993 to 1997). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the 993? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the 993. The 2-Way Clubsport keeps compression as one adjuster, and the 1-Way adjusts rebound alone. On the 993 it is the kit for racing and data-led setup work.
Should the front droplinks be upgraded on a lowered 993? On a car that runs much lower than standard it is worth considering. Lowering changes the angle of the factory front droplinks, and an adjustable pair lets the anti-roll bar be set back to neutral at the new ride height. MOTON offers DLA-10-233-251 for the Carrera 2 and Carrera 4; the Turbo keeps its factory front links.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum rear droplinks with M10 threads, built to order for the 993. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the 993 dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a 993 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
