Which Porsche 911 models do the Moton 1-Way Coilovers for 993 fit?

MOTON lists the Moton 1-Way Coilovers for 993 for the Porsche 911 Carrera 2 / Carrera 4 (993, 1993 to 1997) and Porsche 911 Turbo (993, 1993 to 1997). Each 1-Way set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 1-Way kit compare with the other MOTON kits for the 993?

The 1-Way adjusts rebound only and leaves compression to MOTON valving, which makes it the simplest kit to set up on the 993. The 2-Way Clubsport adds compression adjustment on a remote reservoir. The 3-Way Motorsport splits compression into separate low-speed and high-speed circuits. Every MOTON kit for the 993 shares threaded ride height, non-inverted monotube construction and springs in the box.

Which droplinks come with the 993 kit?

The kit includes a pair of adjustable aluminum rear droplinks, MOTON part DLA-10-133-151, with M10 threads and a length range of 133 mm to 151 mm. Front droplinks are not included: MOTON offers an adjustable front pair, DLA-10-233-251, separately, and the 993 Turbo keeps its factory front droplinks.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a single rebound adjuster on the damper body, pillowball front camber plates, and a pair of adjustable aluminum rear droplinks with M10 threads, built to order for the 993. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

How difficult is installation on the 993?

It is a job for a qualified shop with a lift and a calibrated torque wrench. The kit arrives with no spring preload, so preload is set before the 993 is lowered and ride height is measured afterwards. Overtightening the spring platform can deform the damper body, and an alignment should follow.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

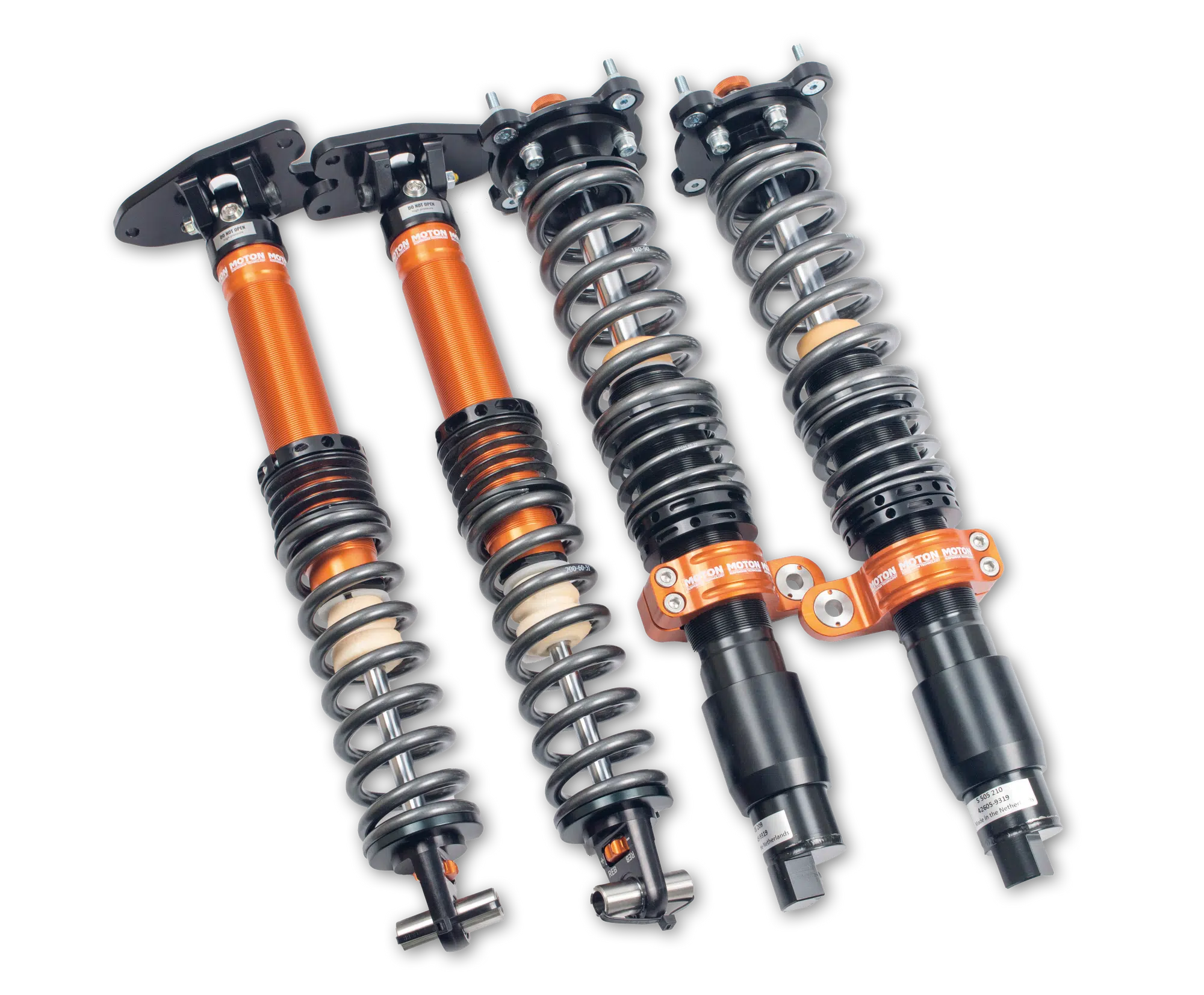

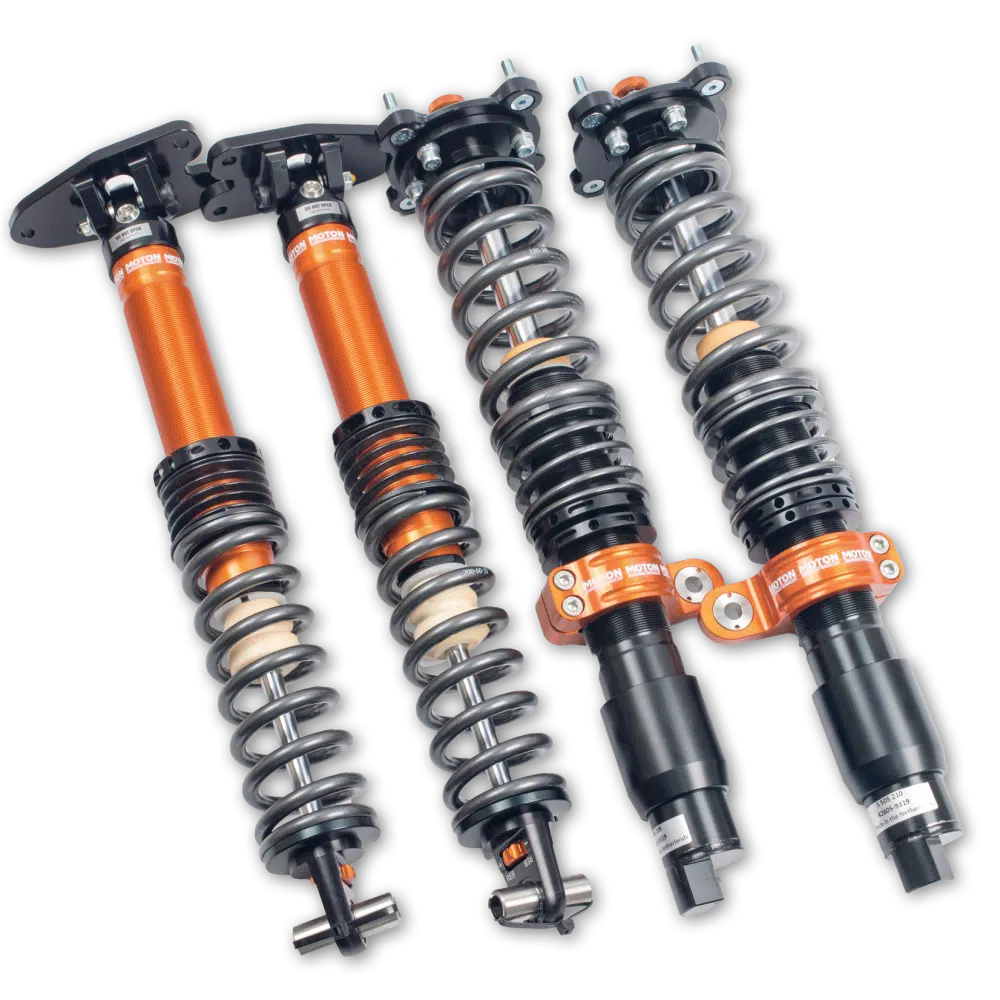

Moton 1-Way Coilovers for 993 Porsche 911 Carrera 2 / 4 and Turbo

Moton’s 1-Way Coilovers for 993 Porsche 911 Carrera 2 / 4 and Turbo are the simplest MOTON damper for the 993 911: a single rebound adjuster per corner, threaded ride height and springs supplied. The 993 was the last air-cooled 911 and the first with Porsche’s multi-link rear axle, which made it a more settled car than the 964 over broken surfaces. Leaving compression to MOTON’s valving keeps the 993 kit simple: rebound sets how the car recovers, and the threaded bodies set its stance. It suits a 993 that is driven on the road and taken to the occasional track day.

Design and Performance

Rebound sets how quickly each damper extends after compressing, which decides how the 993 settles after crests and kerbs. The 1-Way gives one adjuster per corner for exactly that and leaves compression to MOTON’s valving, the right amount of adjustment for a road car with occasional track days. For compression control on the 993, step up to the Moton 2-Way Clubsport Coilovers or the Moton 3-Way Motorsport Coilovers.

Features

Non-inverted monotube dampers, adjustable for rebound
Threaded ride height at all four corners
Pillowball front camber plates
Elevated top guide with helper piston
Adjustable aluminum rear droplinks, DLA-10-133-151, M10, 133 mm to 151 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers (L/R)
Rear coilovers (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable rear droplinks (x2)

Applications

Porsche 911 Carrera 2 / Carrera 4: 993 | 1993-1997
Porsche 911 Turbo: 993 | 1993-1997

Notes

The Moton 1-Way Coilovers for 993 include adjustable rear droplinks; the 993 Turbo keeps its factory front droplinks
An adjustable front droplink pair, MOTON DLA-10-233-251, is available separately for the Carrera 2 and Carrera 4; ask us
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Porsche 911 models do the Moton 1-Way Coilovers for 993 fit? MOTON lists the Moton 1-Way Coilovers for 993 for the Porsche 911 Carrera 2 / Carrera 4 (993, 1993 to 1997) and Porsche 911 Turbo (993, 1993 to 1997). Each 1-Way set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 1-Way kit compare with the other MOTON kits for the 993? The 1-Way adjusts rebound only and leaves compression to MOTON valving, which makes it the simplest kit to set up on the 993. The 2-Way Clubsport adds compression adjustment on a remote reservoir. The 3-Way Motorsport splits compression into separate low-speed and high-speed circuits. Every MOTON kit for the 993 shares threaded ride height, non-inverted monotube construction and springs in the box.
Which droplinks come with the 993 kit? The kit includes a pair of adjustable aluminum rear droplinks, MOTON part DLA-10-133-151, with M10 threads and a length range of 133 mm to 151 mm. Front droplinks are not included: MOTON offers an adjustable front pair, DLA-10-233-251, separately, and the 993 Turbo keeps its factory front droplinks.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a single rebound adjuster on the damper body, pillowball front camber plates, and a pair of adjustable aluminum rear droplinks with M10 threads, built to order for the 993. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
How difficult is installation on the 993? It is a job for a qualified shop with a lift and a calibrated torque wrench. The kit arrives with no spring preload, so preload is set before the 993 is lowered and ride height is measured afterwards. Overtightening the spring platform can deform the damper body, and an alignment should follow.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
