Which BMW Z4 M models do the Moton 2-Way Clubsport Coilovers for Z4 M fit?

MOTON lists the Moton 2-Way Clubsport Coilovers for Z4 M for the BMW Z4 M Roadster (E85, 2006 to 2008) and BMW Z4 M Coupe (E86, 2006 to 2008). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 2-Way Clubsport kit compare with the other MOTON kits for the Z4 M?

The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the Z4 M. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for a Z4 M that tracks regularly.

Which droplinks come with the Z4 M kit?

The kit includes a pair of adjustable aluminum front droplinks, MOTON part DLA-10-188-206, with M10 threads and a length range of 188 mm to 206 mm. They let the front anti-roll bar be set back to neutral once the Z4 M is lowered, which keeps the balance the car was set up with.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the Z4 M. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

What do the remote reservoirs do on the Z4 M kit?

Each damper in the Z4 M kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

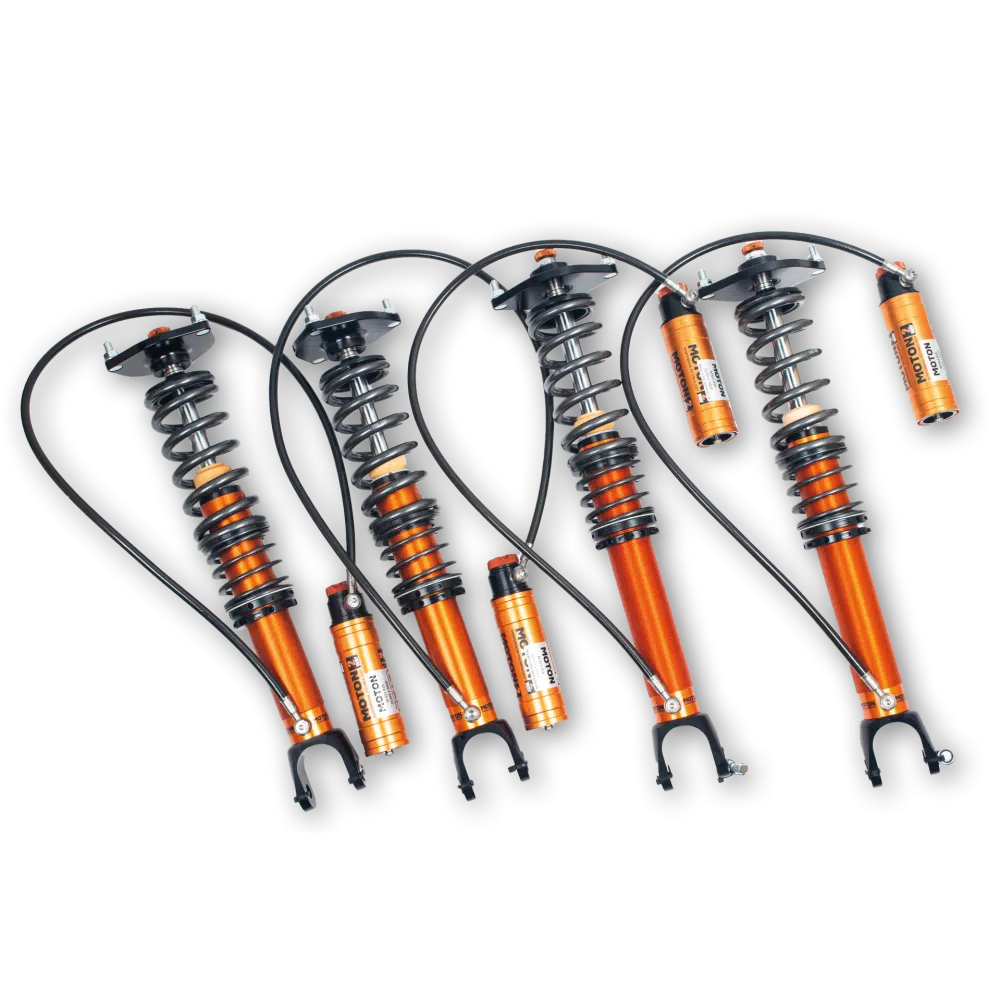

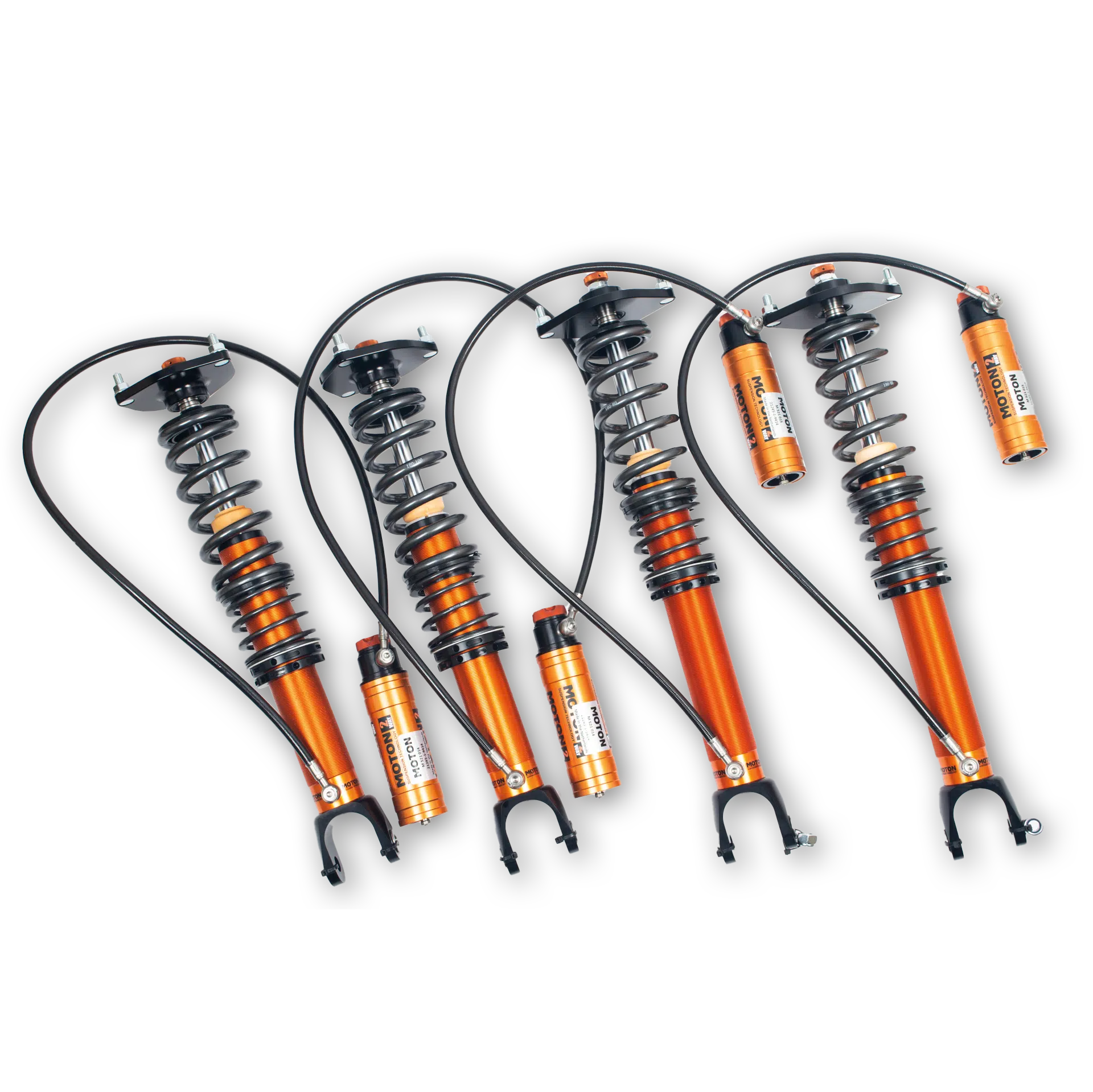

Moton 2-Way Clubsport Coilovers for Z4 M BMW E85 Roadster and E86 Coupe

Moton’s 2-Way Clubsport Coilovers for Z4 M BMW E85 Roadster and E86 Coupe bring two-way damping to the Z4 M Roadster and Coupe: rebound on the damper body and compression on a reservoir connected by hose. MOTON lists one set for the Z4 M Roadster and Coupe, supplied with adjustable front droplinks so the anti-roll bar can be reset after lowering.

Design and Performance

Separating compression from rebound changes how the Z4 M takes a kerb without changing how it recovers. A road car with two track days a year will not use it, and the Moton 1-Way Coilovers cover that brief for less; separate high-speed and low-speed compression is the job of the Moton 3-Way Motorsport Coilovers.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Adjustable aluminum front droplinks, DLA-10-188-206, M10, 188 mm to 206 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable front droplinks (x2)

Applications

BMW Z4 M Roadster: E85 | 2006-2008
BMW Z4 M Coupe: E86 | 2006-2008

Notes

The Moton 2-Way Clubsport Coilovers for Z4 M fit the E85 Roadster and E86 Coupe Z4 M only
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which BMW Z4 M models do the Moton 2-Way Clubsport Coilovers for Z4 M fit? MOTON lists the Moton 2-Way Clubsport Coilovers for Z4 M for the BMW Z4 M Roadster (E85, 2006 to 2008) and BMW Z4 M Coupe (E86, 2006 to 2008). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 2-Way Clubsport kit compare with the other MOTON kits for the Z4 M? The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the Z4 M. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for a Z4 M that tracks regularly.
Which droplinks come with the Z4 M kit? The kit includes a pair of adjustable aluminum front droplinks, MOTON part DLA-10-188-206, with M10 threads and a length range of 188 mm to 206 mm. They let the front anti-roll bar be set back to neutral once the Z4 M is lowered, which keeps the balance the car was set up with.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the Z4 M. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
What do the remote reservoirs do on the Z4 M kit? Each damper in the Z4 M kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
