Which BMW Z4 M models do the Moton 1-Way Coilovers for Z4 M fit?

MOTON lists the Moton 1-Way Coilovers for Z4 M for the BMW Z4 M Roadster (E85, 2006 to 2008) and BMW Z4 M Coupe (E86, 2006 to 2008). Each 1-Way set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 1-Way kit compare with the other MOTON kits for the Z4 M?

The 1-Way adjusts rebound only and leaves compression to MOTON valving, which makes it the simplest kit to set up on the Z4 M. The 2-Way Clubsport adds compression adjustment on a remote reservoir. The 3-Way Motorsport splits compression into separate low-speed and high-speed circuits. Every MOTON kit for the Z4 M shares threaded ride height, non-inverted monotube construction and springs in the box.

Does the Z4 M kit fit the standard E85 Z4?

No. MOTON lists this part number for the Z4 M Roadster and Z4 M Coupe only. The M cars use different front suspension parts from the six-cylinder E85 and E86 Z4, so a 3.0si or 2.5i needs a different set. Ask us for a quote on those models.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a single rebound adjuster on the damper body, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the Z4 M. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

How difficult is installation on the Z4 M?

It is a job for a qualified shop with a lift and a calibrated torque wrench. The kit arrives with no spring preload, so preload is set before the Z4 M is lowered and ride height is measured afterwards. Overtightening the spring platform can deform the damper body, and an alignment should follow.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

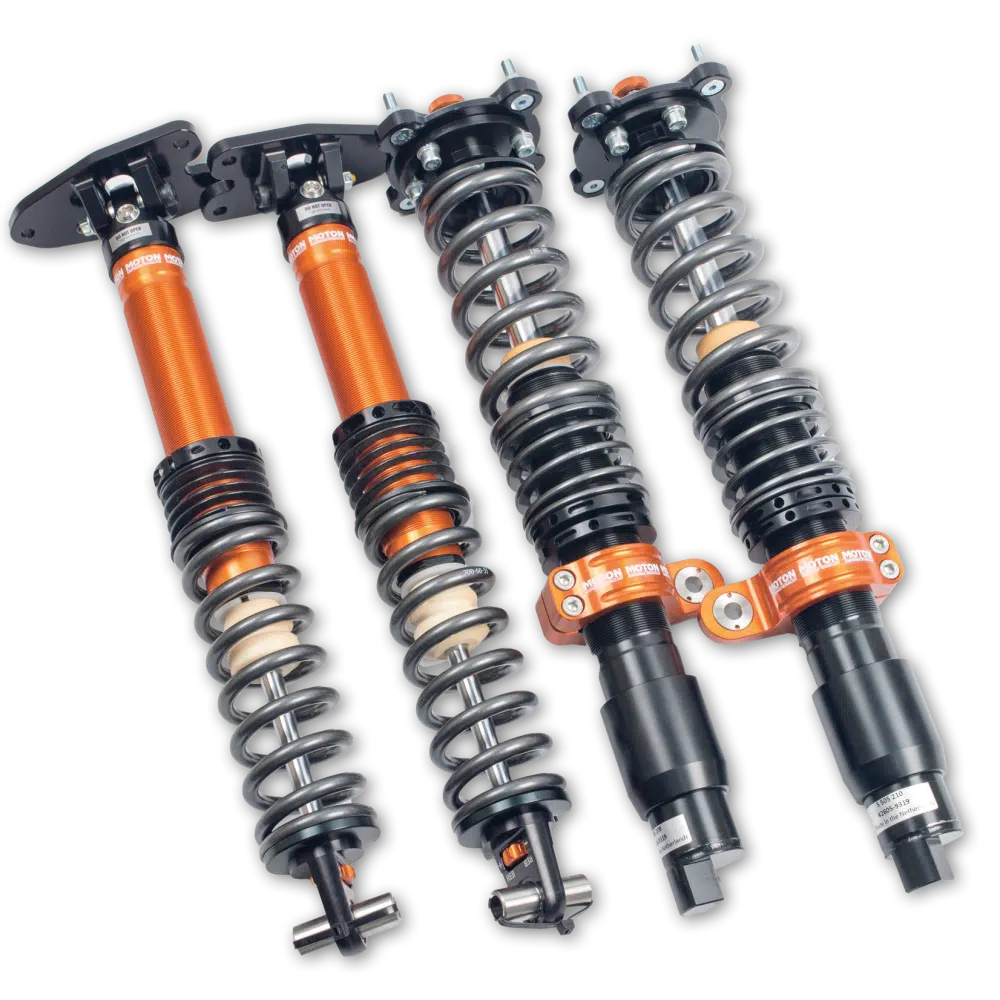

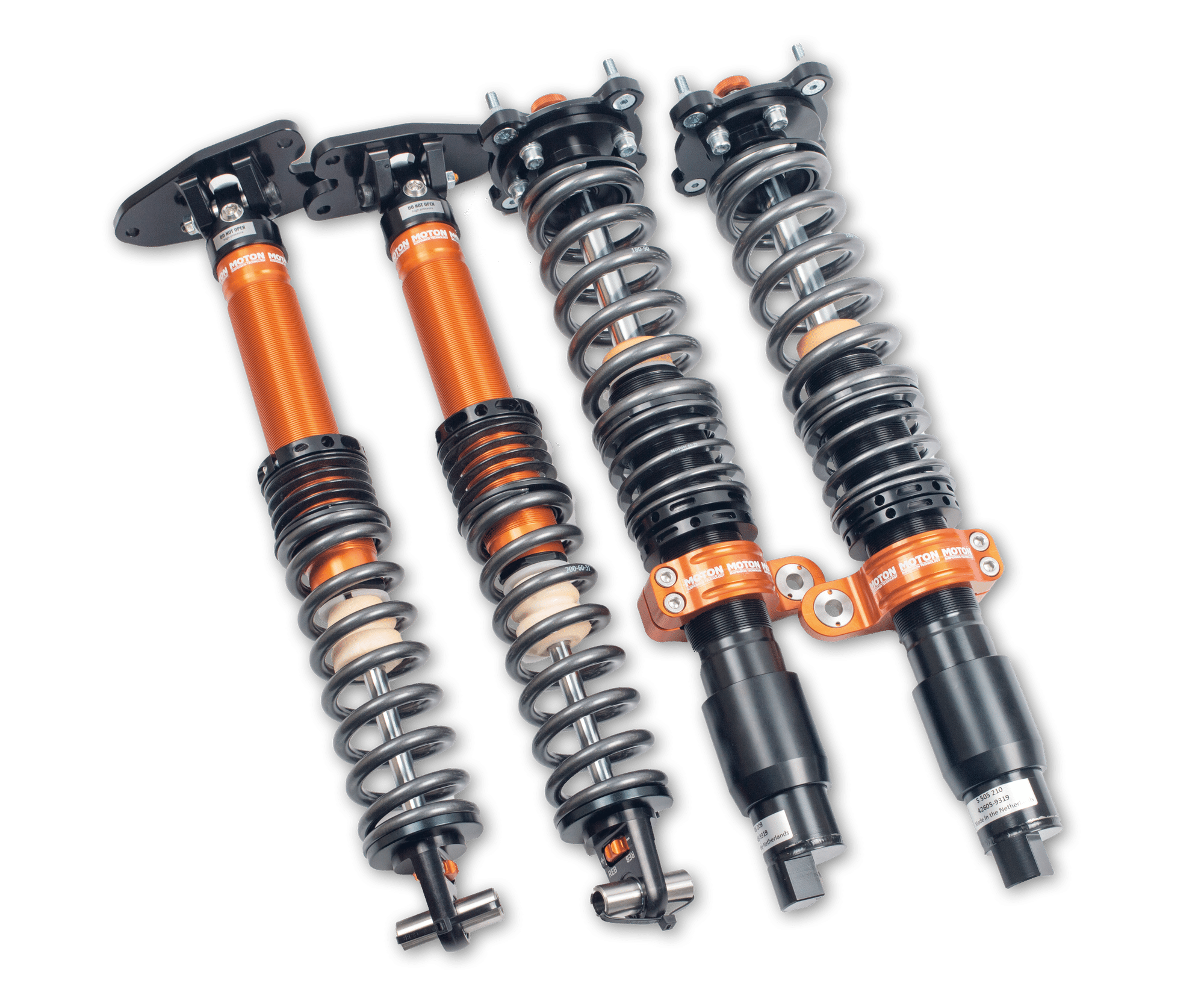

Moton 1-Way Coilovers for Z4 M BMW E85 Roadster and E86 Coupe

Moton’s 1-Way Coilovers for Z4 M BMW E85 Roadster and E86 Coupe fit the Z4 M Roadster and Coupe with non-inverted monotube dampers that adjust for rebound and ride height and arrive with springs. The Z4 M shared its 3.2-litre S54 inline-six with the E46 M3 and was built as the E85 Roadster and the E86 Coupe from 2006 to 2008. Compression is left to MOTON’s fixed valving, so the one choice at the car is how quickly each corner of the Z4 M settles after a bump. For a Z4 M that sees mostly road miles and a few track days a year, it is the right amount of adjustment.

Design and Performance

Rebound sets how quickly each damper extends after compressing, which decides how the Z4 M settles after crests and kerbs. The 1-Way gives one adjuster per corner for exactly that and leaves compression to MOTON’s valving, the right amount of adjustment for a road car with occasional track days. For compression control on the Z4 M, step up to the Moton 2-Way Clubsport Coilovers or the Moton 3-Way Motorsport Coilovers.

Features

Non-inverted monotube dampers, adjustable for rebound
Threaded ride height at all four corners
Pillowball front camber plates
Elevated top guide with helper piston
Adjustable aluminum front droplinks, DLA-10-188-206, M10, 188 mm to 206 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers (L/R)
Rear coilovers (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable front droplinks (x2)

Applications

BMW Z4 M Roadster: E85 | 2006-2008
BMW Z4 M Coupe: E86 | 2006-2008

Notes

The Moton 1-Way Coilovers for Z4 M fit the E85 Roadster and E86 Coupe Z4 M only
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which BMW Z4 M models do the Moton 1-Way Coilovers for Z4 M fit? MOTON lists the Moton 1-Way Coilovers for Z4 M for the BMW Z4 M Roadster (E85, 2006 to 2008) and BMW Z4 M Coupe (E86, 2006 to 2008). Each 1-Way set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 1-Way kit compare with the other MOTON kits for the Z4 M? The 1-Way adjusts rebound only and leaves compression to MOTON valving, which makes it the simplest kit to set up on the Z4 M. The 2-Way Clubsport adds compression adjustment on a remote reservoir. The 3-Way Motorsport splits compression into separate low-speed and high-speed circuits. Every MOTON kit for the Z4 M shares threaded ride height, non-inverted monotube construction and springs in the box.
Does the Z4 M kit fit the standard E85 Z4? No. MOTON lists this part number for the Z4 M Roadster and Z4 M Coupe only. The M cars use different front suspension parts from the six-cylinder E85 and E86 Z4, so a 3.0si or 2.5i needs a different set. Ask us for a quote on those models.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a single rebound adjuster on the damper body, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the Z4 M. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
How difficult is installation on the Z4 M? It is a job for a qualified shop with a lift and a calibrated torque wrench. The kit arrives with no spring preload, so preload is set before the Z4 M is lowered and ride height is measured afterwards. Overtightening the spring platform can deform the damper body, and an alignment should follow.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
