Which BMW M3 and M4 models do the Moton 2-Way Clubsport Coilovers for F8X fit?

MOTON lists the Moton 2-Way Clubsport Coilovers for F8X for the BMW M3 (LCI, 5-bolt top mount; F80, 2017 to 2018) and BMW M4 / M4 Convertible (LCI, 5-bolt top mount; F82 / F83, 2017 to 2020). Confirm the exact model and year with us before ordering.

How does the 2-Way Clubsport kit compare with the other MOTON kits for the LCI M3 or M4?

The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the LCI M3 or M4. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for an LCI M3 or M4 that tracks regularly.

Does the kit fit the M4 Convertible?

Yes. MOTON lists the F83 M4 Convertible alongside the LCI F80 M3 and F82 M4 on this part number, provided the car has the 5-bolt front top mount. Convertible bodies are heavier than the coupe, so tell us the body style and how the car is used when ordering.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the LCI M3 or M4. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

What do the remote reservoirs do on the LCI M3 or M4 kit?

Each damper in the LCI M3 or M4 kit is connected by hose to an external reservoir holding extra oil, the gas charge and the compression adjuster. The added volume keeps damping consistent as the damper heats up, and the adjuster is easy to reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 2-Way Clubsport Coilovers for F8X BMW M3 / M4 LCI, 5-Bolt Top Mount

Moton’s 2-Way Clubsport Coilovers for F8X BMW M3 / M4 LCI, 5-Bolt Top Mount give the LCI F80 M3, F82 M4 and F83 M4 Convertible separate rebound and compression adjustment, with compression set on an external reservoir at each corner. MOTON builds this set for LCI M3 and M4 cars with the 5-bolt front top mount, droplinks included.

Design and Performance

Separating compression from rebound changes how the LCI M3 or M4 takes a kerb without changing how it recovers. A road car with two track days a year will not use it, and the Moton 1-Way Coilovers cover that brief for less; separate high-speed and low-speed compression is the job of the Moton 3-Way Motorsport Coilovers.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Adjustable aluminum front droplinks, DLA-10-233-251, M10, 233 mm to 251 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable front droplinks (x2)

Applications

BMW M3 (LCI, 5-bolt top mount): F80 | 2017-2018
BMW M4 / M4 Convertible (LCI, 5-bolt top mount): F82 / F83 | 2017-2020

Notes

The Moton 2-Way Clubsport Coilovers for F8X fit LCI cars with the 5-bolt front top mount; pre-LCI cars take the Moton 2-Way Clubsport Coilovers for F8X BMW M3 / M4 Pre-LCI, 3-Bolt Top Mount
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order

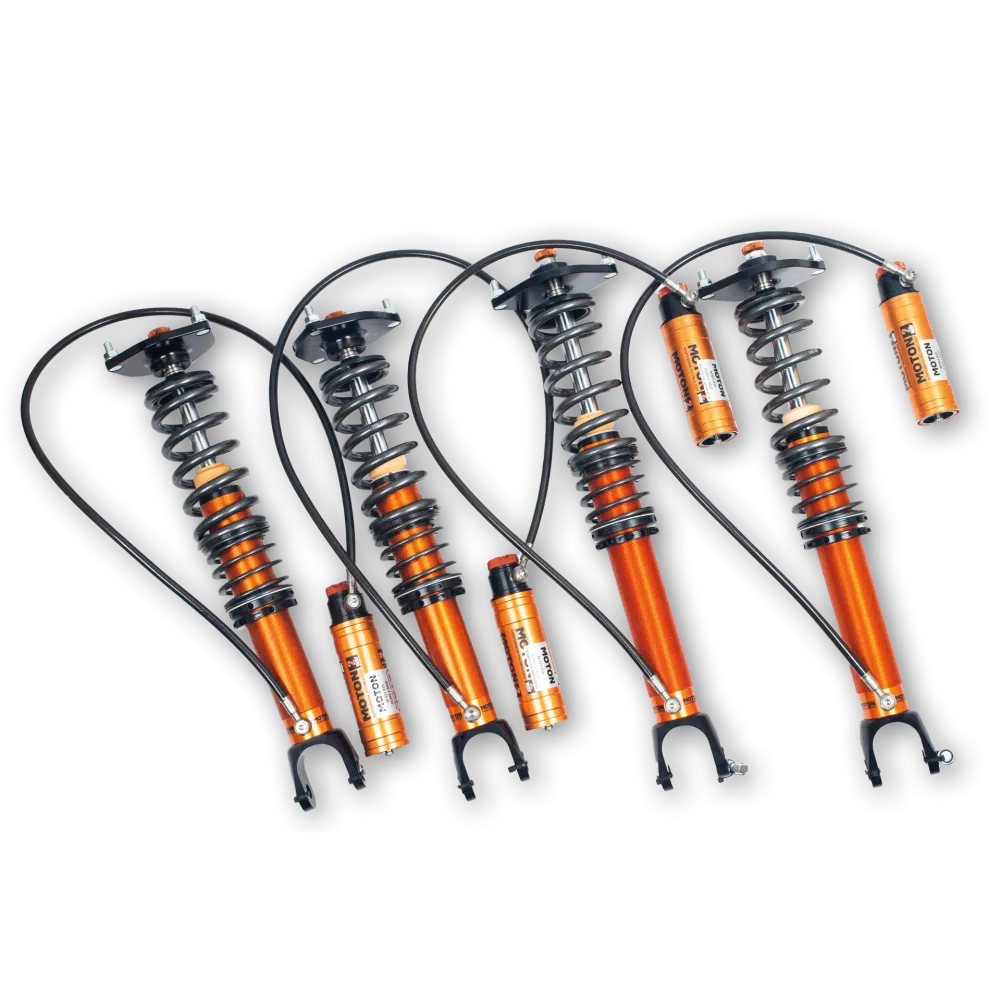

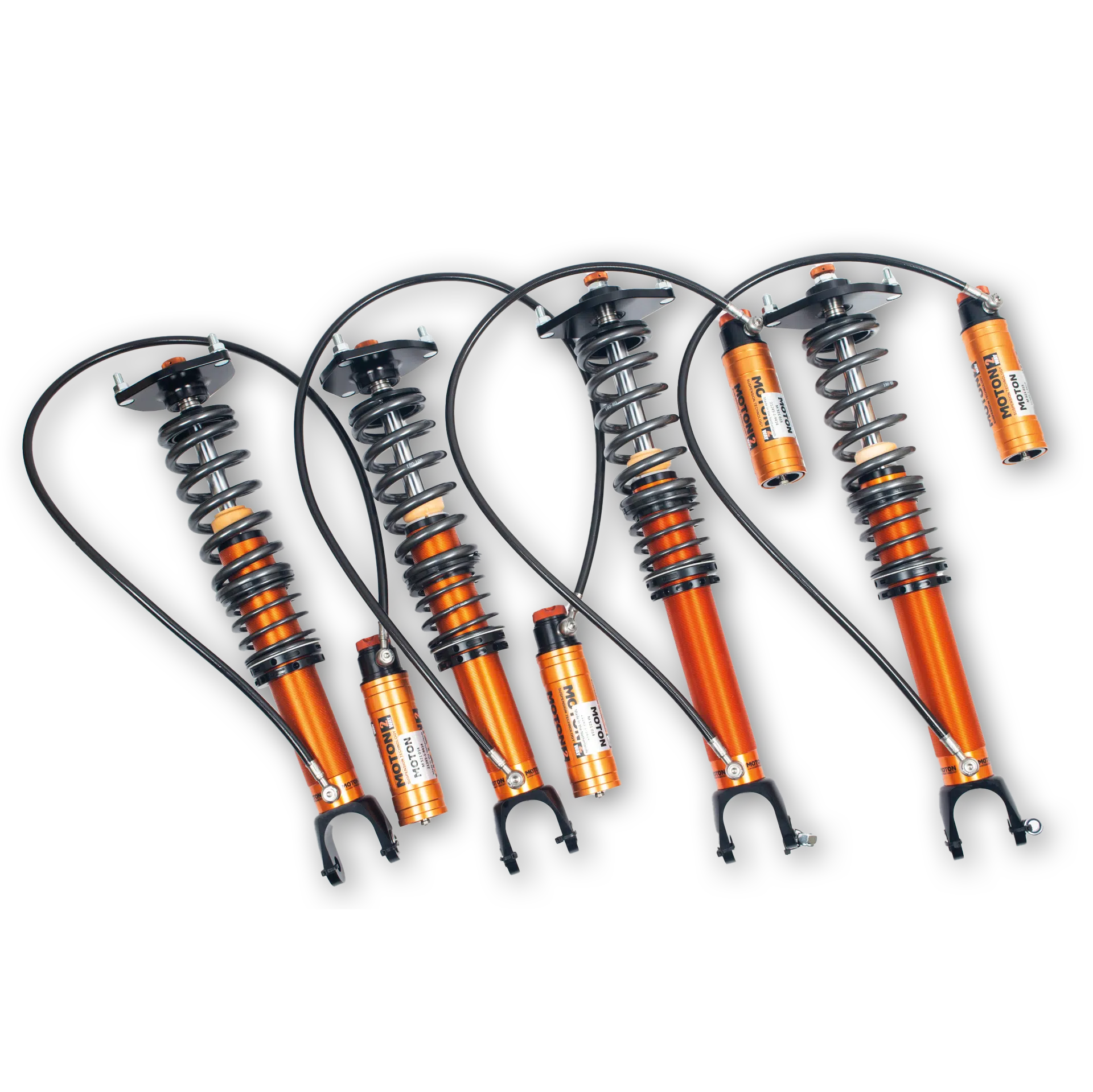

Images show representative MOTON kits

Frequently Asked Questions

Which BMW M3 and M4 models do the Moton 2-Way Clubsport Coilovers for F8X fit? MOTON lists the Moton 2-Way Clubsport Coilovers for F8X for the BMW M3 (LCI, 5-bolt top mount; F80, 2017 to 2018) and BMW M4 / M4 Convertible (LCI, 5-bolt top mount; F82 / F83, 2017 to 2020). Confirm the exact model and year with us before ordering.
How does the 2-Way Clubsport kit compare with the other MOTON kits for the LCI M3 or M4? The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the LCI M3 or M4. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for an LCI M3 or M4 that tracks regularly.
Does the kit fit the M4 Convertible? Yes. MOTON lists the F83 M4 Convertible alongside the LCI F80 M3 and F82 M4 on this part number, provided the car has the 5-bolt front top mount. Convertible bodies are heavier than the coupe, so tell us the body style and how the car is used when ordering.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the LCI M3 or M4. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
What do the remote reservoirs do on the LCI M3 or M4 kit? Each damper in the LCI M3 or M4 kit is connected by hose to an external reservoir holding extra oil, the gas charge and the compression adjuster. The added volume keeps damping consistent as the damper heats up, and the adjuster is easy to reach.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
