Which Acura RSX and Honda Civic models do the Moton 2-Way Clubsport Coilovers for DC5 fit?

MOTON lists the Moton 2-Way Clubsport Coilovers for DC5 for the Acura RSX / Honda Integra Type R (DC5, 2001 to 2006) and Honda Civic Si / Type R (EP3, 2001 to 2006). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 2-Way Clubsport kit compare with the other MOTON kits for the DC5 or EP3?

The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the DC5 or EP3. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for a DC5 or EP3 that tracks regularly.

Does one kit fit both the RSX and the EP3 Civic?

Yes. MOTON lists one part number for the DC5 Acura RSX and Integra Type R and the EP3 Civic Si and Type R. The cars share their basic suspension layout, so the order does not change by model. Wheel fitment does, so keep at least 5 mm between wheel and damper.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, built to order for the DC5 or EP3. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

What do the remote reservoirs do on the DC5 or EP3 kit?

Each damper in the DC5 or EP3 kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

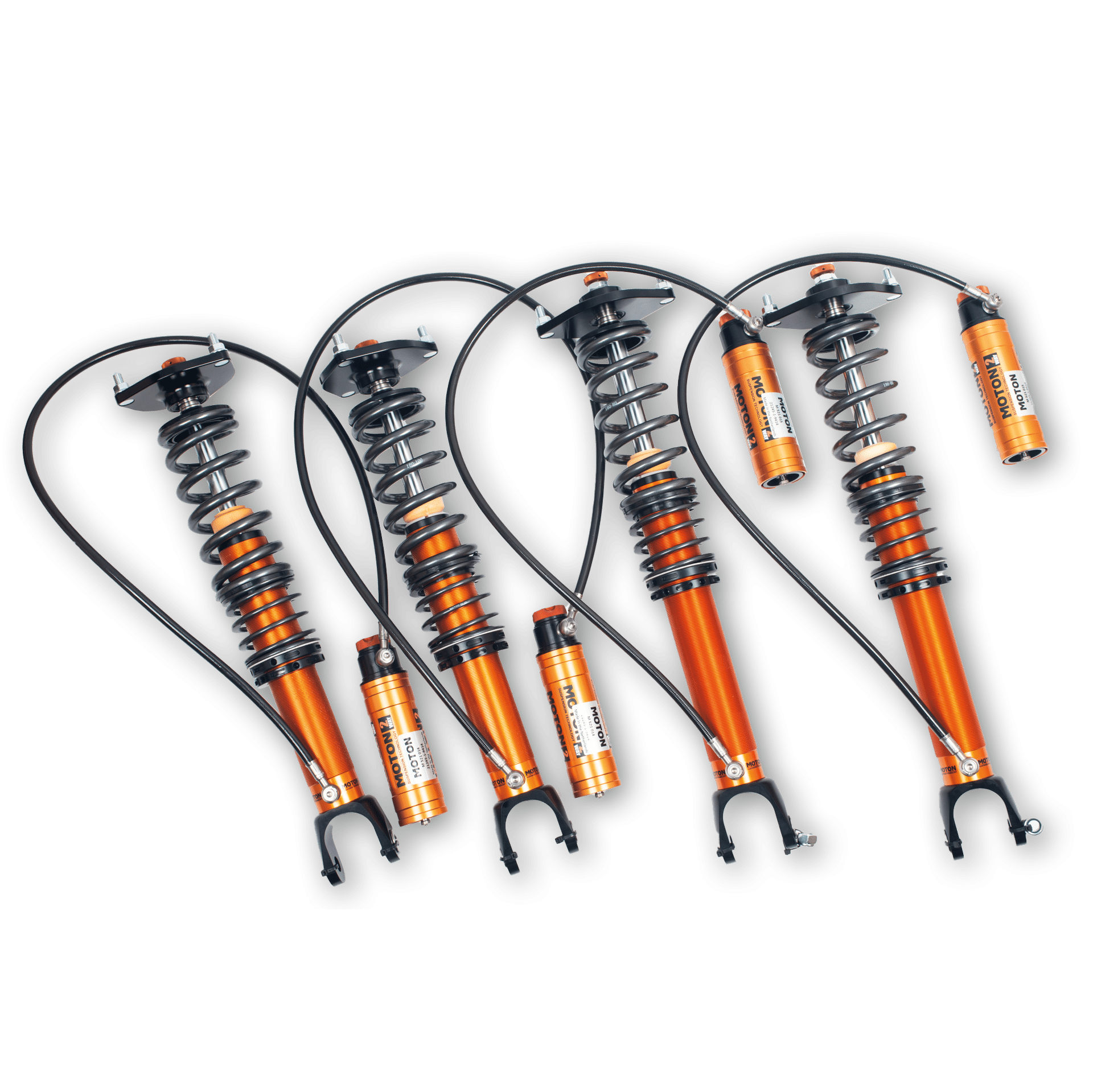

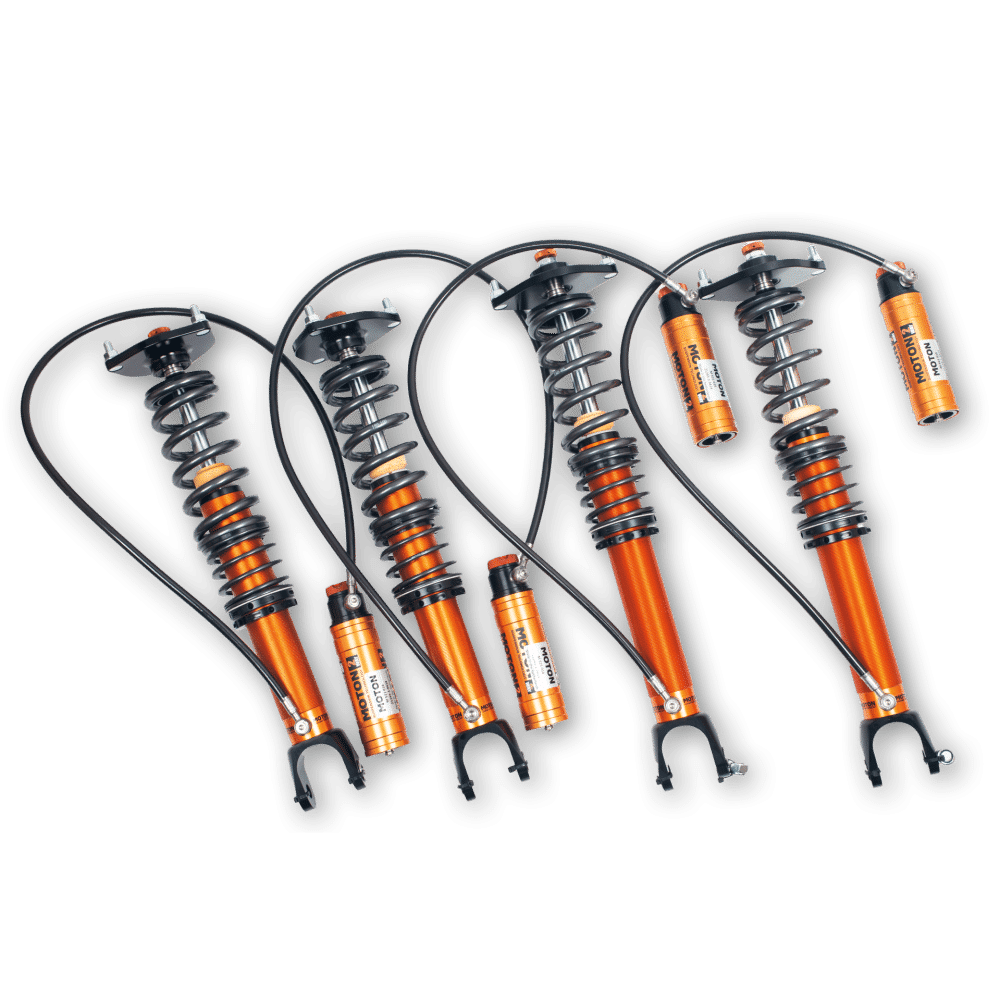

Moton 2-Way Clubsport Coilovers for DC5 Acura RSX / Integra Type R and EP3 Honda Civic

Moton’s 2-Way Clubsport Coilovers for DC5 Acura RSX / Integra Type R and EP3 Honda Civic give the DC5 RSX and EP3 Civic separate rebound and compression adjustment, with compression set on an external reservoir at each corner. The DC5 RSX and Integra Type R and the EP3 Civic share the K20 engine and a front strut layout, and MOTON lists one set for all of them. Moving compression to the reservoir puts the adjuster where it is easy to reach and gives the DC5 or EP3 more oil volume to hold temperature on track.

Design and Performance

Separating compression from rebound lets a driver change how the DC5 or EP3 takes a kerb or loads its outside tire without changing how it recovers. Separate high-speed and low-speed compression is the job of the Moton 3-Way Motorsport Coilovers, the race kit for the DC5 or EP3.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)

Applications

Acura RSX / Honda Integra Type R: DC5 | 2001-2006
Honda Civic Si / Type R: EP3 | 2001-2006

Notes

The Moton 2-Way Clubsport Coilovers for DC5 fit the DC5 RSX and Integra Type R and the EP3 Civic
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Acura RSX and Honda Civic models do the Moton 2-Way Clubsport Coilovers for DC5 fit? MOTON lists the Moton 2-Way Clubsport Coilovers for DC5 for the Acura RSX / Honda Integra Type R (DC5, 2001 to 2006) and Honda Civic Si / Type R (EP3, 2001 to 2006). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 2-Way Clubsport kit compare with the other MOTON kits for the DC5 or EP3? The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the DC5 or EP3. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for a DC5 or EP3 that tracks regularly.
Does one kit fit both the RSX and the EP3 Civic? Yes. MOTON lists one part number for the DC5 Acura RSX and Integra Type R and the EP3 Civic Si and Type R. The cars share their basic suspension layout, so the order does not change by model. Wheel fitment does, so keep at least 5 mm between wheel and damper.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, built to order for the DC5 or EP3. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
What do the remote reservoirs do on the DC5 or EP3 kit? Each damper in the DC5 or EP3 kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
