What is the KW Coilover Kit Bundle for Ford made from?

KW builds the kit around a high-quality stainless steel damper housing with a composite spring seat and a trapezoidal thread body for continuous height adjustment. It is manufactured at KW’s headquarters in Fichtenberg, Germany, and every application is validated on the company’s own 7-post shaker rig before it enters production.

Which Ford models does this kit fit?

This part number covers the Ford Mustang Shelby GT500 built between 2020 and 2022, across 1 listed engine and body variant shown under Applications. Confirm the exact model, drivetrain and suspension options against that list before ordering, because KW builds separate part numbers for closely related versions of the same car.

How far does the Coilover Kit Bundle for Ford lower the car?

Front ride height adjusts between 1.4 and 1.8 inches below factory and the rear between 0.2 and 0.6 inches. Height is set continuously on the trapezoidal thread, so the car can be corner balanced and the setting revised later without changing springs.

Is this kit suitable for daily driving?

Yes. KW valves this kit for road use first and validates it on the 7-post rig against real road inputs, so body control improves without the harshness a track damper brings. Ride height can also be set conservatively to preserve ground clearance for everyday driving.

Does the Coilover Kit Bundle for Ford need any modification to fit?

No. The kit is built as a direct replacement for the factory suspension on the listed applications and installs with normal workshop tools. Read the Notes for this part number first, since some applications require the factory electronic damping to be deactivated or wheel spacers to be run.

Where is this kit made?

KW designs and manufactures the kit at its headquarters in Fichtenberg, Germany, where the company has built suspension since 1995. Every damper is engineered in house and validated on KW’s own 7-post shaker rig and kinematics benches rather than sourced from a contract supplier.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

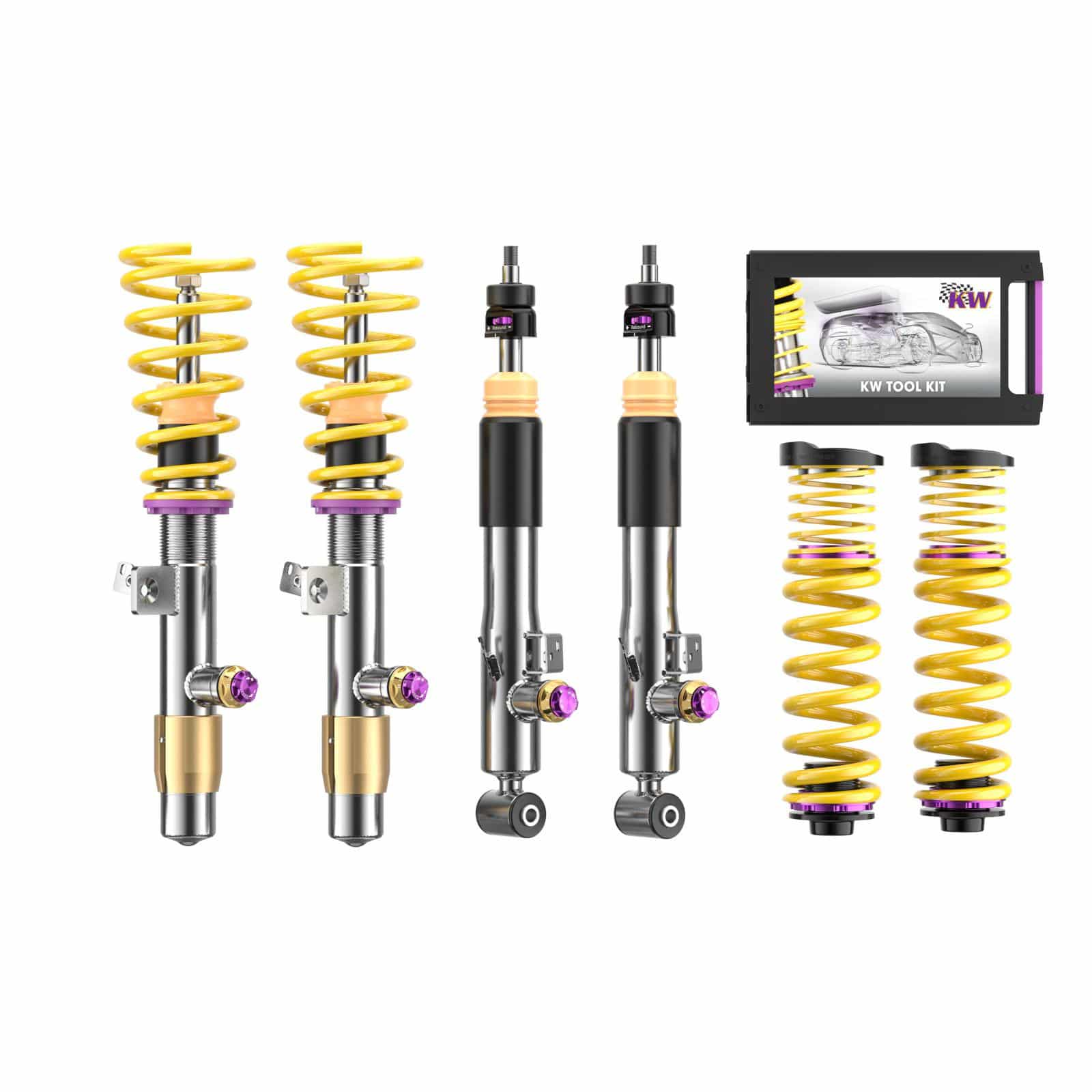

KW V4 Coilover Kit Bundle for Ford Mustang Shelby GT500

KW’s Coilover Kit Bundle for Ford Mustang Shelby GT500 separates low and high speed compression so kerbs and body control stop fighting each other. It is a three-way adjustable coilover kit with separate low and high speed compression, developed and manufactured by KW in Fichtenberg, Germany and validated on the company’s own 7-post shaker rig before production. The front ride height moves between 1.4 and 1.8 inches below standard and the rear between 0.2 and 0.6 inches, set continuously on the strut body rather than picked from a list of fixed drops, so the car can be corner balanced properly. Pitch and roll under braking, cornering and load change are reduced, body control improves, and the Ford Mustang Shelby GT500 responds the way its specification always suggested it could.

Design and Performance

The Coilover Kit Bundle for Ford is a three-way adjustable coilover kit with separate low and high speed compression. Damping is valved by KW for this specific application rather than adapted from a generic part, and ride height is set on the strut body so corner weights can be dialled in properly. KW validates every application on its own 7-post shaker rig and supplies the kit ready to install on the listed vehicles.

Features

The Coilover Kit Bundle for Ford offers three-way adjustable damping with separate low and high speed compression
Adjustable rebound damping
Continuous ride height adjustment on a trapezoidal thread
High-quality stainless steel damper housing
Validated on KW’s 7-post shaker rig
Developed and manufactured in Fichtenberg, Germany

Specifications

Front ride height adjustment: 1.4 to 1.8 in below factory
Rear ride height adjustment: 0.2 to 0.6 in below factory
Damper housing: stainless steel
Height adjustment: continuous, on the trapezoidal thread
Damping adjustment: compression and rebound, separately adjustable
Shipping weight: 66 lb
Carton dimensions: 30 x 18 x 6 in

Applications

Ford Mustang Shelby GT500: 2020-2022 | 5.2L V8

Notes

The factory electronic damping must be deactivated. The deactivation kit needed to do so is included in the delivery, so no separate module is required.

Frequently Asked Questions

What is the KW Coilover Kit Bundle for Ford made from? KW builds the kit around a high-quality stainless steel damper housing with a composite spring seat and a trapezoidal thread body for continuous height adjustment. It is manufactured at KW’s headquarters in Fichtenberg, Germany, and every application is validated on the company’s own 7-post shaker rig before it enters production.
Which Ford models does this kit fit? This part number covers the Ford Mustang Shelby GT500 built between 2020 and 2022, across 1 listed engine and body variant shown under Applications. Confirm the exact model, drivetrain and suspension options against that list before ordering, because KW builds separate part numbers for closely related versions of the same car.
How far does the Coilover Kit Bundle for Ford lower the car? Front ride height adjusts between 1.4 and 1.8 inches below factory and the rear between 0.2 and 0.6 inches. Height is set continuously on the trapezoidal thread, so the car can be corner balanced and the setting revised later without changing springs.
Is this kit suitable for daily driving? Yes. KW valves this kit for road use first and validates it on the 7-post rig against real road inputs, so body control improves without the harshness a track damper brings. Ride height can also be set conservatively to preserve ground clearance for everyday driving.
Does the Coilover Kit Bundle for Ford need any modification to fit? No. The kit is built as a direct replacement for the factory suspension on the listed applications and installs with normal workshop tools. Read the Notes for this part number first, since some applications require the factory electronic damping to be deactivated or wheel spacers to be run.
Where is this kit made? KW designs and manufactures the kit at its headquarters in Fichtenberg, Germany, where the company has built suspension since 1995. Every damper is engineered in house and validated on KW’s own 7-post shaker rig and kinematics benches rather than sourced from a contract supplier.

About KW

KW automotive has developed and built suspension in Fichtenberg, Germany since 1995, and supplies coilover systems to vehicle manufacturers, professional tuners and race teams worldwide. Every KW damper is engineered in house, validated on the company’s own 7-post shaker rig and kinematics test benches, and manufactured at the Fichtenberg headquarters rather than sourced from a contract supplier. The application list runs to more than 4,600 fitments, from road cars to GT racing machinery.
