What does the KW ESC Module for Audi Q3 do?

It replaces the signal the factory adaptive dampers send to the car once those dampers are removed for a KW coilover installation. Without it the car logs faults and puts warnings on the instrument cluster. The module keeps the vehicle electronically satisfied that its original suspension is still connected.

Do the in-cabin drive modes still work?

Yes. The module maintains the function of the drive mode selection inside the cabin after the factory electronic dampers have been removed, so the mode switch continues to operate normally rather than returning an error. Damping itself is then set by hand on the KW coilovers.

Do I need this module with KW coilovers?

Only if the car left the factory with electronically adjustable dampers. Where it did, removing that hardware to fit conventional coilovers requires this module to prevent fault codes and dashboard warnings. A car built without adaptive damping does not need it at all.

Is the ESC Module for Audi Q3 a plug-in installation?

The module connects into the existing factory damper wiring in place of the original units. It is normally fitted at the same time as the coilover kit, since both jobs involve the same connectors, and no dealer coding or software work is required for the module itself.

Which vehicles does this module cover?

This part number covers the Audi Q3, BMW X5 and Volkswagen Arteon built between 2015 and 2026, across 25 listed variants shown under Applications. KW builds separate modules for other generations, so match the part to the exact chassis before ordering.

Where is the KW ESC Module for Audi Q3 made?

KW designs and manufactures the module at its headquarters in Fichtenberg, Germany, alongside the coilover systems it is built to work with. KW has produced suspension there since 1995 and supplies vehicle manufacturers, professional tuners and race teams worldwide.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

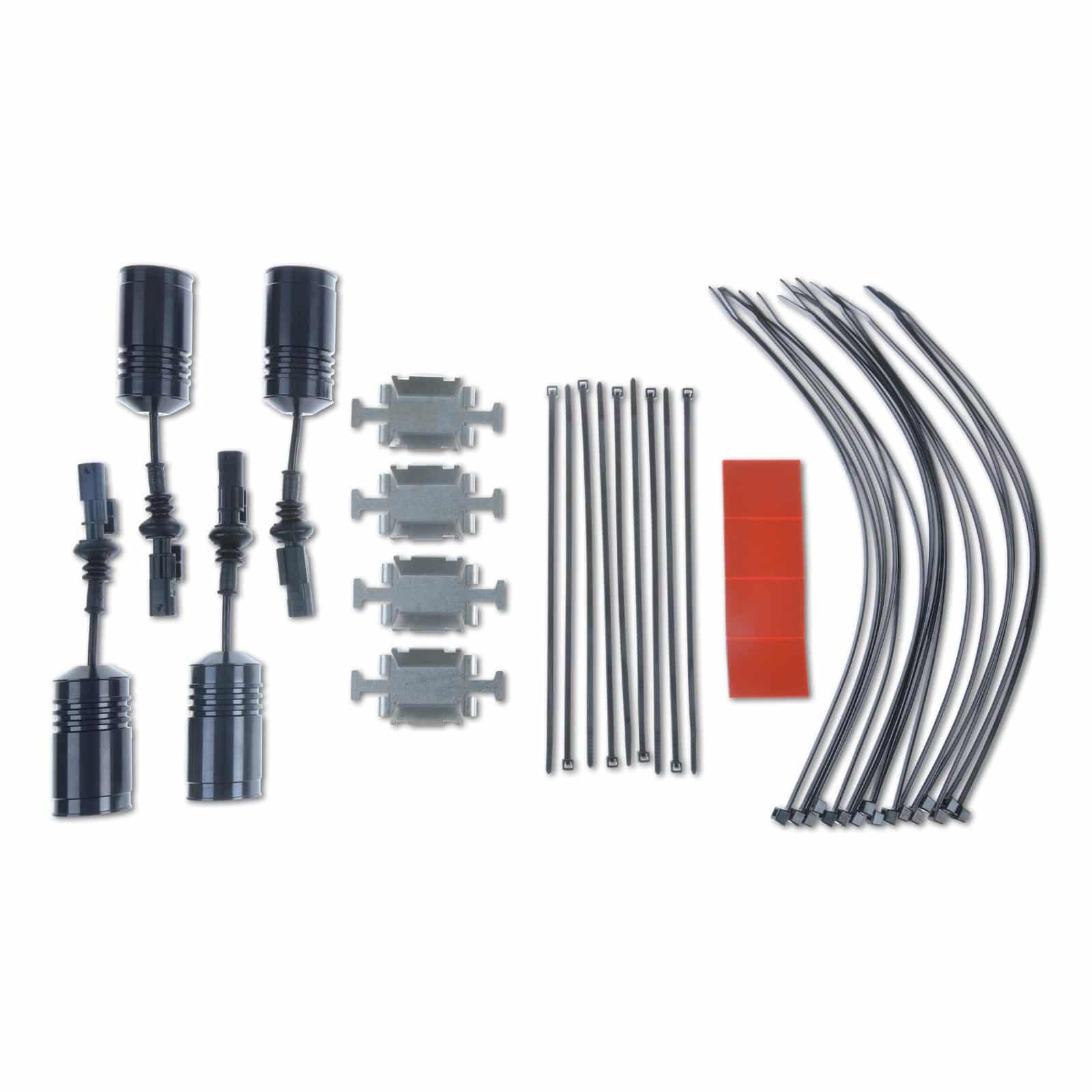

KW ESC Module for Audi Q3, BMW X5 and Volkswagen Arteon

KW’s ESC Module for Audi Q3 , BMW X5 and Volkswagen Arteon is the small component that makes a proper coilover conversion possible on a car built around its own adaptive dampers. Remove those dampers and the car objects immediately, with fault codes and cluster warnings no amount of mechanical work will silence. This module, developed and built by KW in Fichtenberg, Germany, takes the place of the factory damper signal so the car accepts the change, and it keeps the in-cabin drive mode selection working as before. It is not a part anyone buys for its own sake; it is the part that lets the suspension underneath be chosen on merit rather than dictated by the wiring loom.

Why It Is Needed

Vehicles delivered with electronically controlled dampers expect to see them on the bus, and fitting conventional KW coilovers removes that hardware, which the control unit reads as a fault. The ESC Module for Audi Q3 supplies what the control unit is looking for, so the dashboard stays clean and the drive mode switch keeps functioning, while damping is set by hand at the coilover itself.

Features

The ESC Module for Audi Q3 prevents fault messages caused by removing the factory electronic dampers
Maintains in-cabin drive mode function after the factory dampers are removed
Application-specific to the vehicles listed under Applications
Connects into the existing factory damper wiring
No dealer coding required for the module
Shipping weight 2.5 lb; carton 8.7 x 6.3 x 4.5 in
Developed and manufactured in Fichtenberg, Germany

Applications

Audi Q3 Premium Plus: 2019-2024 | 2.0L inline-four
Audi Q3 Premium: 2019-2024 | 2.0L inline-four
Audi Q3 Prestige: 2019 | 2.0L inline-four
Audi Q3 S-Line Premium Plus: 2020-2023 | 2.0L inline-four
Audi Q3 S-Line Premium: 2020-2023 | 2.0L inline-four
Audi Q3 S-Line Prestige: 2020 | 2.0L inline-four
Audi S3 Premium Plus: 2022-2025 | 2.0L inline-four
Audi S3 Premium: 2022-2025 | 2.0L inline-four
Audi S3 Prestige: 2022-2025 | 2.0L inline-four
BMW X5 M50i: 2020-2023 | 4.4L V8
BMW X5 M60i: 2024-2026 | 4.4L V8
BMW X5 sDrive40i: 2020-2026 | 3.0L inline-six
BMW X5 xDrive40i: 2019-2026 | 3.0L inline-six
BMW X5 xDrive45e: 2021-2023 | 3.0L inline-six
BMW X5 xDrive50e: 2024-2026 | 3.0L inline-six
BMW X5 xDrive50i: 2019-2020 | 4.4L V8
Volkswagen Arteon SE R-Line: 2019-2023 | 2.0L inline-four
Volkswagen Arteon SE: 2019-2021 | 2.0L inline-four
Volkswagen Arteon SEL Premium R-Line: 2019-2023 | 2.0L inline-four
Volkswagen Arteon SEL Premium: 2019 | 2.0L inline-four
Volkswagen Arteon SEL R-Line: 2019-2023 | 2.0L inline-four
Volkswagen Arteon SEL: 2019-2020 | 2.0L inline-four
Volkswagen Golf Launch Edition: 2015 | 1.8L inline-four
Volkswagen Golf R: 2015 | 2.0L inline-four
Volkswagen Golf: 2016 | 1.8L inline-four

Notes

Sold as a single module
The ESC Module for Audi Q3 is required only when the factory electronically controlled dampers are being removed; a car retaining its original adaptive dampers does not need it
KW builds cancellation modules for many chassis and they are not interchangeable; this part number is specific to the vehicles listed under Applications

Frequently Asked Questions

What does the KW ESC Module for Audi Q3 do? It replaces the signal the factory adaptive dampers send to the car once those dampers are removed for a KW coilover installation. Without it the car logs faults and puts warnings on the instrument cluster. The module keeps the vehicle electronically satisfied that its original suspension is still connected.
Do the in-cabin drive modes still work? Yes. The module maintains the function of the drive mode selection inside the cabin after the factory electronic dampers have been removed, so the mode switch continues to operate normally rather than returning an error. Damping itself is then set by hand on the KW coilovers.
Do I need this module with KW coilovers? Only if the car left the factory with electronically adjustable dampers. Where it did, removing that hardware to fit conventional coilovers requires this module to prevent fault codes and dashboard warnings. A car built without adaptive damping does not need it at all.
Is the ESC Module for Audi Q3 a plug-in installation? The module connects into the existing factory damper wiring in place of the original units. It is normally fitted at the same time as the coilover kit, since both jobs involve the same connectors, and no dealer coding or software work is required for the module itself.
Which vehicles does this module cover? This part number covers the Audi Q3, BMW X5 and Volkswagen Arteon built between 2015 and 2026, across 25 listed variants shown under Applications. KW builds separate modules for other generations, so match the part to the exact chassis before ordering.
Where is the KW ESC Module for Audi Q3 made? KW designs and manufactures the module at its headquarters in Fichtenberg, Germany, alongside the coilover systems it is built to work with. KW has produced suspension there since 1995 and supplies vehicle manufacturers, professional tuners and race teams worldwide.

About KW

KW automotive has developed and built suspension in Fichtenberg, Germany since 1995, and supplies coilover systems to vehicle manufacturers, professional tuners and race teams worldwide. Every KW damper is engineered in house, validated on the company’s own 7-post shaker rig and kinematics test benches, and manufactured at the Fichtenberg headquarters rather than sourced from a contract supplier. The application list runs to more than 4,600 fitments, from road cars to GT racing machinery.
