Will the KW V3 coilover kit fit my C8 Chevrolet Corvette?

Yes. This KW V3 coilover kit (part 35261029) fits the Chevrolet Corvette C8 equipped with Magnetic Ride and without the factory nose lift; KW includes the Magnetic Ride cancellation so there is no warning. Confirm your options before ordering.

What can I adjust on the KW V3?

The KW V3 provides independently adjustable rebound and compression damping through KW's patented valve technology. You set rebound and compression separately, tuning body control and ride feedback to your driving style, tires, and setup without changing the spring-matched base tune.

Is the KW V3 coilover kit height adjustable?

Yes. The KW V3 coilover kit is continuously height-adjustable at all four corners within KW's tested range, letting you dial in stance and corner balance. KW supplies the adjustment specifications in the included installation instructions.

What is the KW V3 made of and where?

The KW V3 uses stainless steel INOX-LINE strut bodies for corrosion resistance and long service life, and is engineered and manufactured by KW automotive in Germany. Each kit ships with a technical component report.

Is this a complete coilover kit?

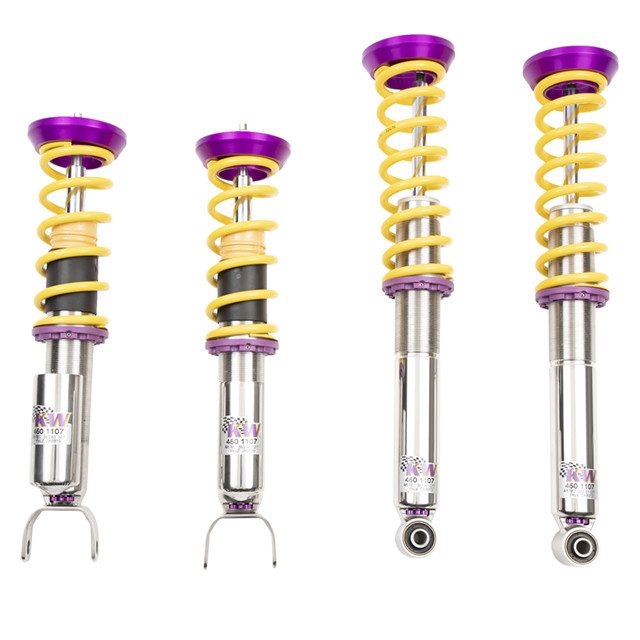

Yes. This is a complete four-corner KW V3 coilover kit for the C8 Chevrolet Corvette, including struts, springs, and KW's adjustable damping hardware. It replaces the factory shocks and springs.

Will the KW V3 improve handling?

Yes. By reducing body roll and pitch under cornering, braking, and load changes, the KW V3 coilover kit improves support and feedback on the C8 Chevrolet Corvette, giving more confident, repeatable handling on road and track.

KW V3 Coilover Kit C8 Corvette | Bulletproof Automotive

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

KW V3 Coilover Kit for C8 Chevrolet Corvette with Magnetic Ride [35261029]

Cutting-edge motorsports technology for more performance on the road. Like every suspension product developed by KW automotive, the suspension manufacturer, and manufactured in Germany, the KW V3 Coilover suspension kit also provides a significant plus in safety reserves in road traffic. Thanks to the chassis with its high-quality dampers, springs, and elastomer spring elements, pitching and rolling movements during load changes such as evasive maneuvers, cornering, acceleration, and braking are significantly reduced. The braking distances are also shortened. Thanks to improved support and feedback, drivers not only feel safer but driving in everyday life becomes even safer.

With compression and rebound stage damping, that can be set separately and independently of each other, the damper setup can be customized to your personal driving preferences or vehicle changes such as weight, tire characteristics, or altered vehicle rigidity. True performance optimization is only possible with this unique, patented system. For example, this allows the compression damping force to be increased and get more grip from the tires, to improve cornering behavior and reduce squat without simultaneously altering the rebound stage damping which is optimally matched to the spring rate – a scenario which results in reduced grip and the associated loss of performance.

Specifically Engineered Setup: Vehicle Specific w/ Separately Adjustable Rebound and Compression Damping

The KW V3 “inox-line” coilover kit is the ideal tool for performance-oriented drivers and experienced tuning enthusiasts who place a strong emphasis on the overall performance of their suspension. The V3 features patented TVR-A and TVC-A technology that provides separately adjustable rebound and compression damping. The extensive adjustment range of the independently configurable rebound and compression make it easy to directly influence the steering behavior, directional stability, grip and handling characteristics for confident and repeatable results at the limit of driving dynamics.

TVR-A Technology

The two-stage, patented TVR-A (Twin Valve Rebound – Adjustable) technology enables a small volume of oil to flow through an adjustable, conically shaped, low-speed bypass during low damper speeds, while in the case of higher damper speeds, the main rebound stage valve opens allowing a larger volumn of oil to flow. This provides a big improvement in terms of ride comfort without influencing the safety-relevant high-speed range. There are 16 precise clicks available for individual settings, so you can choose between more comfort or more body control.

TVC-A Technology

With 12 precise clicks, the KW V3 coilovers utilize TVC-A (Twin Valve Compression – Adjustable) technology and can increase or decrease the flow of valve to achieve either more or less low speed compression damping. During sudden high speed impulses the spring loaded needle valve and the spring loaded main valve open to their maximum valve cross section, acting as a digressive blow-off characteristic to avoid transmitting undesired forces through the suspension into the chassis. This provides a better platform for the vehicle body and at the same time offers more comfort than with conventional valve technology during high wheel acceleration. The dampers come preset to our baseline shock settings right out of the box providing an optimal starting place for your car while providing a wide adjustment window for true performance optimization.

Continuous Ride Height Adjustment

With KW V3 coilovers you can achieve maximum lowering within an approved lowering range that ensures a proper functioning suspension with adequate travel after your car is lowered. Even after years of use you can easily adjust the ride height thanks to the dirt resistant trapezoid thread and composite adjustment collar.

The Benchmark for Coilovers

As with all KW coilovers their engineers develop vehicle specific damper and spring specifications which undergo comprehensive testing on the Nürburgring Nordschleife and in their KW 7-post Driving Dynamic Test Center. With a KW V3 coilover kit the driving experience is more dynamic and direct.

You are not buying a mass produced, generic coilover kit, a KW coilover has been developed specifically for your particular vehicle. As a manufacturer, KW uses only its own resources, high quality components and the damper technology that has all developed in-house. With the KW V3 “inox-line” coilovers, rolling motion of the body will be reduced during compression giving you the benefit of more direct handling and confidence while driving.

KW’s Experience Means Your Driving Pleasure

For over 20 years, KW automotive has been the market leader and driving innovation as a manufacturer of individual suspension solutions for the road and in all types of motorsports. No matter where in the world, gearheads, automobile manufacturers and reputable tuners rely on our KW coilovers “Made in Germany”.

Frequently Asked Questions

Will the KW V3 coilover kit fit my C8 Chevrolet Corvette? Yes. This KW V3 coilover kit (part 35261029) fits the Chevrolet Corvette C8 equipped with Magnetic Ride and without the factory nose lift; KW includes the Magnetic Ride cancellation so there is no warning. Confirm your options before ordering.
What can I adjust on the KW V3? The KW V3 provides independently adjustable rebound and compression damping through KW’s patented valve technology. You set rebound and compression separately, tuning body control and ride feedback to your driving style, tires, and setup without changing the spring-matched base tune.
Is the KW V3 coilover kit height adjustable? Yes. The KW V3 coilover kit is continuously height-adjustable at all four corners within KW’s tested range, letting you dial in stance and corner balance. KW supplies the adjustment specifications in the included installation instructions.
What is the KW V3 made of and where? The KW V3 uses stainless steel INOX-LINE strut bodies for corrosion resistance and long service life, and is engineered and manufactured by KW automotive in Germany. Each kit ships with a technical component report.
Is this a complete coilover kit? Yes. This is a complete four-corner KW V3 coilover kit for the C8 Chevrolet Corvette, including struts, springs, and KW’s adjustable damping hardware. It replaces the factory shocks and springs.
Will the KW V3 improve handling? Yes. By reducing body roll and pitch under cornering, braking, and load changes, the KW V3 coilover kit improves support and feedback on the C8 Chevrolet Corvette, giving more confident, repeatable handling on road and track.
