Does the rail work with my factory seat or a reclining seat?

No. This rail is made only for full bucket seats that mount through four side bolts. The factory GD seat and reclining semi-bucket seats cannot be fitted. The seat itself is not included, so plan to buy a compatible side-mount bucket if you do not already own one.

How much lower will the Ultra-Low Seat Rail for GD cars put me?

The manufacturer measured about 60mm lower than the stock seat using a Recaro bucket in its lowest position on the Ultra-Low Seat Rail for GD cars. Your result depends on the seat shell, its mounting holes and normal variation between cars, so treat 60mm as a reference rather than a promise.

Is one rail enough for one seat?

Yes. Each option is a complete rail for one seat, sold as Right or Left. To fit buckets on both front seats, order one Right and one Left, and confirm which side you need before ordering. The listed price is for a single rail.

Is the rail strong enough for track use?

The manufacturer designed it for motorsport. A rigid frame and a lock lever on each side hold the slide against the lateral load of circuit cornering, and the rails were strength tested at a public laboratory and sled tested at the Japan Automobile Research Institute.

Will the seat line up with the steering wheel?

Usually, but not always. The manufacturer warns that some seat combinations can sit slightly off the steering wheel center or touch interior trim. Test fit the seat before final tightening and check clearance to the door panel, console and belt buckle.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

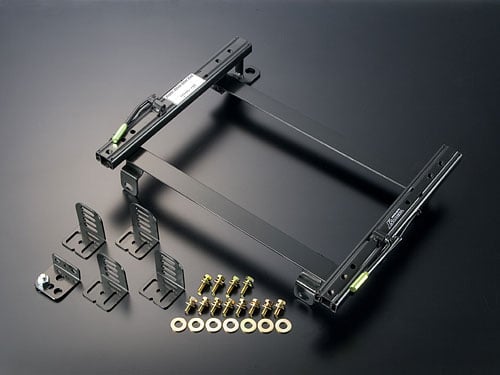

J’s Racing Ultra-Low Seat Rail for GD Honda Fit

J’s Racing’s Ultra-Low Seat Rail for GD Fits is for drivers who fitted a full bucket seat and still felt perched too high on the seat maker’s own rails. J’s Racing moved the lock levers to the outside of the rail, so the seat shell drops down between the rails rather than sitting on top of them. With a Recaro bucket in the lowest position, the Osaka company measured about 60mm below the stock GD seat. The rail is 395mm wide and accepts side-mount full buckets only. It suits a tall driver or a GD built for circuit work; anyone keeping the factory or a reclining seat should look elsewhere.

Development and Testing

The frame is stiff, and a lever on each side locks the rail so it can carry the lateral load of circuit cornering, which is why J’s Racing approves it for motorsport use. The company also had its rails strength tested at a public industrial testing laboratory in June 2010 and sled tested at the Japan Automobile Research Institute in October 2014 and March 2017.

Features

Side-mounted lock levers let the seat sit between the rails
About 60mm lower than the stock GD seat with a Recaro bucket at its lowest
Rigid frame with left and right levers locking the slide
Designed to cope with circuit cornering loads
395mm rail width for side-mount full bucket seats

Applications

Honda Fit: GD1 / GD2 / GD3 / GD4 | 2001-2008 | 1.3L L13A or 1.5L L15A

Notes

Options: Right and Left are separate rails sold individually, so order one for each seat position you are fitting
For side four-point mount full bucket seats only; factory seats and reclining semi-buckets will not fit
The seat is not included
Final seat height depends on the seat used, and the 60mm figure is a reference rather than a guarantee
Some seat combinations can shift the seat off the steering wheel center or contact interior trim
Shipped from Japan by J’s Racing USA; Bulletproof Automotive confirms the lead time with you once the order is placed

Frequently Asked Questions

Does the rail work with my factory seat or a reclining seat? No. This rail is made only for full bucket seats that mount through four side bolts. The factory GD seat and reclining semi-bucket seats cannot be fitted. The seat itself is not included, so plan to buy a compatible side-mount bucket if you do not already own one.
How much lower will the Ultra-Low Seat Rail for GD cars put me? The manufacturer measured about 60mm lower than the stock seat using a Recaro bucket in its lowest position on the Ultra-Low Seat Rail for GD cars. Your result depends on the seat shell, its mounting holes and normal variation between cars, so treat 60mm as a reference rather than a promise.
Is one rail enough for one seat? Yes. Each option is a complete rail for one seat, sold as Right or Left. To fit buckets on both front seats, order one Right and one Left, and confirm which side you need before ordering. The listed price is for a single rail.
Is the rail strong enough for track use? The manufacturer designed it for motorsport. A rigid frame and a lock lever on each side hold the slide against the lateral load of circuit cornering, and the rails were strength tested at a public laboratory and sled tested at the Japan Automobile Research Institute.
Will the seat line up with the steering wheel? Usually, but not always. The manufacturer warns that some seat combinations can sit slightly off the steering wheel center or touch interior trim. Test fit the seat before final tightening and check clearance to the door panel, console and belt buckle.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
