Are hood pins, the rain protector and the aluminum net included?

No. The Type-V Vented Hood for GK5 and other GK Fits comes with the catch hardware and bolts installed for the factory hood catch. Hood pins are not supplied but are recommended for sports driving, and the inner rain protector and aluminum net are optional parts sold separately.

How much weight does the Type-V Vented Hood for GK5 save?

The manufacturer publishes a weight only for the Carbon and FRP version: 4.3 kg, about 9.5 lb, against roughly 8.3 kg, about 18.3 lb, for the stock hood. No weight is given for the Full Carbon or FRP versions, so no figure is quoted here for those two.

Which material should I choose?

Pick FRP if the hood will be painted to match the body, since both faces are black gelcoat. Carbon and FRP shows plain-weave carbon on top with an FRP underside and carries the published weight figure. Full Carbon uses clear gelcoat carbon on both faces for the most finished look under the hood.

Does it need paint or clear coat?

The FRP hood needs paint to match the car, which is not included. The carbon versions arrive with a clear gelcoat over the weave and can be fitted as supplied, although the manufacturer recommends an additional clear coat on any version to keep the surface looking good long term.

Will it fit Fits other than the GK5?

Yes. The manufacturer lists the hood for the whole GK range, GK3 through GK6, with either the 1.3 liter L13B or 1.5 liter L15B engine. It uses the factory hood catch on all of them, so no extra latch hardware is needed to mount it.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

J’s Racing Type-V Vented Hood for GK5 Honda Fit

J’s Racing’s Type-V Vented Hood for GK5 and other GK Fits took about a year to develop for Super Taikyu. To cool the cramped engine bay, the Osaka tuner used a V-shaped duct: air flowing over the hood creates negative pressure that draws hot air out through vents on the left and right. J’s Racing says this lowers coolant, oil and intake air temperatures and holds off heat soak in hard driving. The Carbon and FRP version weighs 4.3 kg, against about 8.3 kg for the stock hood. It is best on a Fit driven hard in warm weather; a commuter gains mainly the weight saving and the look.

Construction

On the carbon versions, craftsmen lay up single sheets of plain-weave carbon cloth by hand and finish them in clear gelcoat. The factory hood catch carries over, with catch hardware and bolts already installed, so the hood can be fitted without hood pins.

Features

V-shaped duct that extracts engine bay heat through left and right vents
Developed over about a year for Super Taikyu
Carbon and FRP version at roughly half the weight of the stock hood
Factory hood catch compatible, hardware and bolts pre-installed
Three builds: Full Carbon, Carbon and FRP, or FRP

Applications

Honda Fit: GK3 / GK4 / GK5 / GK6 | 2013-2020 | 1.3L L13B or 1.5L L15B

Notes

Options: Full Carbon is clear gelcoat plain-weave carbon on both faces, Carbon and FRP has a clear gelcoat carbon top over a black gelcoat FRP underside, and FRP is black gelcoat FRP on both faces
Hood pins are not included and are recommended for sports driving
The inner rain protector and aluminum net are sold separately

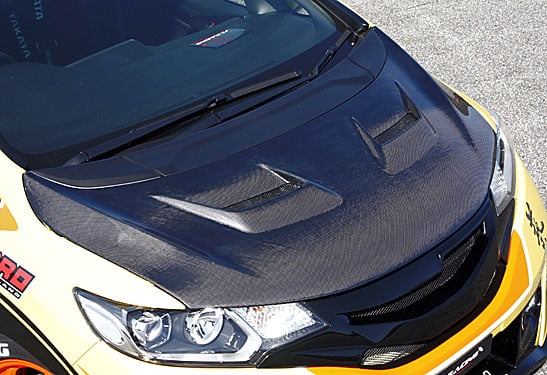

Photos show the carbon versions; the FRP hood arrives in black gelcoat
Fit the hood securely and inspect its mounting regularly so it cannot come loose while driving
Each hood is made to order in Japan; Bulletproof Automotive confirms lead time and availability through J’s Racing USA when you order

Frequently Asked Questions

Are hood pins, the rain protector and the aluminum net included? No. The Type-V Vented Hood for GK5 and other GK Fits comes with the catch hardware and bolts installed for the factory hood catch. Hood pins are not supplied but are recommended for sports driving, and the inner rain protector and aluminum net are optional parts sold separately.
How much weight does the Type-V Vented Hood for GK5 save? The manufacturer publishes a weight only for the Carbon and FRP version: 4.3 kg, about 9.5 lb, against roughly 8.3 kg, about 18.3 lb, for the stock hood. No weight is given for the Full Carbon or FRP versions, so no figure is quoted here for those two.
Which material should I choose? Pick FRP if the hood will be painted to match the body, since both faces are black gelcoat. Carbon and FRP shows plain-weave carbon on top with an FRP underside and carries the published weight figure. Full Carbon uses clear gelcoat carbon on both faces for the most finished look under the hood.
Does it need paint or clear coat? The FRP hood needs paint to match the car, which is not included. The carbon versions arrive with a clear gelcoat over the weave and can be fitted as supplied, although the manufacturer recommends an additional clear coat on any version to keep the surface looking good long term.
Will it fit Fits other than the GK5? Yes. The manufacturer lists the hood for the whole GK range, GK3 through GK6, with either the 1.3 liter L13B or 1.5 liter L15B engine. It uses the factory hood catch on all of them, so no extra latch hardware is needed to mount it.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
