Will this chamber fit a Fit with a CVT?

No. This version is designed for 1.5-liter late-model GD3 and GD4 cars with the manual gearbox. The manufacturer makes separate chambers for early and late CVT cars and tells CVT owners to buy those dedicated versions, so order the one that matches your transmission and model series.

How does the Tsuchinoko Chamber for Late GD3 cars get cold air?

The Tsuchinoko Chamber for Late GD3 and GD4 manual cars places the filter inside the front bumper and draws through the factory bumper inlet. The bumper cavity becomes a large intake box, so the engine breathes outside air rather than heat from the engine bay.

What happens when it rains?

A dedicated partition wall inside the bumper keeps water from striking the filter directly. The manufacturer tested the system on the road in heavy rain before release. As with any bumper-mounted filter, avoid driving through standing water deep enough to reach the bumper opening.

How much power does it add?

No figures are published. In back-to-back Dynapack runs on the same stock-engine Fit, the chamber was compared with the factory intake and an aftermarket air cleaner, and the manufacturer highlights a dramatic torque increase. It expects further gains on the road, where airflow feeds the bumper box.

Should I choose carbon or FRP?

Both share the same chamber shape and parts list. The Carbon option has a wet carbon finished CFRP body and a gold emblem, chosen for appearance. The FRP option has a clear black body and a silver emblem and costs less, with the same intake function under the hood.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

J’s Racing Tsuchinoko Chamber for Late GD3 / GD4 MT Honda Fit

J’s Racing’s Tsuchinoko Chamber for Late GD3 and GD4 Fits with the 1.5-liter engine and manual gearbox solves the small-car intake problem by moving the filter out of the engine bay altogether. A large chamber fills the little space available under the hood, and the filter sits inside the bumper, drawing through the factory bumper inlet so it breathes outside air instead of engine heat. It took six months to develop. Choose wet carbon for a show-quality bay or FRP in clear black for the same function at lower cost. It is aimed at L15A manual cars that are driven hard; CVT owners need a different kit.

Development and Testing

J’s Racing ran the same stock-engine Fit on a Dynapack three ways: with the factory intake, with an aftermarket air cleaner, and with this chamber. No fan was aimed at the intake, so the test isolated the chamber itself. J’s Racing points to the torque increase as the headline result.

Features

Large-capacity chamber built into the available engine bay space
Filter housed inside the bumper, fed by the factory inlet
Partition wall shields the filter from rain, tested in heavy downpours
Torque gain shown in back-to-back Dynapack testing
Wet carbon or clear black FRP chamber body

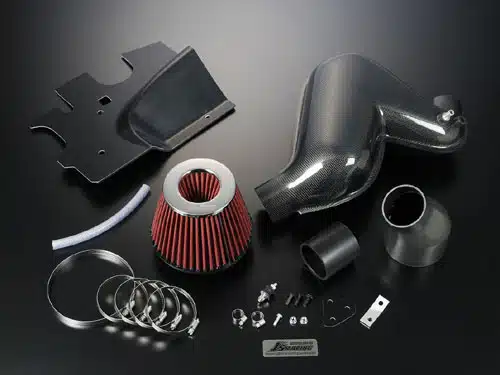

What’s Included

Chamber body: CFRP with wet carbon finish, or FRP in clear black
Dedicated partition plate
Filter joint
Dedicated air filter
Hoses
J’s Racing emblem: gold with carbon, silver with FRP
Joints, bands and bolts
Installation instructions

Applications

Honda Fit: GD3 / GD4 late model, manual transmission | 2001-2008 | 1.5L L15A

Notes

Manual transmission 1.5-liter late-model cars only; J’s lists the carbon version for CBA-GD3 and GD4 and the FRP version for CBA and DBA cars
CVT cars need the Tsuchinoko Chamber for late CVT GD Honda Fit or the Tsuchinoko Chamber for early CVT GD Honda Fit
Options: Carbon has a wet carbon chamber and gold emblem; FRP has a clear black chamber and silver emblem
Ships from Japan through J’s Racing USA, and Bulletproof Automotive confirms availability and lead time when you place the order

Frequently Asked Questions

Will this chamber fit a Fit with a CVT? No. This version is designed for 1.5-liter late-model GD3 and GD4 cars with the manual gearbox. The manufacturer makes separate chambers for early and late CVT cars and tells CVT owners to buy those dedicated versions, so order the one that matches your transmission and model series.
How does the Tsuchinoko Chamber for Late GD3 cars get cold air? The Tsuchinoko Chamber for Late GD3 and GD4 manual cars places the filter inside the front bumper and draws through the factory bumper inlet. The bumper cavity becomes a large intake box, so the engine breathes outside air rather than heat from the engine bay.
What happens when it rains? A dedicated partition wall inside the bumper keeps water from striking the filter directly. The manufacturer tested the system on the road in heavy rain before release. As with any bumper-mounted filter, avoid driving through standing water deep enough to reach the bumper opening.
How much power does it add? No figures are published. In back-to-back Dynapack runs on the same stock-engine Fit, the chamber was compared with the factory intake and an aftermarket air cleaner, and the manufacturer highlights a dramatic torque increase. It expects further gains on the road, where airflow feeds the bumper box.
Should I choose carbon or FRP? Both share the same chamber shape and parts list. The Carbon option has a wet carbon finished CFRP body and a gold emblem, chosen for appearance. The FRP option has a clear black body and a silver emblem and costs less, with the same intake function under the hood.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
