How much cooler does the SPL Aluminum Radiator actually run?

In J's Racing's own Suzuka Circuit testing across six consecutive full-throttle laps, the SPL Aluminum Radiator cut maximum water temperature by 25C and average temperature by 15C compared with the stock FK8 radiator. That is the difference between finishing a session and limping to the pits.

What makes the core so much more effective?

Three things stack: tube width doubles from 5mm to 10mm, fin pitch widens from 1.5mm to 3mm for better airflow through the core, and the coolant makes three passes through the 48mm core instead of one, extracting far more heat per lap of the system.

Do I keep the factory fan and air conditioning?

Yes. The radiator is designed around the OEM cooling fan and retains full air conditioning function, so the car stays completely streetable.

Nearly. Because J's Racing sized the core at the maximum possible capacity, minor interference is possible on some cars; the factory allows adjusting the mounting position or light trimming during installation, which is why professional fitting is recommended.

What comes in the box?

The radiator ships with its OUT-side piping, a joint hose with bands, and a heat shield plate, so the supporting pieces the installation needs are included.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

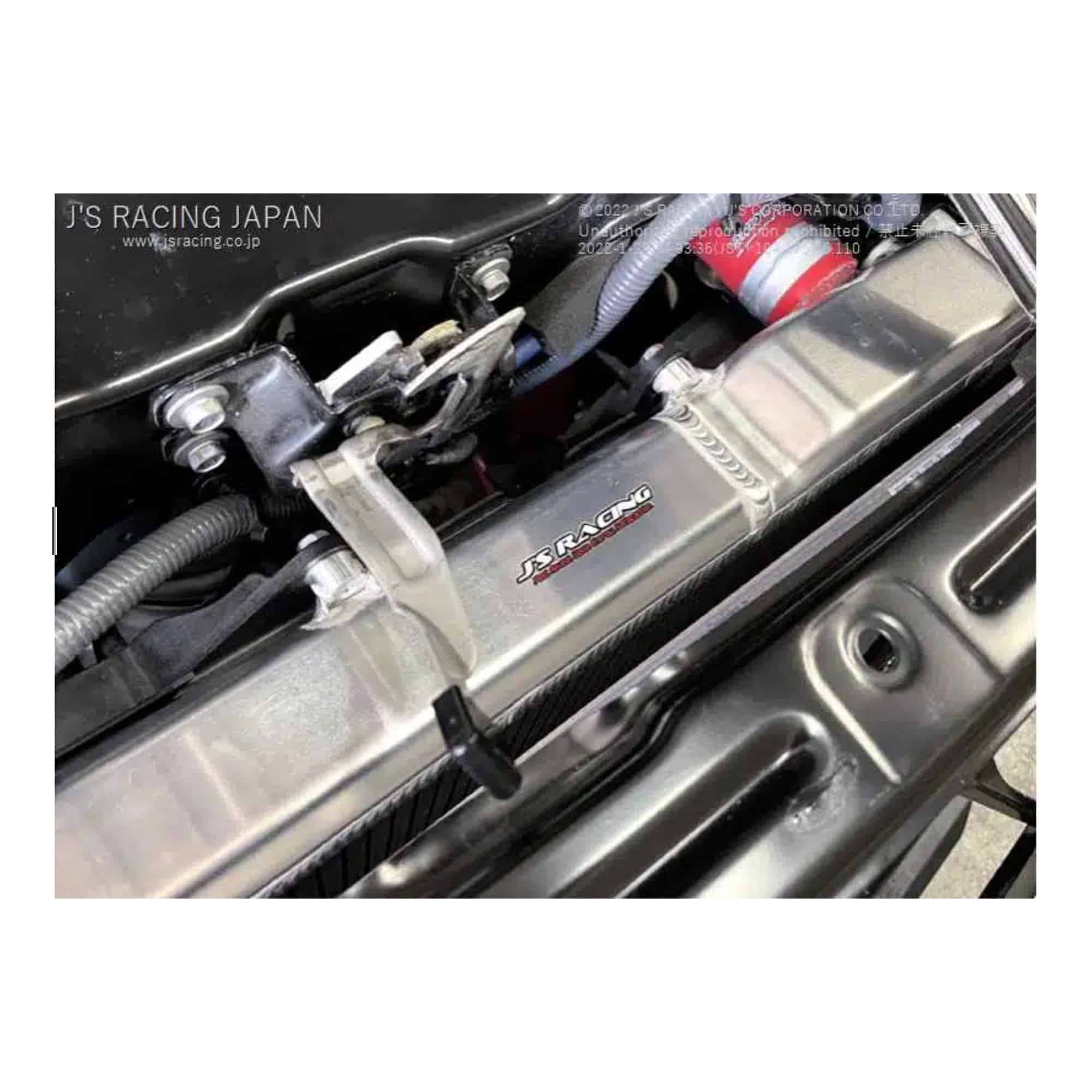

J’s Racing SPL Aluminum Radiator RR for FK8 Honda Civic Type R [RAS-K8-RR]

The J’s Racing SPL Aluminum Radiator RR ends the FK8 Honda Civic Type R’s most famous track-day weakness: water temperature. The all-aluminum core doubles tube width from the factory 5mm to 10mm, widens fin pitch from 1.5mm to 3mm, and runs a triple-pass layout through a 48mm-thick core. In J’s Racing’s Suzuka Circuit testing over six full-throttle laps, maximum water temperature dropped 25C and average temperature dropped 15C against the stock radiator.

Construction

J’s Racing sized the core at the maximum possible capacity increase over the genuine radiator, using flex round processing, an integrated press molding that maintains plate thickness and increases strength while trimming weight. The OEM cooling fan and air conditioning are both retained, and the radiator ships with its OUT-side piping, joint hose, bands, and a heat shield plate.

Features

48mm-thick triple-pass core (factory: single pass)
Fin pitch widened to 3mm from the factory 1.5mm
Flex round press molding maintains plate thickness while cutting weight
Retains the OEM cooling fan and air conditioning
Tube width doubled to 10mm from the factory 5mm

Specifications

Core Thickness: 48 mm
Core Layout: Triple pass
Tube Width: 10 mm (OEM: 5 mm)
Fin Pitch: 3 mm (OEM: 1.5 mm)
Suzuka-Tested Water Temperature Reduction: 25C maximum, 15C average (6 full-throttle laps)
Material: Aluminum

What’s Included

Heat shield plate (x1)
Joint hose and bands (x1 set)
OUT-side piping (x1)
SPL Aluminum Radiator core (x1)

Applications

Honda Civic Type R: FK8 | 2017-2021 | 2.0L K20C1 Turbo

Notes

Sized at maximum capacity, so minor interference is possible; adjust the mounting position or trim as needed during installation
Professional installation recommended
To pair it with the SFS radiator hose kit and low-temperature thermostat, contact us

Frequently Asked Questions

How much cooler does the SPL Aluminum Radiator actually run? In J’s Racing’s own Suzuka Circuit testing across six consecutive full-throttle laps, the SPL Aluminum Radiator cut maximum water temperature by 25C and average temperature by 15C compared with the stock FK8 radiator. That is the difference between finishing a session and limping to the pits.
What makes the core so much more effective? Three things stack: tube width doubles from 5mm to 10mm, fin pitch widens from 1.5mm to 3mm for better airflow through the core, and the coolant makes three passes through the 48mm core instead of one, extracting far more heat per lap of the system.
Do I keep the factory fan and air conditioning? Yes. The radiator is designed around the OEM cooling fan and retains full air conditioning function, so the car stays completely streetable.
Is it a direct fit? Nearly. Because J’s Racing sized the core at the maximum possible capacity, minor interference is possible on some cars; the factory allows adjusting the mounting position or light trimming during installation, which is why professional fitting is recommended.
What comes in the box? The radiator ships with its OUT-side piping, a joint hose with bands, and a heat shield plate, so the supporting pieces the installation needs are included.

About J’s Racing

J’s Racing is one of Japan’s most respected Honda tuning houses, developing parts the hard way: on real race tracks in Super Taikyu endurance competition and time attack rather than on paper. From aero and titanium exhausts to suspension and driveline components, every product carries lessons learned from decades of racing Hondas at the limit. Bulletproof Automotive imports J’s Racing parts directly from Japan, bringing authentic, race-proven JDM engineering to enthusiasts in the US and worldwide.
