Is the RS Damper Kit for DC5 cars the right kit for a Type R?

No. The RS Damper Kit for DC5 cars is the version the manufacturer builds for the Integra iS and Type S. Type R owners need the Type R Black Series kit, which shares the spring rates and features but is specified for that model. If you are unsure which your car is, ask Bulletproof Automotive.

What spring rates does it use?

The front springs are 12 kg/mm and the rears 14 kg/mm, both 150mm long with a 65mm inner diameter. The manufacturer chose rates above those of a typical street coilover so the car can run lower, with a balance set up for cornering.

How is ride height adjusted?

The kit uses a full-length adjustable design, so ride height is set by threading the damper body rather than compressing the spring, and the shortened case keeps bump travel intact. The manufacturer recommends a drop of roughly 25 to 45mm from stock. A ride height wrench is included.

Can I adjust front camber?

Yes. The RS Damper Kit for DC5 cars includes pillow-ball front upper mounts with camber adjustment of up to about 3.5 degrees, useful for tuning front grip on a lowered front-drive car. Have the car aligned once ride height and camber are set.

What maintenance does it need?

Check the bolts and nuts at regular intervals and before every circuit session, as the manufacturer instructs. When the dampers wear, they can be overhauled, and replacement cartridges are available for the front and rear. Turn the damping dial gently, since too much force can damage the shaft.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

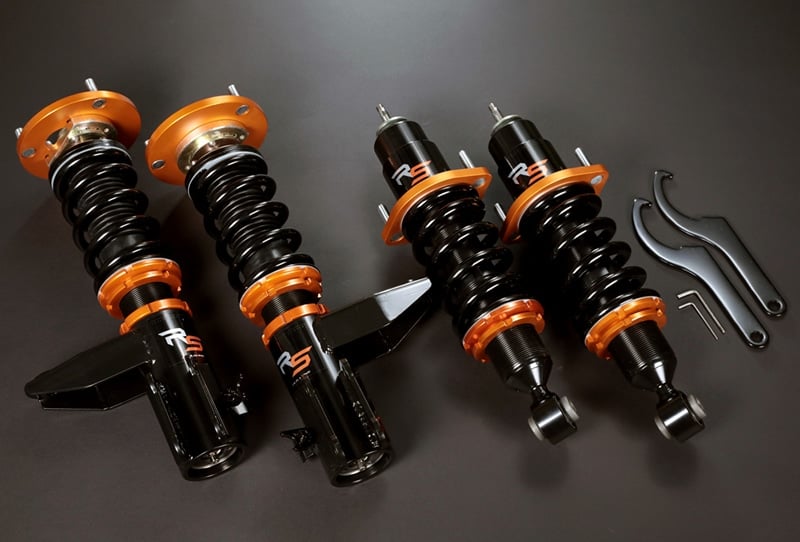

J’s Racing RS Damper Kit for DC5 Honda Integra iS / Type S and Acura RSX

J’s Racing’s RS Damper Kit for DC5 Integra iS and Type S cars brings the Black Series Damper RS, the Osaka company’s first fully original coilover, to the non-Type R models. Two decades of racing went into a kit that leans toward sports driving: 12 kg/mm front and 14 kg/mm rear springs allow a lower stance with a cornering-biased balance, and 15 damping steps cover changing tracks and weather. Owners who want a soft ride above all should look at a comfort-oriented kit instead.

Design and Performance

Ride height is set with a full-length adjustable body whose shortened case and stroke preserve bump travel as the car comes down, and a relocated bracket keeps the factory tie rods at a sound angle within the recommended drop.

Features

Black Series monotube dampers with 15 damping positions
Shortened full-length adjustable bodies to preserve bump travel
Camber-adjustable pillow-ball front uppers included
Works with the factory tie rods inside the recommended drop
Overhaulable, with front and rear replacement cartridges offered

Specifications

Front spring rate: 12 kg/mm
Rear spring rate: 14 kg/mm
Spring ID: 65mm
Spring free length: 150mm, front and rear
Recommended drop: approximately 25 to 45mm from stock
Front camber range: up to approximately 3.5 degrees
Damping positions: 15

Applications

Acura RSX Type S: DC5 | 2002-2006 | 2.0L K20A2
Honda Integra iS and Type S: DC5

Notes

J’s Racing Japan builds this kit only for the DC5 Integra iS and Type S; Type R owners need the Black Series Coilovers for the DC5 Integra Type R
J’s Racing USA prices this kit on its Acura RSX list as the Type S version
If high-caster lower arms are installed, swap the front upper mounts between sides
Use the supplied damping wrench with care; overtightening the dial can break the damper shaft
Re-torque the bolts and nuts at regular intervals and before every track day
Bulletproof Automotive orders it from Japan through J’s Racing USA and confirms the lead time after purchase

Frequently Asked Questions

Is the RS Damper Kit for DC5 cars the right kit for a Type R? No. The RS Damper Kit for DC5 cars is the version the manufacturer builds for the Integra iS and Type S. Type R owners need the Type R Black Series kit, which shares the spring rates and features but is specified for that model. If you are unsure which your car is, ask Bulletproof Automotive.
What spring rates does it use? The front springs are 12 kg/mm and the rears 14 kg/mm, both 150mm long with a 65mm inner diameter. The manufacturer chose rates above those of a typical street coilover so the car can run lower, with a balance set up for cornering.
How is ride height adjusted? The kit uses a full-length adjustable design, so ride height is set by threading the damper body rather than compressing the spring, and the shortened case keeps bump travel intact. The manufacturer recommends a drop of roughly 25 to 45mm from stock. A ride height wrench is included.
Can I adjust front camber? Yes. The RS Damper Kit for DC5 cars includes pillow-ball front upper mounts with camber adjustment of up to about 3.5 degrees, useful for tuning front grip on a lowered front-drive car. Have the car aligned once ride height and camber are set.
What maintenance does it need? Check the bolts and nuts at regular intervals and before every circuit session, as the manufacturer instructs. When the dampers wear, they can be overhauled, and replacement cartridges are available for the front and rear. Turn the damping dial gently, since too much force can damage the shaft.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
