How much camber does the Front Camber Joint for FK8 cars add?

The Front Camber Joint for FK8 cars adjusts in 3 stages, adding approximately 2 degrees of negative camber over stock with the factory dampers. Combined with J's Racing's damper setup, the range extends to roughly 5 degrees for dedicated circuit alignments.

Why does the FK8 need more front camber?

The FK8 generates cornering loads that roll the front tire onto its outer shoulder, giving up grip mid-corner. Added negative camber keeps the contact patch flat under roll, raising front grip and evening tire wear in hard use.

What is it made from?

The joint end body is S45C steel and the ball stud is SCM435 chromoly, a materials pairing chosen for knuckle loads at circuit pace.

Is installation straightforward?

It is a job for a professional shop: the backing plate must be removed or cut during installation, and a full alignment with ride-height check follows. Once fitted, stage changes are a routine alignment-rack adjustment.

Is it safe for street driving?

Yes, with the usual care owed to serious suspension hardware. J's Racing recommends regular torque checks on the bolts and joints, particularly before circuit days.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

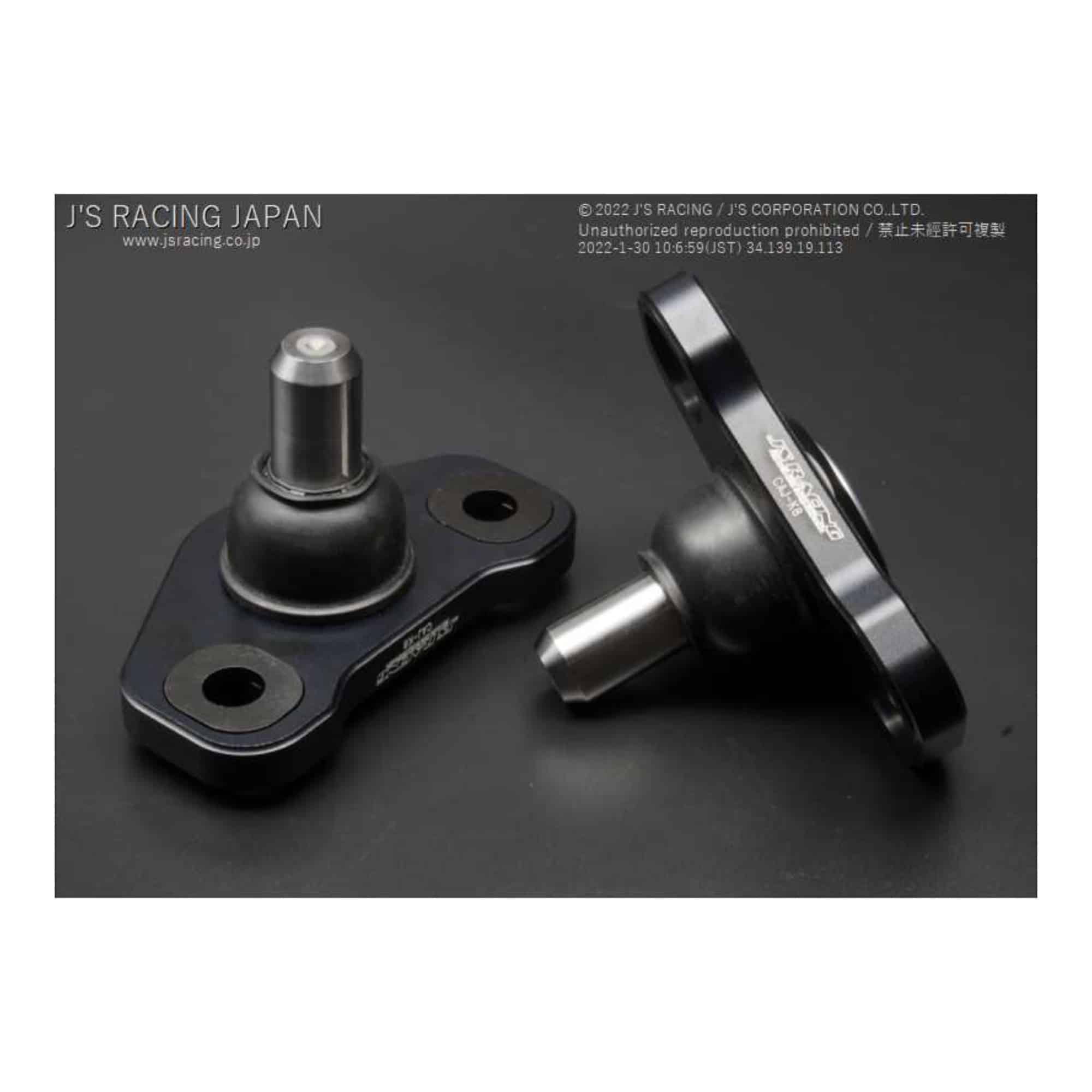

J’s Racing Front Camber Joint for FK8 Honda Civic Type R [CAJ-K8]

The J’s Racing Front Camber Joint for FK8 Honda Civic Type R alignment solves the platform’s front camber limitation at its source. An eccentric-structure ball joint at the bottom of the front knuckle adjusts in 3 stages, adding approximately 2 degrees of negative camber over stock with the factory dampers, and up to roughly 5 degrees in combination with J’s Racing’s damper setup, keeping the front tires’ contact patches flat when the chassis loads up in a corner.

Construction

The joint end body is S45C steel and the ball stud is SCM435 chromoly, materials chosen for the loads a circuit-driven FK8 feeds through the front knuckle. Because the adjustment happens at the knuckle’s lower ball joint rather than a strut slot, the added camber comes without compromising the geometry above it.

Features

Approximately 2 degrees added negative camber with stock dampers (up to roughly 5 degrees with J’s Racing dampers)
Camber adjustable in 3 stages
Eccentric ball-joint structure at the bottom of the front knuckle
S45C joint body with SCM435 chromoly ball stud

Applications

Honda Civic Type R: FK8 | 2017-2021 | 2.0L K20C1 Turbo

Notes

Backing plate removal or cutting is necessary during installation; professional installation recommended
A wheel alignment and ride-height check are required after installation
Re-check bolt and nut torque regularly, especially before circuit use
For camber setup recommendations by tire and use, contact us

Frequently Asked Questions

How much camber does the Front Camber Joint for FK8 cars add? The Front Camber Joint for FK8 cars adjusts in 3 stages, adding approximately 2 degrees of negative camber over stock with the factory dampers. Combined with J’s Racing’s damper setup, the range extends to roughly 5 degrees for dedicated circuit alignments.
Why does the FK8 need more front camber? The FK8 generates cornering loads that roll the front tire onto its outer shoulder, giving up grip mid-corner. Added negative camber keeps the contact patch flat under roll, raising front grip and evening tire wear in hard use.
What is it made from? The joint end body is S45C steel and the ball stud is SCM435 chromoly, a materials pairing chosen for knuckle loads at circuit pace.
Is installation straightforward? It is a job for a professional shop: the backing plate must be removed or cut during installation, and a full alignment with ride-height check follows. Once fitted, stage changes are a routine alignment-rack adjustment.
Is it safe for street driving? Yes, with the usual care owed to serious suspension hardware. J’s Racing recommends regular torque checks on the bolts and joints, particularly before circuit days.

About J’s Racing

J’s Racing is one of Japan’s most respected Honda tuning houses, developing parts the hard way: on real race tracks in Super Taikyu endurance competition and time attack rather than on paper. From aero and titanium exhausts to suspension and driveline components, every product carries lessons learned from decades of racing Hondas at the limit. Bulletproof Automotive imports J’s Racing parts directly from Japan, bringing authentic, race-proven JDM engineering to enthusiasts in the US and worldwide.
