Which cars does the Brake Line System for FD2 fit?

The Brake Line System for FD2 is designed for the JDM Civic Type R sedan built from 2007 to 2010. It may not fit the US-market FG Civic, so confirm your model with Bulletproof Automotive before ordering. If the car runs aftermarket calipers, mention them when you ask so the line ends can be checked.

Who should install the brake lines?

The manufacturer classes the lines as a critical safety part and asks that they are fitted by a certified shop capable of brake system work. The system must be bled correctly afterward, and the manufacturer accepts no claims caused by poor assembly, installation or bleeding, so a professional install is the sensible choice.

How do the lines change pedal feel?

Factory rubber hoses expand when hot fluid pressurizes them, so the pedal sinks and goes soft during hard braking. The PTFE hose and stainless mesh barely expand even at high temperature and pressure, which the manufacturer says gives a crisp pedal, linear braking and better control when ABS or brake assist steps in.

Are the fittings stainless steel?

Yes. The fittings are SUS stainless steel, chosen to resist rust and deterioration over time. The hose itself is PTFE inside a stainless steel mesh with a clear coat on top. Every assembled hose is pressure tested for leaks before it leaves the manufacturer.

Is the system suitable for street driving?

Yes. The manufacturer designed the lines for use anywhere from the street to the circuit. They make the largest difference under repeated hard braking, where rubber hoses heat up and soften, but the manufacturer also says they respond crisply to delicate pedal inputs in normal driving.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

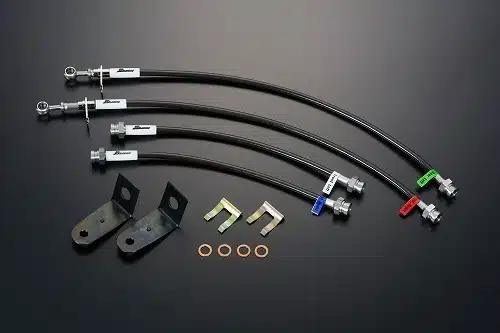

J’s Racing Brake Line System for FD2 Honda Civic Type R

J’s Racing’s Brake Line System for FD2 Civic Type R sedans replaces the factory rubber hoses with PTFE hose sheathed in stainless steel mesh and fitted with stainless ends, so the pedal stays firm when the fluid gets hot. Rubber hoses swell as brake fluid heats up under hard braking, and the pedal travels further and turns soft; the PTFE hose, a type developed for aircraft use, barely expands even at high temperature and pressure. The Osaka Honda specialist pressure tests every hose before it ships. J’s Racing rates the lines for everything from the street to the circuit, and they matter most on an FD2 that brakes hard and often.

Construction

The hose core is PTFE, chosen for its pressure and heat resistance, wrapped in stainless mesh and finished with a clear coat. The fittings are SUS stainless, which resists rust and holds up over the years. Each finished hose is pressurized and checked for leaks before it is packed, and J’s Racing says the design has proven its durability in motorsport.

Features

PTFE hose with stainless mesh resists expansion under heat and pressure
SUS stainless steel fittings for rust resistance
Clear-coated outer layer
Every hose leak tested under pressure before shipping
Crisp pedal response and linear braking force compared with rubber hoses
Better control when ABS and brake assist operate, according to J’s Racing

Applications

Honda Civic Type R: FD2 | 2007-2010 | 2.0L K20A

Notes

J’s Racing designs this part for the JDM FD2 Civic Type R sedan; it may not fit the US-market FG Civic
This is a safety-critical brake part; have it installed by a qualified shop equipped for brake system work
The brakes must be bled correctly after installation, and brake fluid is not included
Read the installation and handling instructions packed with the lines before starting work
Brake lines ship from Japan through J’s Racing USA, and Bulletproof Automotive confirms stock and lead time as soon as you order

Frequently Asked Questions

Which cars does the Brake Line System for FD2 fit? The Brake Line System for FD2 is designed for the JDM Civic Type R sedan built from 2007 to 2010. It may not fit the US-market FG Civic, so confirm your model with Bulletproof Automotive before ordering. If the car runs aftermarket calipers, mention them when you ask so the line ends can be checked.
Who should install the brake lines? The manufacturer classes the lines as a critical safety part and asks that they are fitted by a certified shop capable of brake system work. The system must be bled correctly afterward, and the manufacturer accepts no claims caused by poor assembly, installation or bleeding, so a professional install is the sensible choice.
How do the lines change pedal feel? Factory rubber hoses expand when hot fluid pressurizes them, so the pedal sinks and goes soft during hard braking. The PTFE hose and stainless mesh barely expand even at high temperature and pressure, which the manufacturer says gives a crisp pedal, linear braking and better control when ABS or brake assist steps in.
Are the fittings stainless steel? Yes. The fittings are SUS stainless steel, chosen to resist rust and deterioration over time. The hose itself is PTFE inside a stainless steel mesh with a clear coat on top. Every assembled hose is pressure tested for leaks before it leaves the manufacturer.
Is the system suitable for street driving? Yes. The manufacturer designed the lines for use anywhere from the street to the circuit. They make the largest difference under repeated hard braking, where rubber hoses heat up and soften, but the manufacturer also says they respond crisply to delicate pedal inputs in normal driving.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
