Is the 1.5-Way LSD for EG6 made for US-market Civics?

No. The 1.5-Way LSD for EG6 cars is engineered for the Japanese-market EG6 Civic SiR with the B16A engine and its transmission, and it may not fit a US-market EG Civic. If your car has a swapped drivetrain, confirm the transmission details with Bulletproof Automotive before ordering.

What oil does the differential need?

The manufacturer recommends a 100 percent synthetic differential oil, with 75W-140 as the base viscosity, adjusted to how the car is used. Performance can change dramatically with the wrong oil, and an unsuitable oil can lead to damage, so check the recommendation carefully before filling the gearbox.

How noisy is it in parking lots and around town?

Quieter than most mechanical units. The manufacturer designed it to reduce the chattering noise that is a common drawback of mechanical limited slip differentials on the street, and to avoid the vibration and unsettled behavior large plates can cause in tight turns. It is meant to be easy to live with on the road.

Why a 1.5-way instead of a 2-way?

A 1.5-way locks fully under acceleration but only mildly when you lift, which the manufacturer chose as ideal for front-drive cars. The car stays stable on corner entry while still getting strong traction on exit, and lockup builds with the throttle rather than depending on a high initial torque setting.

Can I install it myself?

Professional installation is recommended. The work requires the factory service manual for the car and careful attention to every step. After fitting, the differential needs a full break-in period, and any unusual vibration or noise while driving means stopping in a safe place for inspection straight away.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

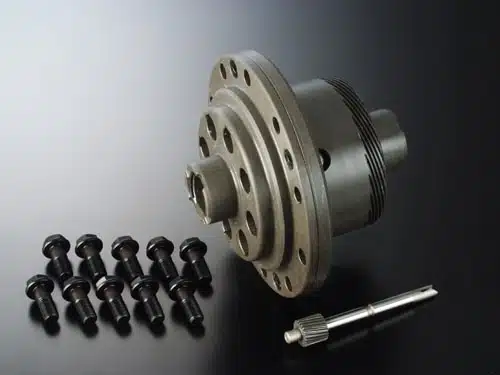

J’s Racing 1.5-Way LSD for EG6 Honda Civic

J’s Racing’s 1.5-Way LSD for EG6 Civic SiR builds is the Osaka tuner’s mechanical differential for front-drive Hondas, sold in Japan as the 1.5way High Traction L.S.D. A 1.5-way unit locks fully under power and works mildly off throttle, which J’s Racing considers the right balance for an FF car. Rather than chasing a high initial torque, the design relies on the inherent cam locking action, so lockup follows the throttle and the car stays settled. It is the part that turns a B16A Civic into a car that can drive out of slow corners; for a stock commuter it is more than needed.

Construction

The clutch plates are J’s newly developed RS plates, made by a special process that improves torque transfer while staying quiet. The differential case is machined from carefully selected forged material with quality held to 1/100mm, and the pinion and side gears use high-strength gear steel with special heat treatment. J’s Racing’s own team runs the off-the-shelf unit in Super Taikyu, where it has taken a Class 4 win.

Features

1.5-way locking: full effect on throttle, mild effect off throttle
Cam angles of 45 and 25 degrees with a 6.5 kg cold initial setting
Low chatter on the street compared with typical mechanical LSDs
Forged differential case built to handle high-output engines
Grips even when riding over curbs, letting the throttle control the car’s attitude

Applications

Honda Civic SiR: EG6 | 1991-1995 | 1.6L B16A

Notes

J’s Racing designs this part for the JDM EG6 Civic with the B16A engine; it may not fit the US-market EG Civic
Use a 100 percent synthetic differential oil; J’s Racing gives 75W-140 as the base viscosity, which can change with how the car is used
Professional installation with the factory service manual is recommended, followed by a thorough break-in
Stop and inspect the car immediately if unusual vibration or noise appears while driving
Assembled in Japan and supplied through J’s Racing USA; once your order is placed, Bulletproof Automotive confirms availability and quotes the lead time

Frequently Asked Questions

Is the 1.5-Way LSD for EG6 made for US-market Civics? No. The 1.5-Way LSD for EG6 cars is engineered for the Japanese-market EG6 Civic SiR with the B16A engine and its transmission, and it may not fit a US-market EG Civic. If your car has a swapped drivetrain, confirm the transmission details with Bulletproof Automotive before ordering.
What oil does the differential need? The manufacturer recommends a 100 percent synthetic differential oil, with 75W-140 as the base viscosity, adjusted to how the car is used. Performance can change dramatically with the wrong oil, and an unsuitable oil can lead to damage, so check the recommendation carefully before filling the gearbox.
How noisy is it in parking lots and around town? Quieter than most mechanical units. The manufacturer designed it to reduce the chattering noise that is a common drawback of mechanical limited slip differentials on the street, and to avoid the vibration and unsettled behavior large plates can cause in tight turns. It is meant to be easy to live with on the road.
Why a 1.5-way instead of a 2-way? A 1.5-way locks fully under acceleration but only mildly when you lift, which the manufacturer chose as ideal for front-drive cars. The car stays stable on corner entry while still getting strong traction on exit, and lockup builds with the throttle rather than depending on a high initial torque setting.
Can I install it myself? Professional installation is recommended. The work requires the factory service manual for the car and careful attention to every step. After fitting, the differential needs a full break-in period, and any unusual vibration or noise while driving means stopping in a safe place for inspection straight away.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
