Which cars is the 1.5-Way LSD for DC5 built for?

The manufacturer lists the 1.5-Way LSD for DC5 Integra Type R models of every year, and its US distributor files it under the Acura RSX. The RSX Type S gearbox is not named in the Japanese catalogue, so confirm your transmission with Bulletproof Automotive before ordering.

What does 1.5-way mean?

It describes how the differential behaves in each direction. On throttle it locks strongly to put drive down through both front wheels. Off throttle it locks more lightly, so the car still turns in willingly, and a moderate locking effect remains under braking to help keep the car stable.

Does the differential need a break-in period?

Yes. The manufacturer asks for a thorough break-in drive once the differential is installed. No distance or procedure is published for this unit, so follow the break-in your installer recommends and avoid hard launches and track sessions until it is done.

Can I install it myself?

The manufacturer recommends installation at a professional shop. Fitting a differential to a front-drive car means removing and opening the transmission, so it suits someone with the tools, the factory service information and real experience with gearbox internals. Bulletproof Automotive can suggest a shop.

Will it make the car harder to drive on the street?

The manufacturer designed it to avoid that. Its disc springs build lock with throttle input rather than relying on high initial torque, which the Osaka tuner says gives stability without difficult manners. Expect stronger drive out of tight corners and a more planted feel under power.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

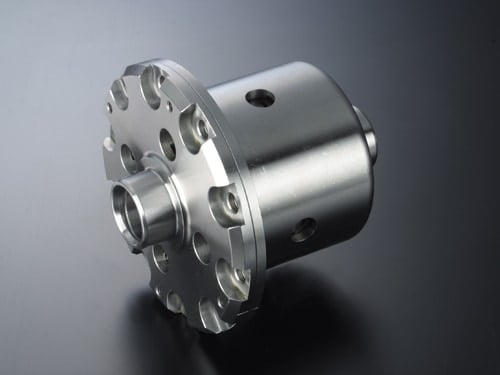

J’s Racing 1.5-Way LSD for DC5 Honda Integra Type R and Acura RSX

J’s Racing’s 1.5-Way LSD for DC5 owners is the High Traction mechanical differential the Osaka Honda specialist builds for the K20A-powered Integra Type R, set with a 50-25 cam angle and a cold initial figure of 6.5 kg. It locks firmly on throttle and more gently when you lift, keeping some lock under braking to settle the car on corner entry. Disc springs, not heavy preload, shape the lock. On a front-drive car that spins its inside wheel out of slow corners this is a core upgrade; a car that never sees hard driving will not need it.

Design and Performance

A limited slip differential reads the speed and torque difference between the front wheels and restricts the open differential, sending drive that would escape through the unloaded wheel to the road. J’s Racing tuned the disc-spring pack so locking force builds with throttle input, aiming for stability without awkward manners.

Features

Mechanical 1.5-way action: strong lock on power, lighter lock off power
50-25 cam angle specified by J’s Racing
Cold initial setting of 6.5 kg as quoted by the manufacturer
Disc-spring construction for smooth, consistent locking
Moderate lock retained under braking to help control the car’s attitude

Applications

Acura RSX Type S: DC5 | 2002-2006 | 2.0L K20A2
Honda Integra Type R: DC5 | 2001-2006 | 2.0L K20A

Notes

J’s Racing Japan specifies this differential for every DC5 Integra Type R, while J’s Racing USA files it under the Acura RSX, so confirm your transmission before ordering
Installation by a professional shop is recommended
Give the car a thorough break-in drive after installation before using it hard
The matching Final Gear Set for the DC5 Integra Type R and RSX is sold separately
Sourced from J’s Racing in Japan through J’s Racing USA; Bulletproof Automotive confirms stock and lead time once your order is in

Frequently Asked Questions

Which cars is the 1.5-Way LSD for DC5 built for? The manufacturer lists the 1.5-Way LSD for DC5 Integra Type R models of every year, and its US distributor files it under the Acura RSX. The RSX Type S gearbox is not named in the Japanese catalogue, so confirm your transmission with Bulletproof Automotive before ordering.
What does 1.5-way mean? It describes how the differential behaves in each direction. On throttle it locks strongly to put drive down through both front wheels. Off throttle it locks more lightly, so the car still turns in willingly, and a moderate locking effect remains under braking to help keep the car stable.
Does the differential need a break-in period? Yes. The manufacturer asks for a thorough break-in drive once the differential is installed. No distance or procedure is published for this unit, so follow the break-in your installer recommends and avoid hard launches and track sessions until it is done.
Can I install it myself? The manufacturer recommends installation at a professional shop. Fitting a differential to a front-drive car means removing and opening the transmission, so it suits someone with the tools, the factory service information and real experience with gearbox internals. Bulletproof Automotive can suggest a shop.
Will it make the car harder to drive on the street? The manufacturer designed it to avoid that. Its disc springs build lock with throttle input rather than relying on high initial torque, which the Osaka tuner says gives stability without difficult manners. Expect stronger drive out of tight corners and a more planted feel under power.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
