Does the Invidia R400 Cat-Back Exhaust keep the factory valve?

Yes. The factory exhaust valve is retained and the drive modes work as normal, so the system is milder in Comfort with the valve closed and louder in Sport and +R. Invidia does not describe a separate aftermarket valve in the R400, so the valve behaviour is the one Honda programmed.

Does it drone on the highway?

Owners report some drone at a steady cruise, particularly in Sport and +R, and one owner described it as typical of the R400 line. The double resonated midpipe is there to limit how much reaches the cabin, but buyers who spend long stretches on the highway should expect a deeper tone with a noticeable hum at constant speed.

Does it keep the three tip centre exit?

Yes. The R400 Cat-Back Exhaust uses three 101mm tips in a centre exit layout that keeps the look of the factory Type R. The tips are not welded in place, so their position can be adjusted during installation to sit evenly in the rear bumper opening.

Is it a bolt on, and what comes in the box?

Yes. It installs on the factory mounting points with no cutting or welding. The kit includes the cat back system, three 101mm tips and the gaskets, nuts, bolts and clamps needed to fit it. Check the parts against the packing list when it arrives, before the factory system comes off.

How does the R400 compare with the Invidia Q300?

The R400 is the deeper, louder and more pronounced of the two under throttle, while the Q300 is quieter and more refined. Both use 76mm piping and a triple tip layout on the FL5. Invidia publishes no decibel figures for either, so sound comparisons come from owners and dealers rather than measurement.

What is the difference between the black and burnt titanium versions?

Only the tip finish. HS22CTRFGM3SBL has black tips and HS22CTRFGM3STL has a burnt titanium finish. Both are the same R400 system with 76mm stainless piping and 101mm tips, so choose on appearance alone: black suits darker paint and blacked out trim, and the burnt finish suits a brighter car.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

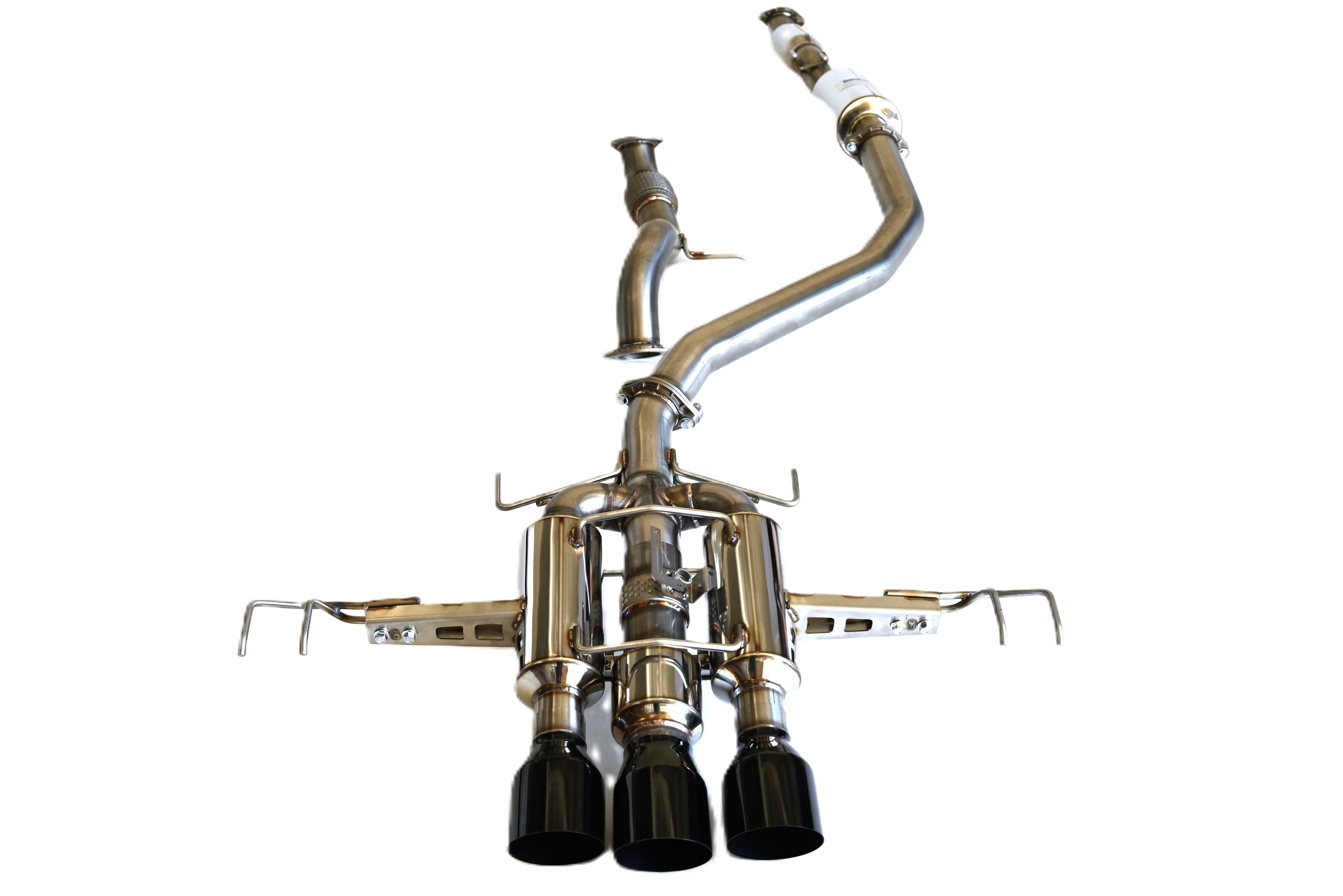

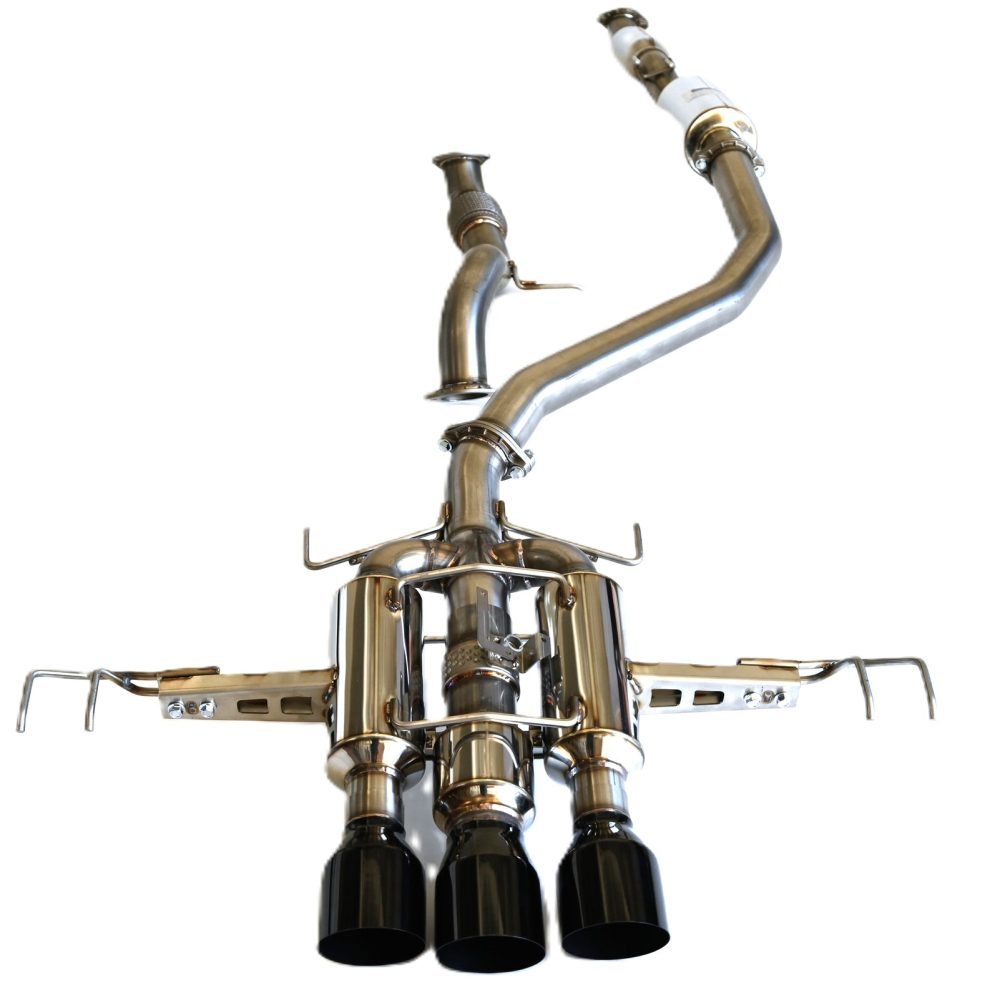

Invidia R400 Cat-Back Exhaust for FL5 Honda Civic Type R with Black Tips

Invidia’s R400 Cat-Back Exhaust for FL5 Honda Civic Type R with Black Tips keeps the detail the FL5 gets right at the back of the car, the three-outlet centre exit, and gives it a deeper voice through 76mm stainless piping and three 101mm tips finished in black. R400 sits in the middle of Invidia’s range, louder and more pronounced than the Q300 and a step short of the N1, and on the FL5 it is built as a resonated straight-through design so the extra volume arrives without the raw edge of an open pipe. The factory exhaust valve stays in the system, so the drive modes still decide when the car is quiet. Owners do report some drone at a steady cruise in the sportier modes; for a clearly stronger note that still looks factory from behind, R400 is the one to choose.

Design and Performance

The system follows the factory mounting points, so it bolts on with no cutting or welding, and the tips are not welded in place, which lets their position be adjusted to sit evenly in the bumper. The midpipe is double resonated to limit what reaches the cabin, and the valve keeps working with the drive modes: quieter in Comfort with the valve closed, louder in Sport and +R. The same R400 system is also made with burnt titanium finish tips.

Features

Resonated straight-through R400 muffler design
Triple centre-exit layout of the factory car retained
Tips finished in black
Tips are not welded in place, so their position can be adjusted
Direct bolt-on to the factory mounting points, no cutting or welding
The R400 Cat-Back Exhaust keeps the factory exhaust valve and its drive-mode control

Specifications

Pipe diameter: 76mm (3.0in)
Tip diameter: 101mm (4.0in)
Number of tips: 3, centre exit
Material: 304 stainless steel
Wall thickness: 1.5mm

What’s Included

R400 cat-back exhaust system with front pipe section
Three 101mm black tips
Gaskets, nuts, bolts and clamps

Applications

Honda Civic Type R: FL5 | 2023-present | K20C1 2.0L turbo

Notes

The factory exhaust valve is retained and continues to work with the drive modes
Owners report some drone at steady cruising speeds in Sport and +R
This version differs from the Invidia R400 Cat-Back Exhaust for FL5 Honda Civic Type R with Burnt Titanium Finish Tips HS22CTRFGM3STL only in tip finish
Fits the FL5 Civic Type R only; Invidia makes a separate system for the Acura Integra Type S

Frequently Asked Questions

Does the Invidia R400 Cat-Back Exhaust keep the factory valve? Yes. The factory exhaust valve is retained and the drive modes work as normal, so the system is milder in Comfort with the valve closed and louder in Sport and +R. Invidia does not describe a separate aftermarket valve in the R400, so the valve behaviour is the one Honda programmed.
Does it drone on the highway? Owners report some drone at a steady cruise, particularly in Sport and +R, and one owner described it as typical of the R400 line. The double resonated midpipe is there to limit how much reaches the cabin, but buyers who spend long stretches on the highway should expect a deeper tone with a noticeable hum at constant speed.
Does it keep the three tip centre exit? Yes. The R400 Cat-Back Exhaust uses three 101mm tips in a centre exit layout that keeps the look of the factory Type R. The tips are not welded in place, so their position can be adjusted during installation to sit evenly in the rear bumper opening.
Is it a bolt on, and what comes in the box? Yes. It installs on the factory mounting points with no cutting or welding. The kit includes the cat back system, three 101mm tips and the gaskets, nuts, bolts and clamps needed to fit it. Check the parts against the packing list when it arrives, before the factory system comes off.
How does the R400 compare with the Invidia Q300? The R400 is the deeper, louder and more pronounced of the two under throttle, while the Q300 is quieter and more refined. Both use 76mm piping and a triple tip layout on the FL5. Invidia publishes no decibel figures for either, so sound comparisons come from owners and dealers rather than measurement.
What is the difference between the black and burnt titanium versions? Only the tip finish. HS22CTRFGM3SBL has black tips and HS22CTRFGM3STL has a burnt titanium finish. Both are the same R400 system with 76mm stainless piping and 101mm tips, so choose on appearance alone: black suits darker paint and blacked out trim, and the burnt finish suits a brighter car.

About Invidia

Invidia is the performance exhaust brand of Jetworld Inc., based in South El Monte, California. Its ranges are graded by character, from the quieter Q300 through the R400 to the louder N1, and systems are built in grade 304 stainless steel with cast flanges, with full titanium systems offered as a separate line.
