What is the 11 in this part number?

In this position it describes the lower end, not the top. It stands for the two 8mm lower rings Injector Dynamics uses for the WRX STi side feed conversion rail. The top is a grey 14mm adapter on a 48mm body, so the set only suits cars running that rail.

Does this set fit an STi with the factory rail?

No. This configuration is built for the side feed conversion rail, and its lower rings suit that rail. An STi on its original rail needs the configuration Injector Dynamics lists for its model year, such as the 11mm top and WRX-16B bottom adapter set for 2007 to 2020 cars.

Can the ID1750-XDS Fuel Injector Set run on E85 with a side feed rail?

Yes. The ID1750-XDS Fuel Injector Set is rated for ethanol, methanol, MTBE, nitromethane and all known hydrocarbon fuels. Each injector flows 1728cc per minute at 3.0 bar, and E85 needs about a third more fuel volume than gasoline, so the pump must be sized with the injectors.

Is a new calibration needed?

Yes. The ECU must be told the flow rate, offset and short pulse behavior of the 1750, and Injector Dynamics publishes that characterization data for your tuner. A rail conversion and new injectors together change fueling enough that the old calibration cannot be used.

How does the warranty work?

The injectors carry a one year Injector Dynamics warranty from purchase against manufacturer defects, provided they run the correct fuel with proper filtration. The four are flow matched, so a single replacement comes through Injector Dynamics, which also provides cleaning, inspection and flow testing in Arizona.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

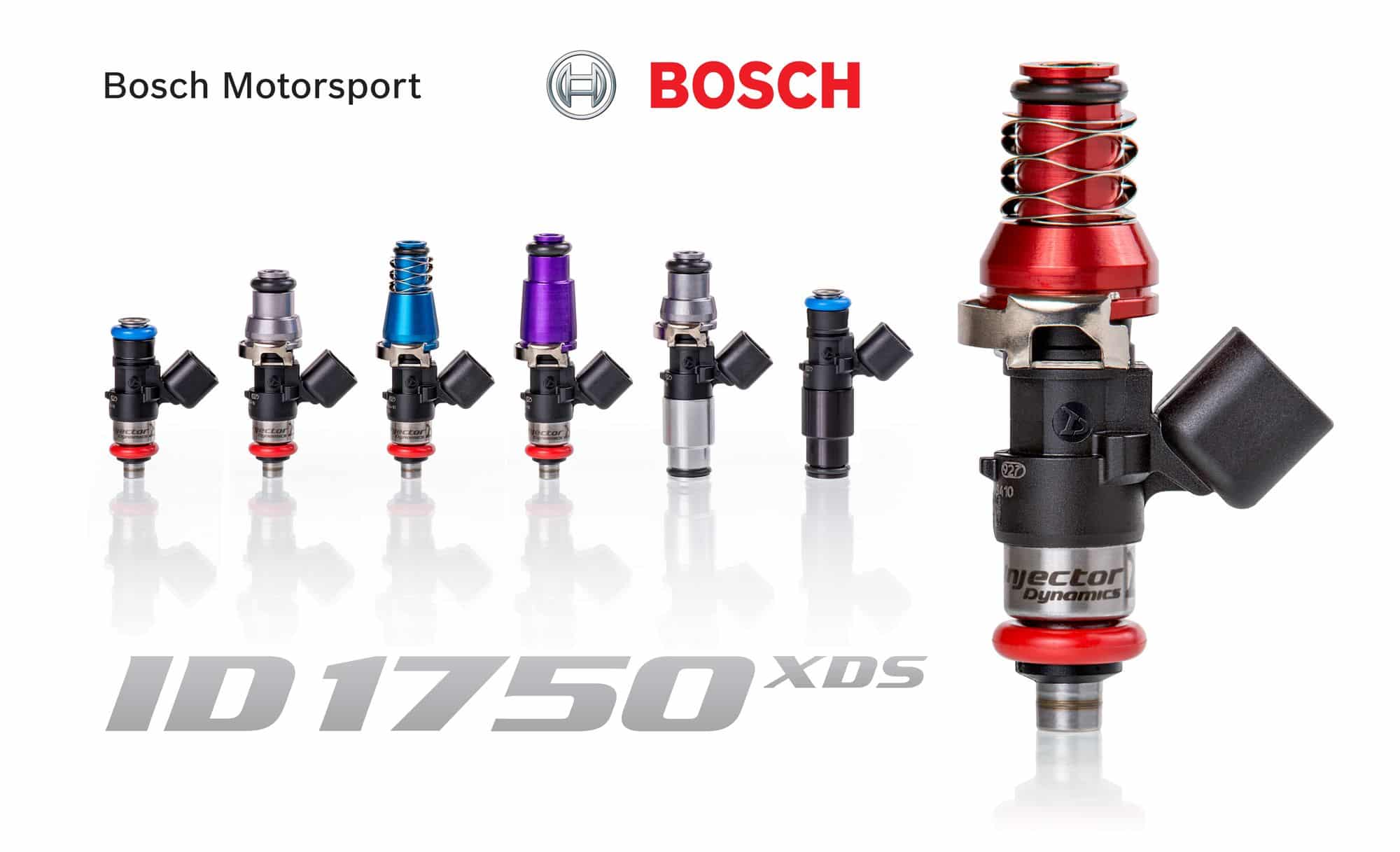

Injector Dynamics ID1750-XDS Fuel Injector Set for Subaru WRX STi Side-Feed Conversion Rail

Injector Dynamics’ ID1750-XDS Fuel Injector Set for the Subaru WRX STi side-feed conversion rail combines four 1728cc/min injectors on 48mm bodies with grey 14mm top adapters and a pair of 8mm lower rings on each injector to suit that rail. It belongs on an STi already running, or about to run, a side-feed conversion rail for a big-turbo or E85 build. Without that rail the set does not apply, and a stock STi would not use the flow anyway.

Configuration

The 11 in the lower position of this part number stands for the two 8mm lower rings used with the STi side-feed conversion rail, not an 11mm top. The body is 48mm long and the top is a grey 14mm adapter.

Features

ID1750-XDS Fuel Injector Set with lower rings for the STi side-feed conversion rail
48mm bodies with grey 14mm top adapters
Rated for ethanol, methanol, MTBE, nitromethane and gasoline
Published offset of 1169 microseconds at 43.5 psi and 12 volts

Specifications

Nominal flow: 1728cc/min at 3.0 bar (43.5 psi), E10 certification fuel at 49C (120F)
Maximum differential fuel pressure: 7.0 bar (101.5 psi)
Offset at 43.5 psi: 1169 microseconds at 12 volts
Electrical connector: USCAR
Body length: 48mm
Top: 14mm adapter (grey)
Lower: Two 8mm rings for the side-feed conversion rail

What’s Included

ID1750-XDS fuel injectors with 14mm top adapters and 8mm lower rings (x4)

Applications

Subaru WRX STi: side-feed conversion rail

Notes

Each injector has a USCAR plug and no adapters come with the set; Denso wiring takes the Injector Dynamics USCAR to Denso PnP Adapter
For cars fitted with the STi side-feed conversion rail; the lower rings do not suit the factory rail
An ECU recalibration with the Injector Dynamics characterization data is required
Also offered as the ID1300-XDS Fuel Injector Set for the STi SFC rail and the ID2600-XDS Fuel Injector Set for the STi SFC rail

Frequently Asked Questions

What is the 11 in this part number? In this position it describes the lower end, not the top. It stands for the two 8mm lower rings Injector Dynamics uses for the WRX STi side feed conversion rail. The top is a grey 14mm adapter on a 48mm body, so the set only suits cars running that rail.
Does this set fit an STi with the factory rail? No. This configuration is built for the side feed conversion rail, and its lower rings suit that rail. An STi on its original rail needs the configuration Injector Dynamics lists for its model year, such as the 11mm top and WRX-16B bottom adapter set for 2007 to 2020 cars.
Can the ID1750-XDS Fuel Injector Set run on E85 with a side feed rail? Yes. The ID1750-XDS Fuel Injector Set is rated for ethanol, methanol, MTBE, nitromethane and all known hydrocarbon fuels. Each injector flows 1728cc per minute at 3.0 bar, and E85 needs about a third more fuel volume than gasoline, so the pump must be sized with the injectors.
Is a new calibration needed? Yes. The ECU must be told the flow rate, offset and short pulse behavior of the 1750, and Injector Dynamics publishes that characterization data for your tuner. A rail conversion and new injectors together change fueling enough that the old calibration cannot be used.
How does the warranty work? The injectors carry a one year Injector Dynamics warranty from purchase against manufacturer defects, provided they run the correct fuel with proper filtration. The four are flow matched, so a single replacement comes through Injector Dynamics, which also provides cleaning, inspection and flow testing in Arizona.

About Injector Dynamics

Injector Dynamics is an Arizona injector specialist and an authorized technical partner of Bosch Motorsport, developing its injectors to its own specification rather than modifying production parts. It introduced slope and offset matching in 2007, and its Dual Slope Matching, developed by engineer Aaron Looft, extends matching into the short pulse widths that boosted and ethanol engines rely on. Its flow benches are built in house and calibrated against a NIST-traceable flow prover. Injector Dynamics supplied the emissions-compliant injectors for the twin-turbo Noble M600, and its injectors were fitted to the first seven-second Nissan GT-R and the first 300 mph motorcycle.
