Are these injectors plug and play on a stock Miata?

Yes. The potted USCAR to Denso adapters in this set plug into the factory Miata injector connectors, and the 11.02 bodies fit the factory locations. No wiring needs to be cut. The car still needs a recalibration before it is driven, because the fuel flow is far higher than stock.

What does potted mean on the adapters?

Potted means the adapter body is filled with a sealing compound around the wiring and terminals, which keeps moisture and vibration away from the connection. Injector Dynamics supplies them in this version so the USCAR injectors connect to the factory Denso style Miata plugs as a sealed unit rather than a splice.

Is the ID1300-XDS Fuel Injector Set worth it on a naturally aspirated Miata?

No, not on its own. The ID1300-XDS Fuel Injector Set delivers about 1335cc per minute per injector, far more than an unboosted Miata uses. It belongs on a turbocharged or supercharged car, or a build moving to E85, where the extra flow is the reason to change injectors in the first place.

Will the car run on the old calibration with these injectors?

No. At stock pulse widths, injectors this large would deliver far too much fuel, and their offset and short pulse behavior differ from the factory parts. Have the calibration updated with the Injector Dynamics characterization data at installation, before the car is driven.

Can I replace just one injector later?

Yes, through Injector Dynamics, which supplies singles to keep the flow match intact. Warranty cover lasts one year from purchase for manufacturer defects, provided the correct fuel and proper filtration are used, and a cleaning and flow test service is available in Arizona.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

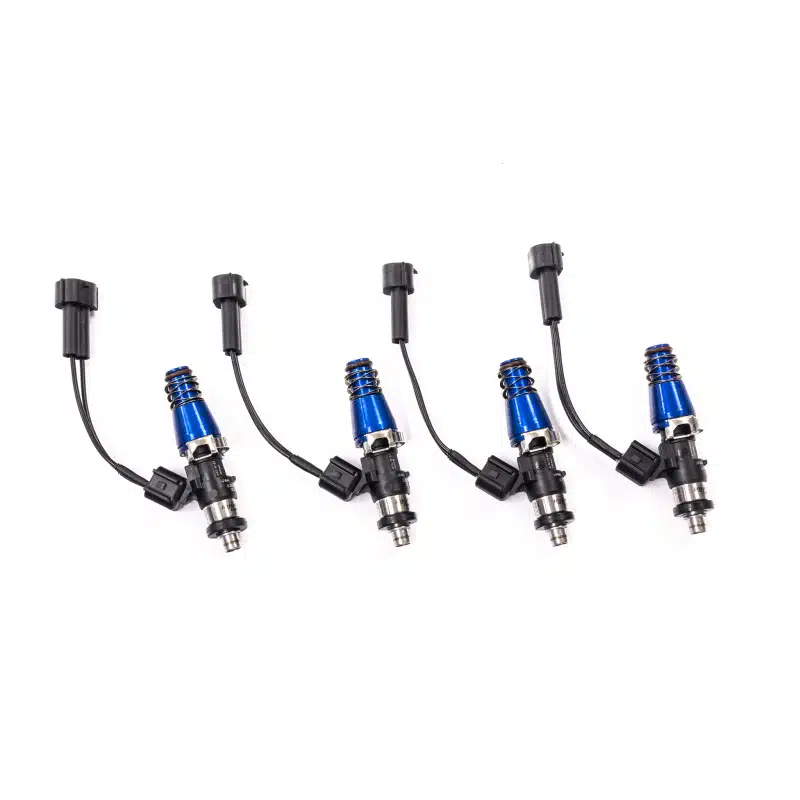

Injector Dynamics ID1300-XDS Fuel Injector Set for 1990-2005 NA and NB Mazda Miata with Plug-and-Play Adapters

Injector Dynamics’ ID1300-XDS Fuel Injector Set for 1990-2005 Mazda Miata arrives with potted USCAR to Denso plug-and-play adapters, so the four 1335cc/min injectors connect to the factory NA or NB wiring without cutting connectors. The 60mm bodies and blue 11mm tops follow the 11.02 Miata application. This is a set for a turbocharged or supercharged Miata, or one moving to E85, where the stock injectors have nothing left to give. On a naturally aspirated car it is oversized, even if the 1300 still idles cleanly on gasoline once tuned.

Configuration

The -PU suffix marks the version with potted adapters; the injectors themselves match the standard 1300.11.02.60.11.4 set. Injector Dynamics lists this adapter version for the Miata from 1990 to 2005, which covers both the NA and NB generations.

Features

Potted USCAR to Denso plug-and-play adapters included for factory Miata wiring
Minimum fuel mass kept compatible with gasoline, for steady idle and cruise on pump fuel
Flow matched as a set of four, with characterization data for the calibration

Specifications

Nominal flow: 1335cc/min at 3.0 bar (43.5 psi), iso-octane at 52C (125F)
Maximum differential fuel pressure: 7.0 bar (101.5 psi)
Fuel compatibility: All known fuels; designed specifically for alternative fuels
Electrical connector: USCAR
Body length: 60mm
Top: 11mm (blue)
Adapters: Potted USCAR to Denso plug-and-play, included

What’s Included

ID1300-XDS fuel injectors with blue 11mm tops (x4)
Potted USCAR to Denso plug-and-play adapters

Applications

Mazda Miata: NA and NB | 1990-2005

Notes

Potted USCAR to Denso plug-and-play adapters are included, so a separate Injector Dynamics USCAR to Denso PnP Adapter is not needed for factory wiring
Fueling must be recalibrated for these injectors using the published Injector Dynamics characterization data
Also offered as the ID1300-XDS Fuel Injector Set for Mazdaspeed Miata without adapters, ID1750-XDS Fuel Injector Set for Mazda Miata and ID2600-XDS Fuel Injector Set for Mazda Miata for the same application

Frequently Asked Questions

Are these injectors plug and play on a stock Miata? Yes. The potted USCAR to Denso adapters in this set plug into the factory Miata injector connectors, and the 11.02 bodies fit the factory locations. No wiring needs to be cut. The car still needs a recalibration before it is driven, because the fuel flow is far higher than stock.
What does potted mean on the adapters? Potted means the adapter body is filled with a sealing compound around the wiring and terminals, which keeps moisture and vibration away from the connection. Injector Dynamics supplies them in this version so the USCAR injectors connect to the factory Denso style Miata plugs as a sealed unit rather than a splice.
Is the ID1300-XDS Fuel Injector Set worth it on a naturally aspirated Miata? No, not on its own. The ID1300-XDS Fuel Injector Set delivers about 1335cc per minute per injector, far more than an unboosted Miata uses. It belongs on a turbocharged or supercharged car, or a build moving to E85, where the extra flow is the reason to change injectors in the first place.
Will the car run on the old calibration with these injectors? No. At stock pulse widths, injectors this large would deliver far too much fuel, and their offset and short pulse behavior differ from the factory parts. Have the calibration updated with the Injector Dynamics characterization data at installation, before the car is driven.
Can I replace just one injector later? Yes, through Injector Dynamics, which supplies singles to keep the flow match intact. Warranty cover lasts one year from purchase for manufacturer defects, provided the correct fuel and proper filtration are used, and a cleaning and flow test service is available in Arizona.

About Injector Dynamics

Injector Dynamics is an Arizona injector specialist and an authorized technical partner of Bosch Motorsport, developing its injectors to its own specification rather than modifying production parts. It introduced slope and offset matching in 2007, and its Dual Slope Matching, developed by engineer Aaron Looft, extends matching into the short pulse widths that boosted and ethanol engines rely on. Its flow benches are built in house and calibrated against a NIST-traceable flow prover. Injector Dynamics supplied the emissions-compliant injectors for the twin-turbo Noble M600, and its injectors were fitted to the first seven-second Nissan GT-R and the first 300 mph motorcycle.
