How much do the Sport Springs for LB724 Huracans lower the car?

The manufacturer lists the drop at approximately 0.80 inch at both the front and the rear, which is about 20mm. Because the drop is the same at each axle, the car keeps its factory rake. The exact figure varies with the options fitted to the car, so measure from the wheel center to the fender lip before and after installation.

Do I need the front lift system?

Yes, for this part number. The manufacturer lists 28689-2 for the Huracan with adaptive suspension and the front lift system, and lists 28689-1 for cars with adaptive suspension but without the front lift. Check the build of your car before ordering, because the two kits are not interchangeable between those specifications.

Will the adaptive dampers still work?

Yes. The Sport Springs for LB724 Huracans replace only the springs, and the manufacturer lists this kit specifically for cars with adaptive suspension. The factory dampers stay on the car, so their electronic control and the drive mode damping settings continue to operate as they did before the springs were changed.

Does the front lift keep working after lowering?

This version is built for cars equipped with the front lift system, which stays on the car. The manufacturer does not publish a lifted ride height figure after lowering, so if the lift is relied on for steep driveways or ramps, confirm the clearance you need with the manufacturer before ordering.

Is an alignment needed after installing the springs?

Yes. The manufacturer advises that alignment should be checked after any change to suspension ride height, and a 20mm drop at both axles changes camber and toe. It also notes that bump stop trimming is generally not needed unless the technical sheet supplied in the box says otherwise.

Should I choose these or the VTF system?

Choose the Sport Springs for one fixed drop of about 0.80 inch at a lower price. Choose the VTF system if you want to set the ride height yourself, from 0.20 to 1.0 inch at the front and 0.60 to 1.4 inches at the rear. Both keep the factory adaptive dampers and both require the front lift system.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

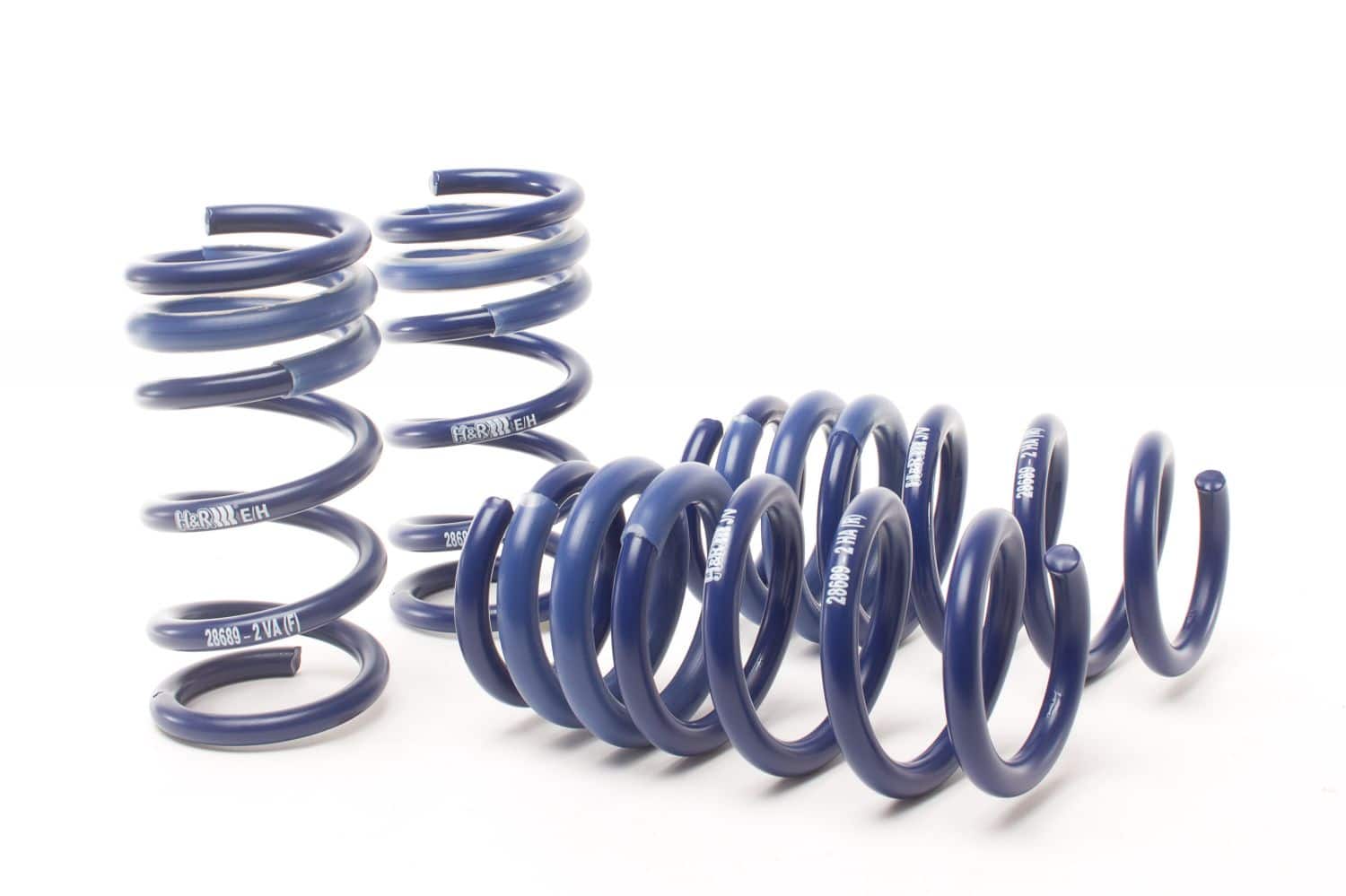

H&R Sport Springs for LB724 Lamborghini Huracan AWD with Front Lift System

H&R’s Sport Springs for LB724 Lamborghini Huracan AWD with Front Lift System take about 0.80in, roughly 20mm, out of the ride height at both axles, closing the wheel-arch gap evenly so the car keeps its factory rake. They are a spring swap that leaves the factory adaptive dampers in place, and with them the drive-mode damping, which makes them the least invasive way to lower a Huracan. The -2 part number matters: it is H&R’s version for cars fitted with the front lift system, and a separate kit covers cars without it. H&R builds the springs in Germany and finishes them in epoxy powder coat. For owners who want to set the height themselves, the VTF system is the adjustable alternative; for everyone else, one fixed, proven drop is the simpler answer.

Features

Lowers approximately 0.80in front and rear (about 20mm)
Equal drop at both axles keeps the factory rake
Works with the factory adaptive dampers, which stay on the car
Epoxy powder coat finish
Made in Germany
Sport Springs for LB724 cars are a straight replacement for the factory springs

What’s Included

Front and rear spring set

Applications

Lamborghini Huracan LP610-4: LB724 | 2014-2019 | 5.2L V10
Lamborghini Huracan Performante: LB724 | 2017-2019 | 5.2L V10

Notes

Requires the factory adaptive suspension and the front lift system; cars without the front lift take H&R part 28689-1 instead
Springs only; the factory dampers are retained
H&R USA lists this kit for the all-wheel-drive Huracan LP610-4; the Performante is listed from H&R Germany data
Check the alignment after installation
H&R warrants its springs for as long as the original purchaser owns the vehicle, against defects in material and workmanship, with installation by a qualified mechanic; racing and off-road use are excluded
For adjustable ride height on the same cars, see the H&R VTF Adjustable Lowering Springs for LB724 Lamborghini Huracan AWD 23019-1

Frequently Asked Questions

How much do the Sport Springs for LB724 Huracans lower the car? The manufacturer lists the drop at approximately 0.80 inch at both the front and the rear, which is about 20mm. Because the drop is the same at each axle, the car keeps its factory rake. The exact figure varies with the options fitted to the car, so measure from the wheel center to the fender lip before and after installation.
Do I need the front lift system? Yes, for this part number. The manufacturer lists 28689-2 for the Huracan with adaptive suspension and the front lift system, and lists 28689-1 for cars with adaptive suspension but without the front lift. Check the build of your car before ordering, because the two kits are not interchangeable between those specifications.
Will the adaptive dampers still work? Yes. The Sport Springs for LB724 Huracans replace only the springs, and the manufacturer lists this kit specifically for cars with adaptive suspension. The factory dampers stay on the car, so their electronic control and the drive mode damping settings continue to operate as they did before the springs were changed.
Does the front lift keep working after lowering? This version is built for cars equipped with the front lift system, which stays on the car. The manufacturer does not publish a lifted ride height figure after lowering, so if the lift is relied on for steep driveways or ramps, confirm the clearance you need with the manufacturer before ordering.
Is an alignment needed after installing the springs? Yes. The manufacturer advises that alignment should be checked after any change to suspension ride height, and a 20mm drop at both axles changes camber and toe. It also notes that bump stop trimming is generally not needed unless the technical sheet supplied in the box says otherwise.
Should I choose these or the VTF system? Choose the Sport Springs for one fixed drop of about 0.80 inch at a lower price. Choose the VTF system if you want to set the ride height yourself, from 0.20 to 1.0 inch at the front and 0.60 to 1.4 inches at the rear. Both keep the factory adaptive dampers and both require the front lift system.

About H&R

H&R was founded in 1980 by Werner Heine and Heinz Remmen, whose initials give the company its name, with the aim of lowering road cars without losing type approval. Every H&R spring is produced at the family-run company’s own facility in Germany’s Sauerland region, and its motorsport work includes an official partnership with Manthey Racing and supply to DTM teams.
