Does the Super Manifold GT-SPEC for ZN6 cars need a tune?

Yes, or an O2 sensor change. HKS states that the stock O2 sensor must be modified unless the car runs the HKS Flash Editor, and no engine management is included. O2 sensor relocation is not possible on manual cars built from August 2016, so owners of those cars should confirm the setup first.

Will it fit an automatic 86, FR-S or BRZ?

Yes, according to HKS. HKS Japan marks the manifold compatible with both manual and automatic cars, with one exception: the later 4BA-code BRZ automatic, which HKS says does not comply with Japanese regulations. HKS gives no other fitment limit for automatic cars.

What happens to the factory catalysts?

HKS builds a compact, high-capacity catalyzer into the manifold in place of the factory first catalyst, and the factory second catalyst stays on the car, so the exhaust still runs two catalysts in total. HKS says the design passes the Japanese exhaust gas regulations.

How much power does it add?

On the HKS dyno against the factory manifold, the Super Manifold GT-SPEC for ZN6 cars gained about 8hp between 3,000 and 4,000rpm and close to 9hp near 6,700rpm. HKS does not state the rest of the test car setup, so treat these as HKS in-house results. It pairs with rear sections such as the HKS Hi-Power SPEC-L II The Bluest Edition or LEGAMAX Premium with Center Pipe.

Is it legal for road use in the United States?

Not as certified by HKS. HKS certifies part 33005-AT007 to the Japanese exhaust gas regulations only and has published no US certification or CARB Executive Order number, so the buyer must confirm road legality locally and treat the part as intended for off-road or competition use.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

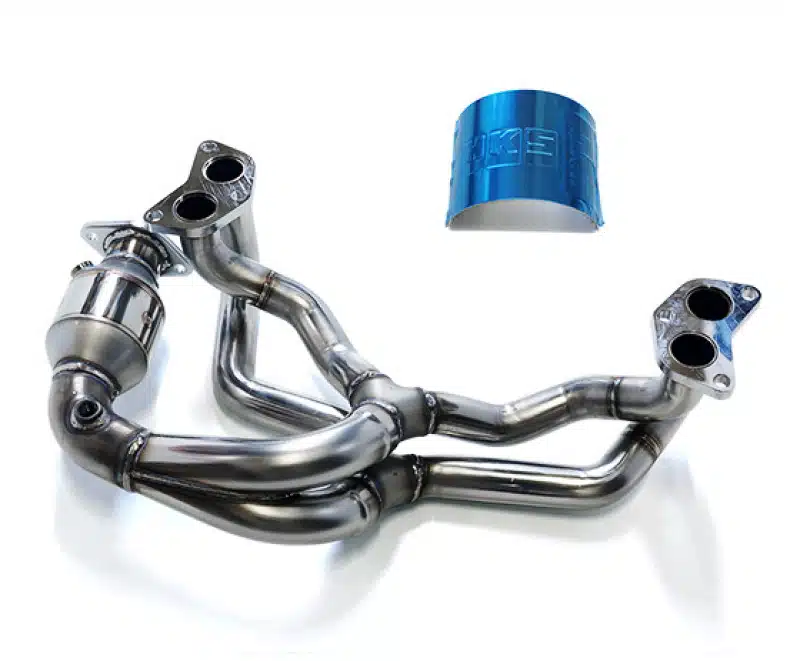

HKS Sport Cat Super Manifold GT-SPEC for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ

HKS’s Sport Cat Super Manifold GT-SPEC for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ replaces the factory FA20 exhaust manifold and its first catalyst with a 4-2-1 SUS304 stainless manifold carrying a compact, high-capacity HKS catalyzer. HKS says the factory manifold catalyst restricts exhaust flow, and its own dyno chart shows gains of about 8hp in the mid range and close to 9hp near 6,700rpm.

Development and Testing

HKS chose a 4-2-1 layout for performance and packaged a smaller catalyzer that still clears the Japanese exhaust gas regulations by using more purification material. The renewed layout and catalyzer lower exhaust pressure, which HKS says sharpens acceleration response in the normal rev range and adds power at high rpm, and the Super Manifold GT-SPEC for ZN6 cars is built in SUS304 for strength in circuit use.

Features

4-2-1 layout stepping from 42.7mm to 50.8mm to 60mm
Compact, high-capacity HKS catalyzer built into the manifold in place of the factory first catalyst
SUS304 stainless steel for strength in circuit use

Specifications

Pipe Diameter: 42.7mm to 50.8mm to 60mm
Layout: 4-2-1
Main Material: SUS304 stainless steel
Catalyst: HKS catalyzer in the manifold, factory second catalyst retained
Largest Gain, HKS Test: Close to 9hp near 6,700rpm, against the factory manifold

Applications

Scion FR-S: ZN6 | 2013-2016 | FA20
Subaru BRZ: ZC6 | 2013-2020 | FA20
Toyota 86: ZN6 | 2017-2020 | FA20

Notes

No engine management is included; HKS says the stock O2 sensor must be modified unless the car runs the HKS Flash Editor, sold separately
HKS Japan says O2 sensor relocation is not possible on manual cars built from August 2016, so owners of those cars should confirm the setup with Bulletproof Automotive before ordering
Dyno gains are HKS in-house figures, and HKS does not state the rest of the test car setup
This manifold is intended for off-road or competition use where emissions laws apply; HKS certifies it to Japanese exhaust gas regulations only, no CARB Executive Order number is published, and the buyer is responsible for checking local regulations

Frequently Asked Questions

Does the Super Manifold GT-SPEC for ZN6 cars need a tune? Yes, or an O2 sensor change. HKS states that the stock O2 sensor must be modified unless the car runs the HKS Flash Editor, and no engine management is included. O2 sensor relocation is not possible on manual cars built from August 2016, so owners of those cars should confirm the setup first.
Will it fit an automatic 86, FR-S or BRZ? Yes, according to HKS. HKS Japan marks the manifold compatible with both manual and automatic cars, with one exception: the later 4BA-code BRZ automatic, which HKS says does not comply with Japanese regulations. HKS gives no other fitment limit for automatic cars.
What happens to the factory catalysts? HKS builds a compact, high-capacity catalyzer into the manifold in place of the factory first catalyst, and the factory second catalyst stays on the car, so the exhaust still runs two catalysts in total. HKS says the design passes the Japanese exhaust gas regulations.
How much power does it add? On the HKS dyno against the factory manifold, the Super Manifold GT-SPEC for ZN6 cars gained about 8hp between 3,000 and 4,000rpm and close to 9hp near 6,700rpm. HKS does not state the rest of the test car setup, so treat these as HKS in-house results. It pairs with rear sections such as the HKS Hi-Power SPEC-L II The Bluest Edition or LEGAMAX Premium with Center Pipe.
Is it legal for road use in the United States? Not as certified by HKS. HKS certifies part 33005-AT007 to the Japanese exhaust gas regulations only and has published no US certification or CARB Executive Order number, so the buyer must confirm road legality locally and treat the part as intended for off-road or competition use.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
