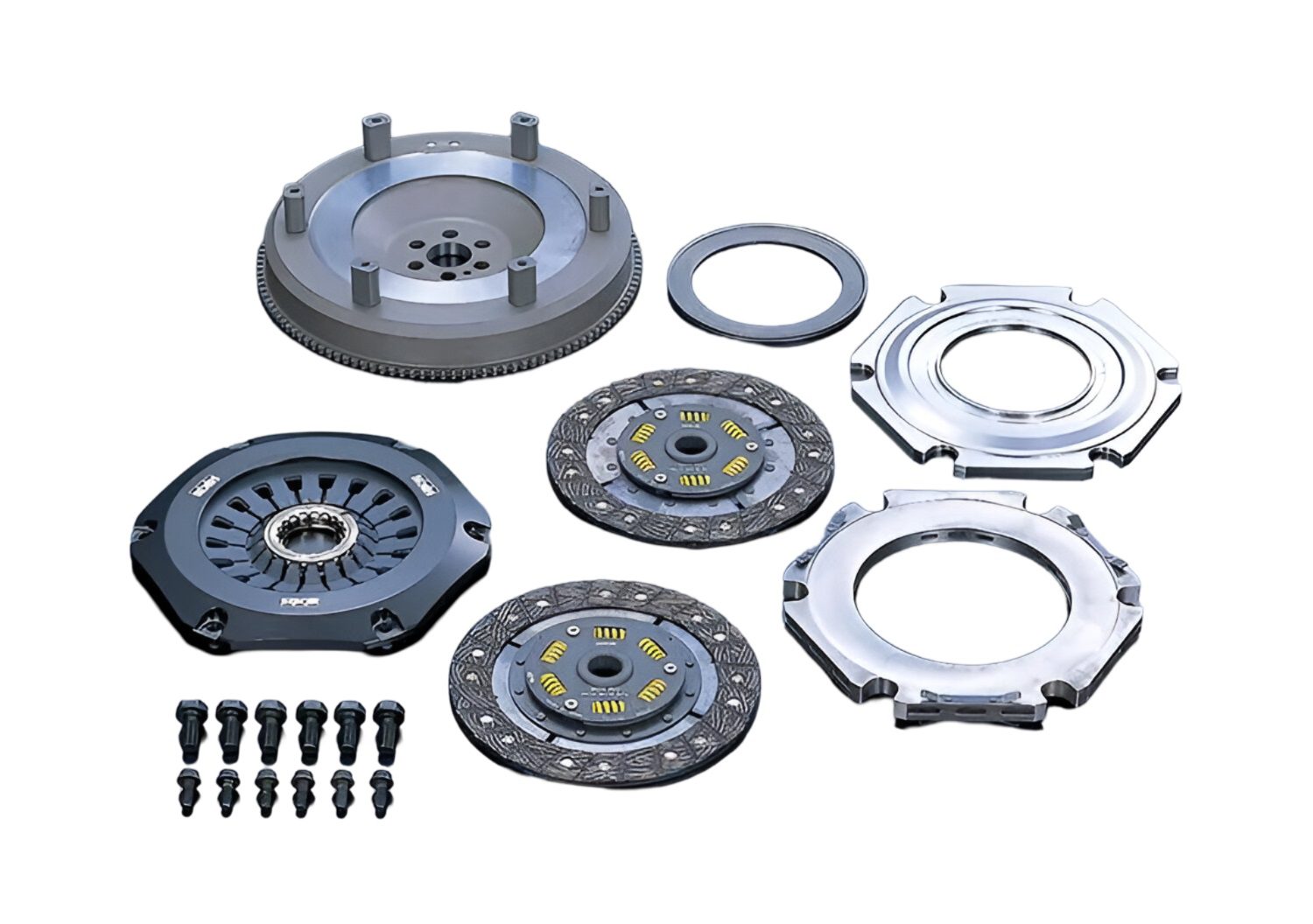

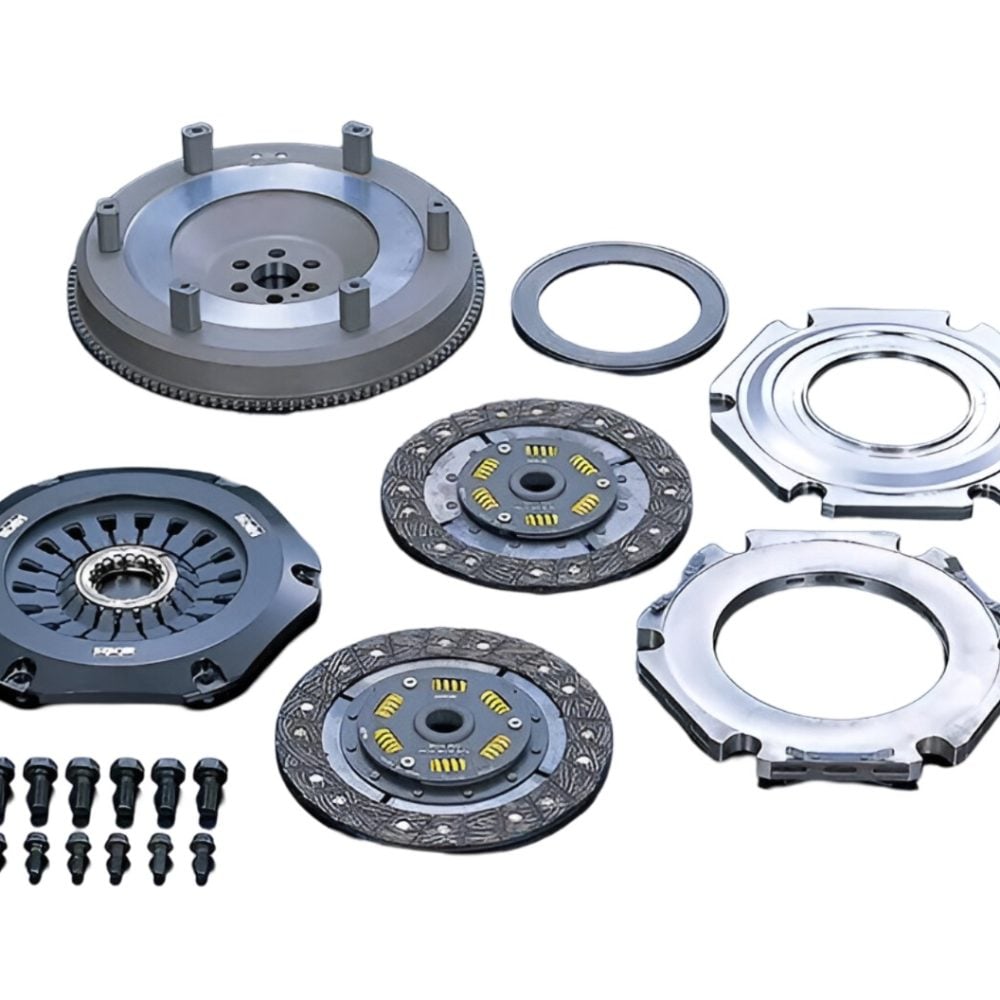

HKS Twin-Disc LA Clutch for FD3S Mazda RX-7

HKS Twin-Disc LA Clutch for FD3S Mazda RX-7

HKS, the tuning expert, offers a clutch system designed for both street and sports applications. With careful consideration given to torque capacity, pedal effort, and semi-engagement range, HKS’s clutch system is tailored for a variety of driving scenarios. Supporting up to approximately 700ps, the Twin Plate LA Clutch maintains its core concept. It uses “MG Composite Discs” to reduce judder and enhance driving feel over the stock clutch. Disc dampers help minimize gear noise and shield the transmission from shock torque. Additionally, the LA Twin features a “Pivot Ring” within the pressure plate, delivering a unique partial engagement that stands out among twin plate clutches.

Lightweight Pressure Plate & Redesigned Diaphragm Spring

• High-capacity clutches typically come with a heavy pedal feel, but HKS employs a diaphragm spring design to achieve a clutch that is not only manageable on the street but also offers a positive, precise feel suitable for circuit driving. The pressure plate is crafted from high-strength forged aluminum.

8.5″ MG Composite Disc with Damper

• A newly developed 8.5-inch disc supports high torque levels, while the addition of a damper reduces gear noise and protects the powertrain from sudden shocks and potential damage. With a stable friction coefficient, the clutch minimizes judder, making it easier to use.

Accurate Disengagement & Friction / Wear Balance Form Lifting Plate

• Lifting plates are attached to the center plate to ensure the clutch disc stays centered when disengaged, extending the life of the clutch disc and reducing the noise often associated with multi-plate clutches.

Pivot Ring for Superior Semi Engaged Clutch Feel

• A low-strength, ring-shaped spring on the pressure plate (pivot ring) extends the clutch’s semi-engaged zone, providing a smoother driving experience typically lacking in high-capacity clutches.

Lightweight Flywheel for Improved Response

• HKS has calculated and tested the ideal flywheel weight for each vehicle, balancing improved response with maintaining comfort. Overall, the kit is lighter than the stock clutch, optimizing vehicle performance without sacrificing drivability.

Features

• Twin plate clutch with the concept of the LA Clutch (light action)
• With big capacity as metal clutches, easy clutch operation as stock
• High total balance clutch system

Specifications

• Maximum Torque: 73kgf-m
• Maximum Horsepower: 700ps
• Pedal Force:
  • Twin LA Clutch: 192N
  • Stock: 145N
• FW Weight:
  • Twin LA Clutch: 5.90kg
  • Stock: 8.47kg
• Kit Weight:
  • Twin LA Clutch: 13.76kg
  • Stock: 15.21kg

Applications

• Mazda RX-7: FD3S (1991-1997) – 1.3L TT 2-Rotor 13B-REW

Notes

• The acceptable range refers to the range of engine torque within which the clutch operates effectively, excluding instances of intentional clutch overheating. The conditional acceptable range indicates torque levels where the clutch may experience slippage due to factors like aggressive operation, tire kickback, or part distortion. Exceeding this limit may cause the clutch to slip during high-rpm engagement. The mechanical limitation represents the point where slippage begins to occur under acceleration during normal driving conditions.
• Pedal force was measured with a test vehicle, it may be different depending on each vehicle’s specification
• Counter weight is required for installation / operation (N3Y2-11-52X)
• Release bearing recommended for installation / operation (N315-16-510 1)
