Does the HIPERMAX S Coilover Kit for FL5 include the Suspension Error Canceller?

Yes. The Canceller is supplied in the box, so the factory adaptive damper circuit does not log a fault once the original dampers come out. This is the CP variant of the kit, which is why the part number ends in CP, and no separate canceller purchase is required.

How much lower does it sit than stock?

As delivered HKS sets the HIPERMAX S Coilover Kit for FL5 with the front 31mm below stock and the rear 22mm below stock. The adjustable range runs from 26mm to 44mm lower at the front and from stock height to 41mm lower at the rear, and HKS confirms the whole range is free of body and arm contact.

What does the pillow upper mount actually change?

It replaces the rubber front upper mount with a spherical bearing, which removes deflection from the steering and sharpens response. It also allows camber adjustment at the top of the strut, so wider tyres and more negative camber can be dialled in to reduce understeer on a front-drive chassis.

Can the spring rates be changed?

Yes, and HKS prefers to do it at the factory rather than leaving owners to re-spring. Standard rates on the HIPERMAX S Coilover Kit for FL5 are 98 N/mm front and 78 N/mm rear on a 170mm free height. HKS recommends no more than 20 N/mm stiffer at the front and no more than 10 N/mm either way at the rear.

How does it compare to the HKS Hipermax R?

The HIPERMAX S Coilover Kit for FL5 is the road-biased choice, built around ride quality with Dual PVS valving, a Wide Range Needle and helper springs at both ends. The Hipermax R is the more track-focused damper in the range. Both are offered for the FL5 with a canceller included.

Is the front damping adjustable without removing anything?

Both ends carry 30 clicks of adjustment and the default position is 15. The rear adjusters are remote and operated by wire, which makes them reachable without dismantling the interior. Front adjustment is made at the damper itself, which on this chassis means working in the engine bay.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

HKS HIPERMAX S Coilover Kit for FL5 Honda Civic Type R

HKS’s HIPERMAX S Coilover Kit for FL5 Honda Civic Type R is the version of the HIPERMAX S that HKS built specifically around a front pillow upper mount, and that single choice changes the character of the car. The spherical bearing gives the steering a directness a rubber mount cannot, and it opens up camber adjustment, so wider tyres and more negative camber become a way to kill understeer rather than a compromise. Underneath, Dual PVS valving, a Wide Range Needle and an Advanced Bump Rubber deliver what HKS calls the best ride quality in the history of its suspension, and a Suspension Error Canceller is included so the factory adaptive damper circuit stays quiet.

Design and Performance

The front is an inverted coilover on a spherical-bearing upper mount, the rear a separated damper and spring on a rubber mount with a height-adjustable lower bracket and remote damping adjustment by wire. Both ends carry 30 steps of damping and a helper spring, 19.8 N/mm at the front and 7.6 N/mm at the rear, which is what keeps the HIPERMAX S Coilover Kit for FL5 composed over broken surfaces instead of skipping. HKS sets the car 31mm lower than stock at the front and 22mm at the rear as delivered, with room to go to 44mm and 41mm respectively, all of it inside the range HKS confirms is free of body and arm contact.

Construction

Dual PVS valving separates low-speed and high-speed damping behaviour, the Wide Range Needle widens the useful span of the 30 clicks so the extremes remain usable, and the Advanced Bump Rubber manages the last of the stroke rather than slamming into it. Straight-wound springs measure 98 N/mm at the front and 78 N/mm at the rear on a common 170mm free height, and HKS will change rates at the factory, recommending up to 20 N/mm more at the front and 10 N/mm either way at the rear. The upper plate is gunmetal-anodised aluminium to match the rest of the HIPERMAX range.

Features

Front pillow ball upper mount with camber adjustment, the feature that separates this kit from the standard HIPERMAX S
Suspension Error Canceller included with the HIPERMAX S Coilover Kit for FL5, so no separate purchase is needed
30 steps of damping at both ends, adjusted at the rear by wire
Helper springs front and rear for low-speed compliance
Height-adjustable lower bracket at the rear
Factory spring-rate changes available on the HIPERMAX S Coilover Kit for FL5 rather than aftermarket re-springing

Specifications

Damping adjustment: 30 steps front and rear, default dial position 15
Spring rates: 98 N/mm (10.0 kgf/mm) front, 78 N/mm (8.0 kgf/mm) rear
Spring free height: 170mm front and rear, straight wound
Helper spring rates: 19.8 N/mm front, 7.6 N/mm rear
Damping force: 1050 / 623 N front, 393 / 304 N rear (rebound / compression)
Remaining damper stroke: 65 / 51mm front, 78 / 58mm rear
Ride height as delivered: 31mm below stock front, 22mm below stock rear
Ride height range: 26mm to 44mm below stock front, 0mm to 41mm below stock rear
Damper type: inverted front, normal rear
Product weight: 32kg

What’s Included

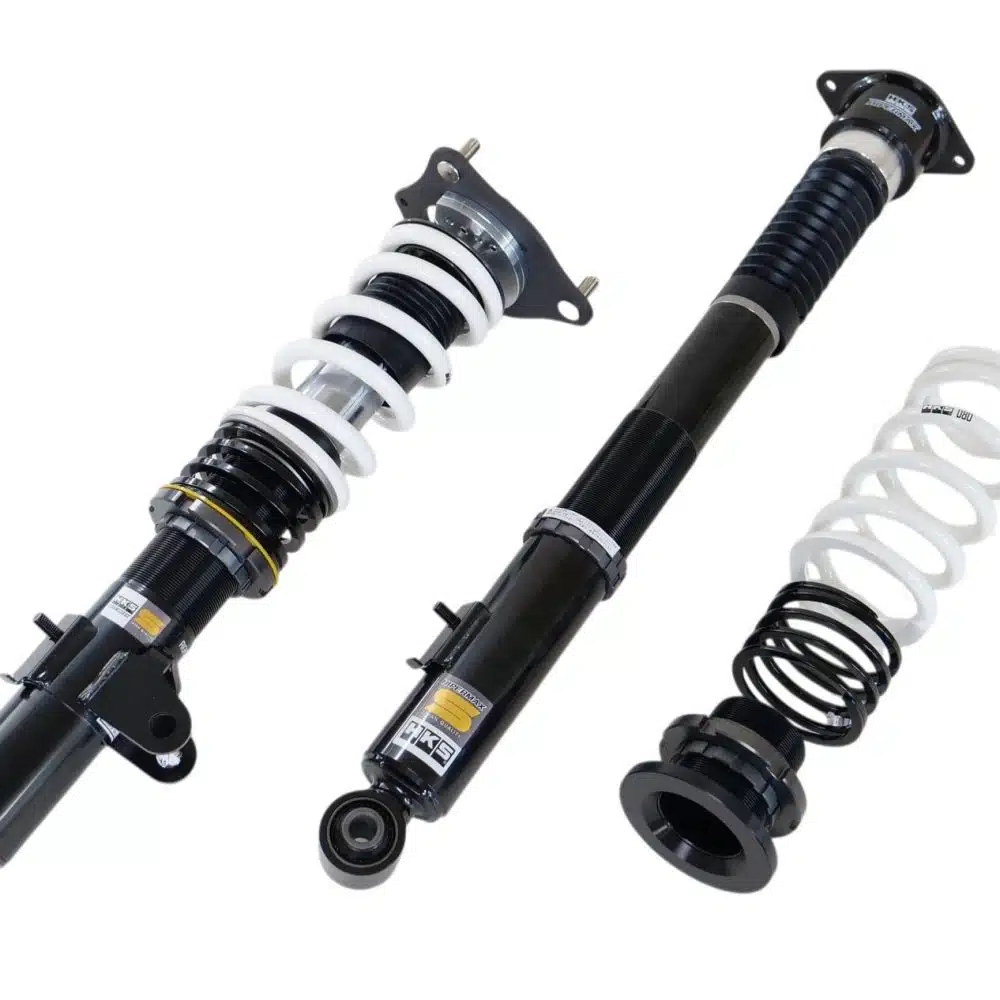

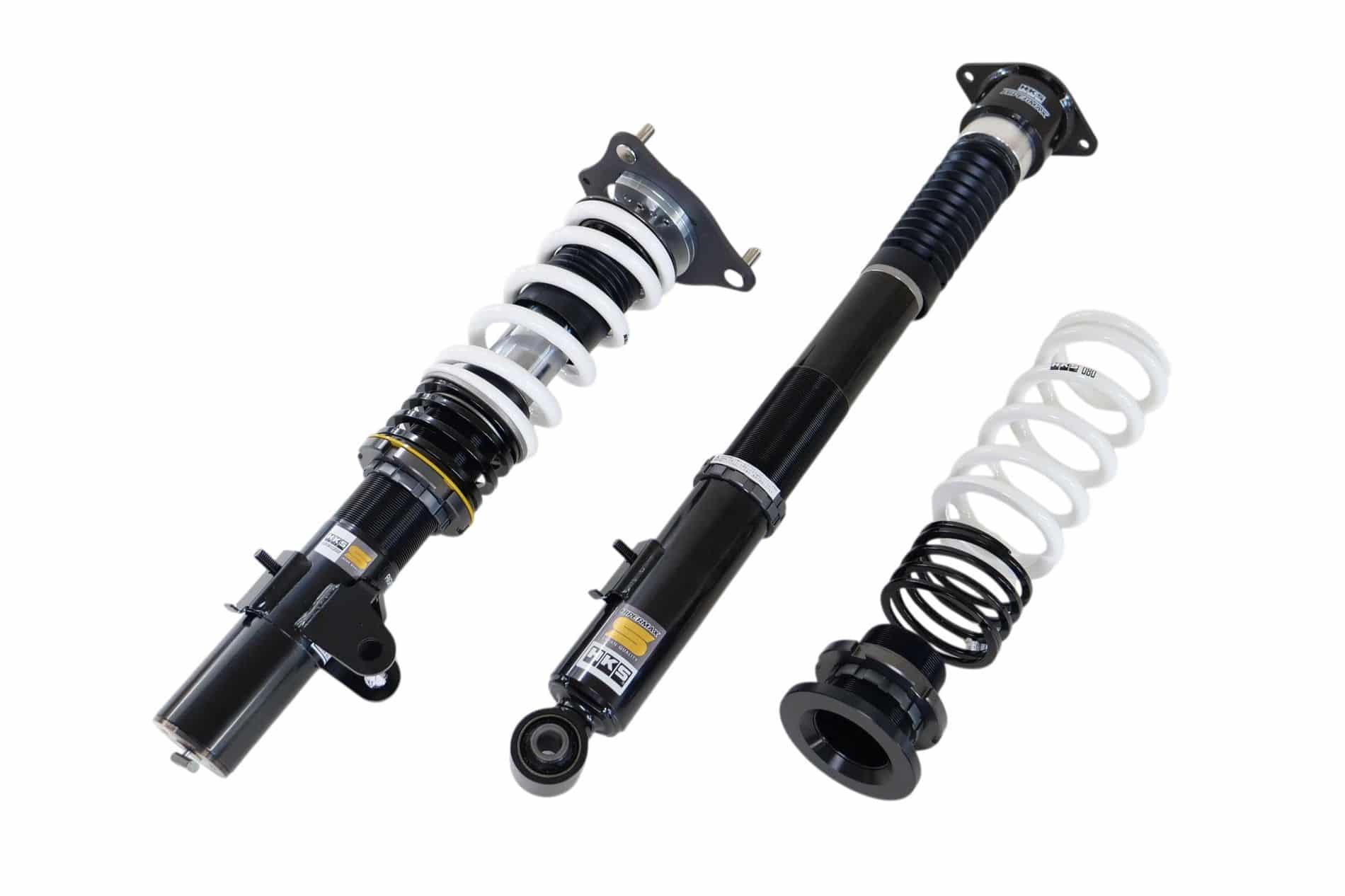

Four HIPERMAX S Coilover Kit for FL5 dampers with springs and pillow ball front upper mounts
Suspension Error Canceller
Rear remote damping adjusters

Applications

Honda Civic Type R: FL5 | 2023-present | K20C

Notes

The spherical bearing in the front upper mount is a consumable. HKS sells replacement bearings separately, and Bulletproof Automotive does not currently stock them, so plan on sourcing them from HKS when the time comes.
HKS quotes its ride-height figures from the road surface to the fender arch, measured on 265/30-19 tyres on 9.5J x 19 inset 60 wheels. Actual figures vary by car.
Running the lowest setting may not be road legal in every jurisdiction, and HKS voids the product warranty for damper oil leakage caused by ride heights set below its own figures
California Prop 65 warning applies to this product
Pairs with the HKS Carbon Brace for FL5 Honda Civic Type R 83001-AH001, which HKS finishes in the same gunmetal anodising as the HIPERMAX range
For a more track-focused damper on the same chassis, compare the HKS Hipermax R Coilover Kit w/ Canceller Kit for FL5 Honda Civic Type R 80310-AH005C
For a kit that keeps the factory adaptive dampers and changes ride height and front geometry only, compare the HKS HIPERMAX Touring Spring Kit for FL5 Honda Civic Type R 80280-AH001
Browse the full HKS range on Bulletproof Automotive

Frequently Asked Questions

Does the HIPERMAX S Coilover Kit for FL5 include the Suspension Error Canceller? Yes. The Canceller is supplied in the box, so the factory adaptive damper circuit does not log a fault once the original dampers come out. This is the CP variant of the kit, which is why the part number ends in CP, and no separate canceller purchase is required.
How much lower does it sit than stock? As delivered HKS sets the HIPERMAX S Coilover Kit for FL5 with the front 31mm below stock and the rear 22mm below stock. The adjustable range runs from 26mm to 44mm lower at the front and from stock height to 41mm lower at the rear, and HKS confirms the whole range is free of body and arm contact.
What does the pillow upper mount actually change? It replaces the rubber front upper mount with a spherical bearing, which removes deflection from the steering and sharpens response. It also allows camber adjustment at the top of the strut, so wider tyres and more negative camber can be dialled in to reduce understeer on a front-drive chassis.
Can the spring rates be changed? Yes, and HKS prefers to do it at the factory rather than leaving owners to re-spring. Standard rates on the HIPERMAX S Coilover Kit for FL5 are 98 N/mm front and 78 N/mm rear on a 170mm free height. HKS recommends no more than 20 N/mm stiffer at the front and no more than 10 N/mm either way at the rear.
How does it compare to the HKS Hipermax R? The HIPERMAX S Coilover Kit for FL5 is the road-biased choice, built around ride quality with Dual PVS valving, a Wide Range Needle and helper springs at both ends. The Hipermax R is the more track-focused damper in the range. Both are offered for the FL5 with a canceller included.
Is the front damping adjustable without removing anything? Both ends carry 30 clicks of adjustment and the default position is 15. The rear adjusters are remote and operated by wire, which makes them reachable without dismantling the interior. Front adjustment is made at the damper itself, which on this chassis means working in the engine bay.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
