Do the Hipermax R Coilovers for ZN6 fit the Scion FR-S and first generation BRZ?

Yes. HKS lists part number 80310-AT001 for the Scion FR-S from 2013 to 2016, the Toyota 86 from 2017 to 2020 and the ZC6 Subaru BRZ from 2013 to 2020, all with the FA20 engine. One kit covers all three because they share the same platform.

Will this kit fit the 2022 and later GR86 or BRZ?

No. The FA24 powered ZN8 GR86 and ZD8 BRZ use different HKS part numbers. HKS lists 80310-AT006 for the ZN8 GR86 and 80310-AF005 for the ZD8 BRZ, and Bulletproof Automotive carries the Hipermax R Coilovers for ZD8 Subaru BRZ for owners of the newer BRZ.

What does the rear helper spring do?

The rear of the Hipermax R Coilovers for ZN6 carries a 19.8 N/mm helper spring alongside the 98 N/mm main spring. A helper spring keeps the main spring seated when the suspension extends fully, such as over a crest or with the car on a lift, which helps prevent rattles.

Is the ride acceptable for daily driving?

Yes, for most owners. HKS built the Hipermax R line for drivers who want circuit performance without giving up everyday comfort, and it quotes 7 clicks front and 9 clicks rear from its Fuji Speedway setting work. The spherical bearing mounts do add some road feel and noise compared with rubber mounts.

How low does the kit sit compared with a stock 86?

As delivered, HKS sets the Hipermax R Coilovers for ZN6 19mm below stock height at the front and 20mm below at the rear, measured on a ZN6 Toyota 86. The front adjusts down to 40mm below stock and the rear to 48mm below. HKS does not offer factory spring rate changes for this kit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

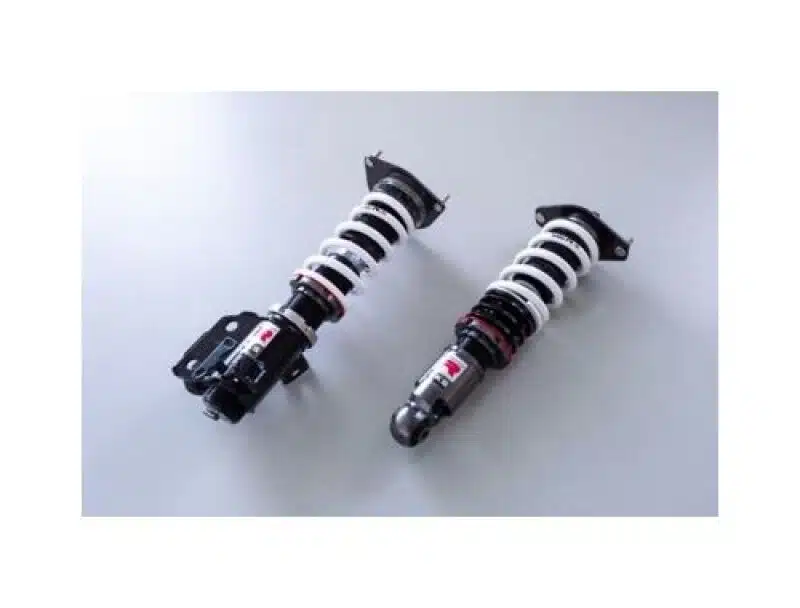

HKS Hipermax R Coilovers for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ

The HKS Hipermax R Coilovers for ZN6 cover the first-generation FA20 twins: the Toyota 86 and Scion FR-S on the ZN6 chassis and the ZC6 Subaru BRZ, all rear-wheel drive. HKS uses one part number across the three and did its setting work at Fuji Speedway on ADVAN A052 tires. Hipermax R builds on the HIPERMAX S damper and adds three parts found only on the R line: SRF damper oil, LVS high-strength springs and an upper spring retainer. These cars reward chassis work more than power, so the kit suits an owner doing track days and mountain roads; the later FA24 cars need different HKS kits.

Features

Inverted front dampers and normal-type rear dampers, both HKS single-tube designs with a large-diameter piston
Dual PVS (Dual Preload Valve System) valving carried over from the HIPERMAX S
Rear helper spring to keep the main spring located at full droop
Shock-body length adjustable construction with height-adjustable lower brackets
Spherical bearing upper mounts front and rear, supplied as standard with no rubber mount option before shipping
Upper Spring Retainer, exclusive to Hipermax R, keeps the damper axis and spring load line aligned for less friction
SRF Super Response Fluid, a high-viscosity damper oil that resists heat sag
LVS Low Vibration Springs wound from 210k-grade wire, with a shorter wire length that saves weight and sharpens steering response
PNE coating that stops parts sticking from rust and reduces the effort needed to adjust ride height

Specifications

Spring rate, front: 88 N/mm (9 kgf/mm)
Spring rate, rear: 98 N/mm (10 kgf/mm)
Helper spring rate, rear: 19.8 N/mm
Spring length: 170mm front, 150mm rear, both straight
Ride height as delivered, front: 19mm below stock (adjustable from stock height to 40mm below)
Ride height as delivered, rear: 20mm below stock (adjustable from stock height to 48mm below)
Damping force at 0.1 m/s, front: 765 N rebound, 392 N compression
Damping force at 0.1 m/s, rear: 432 N rebound, 461 N compression
Damping adjustment: 30 steps front and rear
Shipping weight: 24.8 kg (54.7 lb)

Applications

Scion FR-S: ZN6 | 2013-2016 | FA20
Subaru BRZ: ZC6 | 2013-2020 | FA20
Toyota 86: ZN6 | 2017-2020 | FA20

Notes

One part number, 80310-AT001, covers the ZN6 Toyota 86, the Scion FR-S and the ZC6 Subaru BRZ
This kit does not fit the 2022 and later ZN8 GR86 or ZD8 BRZ; the ZD8 takes the HKS Hipermax R Coilovers for ZD8 Subaru BRZ (80310-AF005) and the ZN8 takes part number 80310-AT006
The HKS HIPERMAX S Pillow Coilover Kit for ZN6 Toyota 86 and ZC6 Subaru BRZ (80330-AT001P) is the HIPERMAX S kit for the same cars, without the three parts exclusive to the Hipermax R Coilovers for ZN6
HKS warns that the lowest ride height may not be road legal and that body or arm contact can occur even inside the adjustable range
HKS covers Hipermax R for 2 years or 40,000 km, and damper oil leakage or other problems caused by lowering below the HKS delivered height can void that warranty
Professional installation and an alignment are recommended after fitting the Hipermax R Coilovers for ZN6

Frequently Asked Questions

Do the Hipermax R Coilovers for ZN6 fit the Scion FR-S and first generation BRZ? Yes. HKS lists part number 80310-AT001 for the Scion FR-S from 2013 to 2016, the Toyota 86 from 2017 to 2020 and the ZC6 Subaru BRZ from 2013 to 2020, all with the FA20 engine. One kit covers all three because they share the same platform.
Will this kit fit the 2022 and later GR86 or BRZ? No. The FA24 powered ZN8 GR86 and ZD8 BRZ use different HKS part numbers. HKS lists 80310-AT006 for the ZN8 GR86 and 80310-AF005 for the ZD8 BRZ, and Bulletproof Automotive carries the Hipermax R Coilovers for ZD8 Subaru BRZ for owners of the newer BRZ.
What does the rear helper spring do? The rear of the Hipermax R Coilovers for ZN6 carries a 19.8 N/mm helper spring alongside the 98 N/mm main spring. A helper spring keeps the main spring seated when the suspension extends fully, such as over a crest or with the car on a lift, which helps prevent rattles.
Is the ride acceptable for daily driving? Yes, for most owners. HKS built the Hipermax R line for drivers who want circuit performance without giving up everyday comfort, and it quotes 7 clicks front and 9 clicks rear from its Fuji Speedway setting work. The spherical bearing mounts do add some road feel and noise compared with rubber mounts.
How low does the kit sit compared with a stock 86? As delivered, HKS sets the Hipermax R Coilovers for ZN6 19mm below stock height at the front and 20mm below at the rear, measured on a ZN6 Toyota 86. The front adjusts down to 40mm below stock and the rear to 48mm below. HKS does not offer factory spring rate changes for this kit.
How does the Hipermax R compare with the HIPERMAX S for these cars? The Hipermax R keeps the HIPERMAX S single-tube dampers, Dual PVS valving and 30-step adjustment, then adds three parts exclusive to the R line: SRF damper oil, LVS high-strength springs and an upper spring retainer. HKS aims the R at owners who put track performance first. Bulletproof Automotive carries both kits for the FA20 cars.
